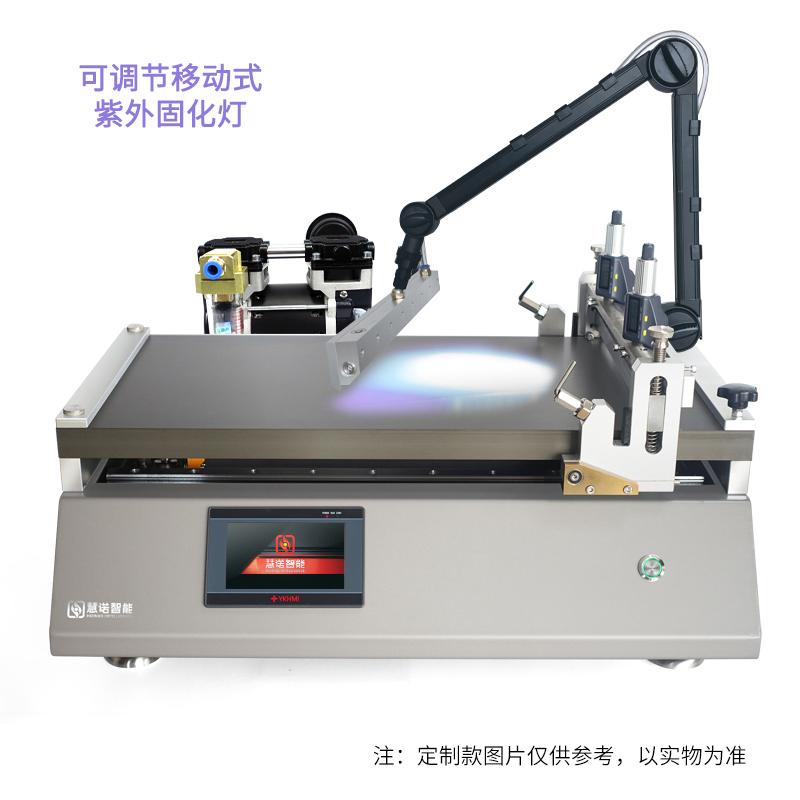

HuiNuo TM3300UV/01 drawdown Bar & blade heating Vacuum chuck Film Applicator with portable UV curing lamp

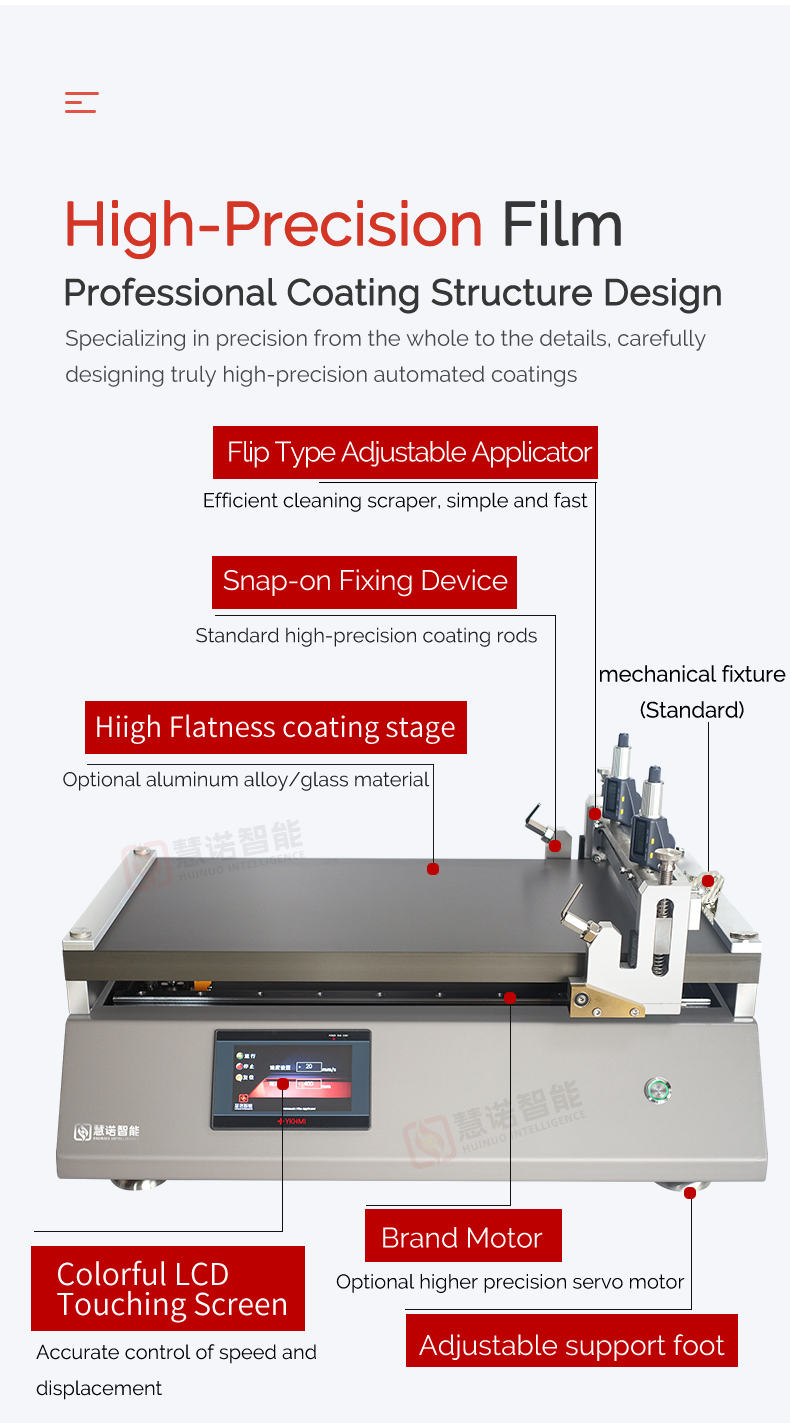

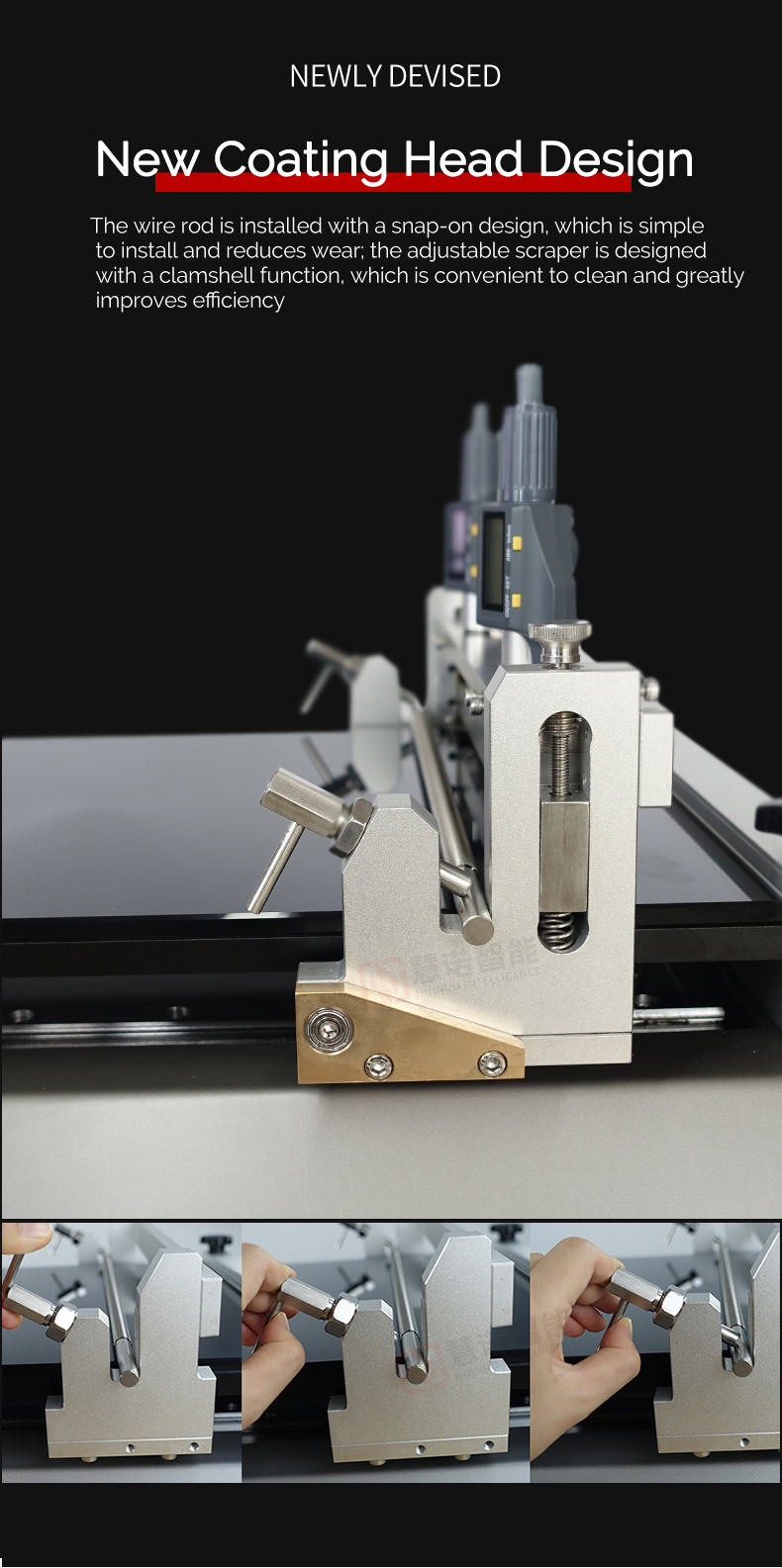

SEBar + Drawdown blade + Heating + Vacuum chuck integrated, with portable UV curing lamp, support heating curing + UV curing, simple bar groove design, bar installation is simple, digital adjustable Drawdown blade clamshell design, cleaning fast.
$5978.00/set
PromotionLoading...
Coupon
Model：
TM3300UV/01
Similar products
HuiNuo TM3300UV/01 Automatic Film ApplicatorSPEC
HuiNuo TM3300UV/01 Automatic Film ApplicatorDetails
HuiNuo TM3300UV/01 Automatic Film ApplicatorPacking list
- SKU
- NB048850
- Coating Method
- Bar + Drawdown blade
- Coating Speed

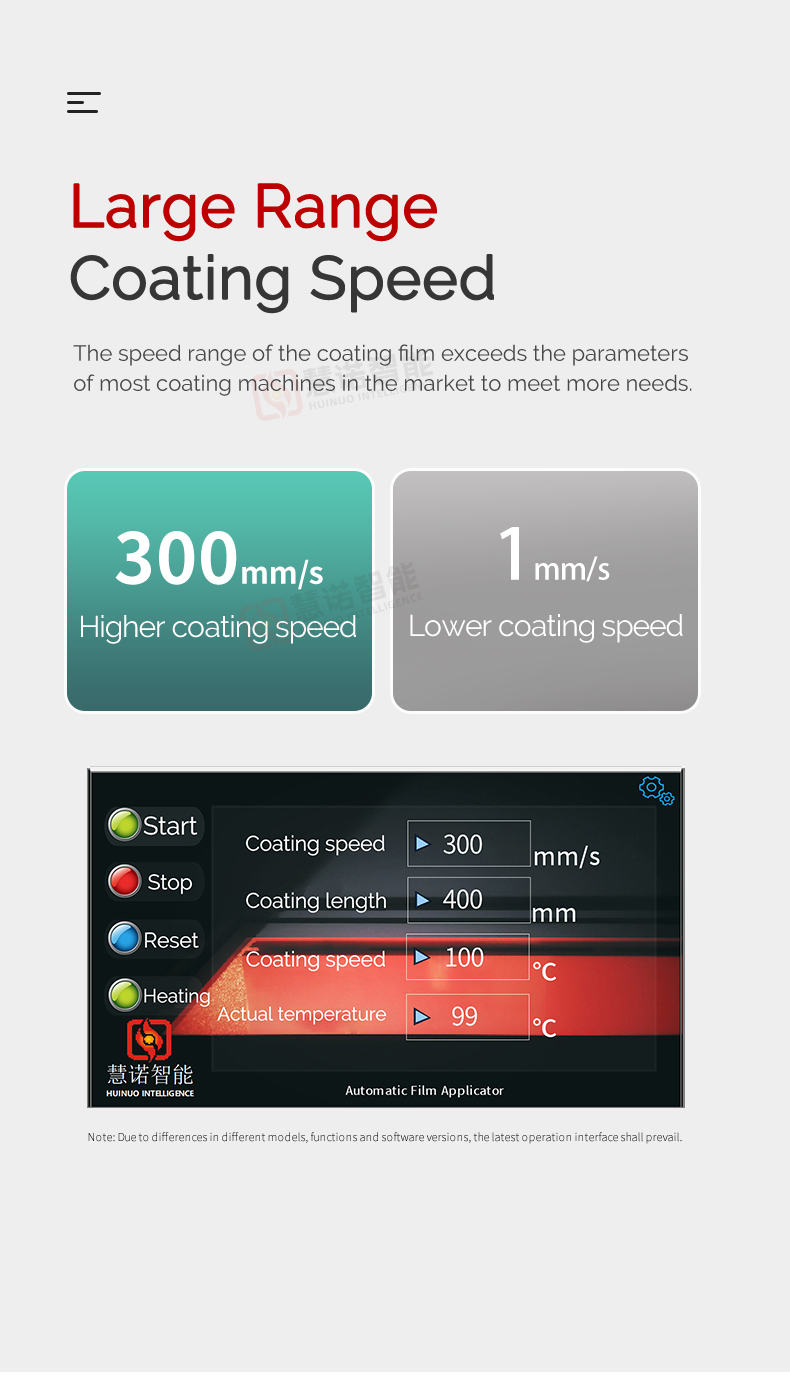

- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- Vacuum chuck + fixture

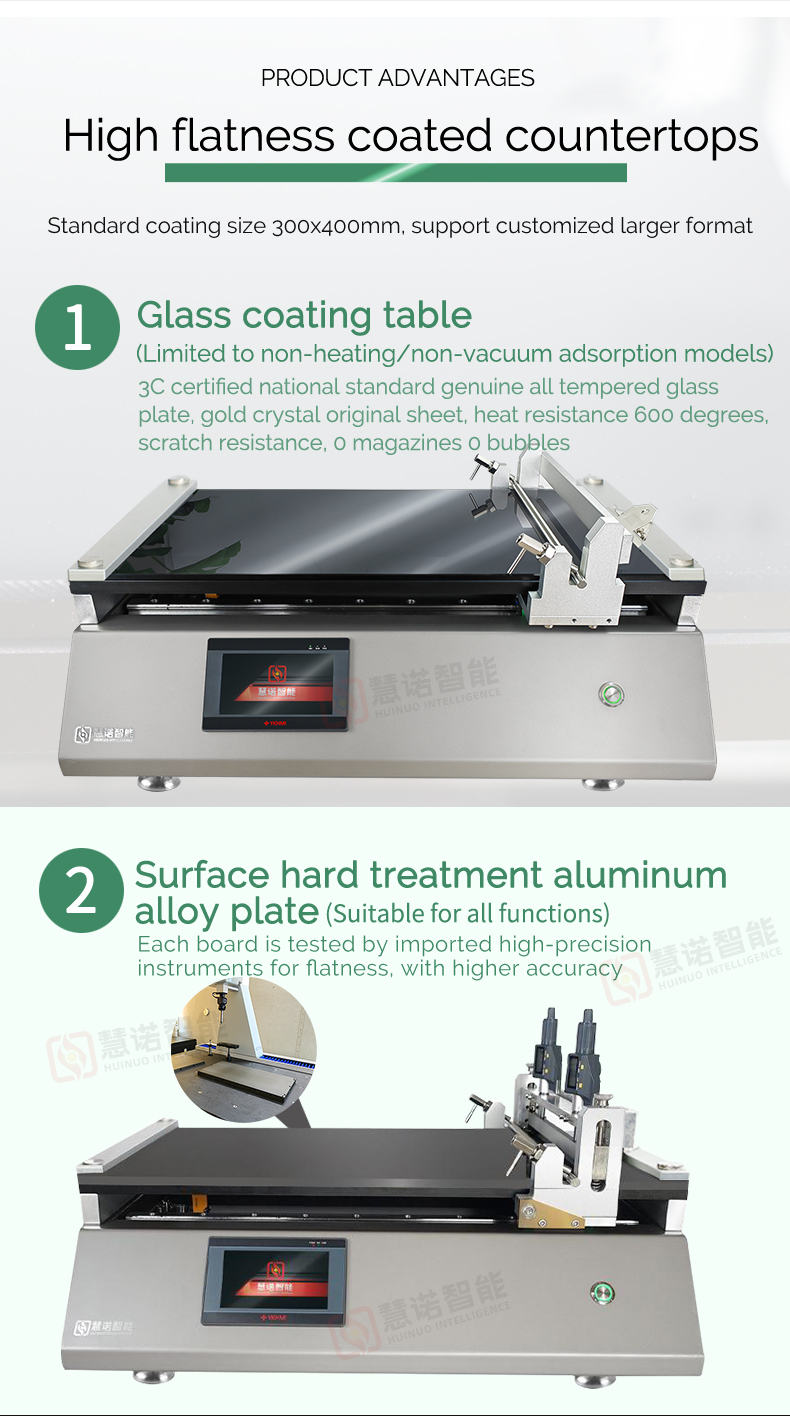

- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 600*300mm
- Effective coating Area
- 400 * 300Mm (can be customized)
- Meyer rod coating thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Meyer rod coating Accuracy
- ±0.001mm
- Drawdown blade Coating thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 300mm
- Drawdown blade Spreader Accuracy
- ±0.003mm
- Vacuum chuck size
- 480 * 260Mm (can be customized)
- Vacuum Aperture
- Φ0.8mm
- Vacuum hole pitch
- 20*20mm
- Pumping Speed
- 5.4m3/h
- Ultimate Vacuum
- 50KPa
- Vacuum Pump Power
- 180W
- Vacuum pump Weight
- 7.1kg
- Heating mode
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Temperature range
- RT +~ 180 ℃ (higher temperature can be customized)
- Temperature Uniformity
- ±1℃
- Curing method
- Heat curing + UV UV curing
- UV Irradiance Intensity
- 403mW/cm2
- UV Lamp Beads
- 40 pieces
- UV Lamp Input Voltage
- AC85A-260V
- UV Lamp Size
- 300*130*130mm
- UV lamp light effect
- 500W
- UV Lamp Power
- 50W
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 100V~220V/50~60HZ
- Power
- 1800w
- Dimension
- 658*438*400mm
- Weight
- 40kg

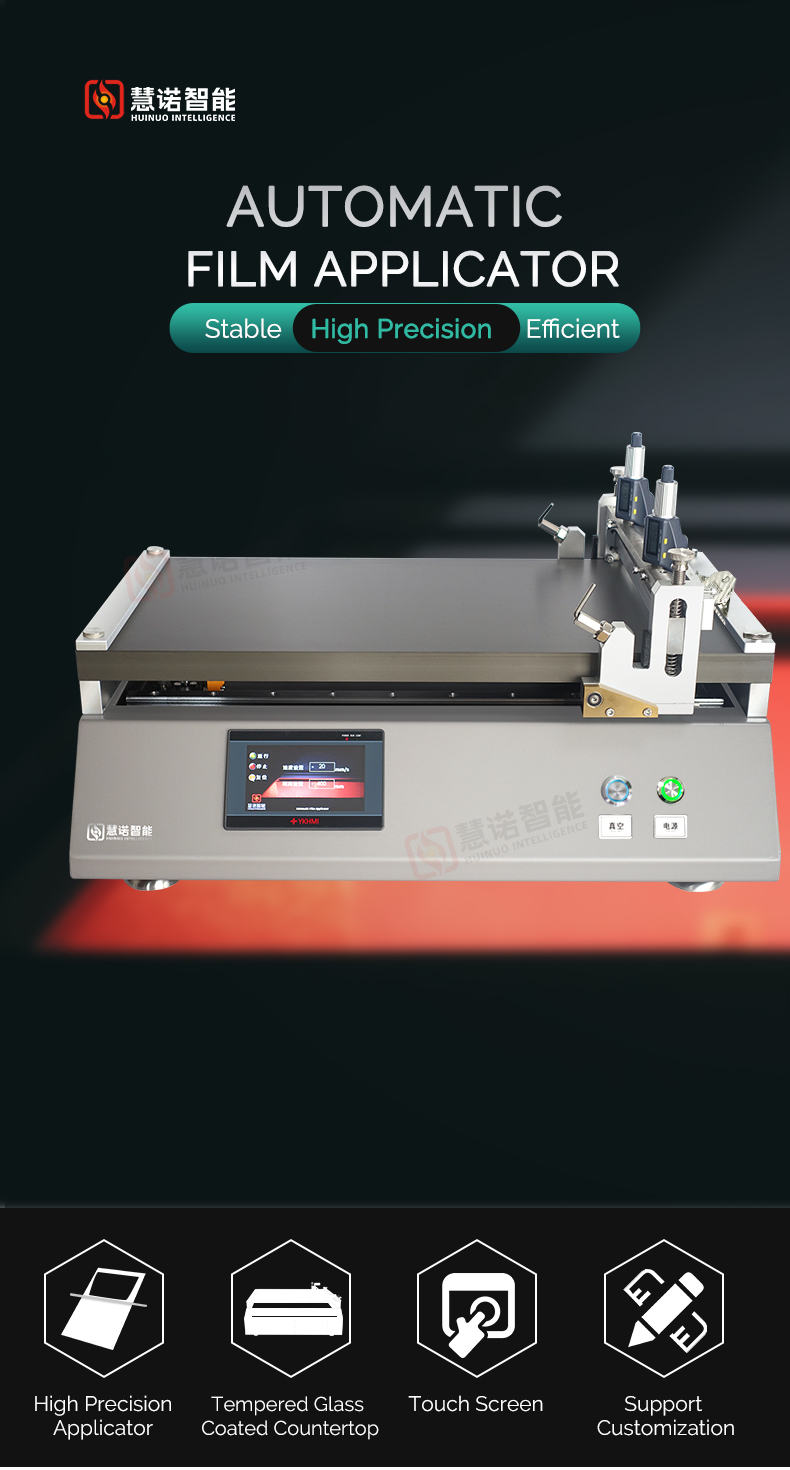

TM3300UV/01
Automatic Film Applicator
Bar + Drawdown blade + Heating + Vacuum chuck integrated, with portable UV curing lamp, support heating curing + UV curing, simple bar groove design, bar installation is simple, digital adjustable Drawdown blade clamshell design, cleaning fast.
FAQ
QOur laboratory needs film samples for preparing lithium battery slurry. Which Film Applicator should I choose?
A
TM3300UV Automatic Film Applicator is specially designed for lithium battery slurry film, with bar and drawdown blade two coating methods, Spreader thickness accuracy up to +/- 0.001mm, can ensure uniform slurry Spreader, also with Vacuum chuck and heating function, can effectively fix the substrate and control the drying process.
QDo glue and Resin film experiments, what function is more appropriate?
A
It is recommended to choose the TM3300UV/01 model with heating and UV curing functions. After the glue and Resin film need to be cured, the heating temperature of this machine is up to 180 ° C, and there is UV ultraviolet curing, which can quickly complete the sample prepative. Flip drawdown blade is also convenient for cleaning viscous materials.
