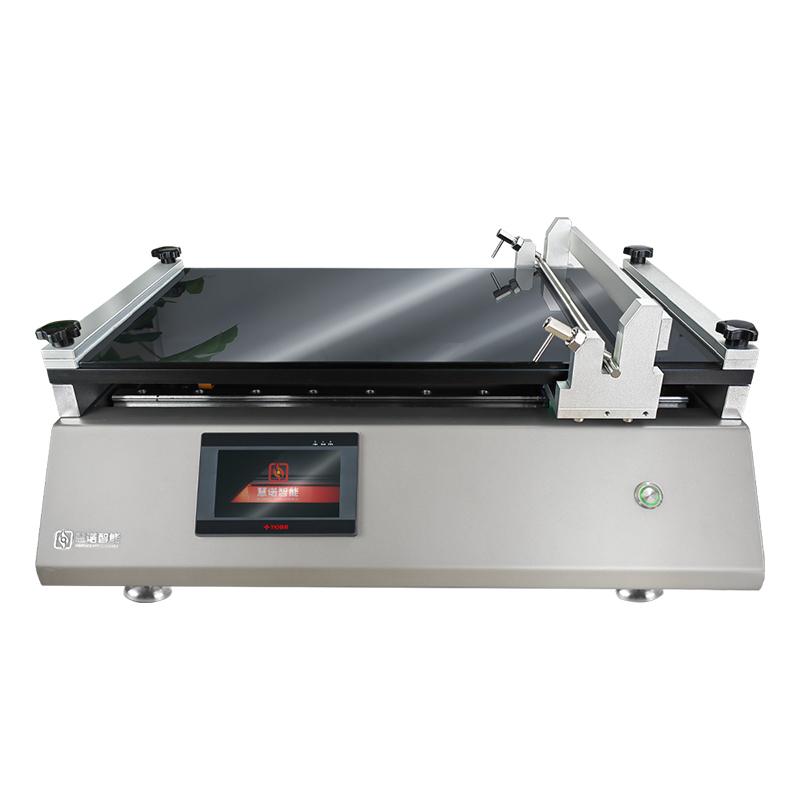

HuiNuo TM1100/03 bar heating coater Scraping Machine, effective area 400 * 600mm
SEBar + heating function, suitable for samples that need to be heated and dried, temperature control up to 180 ° C, Spreader countertop is made of hard aluminum alloy, high Smoothness, Spreader uniform.
$4423.00/set
PromotionLoading...
Coupon
Model：
TM1100/03

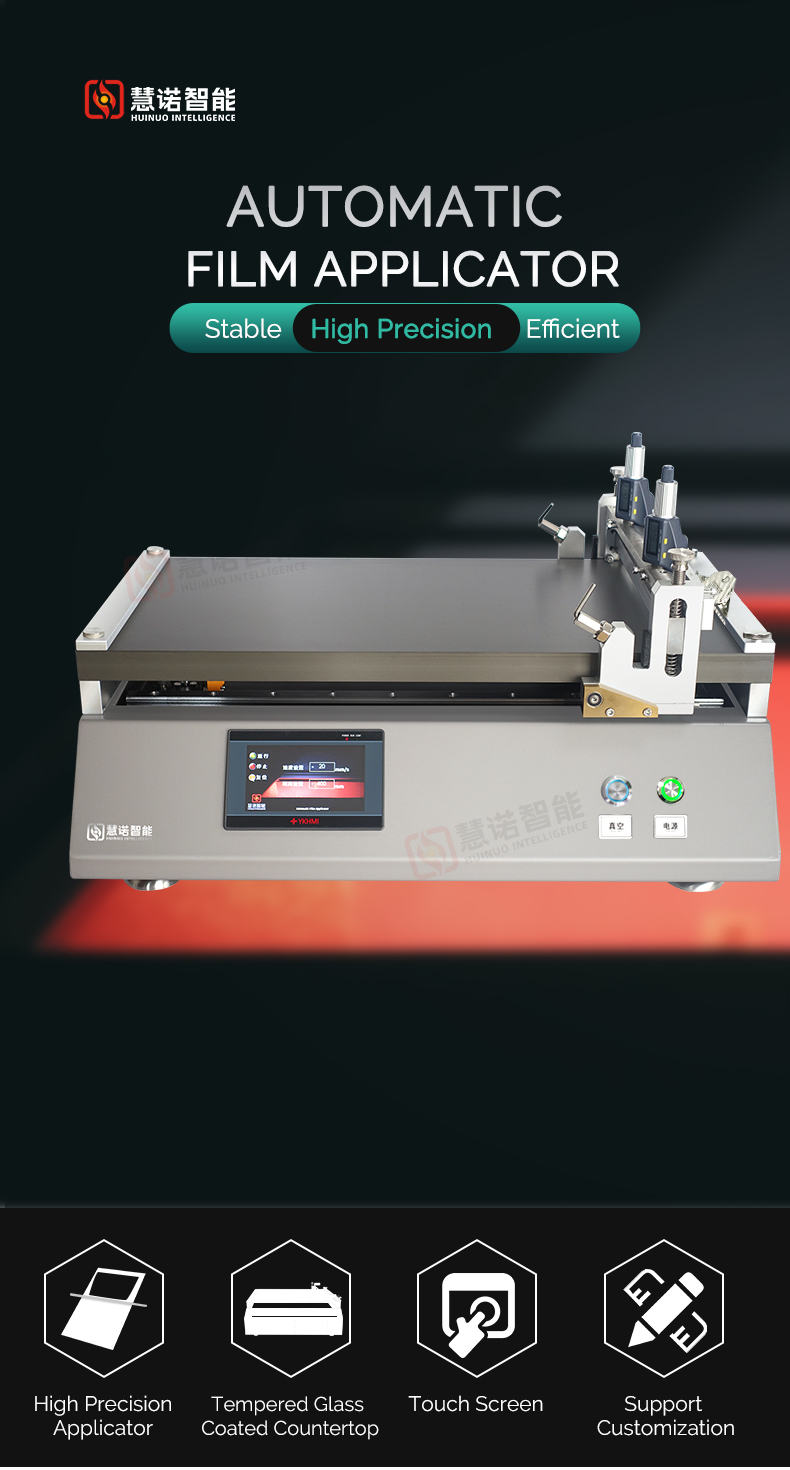

HuiNuo TM1100/03 Automatic Film ApplicatorSPEC
HuiNuo TM1100/03 Automatic Film ApplicatorDetails
HuiNuo TM1100/03 Automatic Film ApplicatorPacking list
- SKU
- NB048881
- Coating method
- Rod

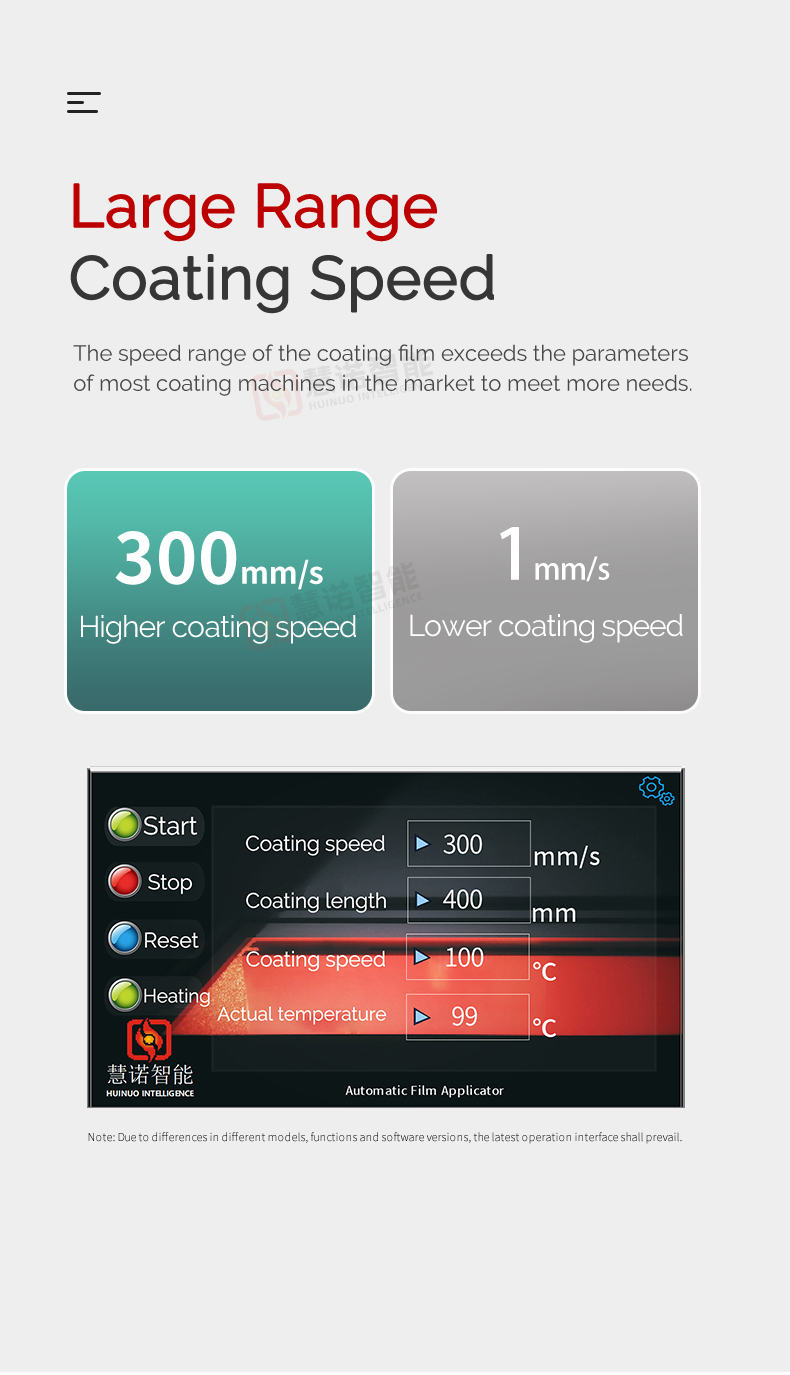

- Coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 840*430mm
- Effective coating Area
- 600 * 400Mm (can be customized)

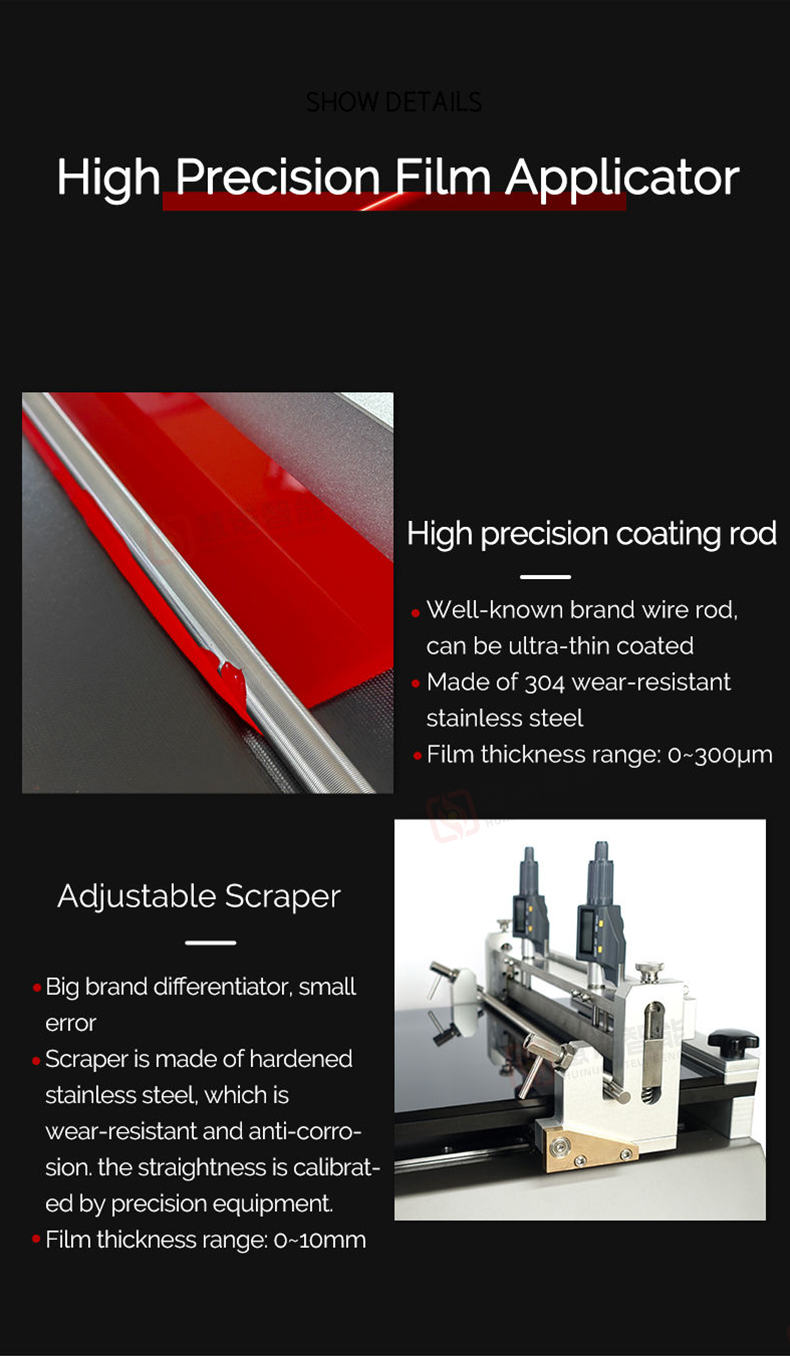

- Mayer Rod Thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Mayer Rod Accuracy
- ±0.001mm
- Heating mode
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Heating Temperature range
- RT +~ 180 ℃ (higher temperature can be customized)
- Temperature Uniformity
- ±1℃
- Power
- 1800w
- Dimension
- 860*540*430mm
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 100V~220V/50~60HZ
TM1100/03
Automatic Film Applicator
Bar + heating function, suitable for samples that need to be heated and dried, temperature control up to 180 ° C, Spreader countertop is made of hard aluminum alloy, high Smoothness, Spreader uniform.
