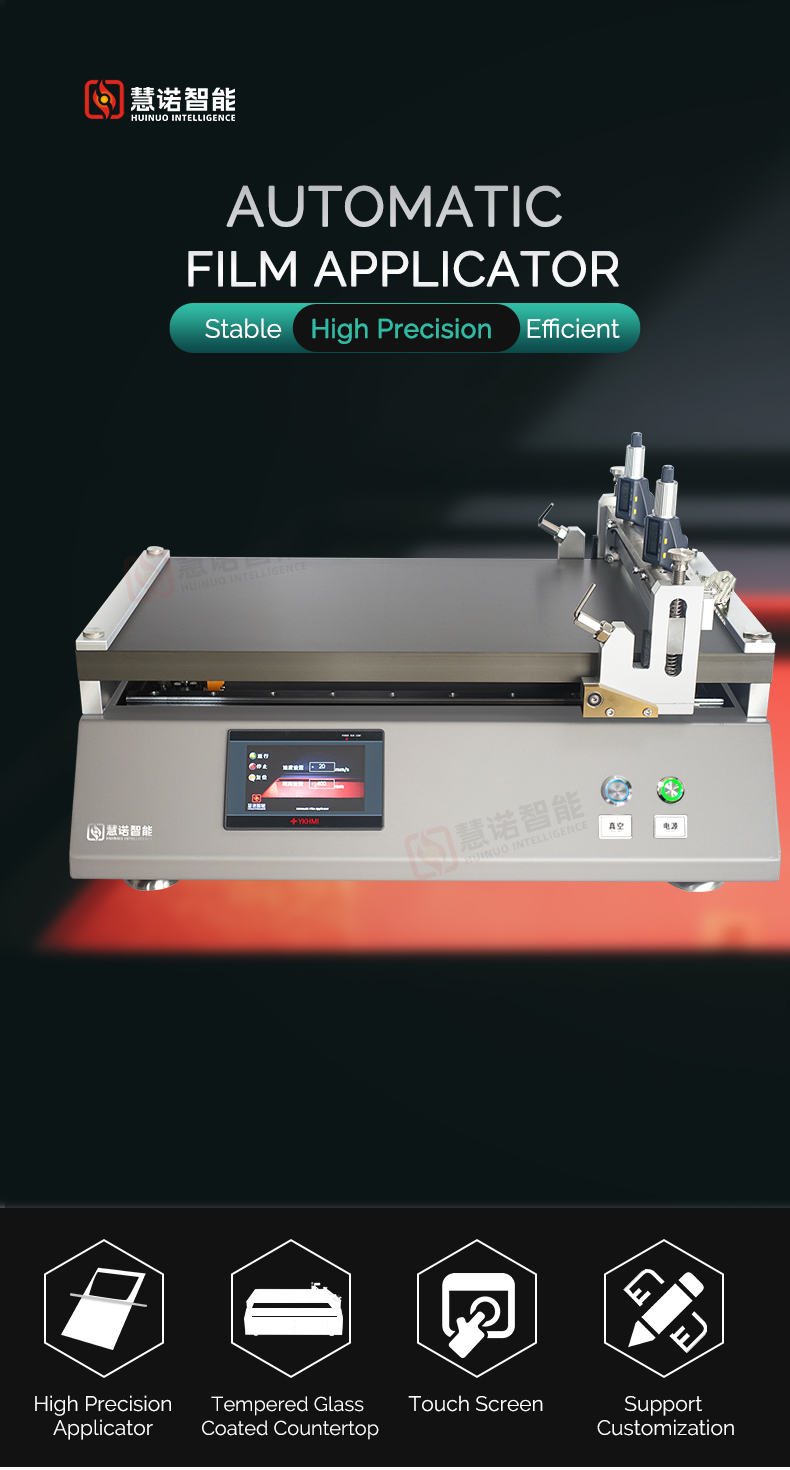

HuiNuo TM1000/06 Bar Coater effective area 400 * 600mm

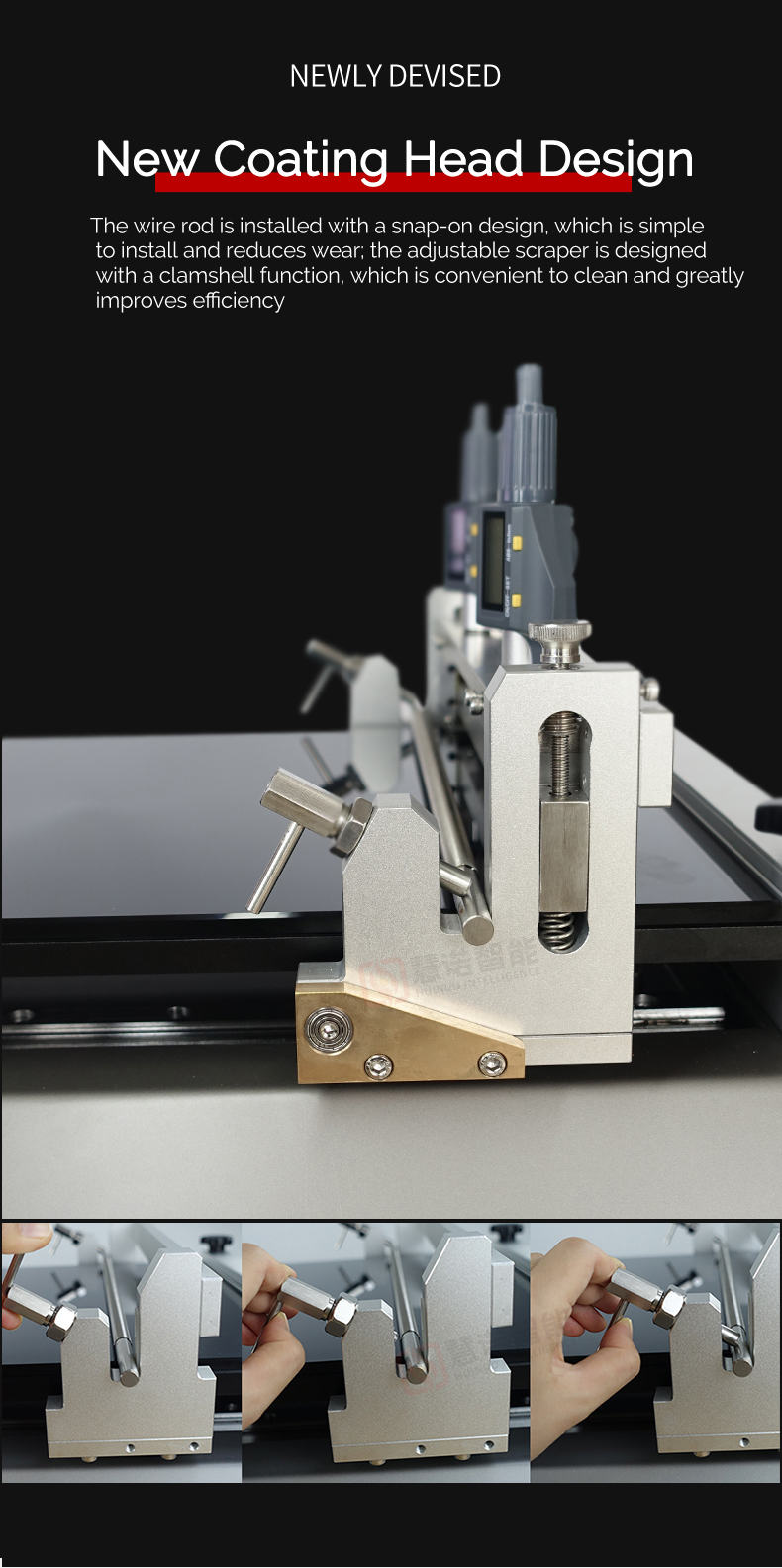

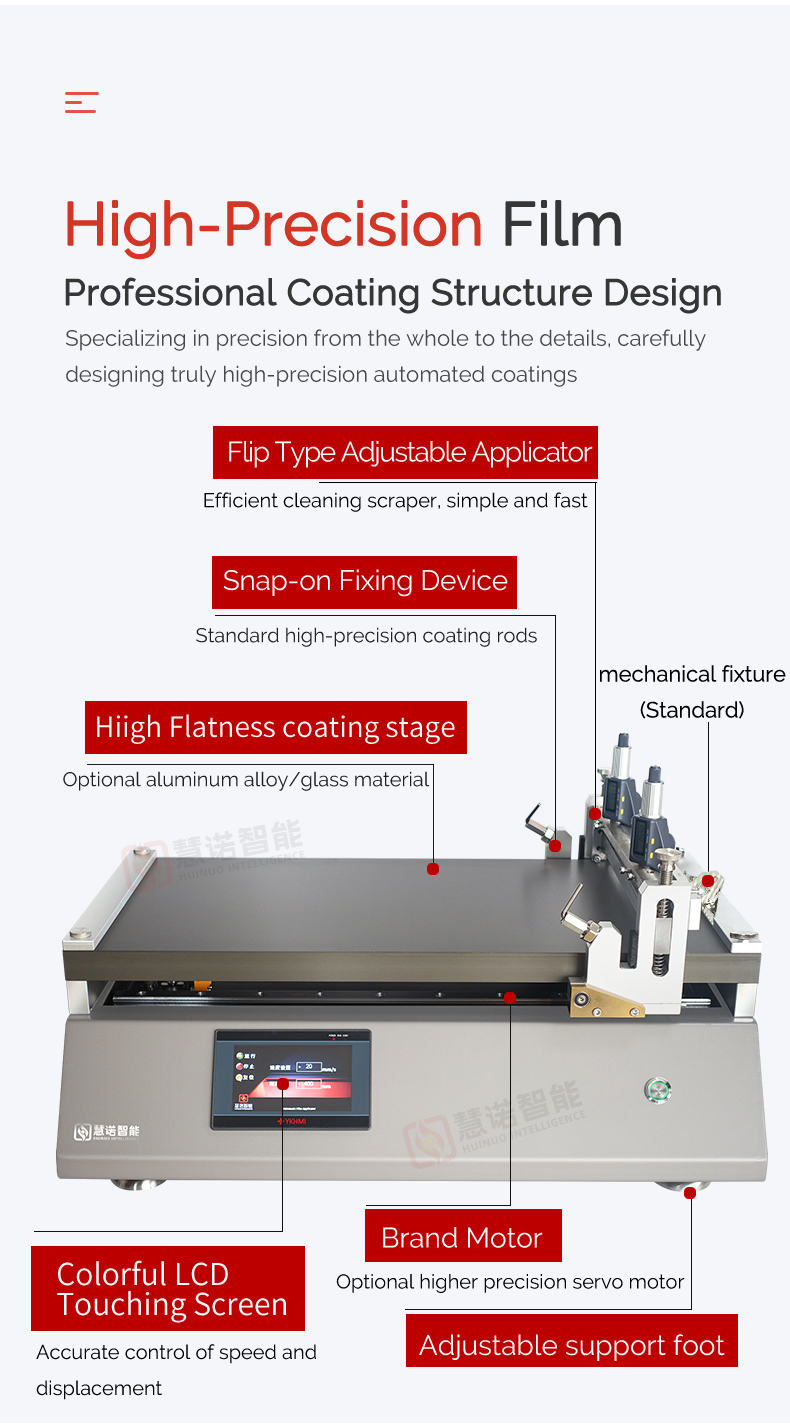

SEBar Spreader, effective coating area 400 * 600mm, snap-on bar mounting Spreader head, simple installation and disassembly, standard high accuracy imported Mayer Rods, film accuracy up to +/- 1 micron, high flat tempered Glass Spreader countertop.
$3957.00/set
PromotionLoading...
Coupon
Model：
TM1000/06
HuiNuo TM1000/06 Automatic Film ApplicatorSPEC
HuiNuo TM1000/06 Automatic Film ApplicatorDetails
HuiNuo TM1000/06 Automatic Film ApplicatorPacking list
- SKU
- NB048893
- Coating method
- Rod

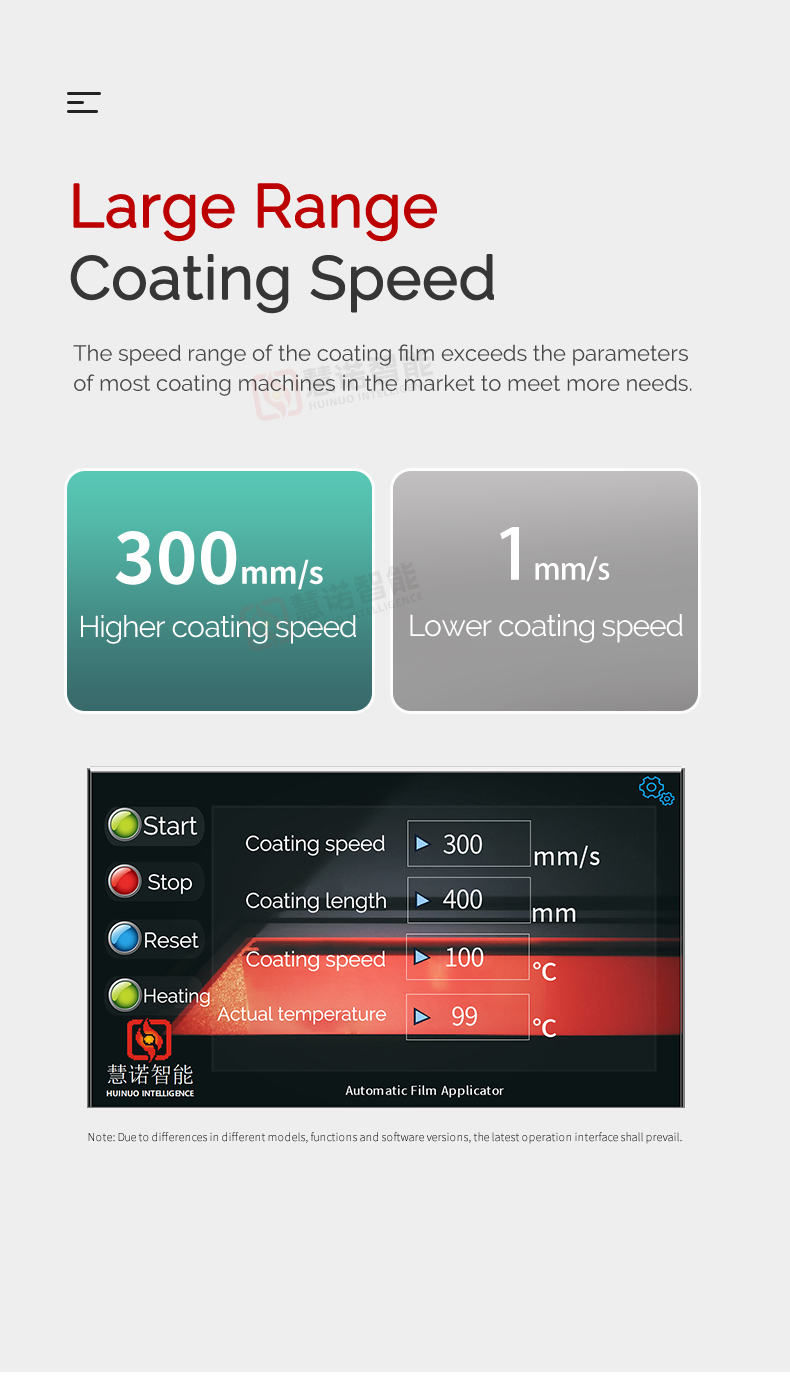

- Coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- fixture
- Coating table material
- Tempered Glass Sheet
- Coating table size
- 840*430mm
- Effective coating Area
- 600 * 400Mm (can be customized)
- Film thickness
- Controlled by bar, with high-precision imported bar
- Mayer Rod Accuracy
- ±0.001mm
- Power
- 400w
- Display
- Color LCD touch screen
- Host Power Supply
- 220V 50HZ
- Dimension
- 860*540*430mm
- Weight
- Subject to the actual product
- optional feature

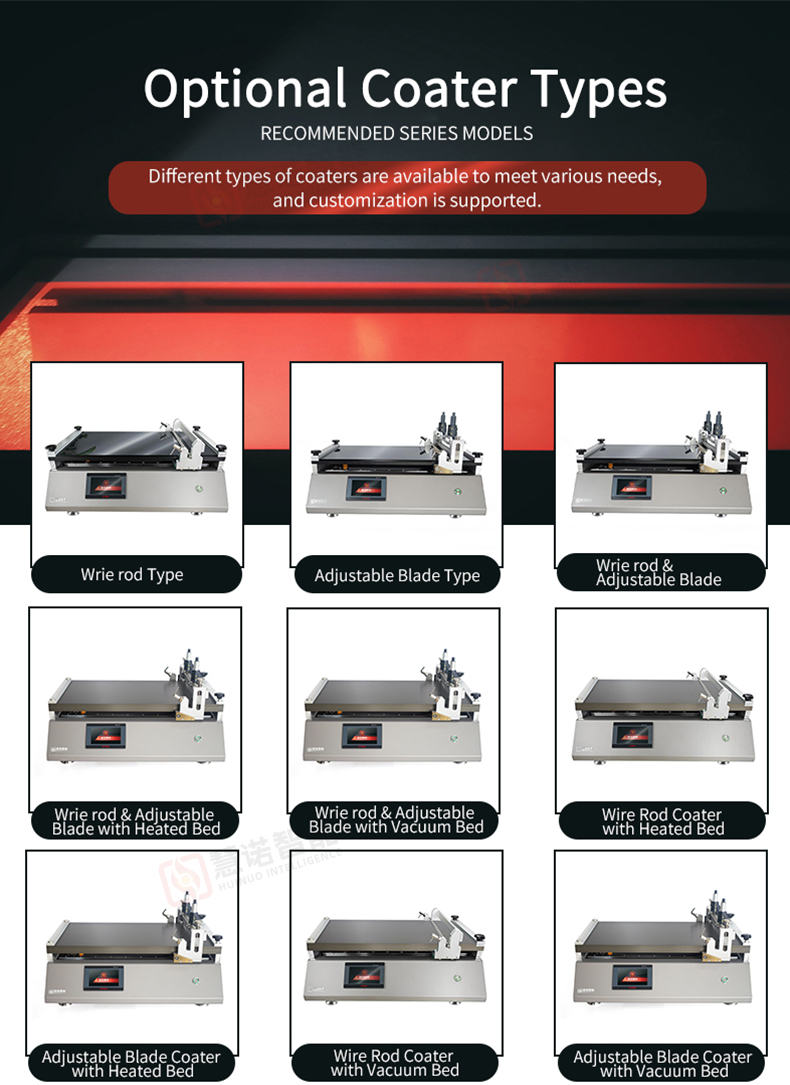

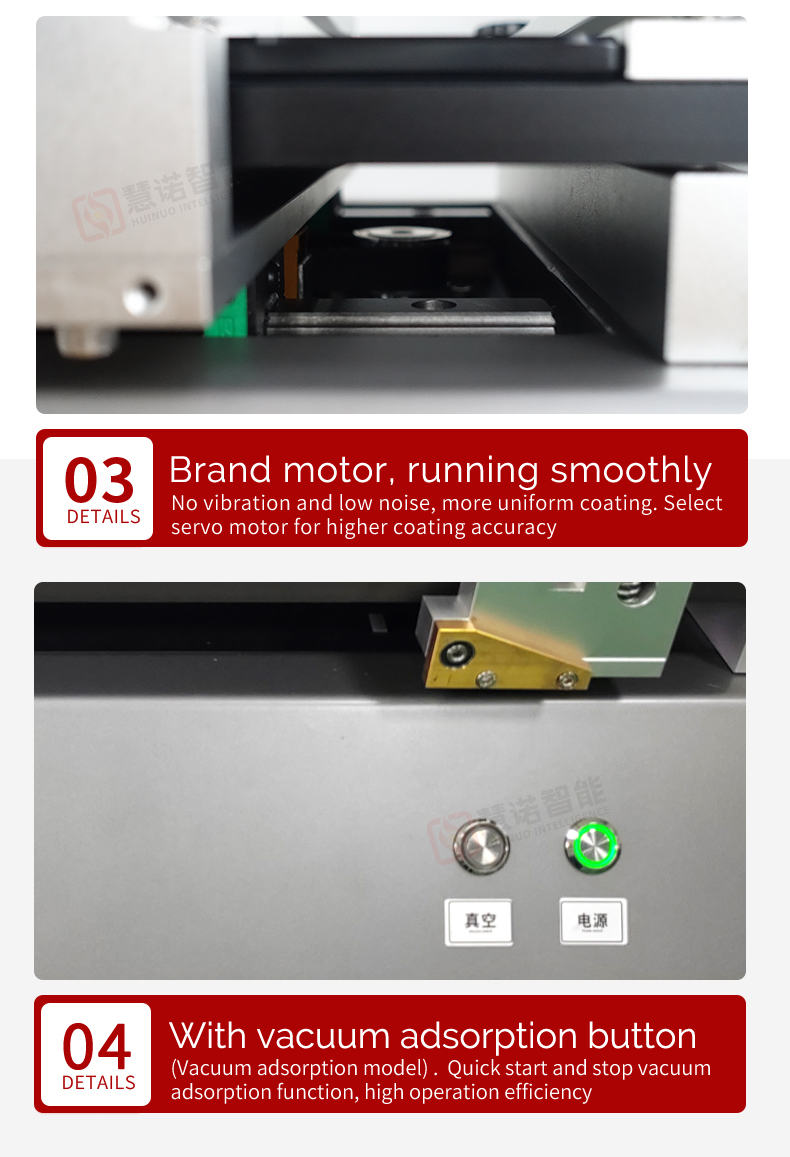

- Drawdown blade, heating, vacuum adsorption
TM1000/06
Automatic Film Applicator
Bar Spreader, effective coating area 400 * 600mm, snap-on bar mounting Spreader head, simple installation and disassembly, standard high accuracy imported Mayer Rods, film accuracy up to +/- 1 micron, high flat tempered Glass Spreader countertop.
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
