Laboratory automatic coating machine TBJ-X3-DJ32 wire rod scraper heating vacuum adsorption coating machine (with automatic feeding system), effective area 400 * 600mm
SE
TBJ-X3-DJ32
zy TBJ-X3-DJ32 Automatic Film ApplicatorSPEC
zy TBJ-X3-DJ32 Automatic Film ApplicatorDetails
zy TBJ-X3-DJ32 Automatic Film ApplicatorPacking list
- SKU
- NB048898
- Coating method
- Bar + drawdown blade + automatic feeding + vacuum adsorption
- Drawdown blade type
- Integrated drawdown blade
- Drawdown blade Accuracy
- ±0.003mm
- Drawdown blade Film thickness range
- 0.001~ 10Mm adjustable
- Coating speed
- 5-200Mm/s (< 5mm/s can be customized)
- Coating size
- 400 * 600Mm (can be customized)
- Spreader Itinerary
- Digital arbitrary setting within the range of 1~ 400mm
- Rod Film thickness range
- 1-571.5 μm (Spreader Film thickness according to bar type)
- Mayer Rod Accuracy
- ±0.001mm
- Vacuum Area
- 400 * 600Mm (can be customized)
- vacuum aperture
- Φ1.2mm
- Vacuum hole spacing
- 20*20mm
- Vacuumpump size
- 380*180*280mm
- Substrate clamping method
- Vacuum adsorption
- Key control mode
- Touch screen control
- Host Power Supply
- 220V 50Hz
- net Weight
- 65KG
- speed control
- Infinitely variable speed
- Coating table material
- aluminum alloy
- customization function
- Automatic feeding system
- Dimensions
- 822*550*520mm
- Feeding principle
- Air source pressure flows out
- Feed Sport Mode
- Reciprocating linear motion
- Feeding back and forth traverse speed
- 2-150mm/s
- spit Volume
- Adjustable (by adjusting the air pressure and the running speed of the discharge port)
- Shaft transmission mode
- Timer belt
- Feeding system air source
- 0.6Mpa, can be connected to the trachea of φ 8 (self-equipped)
- Feeding system power Voltage
- 220V,50Hz
- Tank pressure
- Maximum withstand 8Mpa
- Material of feeding barrel
- 304 stainless steel with a wall thickness of 4mm
- Feeding bucket configuration
- Safety valve, pressure regulating valve, pressure gauge, discharge valve
- Heating temperature range
- RT+~180℃
- Temperature Uniformity
- ±3℃
- Feeding drum Volume
- 1L
- Optional accessories
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven film thickness of Spreader substrate), film width control baffle
- customizable function

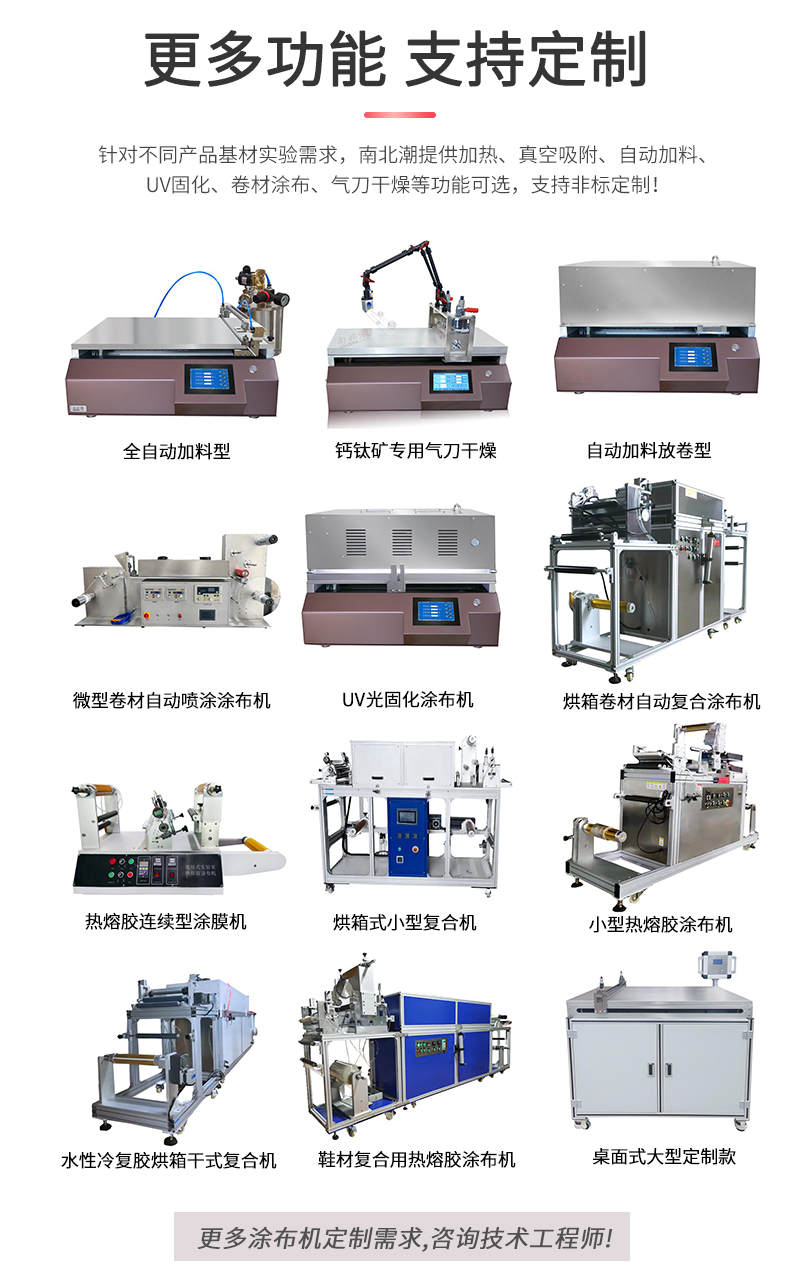

- Automatic lame plating device, UV curing device, air knife drying, remote control, upper infrared heating, double extrusion Spreader
TBJ-X3-DJ32 Wire Rod Scraper Heating Vacuum Adsorption Coating Machine (with Automatic Feeding System), with heating and vacuum adsorption functions, coating width 400*600mm, support two coating methods of wire rod and scraper, standard high-precision wire Bar Coater.
TBJ-X small coating testing machine for experiments adopts all imported accessories, and the price is cheap, which has been favored by many multinational enterprise R&D institutions, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the coating and gluing effect, and ensure the uniformity and stability of the coating and gluing.
Since the main factors affecting the coating film are the coating speed and the pressure applied to the coater, the coating applied by hand is often inconsistent, especially between different people, which makes it difficult to compare the test results between the samples. Our automatic Film Applicator is designed to allow the operator to easily apply a precise wet film on different substrates, which greatly improves the reproducibility of the coating film.
