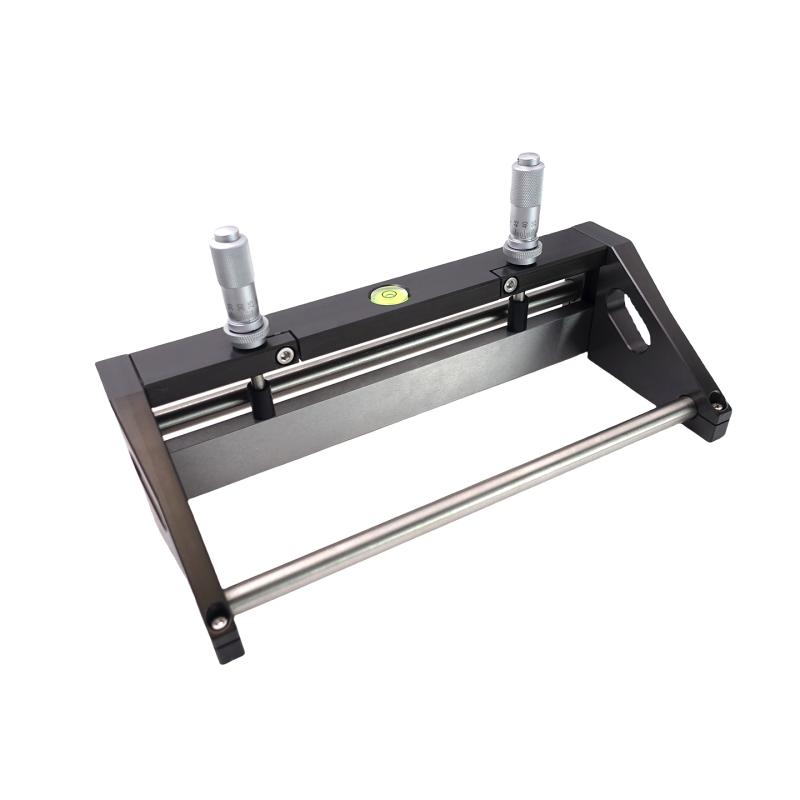

HuiNuo KTQ-300 Differential adjustable drawdown blade Applicator adjustable Film Applicator 300mm

KTQ-300

Adjustable Film Applicator

Adjustable, wet film thickness 0~5000μm, Spreader width 300mm, accuracy +/- 5μm, frame material process aluminum hard oxidation, drawdown blade material process die steel, scale differential head.

Introduction

The Velix Adjustable Preparator is a wet film preparer with adjustable coating film thickness, and there are two differentiators above the adjustable preparator that can be adjustedPreparerThe two micrometer heads can adjust the lower blade up and down to control the gap, which is the thickness of the final coating. The adjustable wet film preparer is a graduated differential head, which is displayed by a scale with a graduation value of 10μm； KTQ-S series adjustable wet film preparer is a digital microscope head,Digital microdivision head adjustmentGraduation value1μm。

The coating range of the adjustable preparer is adjustable from 0~5000 microns, and the coating film is appliedprecision±5μm；The frame material isThe aluminum is hard oxidized, and the scraper is made of die steel。 Different adjustable Film Applicators have different dimensions and different weights.

Features

1. non-digital scale differential head,Graduation value10μm；

2. The mold steel scraper material has the advantages of high hardness, wear resistance and corrosion resistance;

3. Large range range, 0~5000 microns adjustable;

4. 50mm, 100mm, 150mm, 200mm, 250mm coating width can be selected;

5. The straightness of the blade blade ± 2 μm

Packing list：Adjustable Applicator × 1, Certificate of Conformity, Manual & Warranty Card

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
