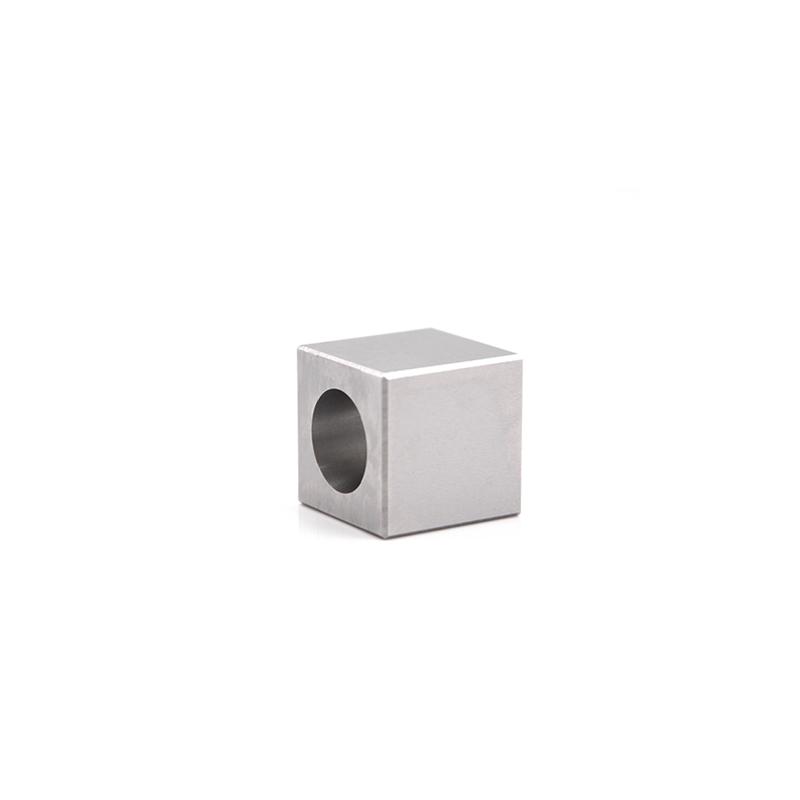

HuiNuo SZQ 25x25 (150/300μm) Cube Applicator film 150/300μm
SE
SZQ 25x25 （150/300μm）
HuiNuo SZQ 25x25 （150/300μm） Cube ApplicatorSPEC
HuiNuo SZQ 25x25 （150/300μm） Cube ApplicatorDetails
HuiNuo SZQ 25x25 （150/300μm） Cube ApplicatorPacking list
- SKU
- NB048902
- type
- double sided
- WFT
- 150/300μm
- Spreader Width
- 25mm
- Accuracy
- ±2μm
- material
- 9Cr18Mo stainless steel
- size
- 25*25mm
Introduction
The wet film preparer is a manual laboratory Film Applicator, available in different coating widths, made of high-carbon chromium wear-resistant and anti-corrosion stainless steel.Before leaving the factory, the prepared device adopts imported three-coordinate detection to ensure the accuracy of the coating film. The SZQ series preparers have:I-shaped, frame, square and other shapes are available, and can be divided into single-sided, double-sided, four-sided, and eight-sided preparers according to the thickness of the coating film. The wet film preparer is suitable for making films such as paints, glues, coatings, inks, new chemical materials, etc., and can be equipped with a film coating machine for automatic film scraping. Nanbeichao provides preparator specification customization services.
The SZQ 25x25 (150/300μm) square preparator is a double-sided Film Applicator with a film thickness150/300μmtwocoating surface with a coating width of 25 mm.
Features
1. 9Cr18Mo high hardness stainless steel material, with good wear resistance and corrosion resistance, hardness value of 50~55HRC.
2. Each piece of preparer has a corresponding specification accuracy report to see
3. The surface is smooth and clean, the styles are diverse, the application range is wide, and customized specifications are supported
4. Adopt imported three-coordinate detection accuracy, with factory test report, which can stand up to measurement
Parameter table of the preparator series
| name | Specification mm | Wet film thickness μm |
| Single-sided preparer | The Total length is 80, and the coating width is 50 and 75 | 50、75、100、125、150、175、200 |
| Double-sided preparer | The Total length is 100, and the coating width is 80 | 25、50、75、100、150、175、200、300、400 |
| Frame preparer | The Total length is 90, and the coating width is 80 | 30、50、60、90、120、150、200 |
| Octaveral preparer | The Total length is 90, and the coating width is 68 | 50、75、100、125、150、175、200 |
| Octaveral preparer | The Total length is 100, and the coating width is 80 | |
| Square preparer | 25x25, coating width 16 | 37、50、75、100 |
| Square preparer | 50x50, coating width 41 | 50、100 |
| Standard four-sided preparer | The Total length is 100, and the coating width is 80 | All specifications and sizes, support non-standard customization |
| Extended four-sided preparer | The Total length is 190, and the coating width is 160 |
