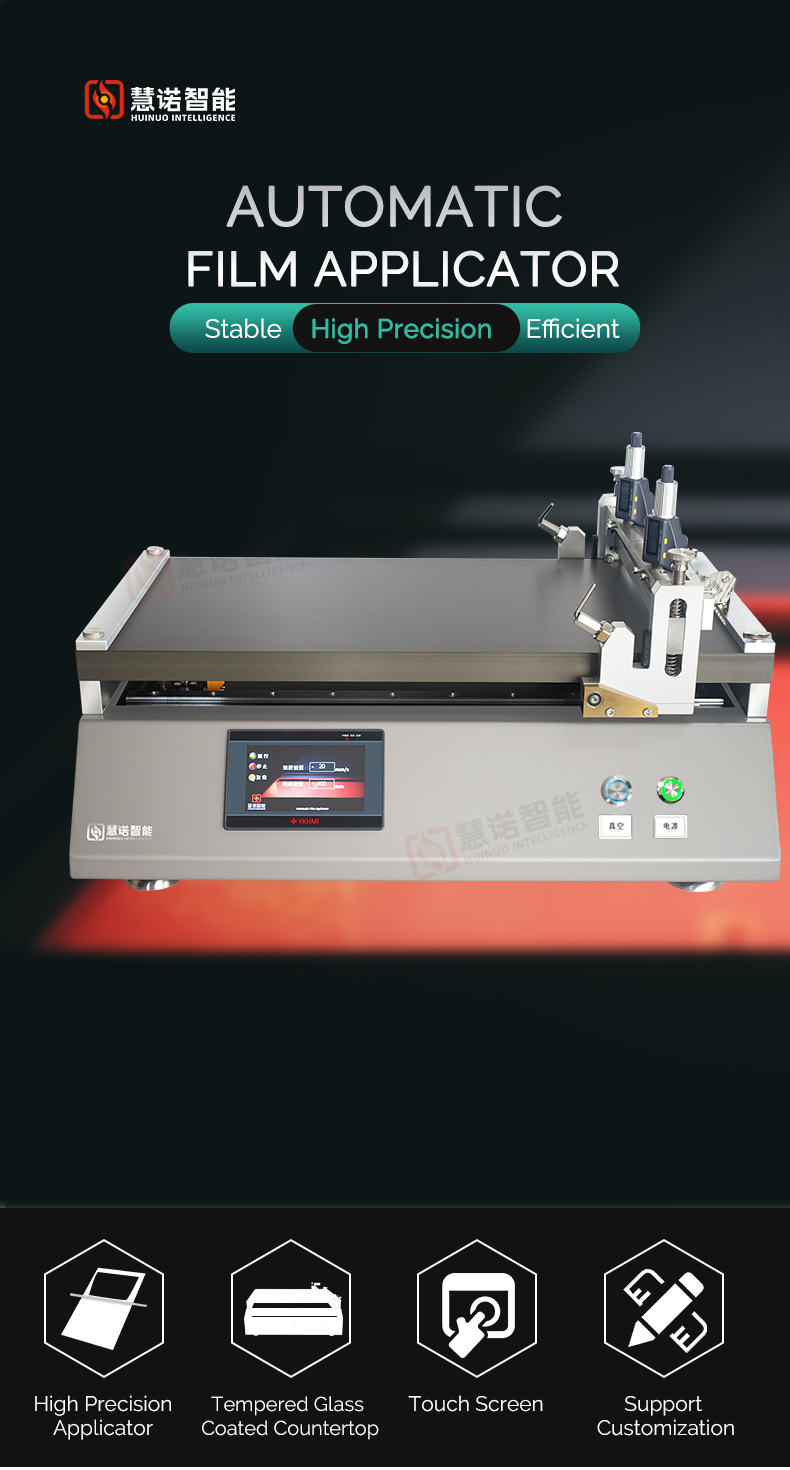

HuiNuo TM3200/03 Bar & drawdown blade vacuum adsorption laboratory coater vacuum scraping machine 300 * 700mm

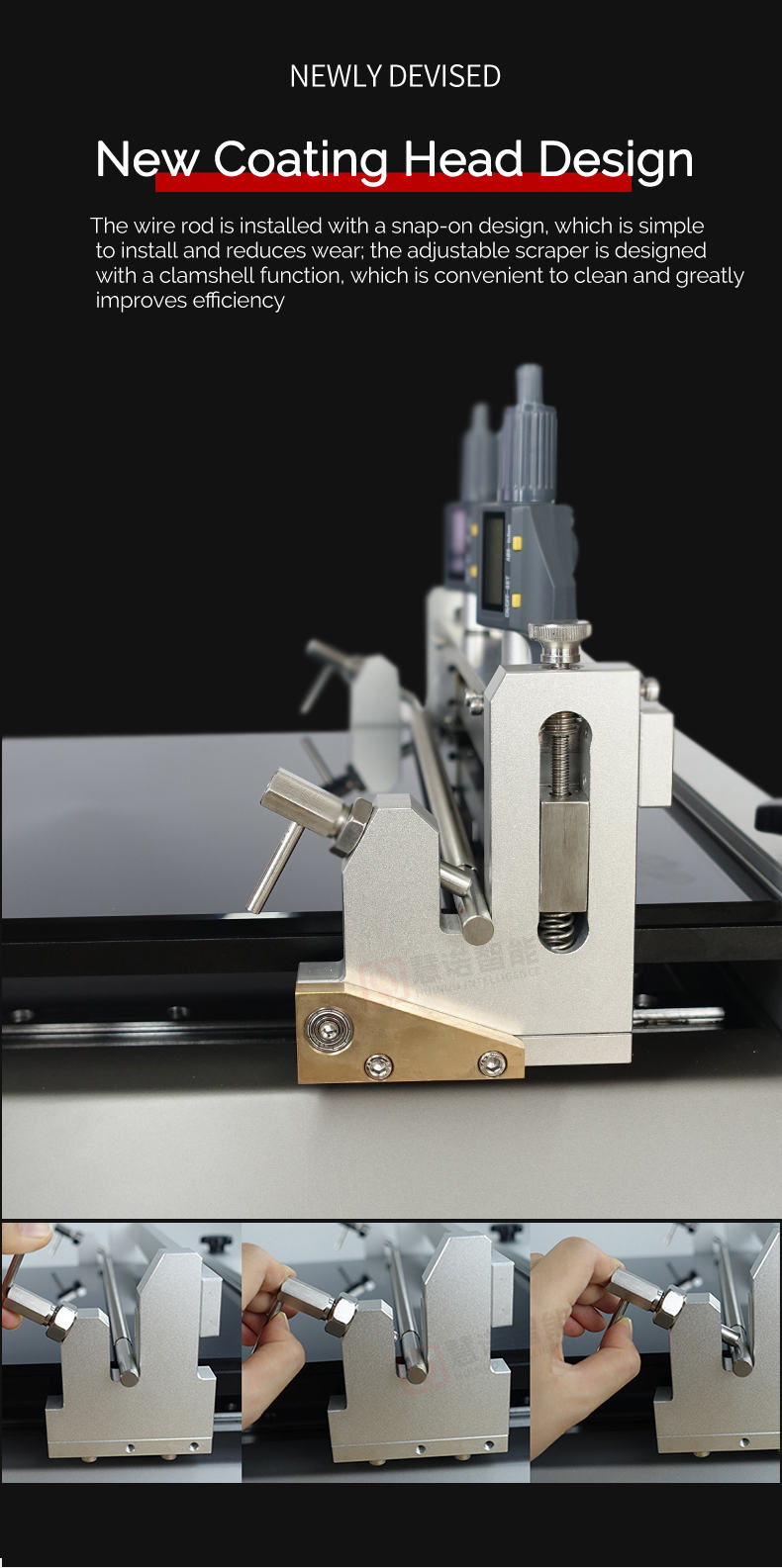

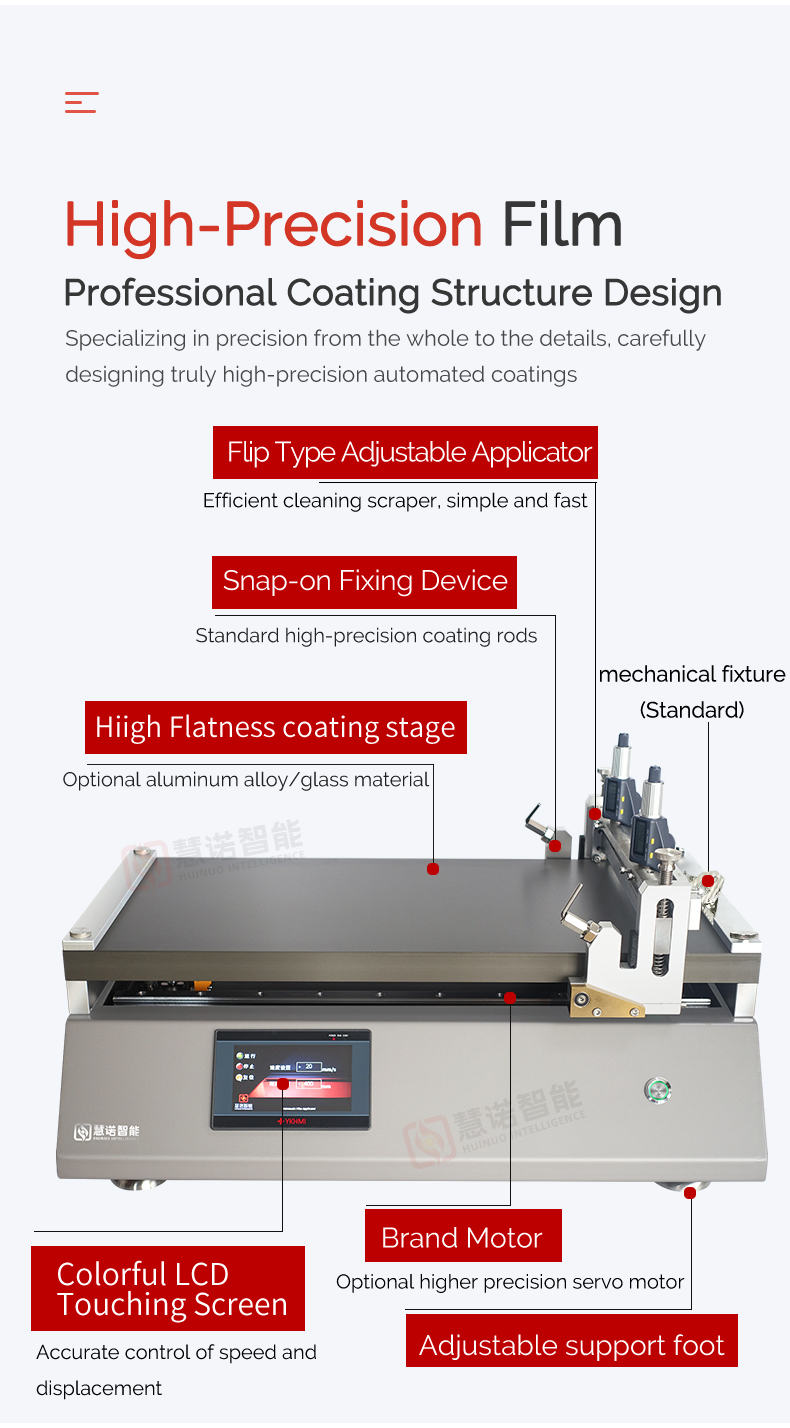

SEBar & drawdown blade vacuum adsorption integrated, effective area of 300 * 700mm, bar snap design installation is simple, drawdown blade clamshell design, cleaning fast, with accuracy test certificate drawdown blade, high flatness aluminum alloy plate.
$6600.00/set
PromotionLoading...
Coupon
Model：
TM3200/03
HuiNuo TM3200/03 Automatic Film ApplicatorSPEC
HuiNuo TM3200/03 Automatic Film ApplicatorDetails
HuiNuo TM3200/03 Automatic Film ApplicatorPacking list
- SKU
- NB048911
- Coating method
- Bar + drawdown blade

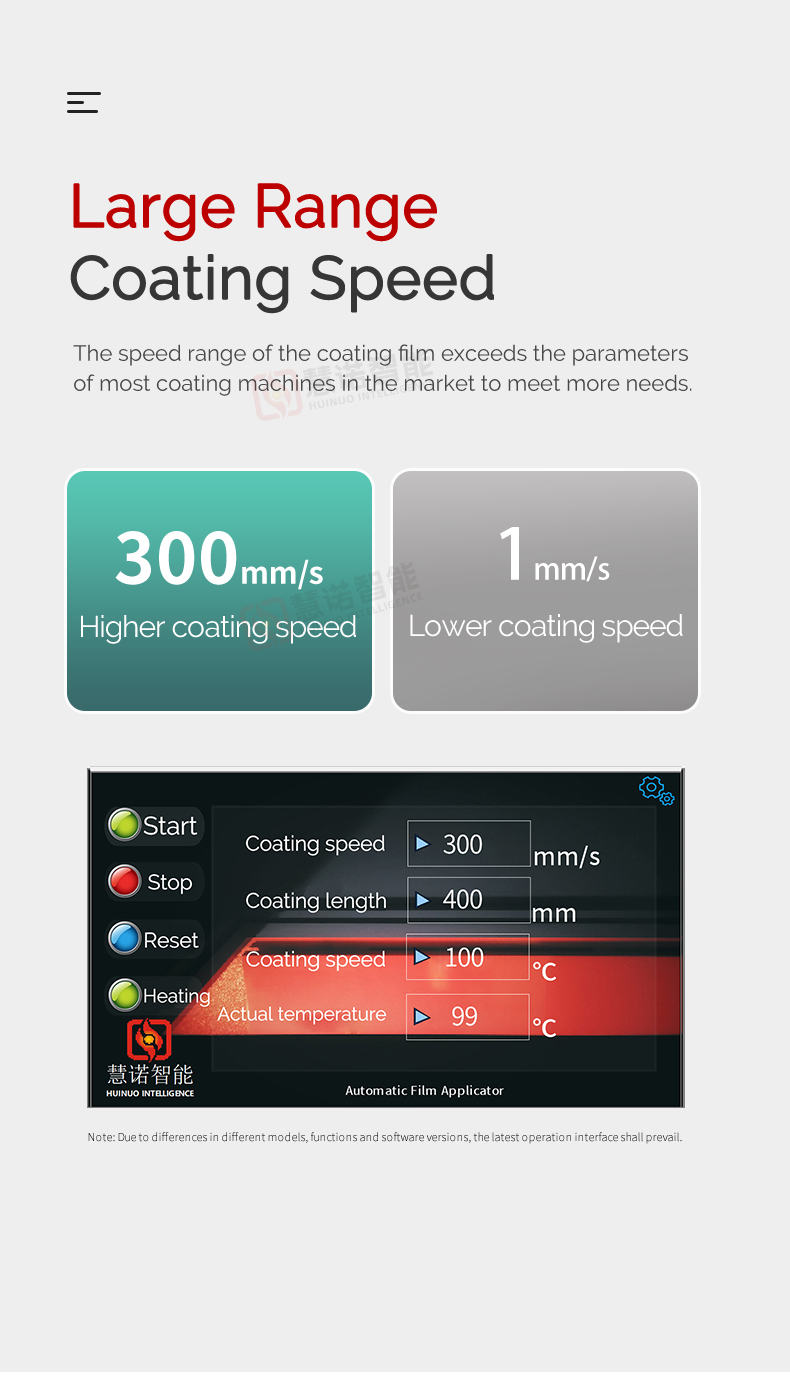

- Coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- Vacuum adsorption + fixture

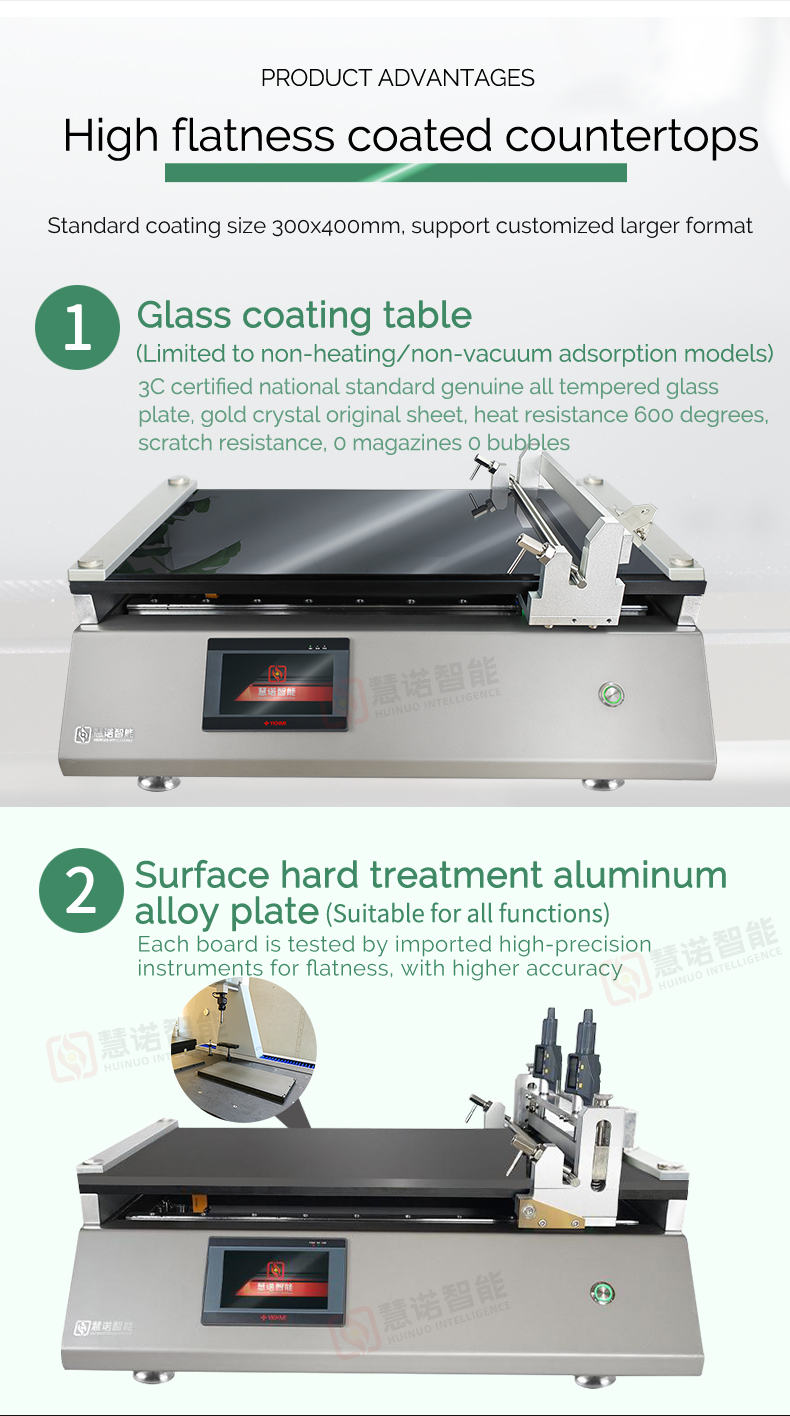

- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 940*330mm
- Effective coating Area
- 700 * 300Mm (can be customized)
- Mayer Rod Thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Mayer Rod Accuracy
- ±0.001mm
- Drawdown blade thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 300mm
- Drawdown blade Accuracy
- ±0.003mm
- Vacuum Area
- 780 * 260Mm (can be customized)
- vacuum aperture
- Φ0.8mm
- Vacuum hole spacing
- 20*20mm
- Pumping Speed
- 5.4m3/h
- Ultimate Vacuum
- 50KPa
- Vacuum Pump Power
- 180W
- Vacuum pump Weight
- 7.1kg
- Power
- 600w
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 100V~220V/50~60HZ
- Dimension
- 960*440*430mm
TM3200/03
Automatic Film Applicator
Bar & drawdown blade vacuum adsorption integrated, effective area of 300 * 700mm, bar snap design installation is simple, drawdown blade clamshell design, cleaning fast, with accuracy test certificate drawdown blade, high flatness aluminum alloy plate.
