Specifications

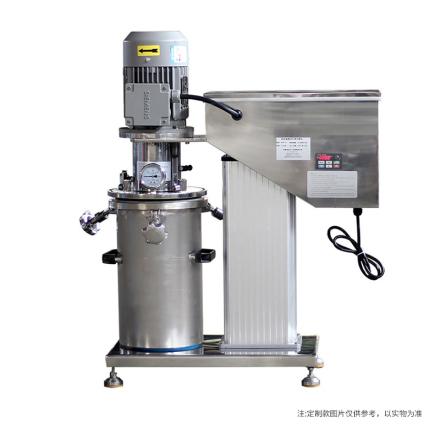

| Product name and specification model | Experimental Vacuum Disperser, Specification: 5L |
| basic structure | Electric lifting platform, lifting/motor distribution cabinet, dispersed shaft baseplate vacuum kettle sealing system |
| Barrel (Stir Barrel) | Specifications: 155mm × 260mm; Design Volume: 5.2L; Working Volume: 4.9L liner Material: SUS304; Stir barrel upper flange plane and upper barrel body are sealed by sealing ring; Quantity: 1 |
| Upper barrel body (kettle cover) | Material: SUS304. One vacuum gauge, one vacuum valve, one Viewing Window. |
| High-speed decentralized system | Disperse motor power 1.1kw, speed 2880rpm/min Deli motor, frequency conversion speed regulation with 1.5kw frequency converter, single dispersion shaft, number of sub-discs: 1 (one each of φ 60 80mm). Material: SUS304 |
| Vacuum system | Hold and fix the kettle body and the kettle cover. A sealing ring is used between the kettle body and the kettle cover for sealing. The dispersion shaft and the kettle cover are mechanically sealed. Vacuum degree: -0.095mpa (including a Vacuumpump, connected to the trachea) |
| Lifting system | Using an electric lifting platform, the lift is stable; the stroke is 300mm. |
| distribution cabinet | Equipment operation in the vacuum device, frequency control; lifting, operation stop and other functions display and operation are carried out on the distribution cabinet. |
| Host Total power | Operating Voltage/frequency: 220VB, Total power: 1.1 kw |
| Dimensions | 500 * 360 * 700Mm (subject to final confirmation) |
| Appearance of equipment | Base stainless steel sealing plate, base with universal brake caster, distribution cabinet stainless steel sealing plate, lifting platform aluminum structure, contact material is SUS304. |
Packing list
host x1, manual x1, certificate of conformity x1
After-sales instructions
Warranty days: 365 days
1.仪器设备非人为造成的产品质量问题，在质保期内厂家提供免费质保服务；
2.易损易耗配件不存在质保期，收到货发现产品质量问题，请在7天内申请退换货，逾期不候；
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/48920/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
