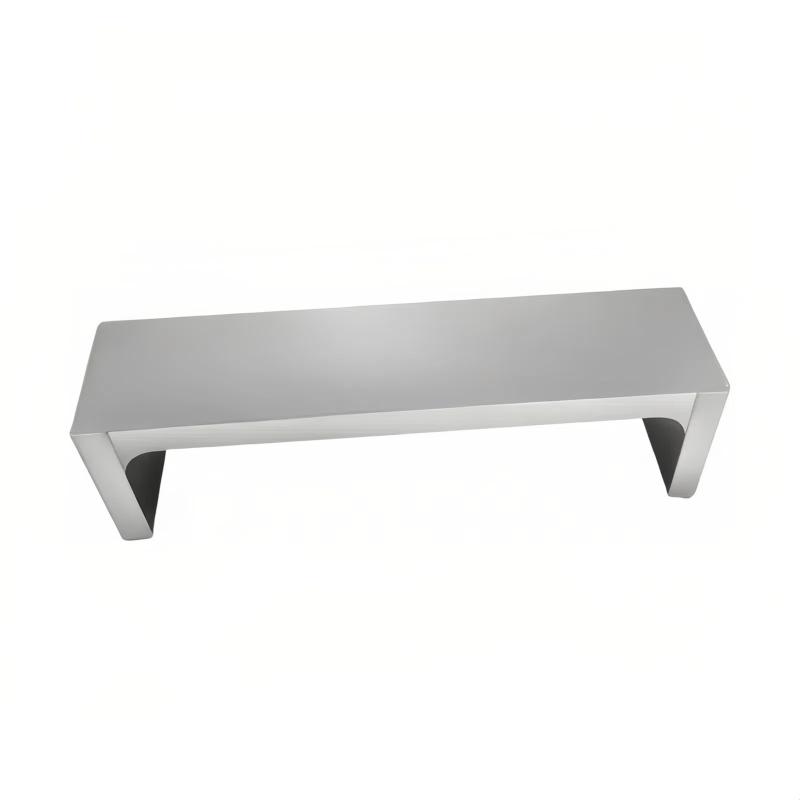

HuiNuo QTG 150/200μm U-shaped Design Double Sided Film Applicator 150/200μm
SE
QTG 150/200μm
HuiNuo QTG 150/200μm Double Sided ApplicatorSPEC
HuiNuo QTG 150/200μm Double Sided ApplicatorDetails
HuiNuo QTG 150/200μm Double Sided ApplicatorPacking list
- SKU
- NB004893
- type
- double sided
- WFT
- 150μm、200μm
- application width
- 100mm
- Accuracy
- ±2μm
- material
- Premium wear-resistant stainless steel
- Total length
- 120mm
Introduction
The coating thickness of the QTG 150/200μm double-sided wet Film Applicator is 150μm, 200μm, 2 coating surfaces, the coating width is 100mm, the Total length is 120mm, and the coating accuracy is ±2μm.
The wet film preparer is a laboratory manual film coater, with different coating widths to choose from, made of high-carbon chromium wear-resistant and anti-corrosion stainless steel, this preparation is used to import three coordinates to detect the dimensional accuracy before leaving the factory to ensure the accuracy of the coating film. SZQ series preparers are available in a variety of shapes such as I-shaped, frame-type, square, etc., and can be divided into single-sided, double-sided, four-sided, and eight-sided preparers according to the thickness of the coating film. The wet film preparer is suitable for making films such as glue, paint, ink, polymer materials, etc., and can be equipped with a film coating machine for automatic film scraping. Nanbeichao provides preparator specification customization services.
Features
1. 9Cr18Mo high hardness stainless steel material, with good wear resistance and corrosion resistance, hardness value of 50~55HRC.
2. The coating film accuracy is ±2μm
3. The surface is smooth and clean, the styles are diverse, the application range is wide, and customized specifications are supported
4. Adopt imported three-coordinate detection accuracy, with factory test report, which can stand up to measurement

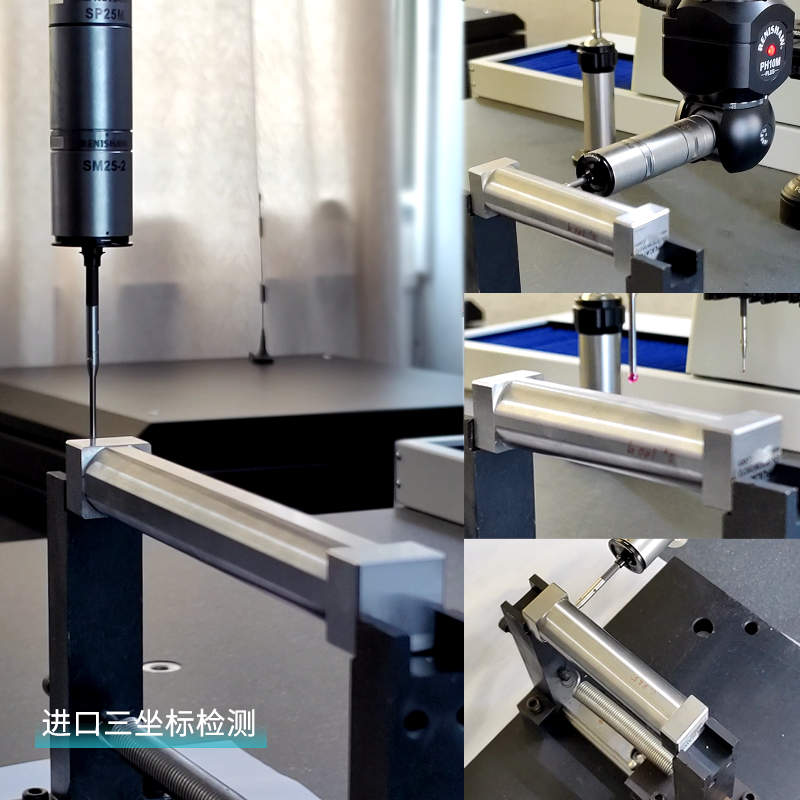

The detection accuracy process is actually shot
Each piece of wet film preparer is tested with this million-dollar imported three-coordinate testing equipment, and the test result data is generated into a test report attached to the corresponding product, which can stand up to measurement and let users buy with confidence.
Parameter table of the preparator series
| name | Specification mm | Wet film thickness μm |
| Single-sided preparer | The Total length is 80, and the coating width is 50 and 75 | 50、75、100、125、150、175、200 |
| Double-sided preparer | The Total length is 100, and the coating width is 80 | 25、50、75、100、150、175、200、300、400 |
| Frame preparer | The Total length is 90, and the coating width is 80 | 30、50、60、90、120、150、200 |
| Octaveral preparer | The Total length is 90, and the coating width is 68 | 50、75、100、125、150、175、200 |
| Octaveral preparer | The Total length is 100, and the coating width is 80 | |
| Square preparer | 25x25, coating width 16 | 37、50、75、100 |
| Square preparer | 50x50, coating width 41 | 50、100 |
| Standard four-sided preparer | The Total length is 100, and the coating width is 80 | All specifications and sizes, support non-standard customization |
| Extended four-sided preparer | The Total length is 190, and the coating width is 160 |
