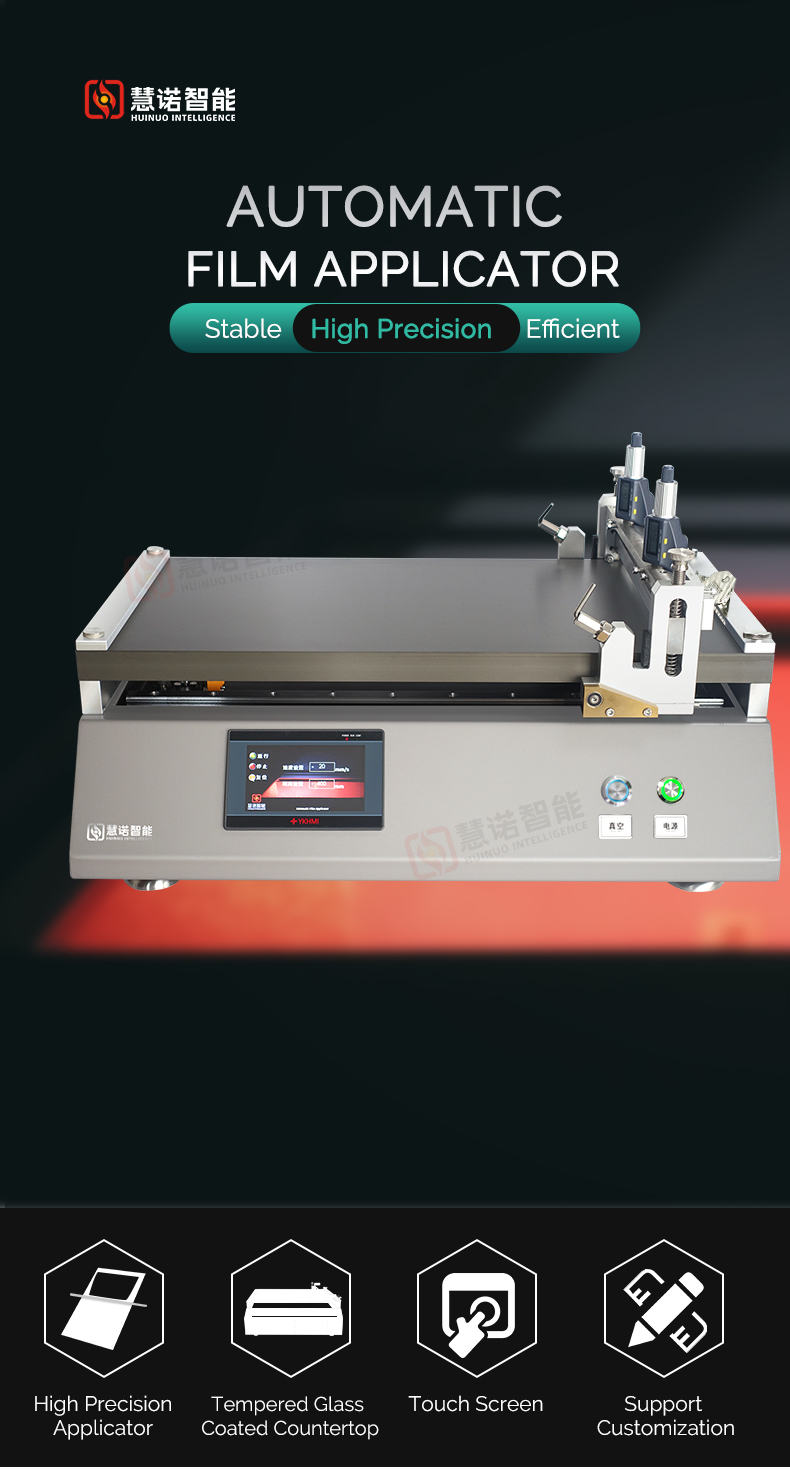

HuiNuo TM3200/04 drawdown Bar & Blade vacuum adsorption coater Effective area 600 * 800mm
SEDrawdown Bar & Blade vacuum adsorption integrated type, stepper motor, effective area 600 * 800mm, simple bar groove design, bar installation is simple, drawdown blade clamshell design, fast cleaning, high flatness aluminum alloy plate, high hardness and wear resistance.
$6289.00/set
PromotionLoading...
Coupon
Model：
TM3200/04
HuiNuo TM3200/04 Automatic Film ApplicatorSPEC
HuiNuo TM3200/04 Automatic Film ApplicatorDetails
HuiNuo TM3200/04 Automatic Film ApplicatorPacking list
- SKU
- NB048939
- Coating method
- Bar + drawdown blade

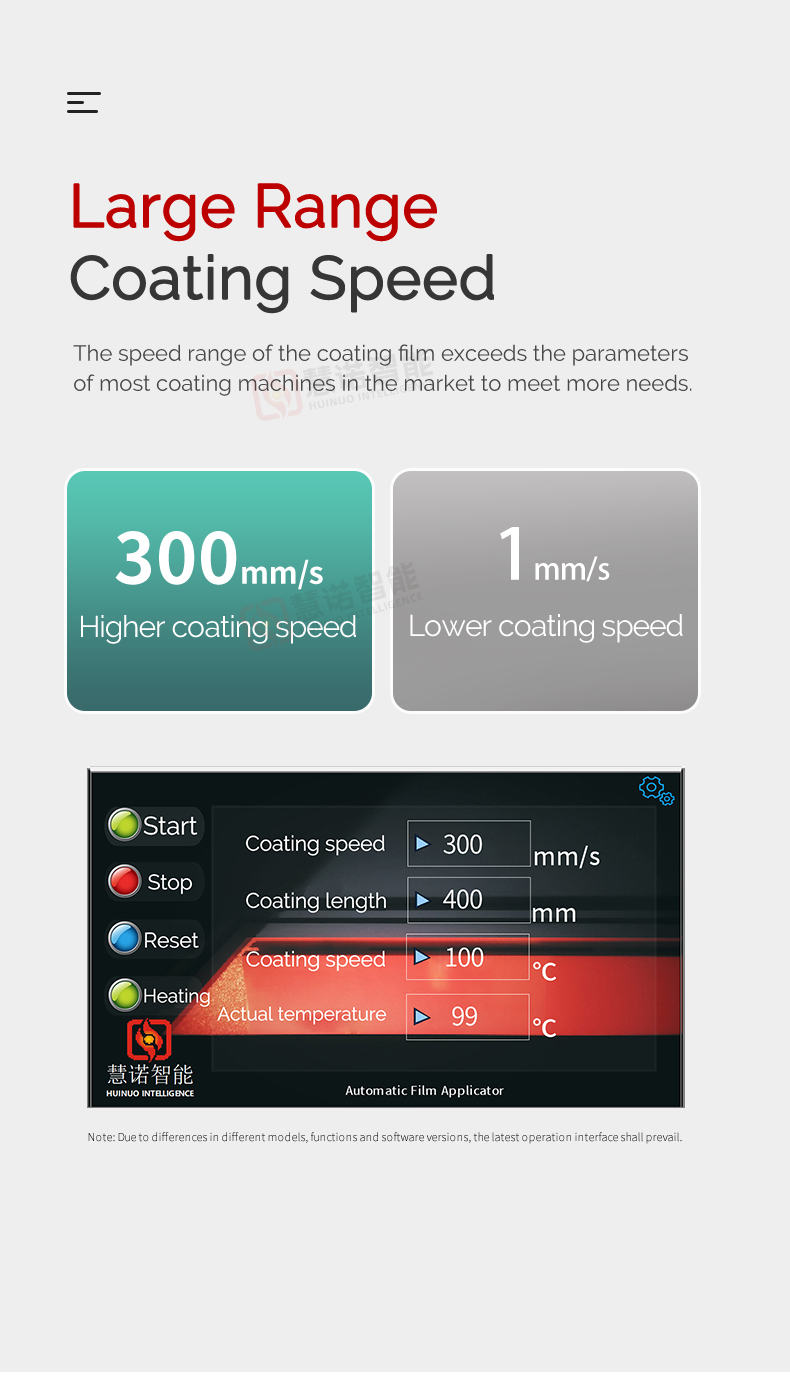

- Coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)

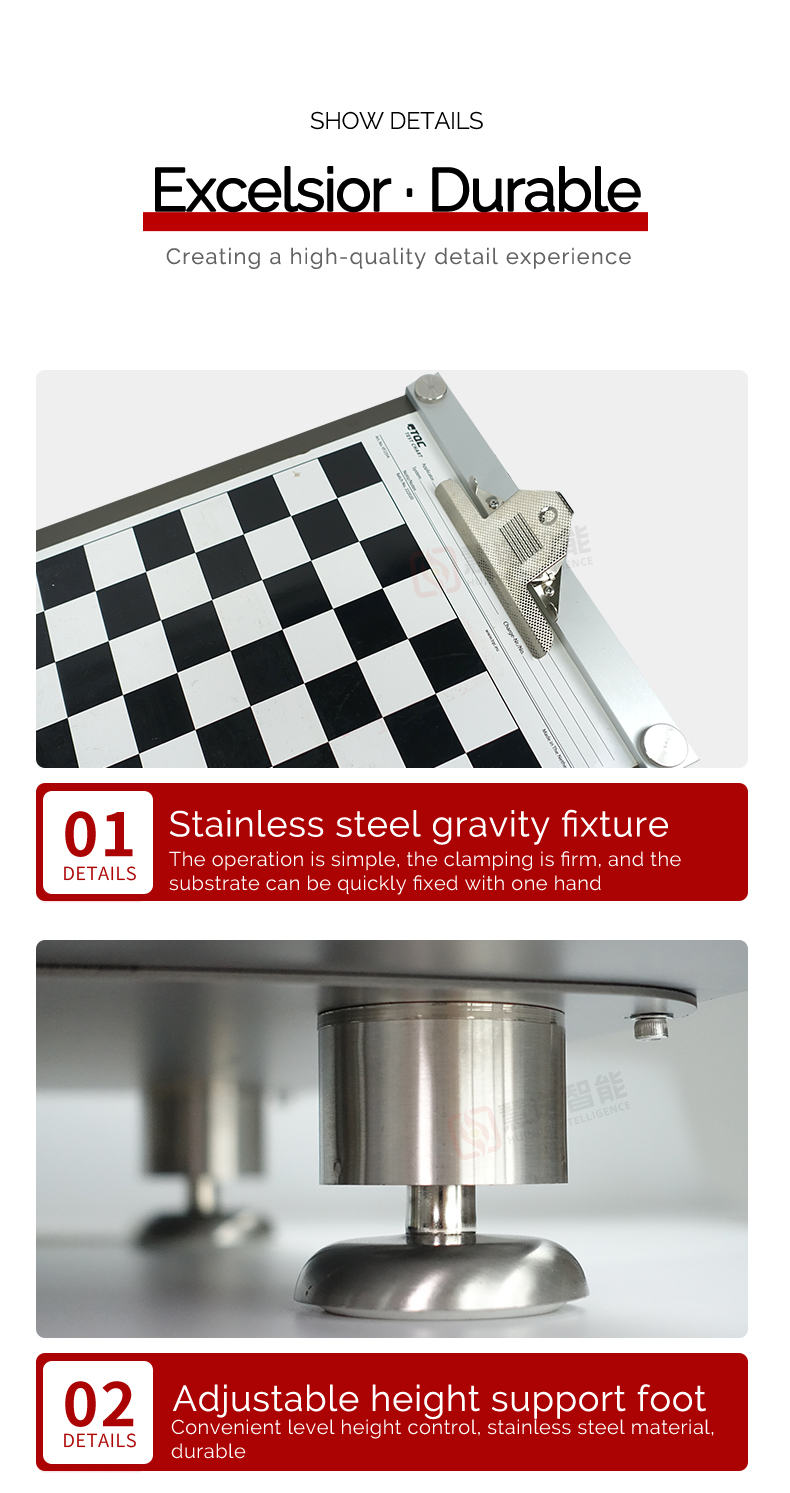

- Substrate clamping method
- Vacuum adsorption + fixture
- Coating table material

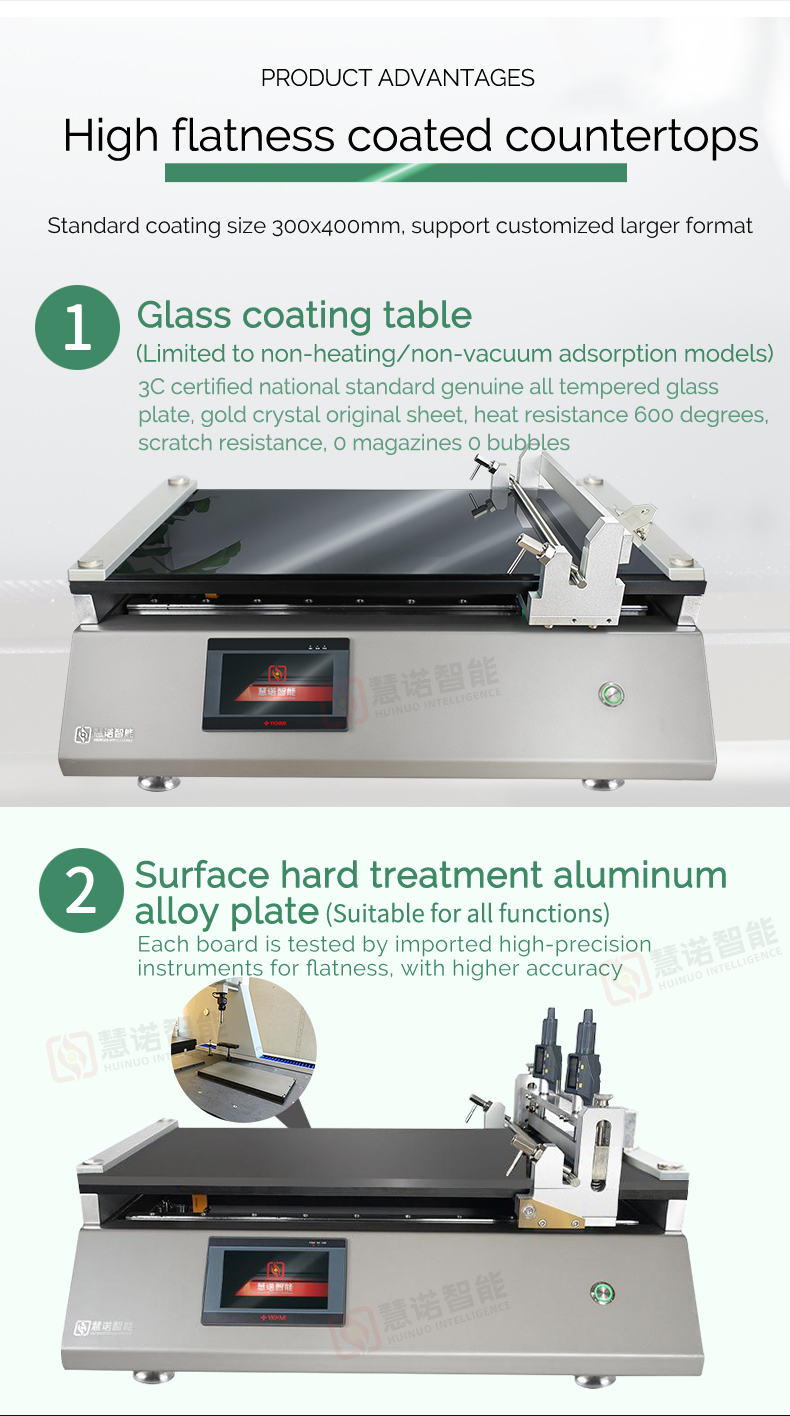

- Surface hard treatment aluminum alloy
- Coating table size
- 1040*630mm
- Effective coating Area
- 800 * 600Mm (can be customized)
- Mayer Rod Thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Mayer Rod Accuracy
- ±0.003mm
- Drawdown blade thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 600mm
- Drawdown blade Accuracy
- ±0.003mm
- Vacuum Area
- 880 * 560Mm (can be customized)
- vacuum aperture
- Φ0.8mm
- Vacuum hole spacing
- 20*20mm
- Pumping Speed
- 5.4m3/h
- Ultimate Vacuum
- 50KPa
- Vacuum Pump Power
- 180W
- Vacuum pump Weight
- 7.1kg
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Power
- 600w

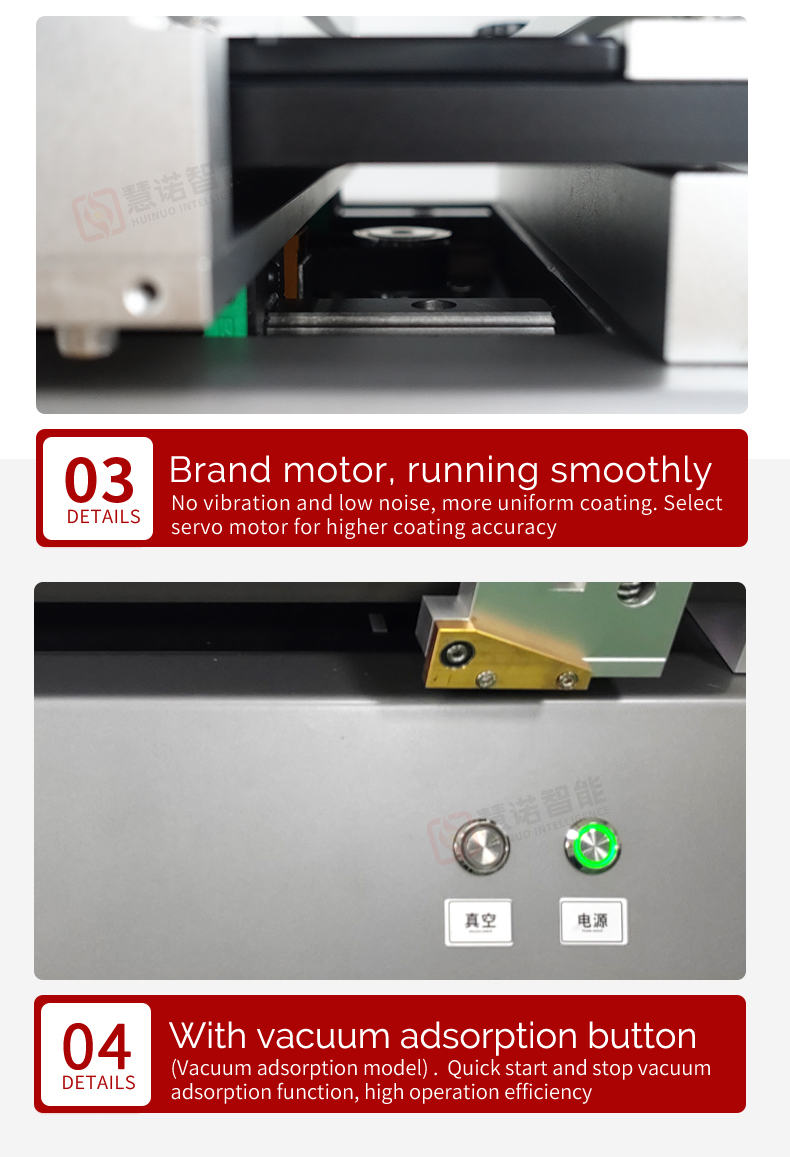

- Drive motor
- Servo motor
- Host Power Supply
- 220V/50HZ (can be customized 110V/60HZ)
- Dimension
- 1060*740*430mm
TM3200/04
Automatic Film Applicator

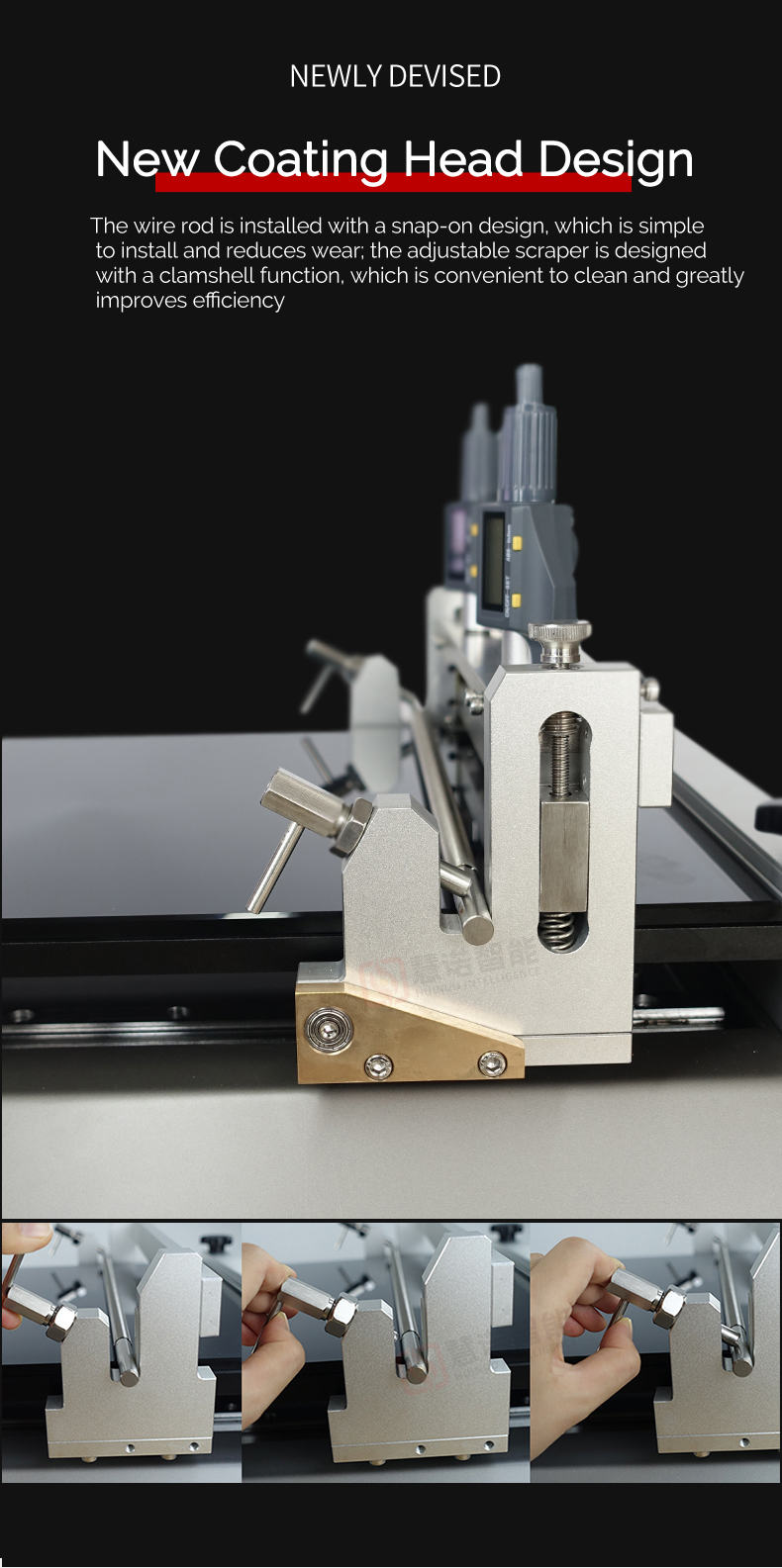

Drawdown Bar & Blade vacuum adsorption integrated type, stepper motor, effective area 600 * 800mm, simple bar groove design, bar installation is simple, drawdown blade clamshell design, fast cleaning, high flatness aluminum alloy plate, high hardness and wear resistance.
FAQ
QIt is often necessary to test the glue film formation performance of different viscosity. Is this machine OK?
A
The TM3200/04 Automatic Film Applicator is ideal for testing glue materials. It provides stepless speed regulation of 1-300mm/s, which can adjust the Spreader speed for different viscosities of glues. The clamshell drawdown blade is designed to be easy to clean and avoid cross-contamination of samples. It is suitable for sample preparation of polymer materials such as glue and Resin.
