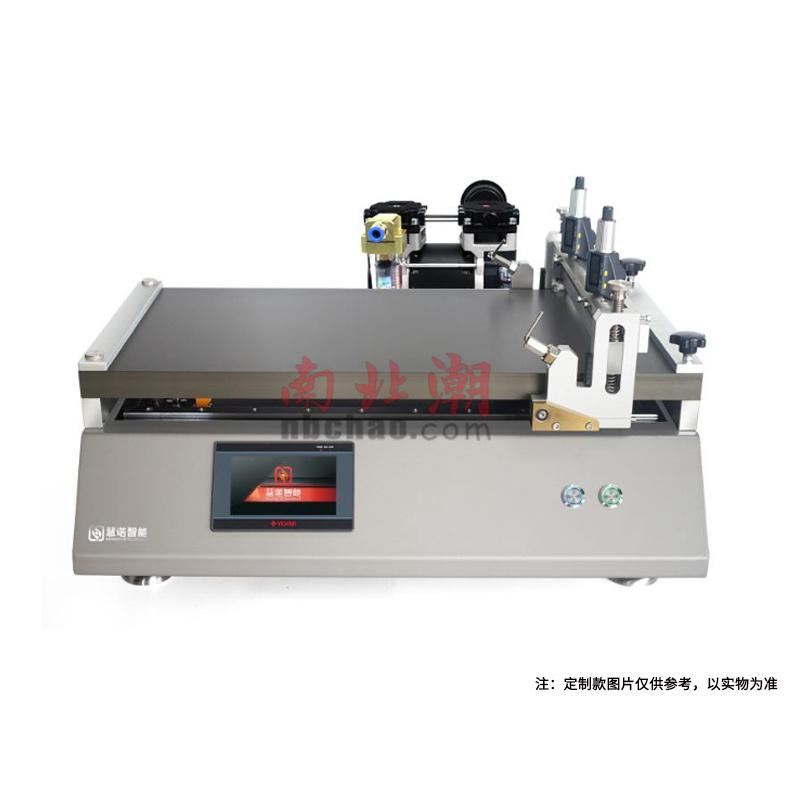

HuiNuo TM3200AF/04 drawdown Bar & Blade vacuum adsorption coater (with automatic feeding system) Effective area 600 * 800mm
SE
TM3200AF/04
HuiNuo TM3200AF/04 Automatic Film ApplicatorSPEC
HuiNuo TM3200AF/04 Automatic Film ApplicatorDetails
HuiNuo TM3200AF/04 Automatic Film ApplicatorPacking list
- SKU
- NB048940
- Coating method
- Bar + drawdown blade
- Coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- Vacuum adsorption + fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Spreader Platform size
- 1040*630mm
- Effective coating Area
- 800 * 600Mm (can be customized)
- Mayer Rod Thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Mayer Rod Accuracy
- ±0.003mm
- Drawdown blade thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 600mm
- Drawdown blade Accuracy
- ±0.003mm
- Vacuum Area
- 880 * 560Mm (can be customized)
- vacuum aperture
- Φ0.8mm
- Vacuum hole spacing
- 20*20mm
- Pumping Speed
- 5.4m3/h
- Ultimate Vacuum
- 50KPa
- Vacuum Pump Power
- 180W
- Vacuum pump Weight
- 7.1kg
- Operating language
- Chinese (can be customized in English)
- standard feature
- Automatic inking system
- Feeding principle
- Air source pressure flows out
- Feed Sport Mode
- Reciprocating linear motion
- Feeding back and forth traverse speed
- 2~150mm/s
- spit Volume
- Adjustable (by adjusting the air pressure and the running speed of the discharge port)
- Shaft transmission mode
- Timer belt
- Feeding system air source
- 0.6Mpa, which can be connected to the trachea of < unk > 8 (self-equipped)
- Power Voltage of charging system
- 220V,50Hz
- Tank pressure
- Maximum withstand 8Mpa
- Material of feeding barrel
- 304 stainless steel with a wall thickness of 4mm
- Feeding bucket configuration
- Safety valve, pressure regulating valve, pressure gauge, discharge valve
- Feeding drum Volume
- 1L
- Display
- Color LCD touch screen
- Drive motor
- Servo motor
- Power
- 600w
- Host Power Supply
- 220V/50HZ (can be customized 110V/60HZ)
- Dimension
- 1060*740*430mm
product description
The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The Principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.
This coating machine is a wire bar blade coating machine with two functions: wire bar coating and blade coating. The innovative wire bar installation method and flip-type scraper head greatly improve the coating efficiency, facilitate cleaning, and have speed control. And the coating length adjustment function is suitable for high-precision automatic coating in laboratories, and film production and proofing in university research institutes, new materials, lithium batteries, glue, resin and other laboratories.
Applications
The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc. It can be applied on glass, cardboard, and cloth.
Features
1) The glass tabletop is a 3C certified national standard authentic fully tempered glass plate, original gold crystal, heat-resistant to 600℃, scratch-resistant and scratch-resistant
2) Big brand differential regulator, high film thickness control accuracy
3) Flip-type doctor blade coating head, easy to clean
4) Equipped with a high-precision Film Applicator, the original imported wire rod can apply the film uniformly and with high precision
5) Touch screen control panel, easy to operate
6) Coating length and coating speed can be adjusted freely
