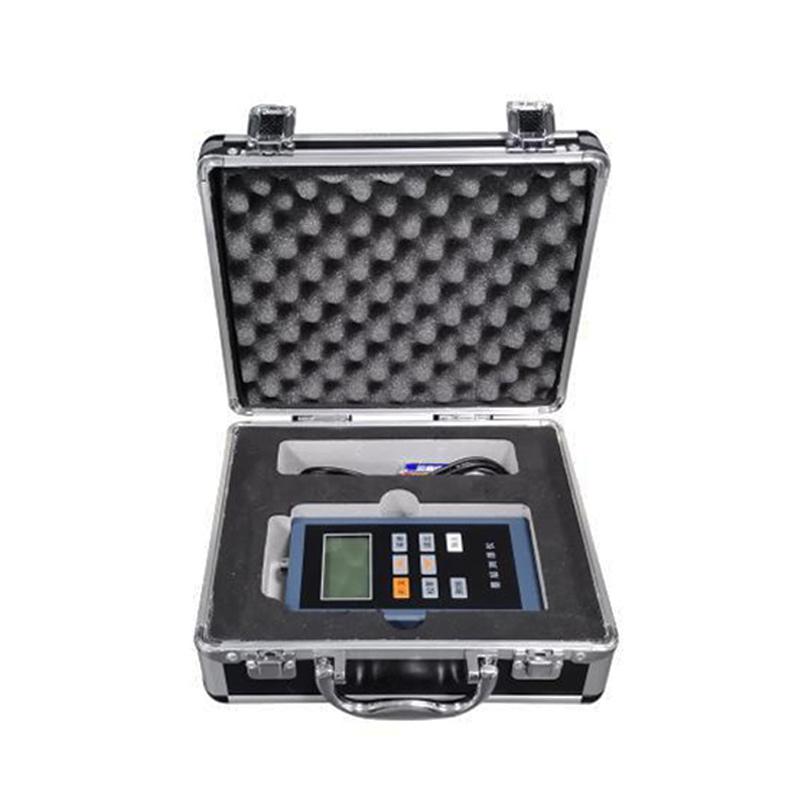

LEEB LBTQ20-3 Cladding Thickness Gauge (Multifunctional) + F1/90 ° Probe

LBTQ20-3

Cladding Thickness Gauge

With magnetic and eddy current two thickness measurement methods, support a variety of probe compatibility, high accuracy, resolution of 0.1 μm, with statistical analysis function and can store 500 sets of data.

Introduction

LBTQ20-3 series cladding Thickness Gauge adopts two methods of magnetic and eddy current thickness measurement, which can non-destructively measure the thickness of the non-magnetic covering layer (such as aluminum, chromium, copper, enamel, rubber, paint, etc.) on the magnetic metal matrix (such as steel, iron, alloy and hard magnetic steel, etc.) and the thickness of the non-conductive covering layer (such as enamel, rubber, paint, etc.) on the non-magnetic metal matrix (such as copper, aluminum, zinc, tin, etc.).

This instrument can be widely used in electroplating, anti-corrosion, aerospace, chemical industry, automobile, shipbuilding, light industry, commodity inspection and other testing fields.

Features

• Various probes can be used (F400, F05, F1, F3, F3 High Temperature, F1/90°, F5, F10, N1, N400, N3, N05).

• and other probes, etc.);

• Three calibration methods: one-point calibration, two-point calibration, and basic calibration;

• Display resolution: 0.1um below 1250um, 1um above 1250um);

• There are four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), number of measurements (No)

• Set up five statistics and store 500 pieces of data.

Packing list：machine x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
