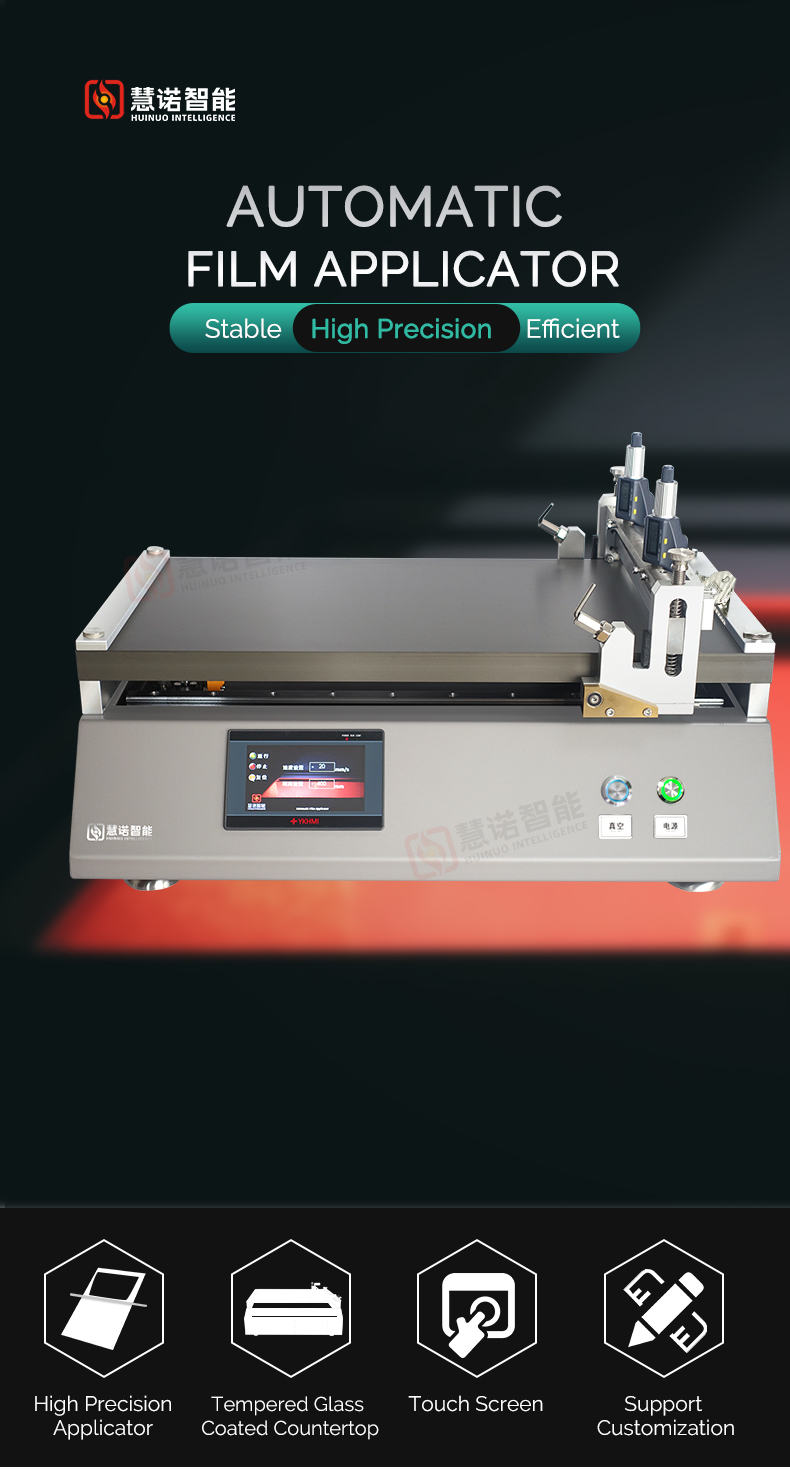

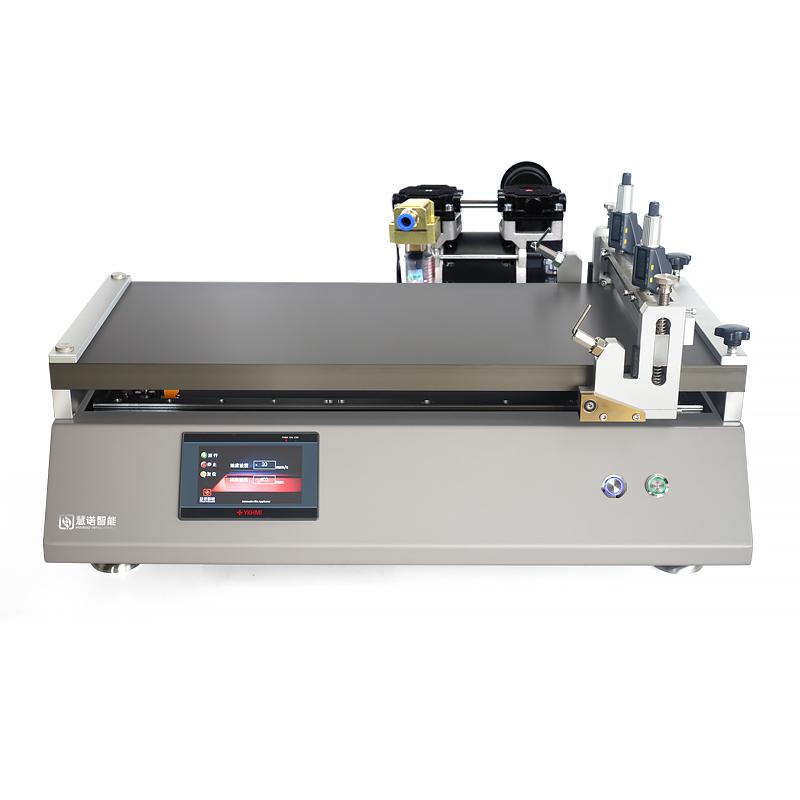

HuiNuo TM3300/14 drawdown Bar & Blade heating vacuum adsorption coater 300 * 1300mm

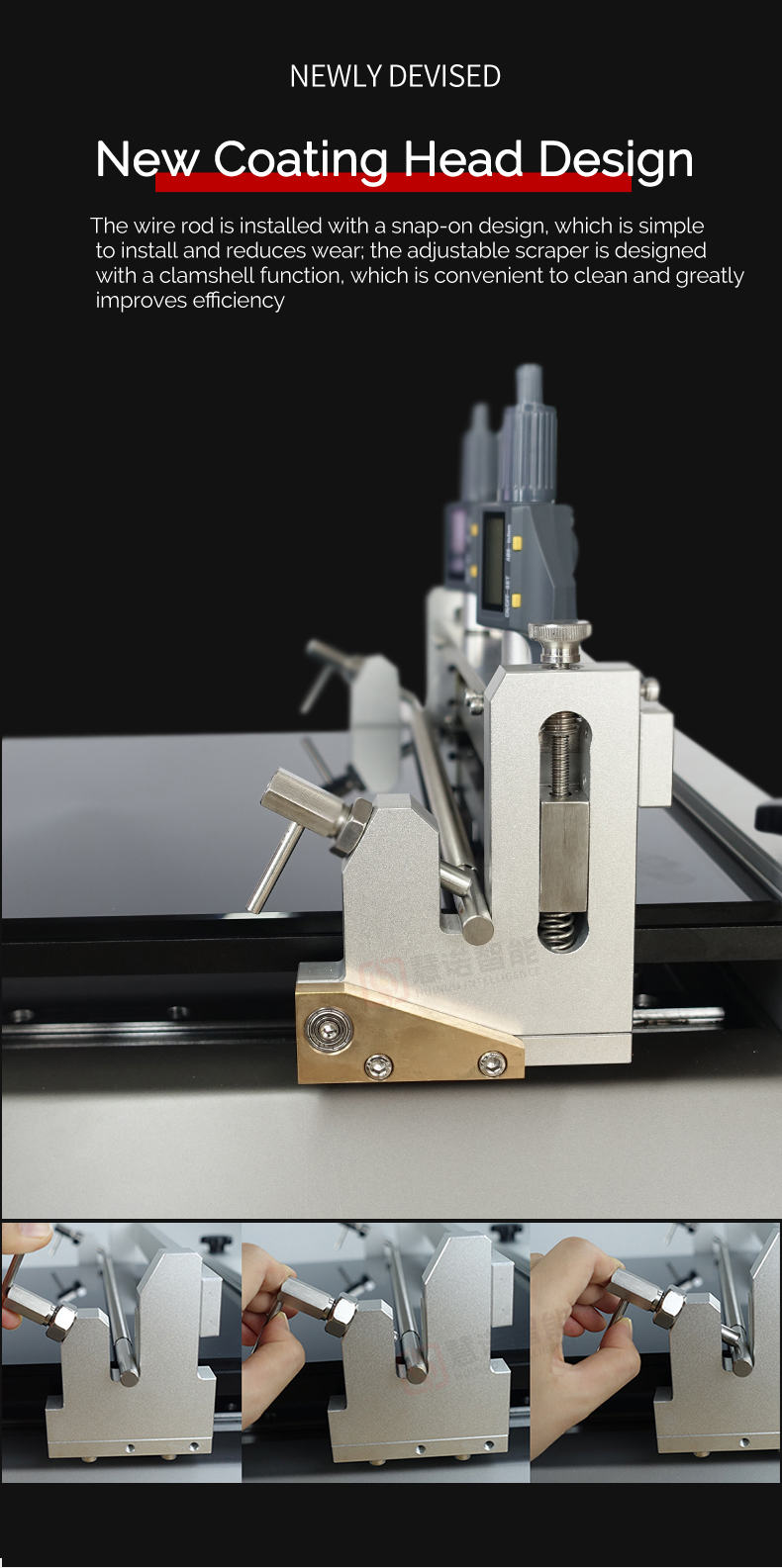

SEBar + drawdown blade + heating + vacuum adsorption integrated, effective Spreader area of 300 * 1300mm, simple snap bar installation, digital adjustable drawdown blade clamshell design, fast cleaning, high flatness hardening processing aluminum alloy baseplate.
Price: Please contact customer service
Model：
TM3300/14
HuiNuo TM3300/14 Automatic Film ApplicatorSPEC
HuiNuo TM3300/14 Automatic Film ApplicatorDetails
HuiNuo TM3300/14 Automatic Film ApplicatorPacking list
- SKU
- NB048960
- Coating method
- Bar + drawdown blade

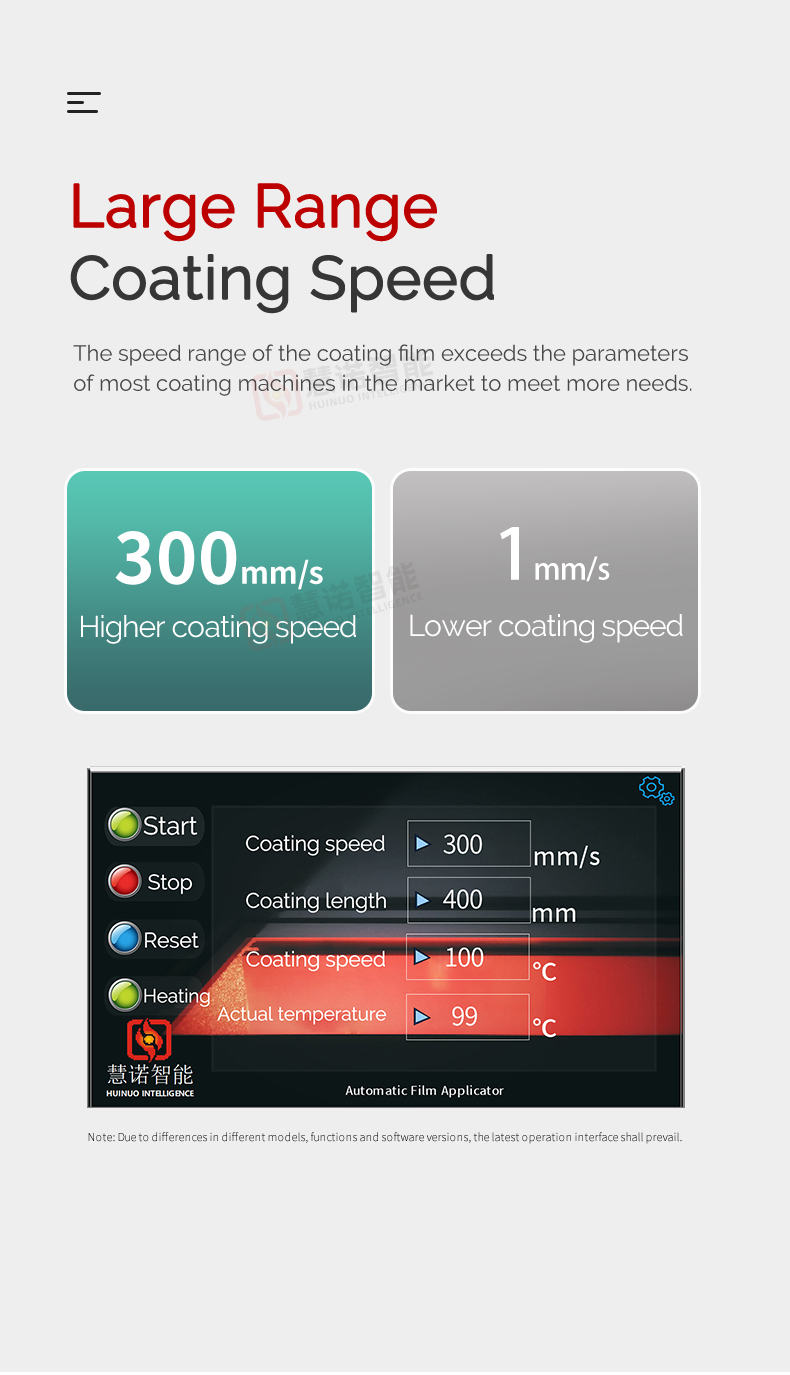

- Coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)

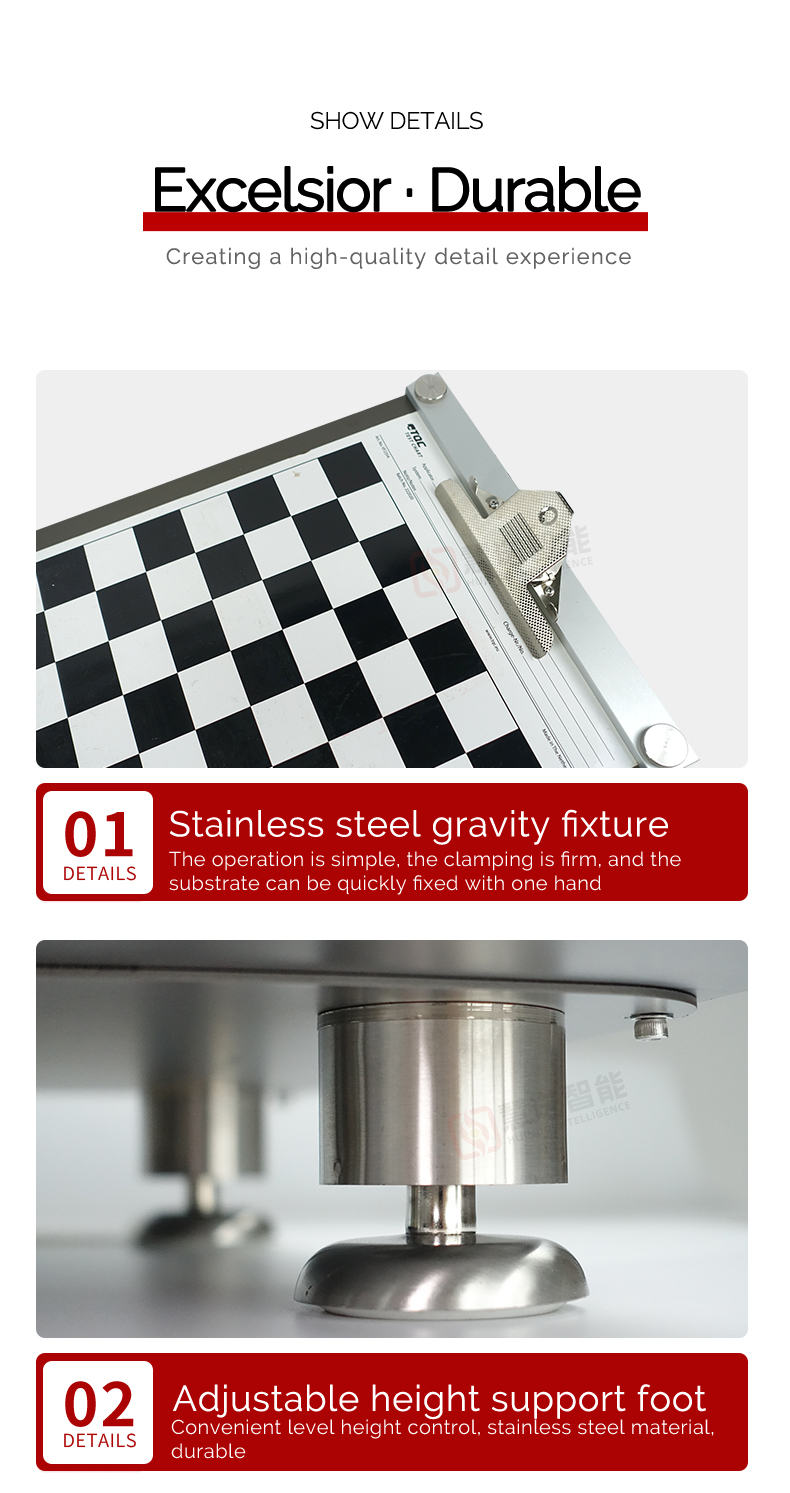

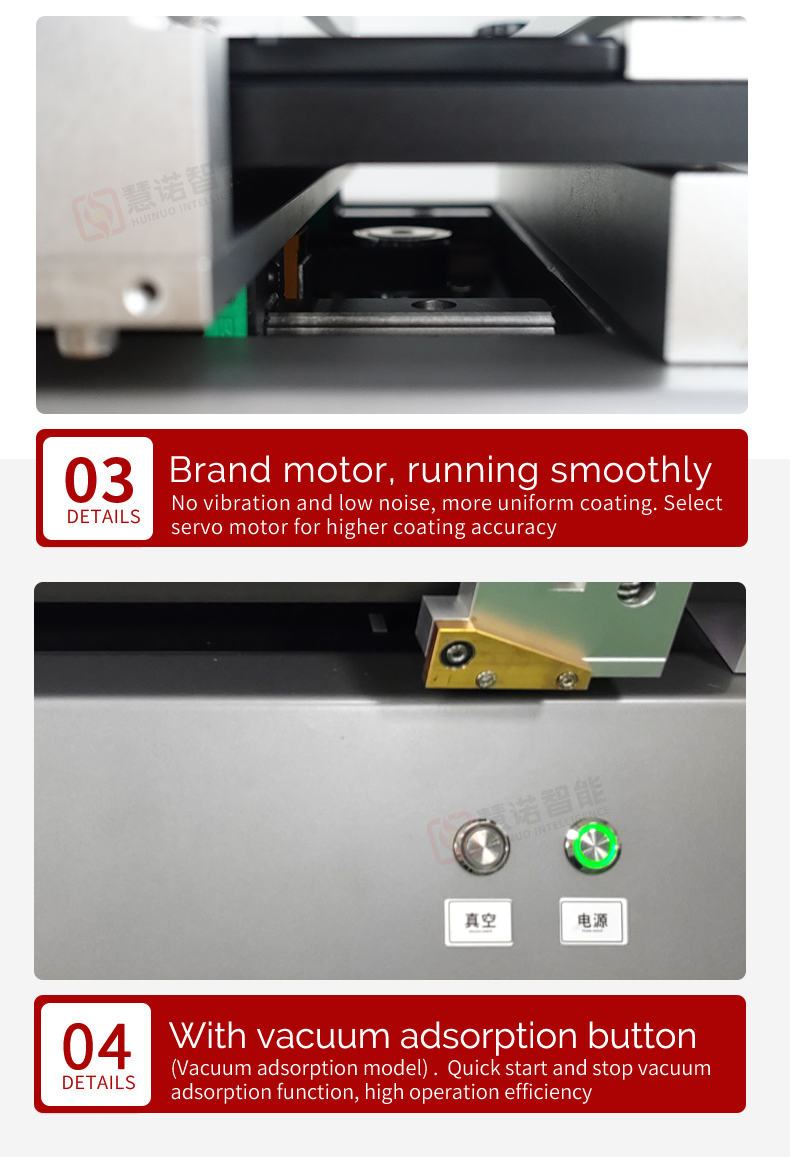

- Substrate clamping method
- Vacuum adsorption + fixture

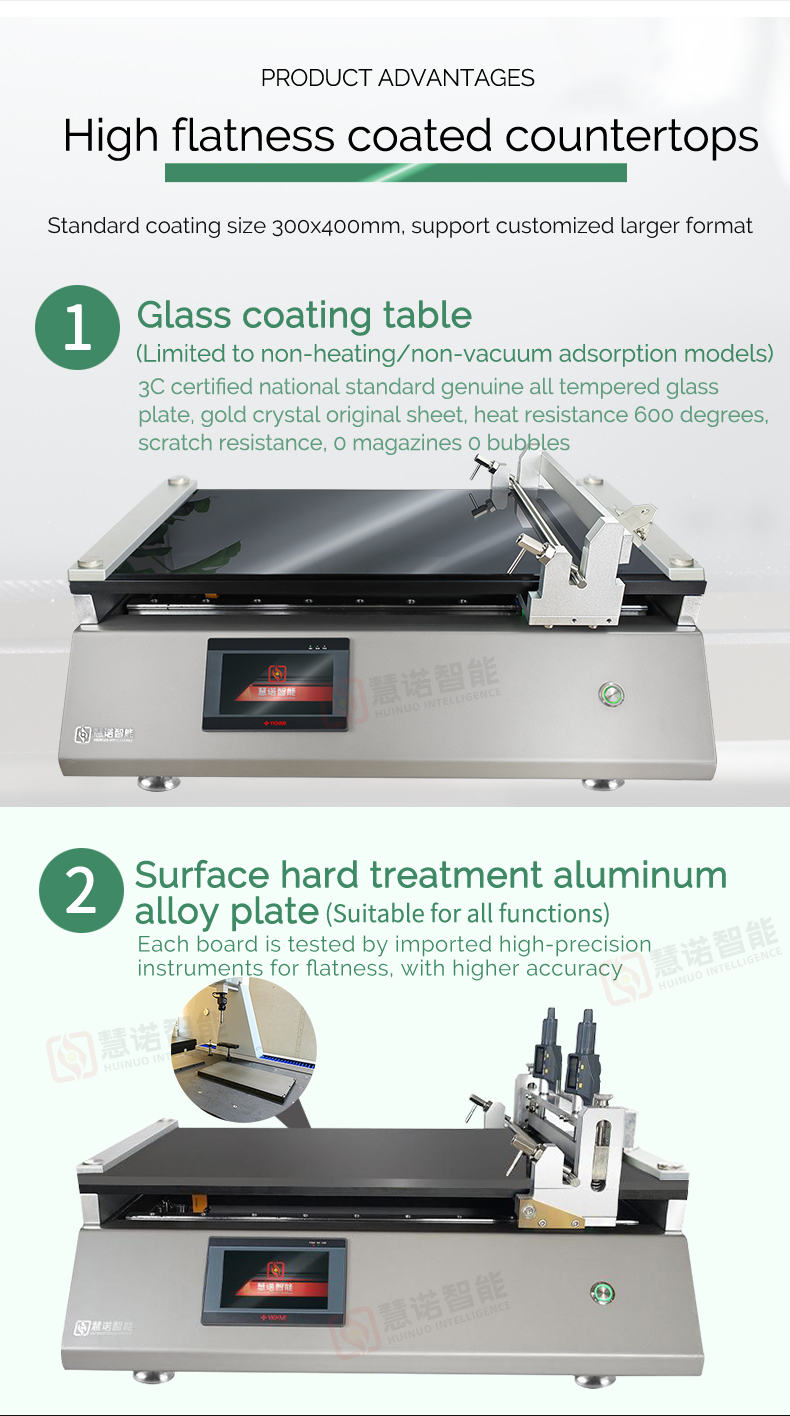

- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 1540*330mm
- Effective coating Area
- 1300 * 300Mm (can be customized)
- Mayer Rod Thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Mayer Rod Accuracy
- ±0.001mm
- Drawdown blade thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 300mm
- Drawdown blade Accuracy
- ±0.003mm
- Vacuum Area
- 1380 * 260Mm (can be customized)
- vacuum aperture
- Φ0.8mm
- Vacuum hole spacing
- 20*20mm
- Heating mode
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Heating Temperature range
- RT +~ 180 ℃ (higher temperature can be customized)
- Temperature Uniformity
- ±1℃
- Pumping Speed
- 5.4m3/h
- Ultimate Vacuum
- 50KPa
- Vacuum Pump Power
- 180W
- Vacuum pump Weight
- 7.1kg
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 100V~220V/50~60HZ
- Power
- 1800w
- Dimension
- 1560*440*430mm
TM3300/14
Automatic Film Applicator
Bar + drawdown blade + heating + vacuum adsorption integrated, effective Spreader area of 300 * 1300mm, simple snap bar installation, digital adjustable drawdown blade clamshell design, fast cleaning, high flatness hardening processing aluminum alloy baseplate.
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
