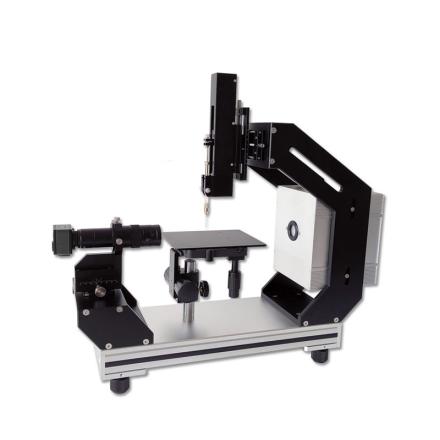

Specifications
| Power supply Voltage | 220V / 50-60HZ |
| Body profile | European standard 40X40W heavy duty thickening |
| Communication line | SC09 programming control line, versatility, high efficiency, fast command sending speed, stable data transmission. |
| kernel processor | It adopts imported Mitsubishi PLC core processor, with fast computing speed, high control Accuracy and strong anti-interference ability. |
| Weight | About 23kg (bare metal) |
| Dimension | 820*210*660mm |
| CCD camera | SONY high-speed industrial-grade chip, 30 frames/S, 300W pixels. Drive-free, USB Power Supply plug and play. |
| lens | 0.7-4 zoom Microscope head, magnification 30-130 times. |
| Focusing movement | Stroke 70mm, Accuracy 0.1mm |
| Image resolution | Default 1280 * 960, a total of four kinds, can be freely switched. |
| Light source | LED adjustable, white tone industrial grade Cold Light source. |
| Light source optimization | Polymer soft light material makes the luminance uniform and the droplet profile clearer. |
| Luminance adjustment | Light source characteristics for LED cold, special chip design, Light source stability. |
| light source wavelength | 450-460nm |
| Power | 3W |
| lifespan | More than 80,000 hours. |
| Sample injector | High precision quartz Sample injector, Capacity 500μL |
| Dripping method | Software controlled automatic liquid feeding, drop Accuracy 0.001 μ L. |
| running speed | The running speed is adjustable in 5 gears. |
| Liquid addition method | One click to add liquid, fill up and stop automatically. |
| Injection unit movement | Up and down 60mm; left and right 60mm; |
| needle | Equipped with hydrophilic needle and superhydrophobic needle. |
| Table size | 200mm * 160mm |
| Small stage | 70mm * 45mm |
| Maximum sample size | 280(W) * ∞(L) * 60(H)mm |
| Sample stage movement | Move back and forth, stroke 75mm, Accuracy 0.1mm |
| horizontal adjustment | Sample stage level adjustment, CCD level adjustment (distribution level) |
| Sample stage material | aluminum alloy |
| Measurement mode | Seat drop method, hanging drop method, forward angle, backward angle, capturing method, etc |
| Measurement range of contact angle | 0~180° |
| Measurement Accuracy of contact angle | ±0.1° |
| Angle resolution | 0.001° |
| Baseline recognition | Automatic and manual |
| Measurement range of surface tension | 0~3000mN/m |
| Surface tension test resolution | 0.001mN/m |
| Measurement mode | automatic |
| Surface energy calculation method | All mainstream surface energy calculation methods are provided, including LW-AB, Owens, Wu S.J, Fowkes, ZHU, and the surface energy calculation method can be customized in the background. |
| Wettability analysis | Adhesion work, moisture invasion work and spreading coefficient are automatically analyzed with one key. |
Packing list
Host X1, manual X1, certificate X1, warranty card X1 Contact Angle Meter host X1, lens X1, CCD camera X1, trace Sample injector (500μ1) X1, trace Sample injector (1000μ1) X2, hydrophilic needle (stainless steel) X2, hydrophobic needle X2, surface tension needle (thick) X2, power cord X1, camera cable X1, sc09 communication cable X1, software Udisk X1, level adjustment instrument X1, instruction manual X1, certificate X1, packing list X1
After-sales instructions
Warranty days: 1095 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/48991/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
