United States

RDS #90 Mayer Rods WFT 205.7μm Length 400mm

SE
Mayer Rods imported from the United States, formed process, suitable for levelling, sagging, color matching, color repair, hiding power, fingerprint resistance, etc. Film thickness is 205.7 μm, manual scraping, uniform film.
$155.00/piece
PromotionLoading...
Coupon
Model:

RDS 90# 1/4“ Applicator rod 1/4 "SPEC

RDS 90# 1/4“ Applicator rod 1/4 "Details

RDS 90# 1/4“ Applicator rod 1/4 "Packing list

SKU
NB000049
Production process
formed
WFT
205.7μm
diameter
6.35mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
90# 1/4“
Applicator rod 1/4 "
Mayer Rods imported from the United States, formed process, suitable for levelling, sagging, color matching, color repair, hiding power, fingerprint resistance, etc. Film thickness is 205.7 μm, manual scraping, uniform film.
RDS #90 Mayer Rods WFT 205.7μm Length 400mm Picture

Product description

In the RDS wire rod coater, the wire-wound coating rod has three diameters of 1/2, 1/4, and 3/8, while the RDS forming wire rod coater currently only has a 1/4 inch diameter. This RDS#90 wire rod coater is a forming type coating rod. In addition to the different manufacturing process, the material, precision and Application of the formed coating rod and the wire-wound wire rod coater are the same, and the same type of RDS wire rod coater (including extruded The thickness of the wet film prepared by the pressure type and the wire type) is the same. RDS forming type wire bar applicator can also be widely used in leveling, sagging, color matching, color correction, hiding power, fingerprint resistance and other experimental testing, and is suitable for coatings, inks, latex, etc. of various viscosities.

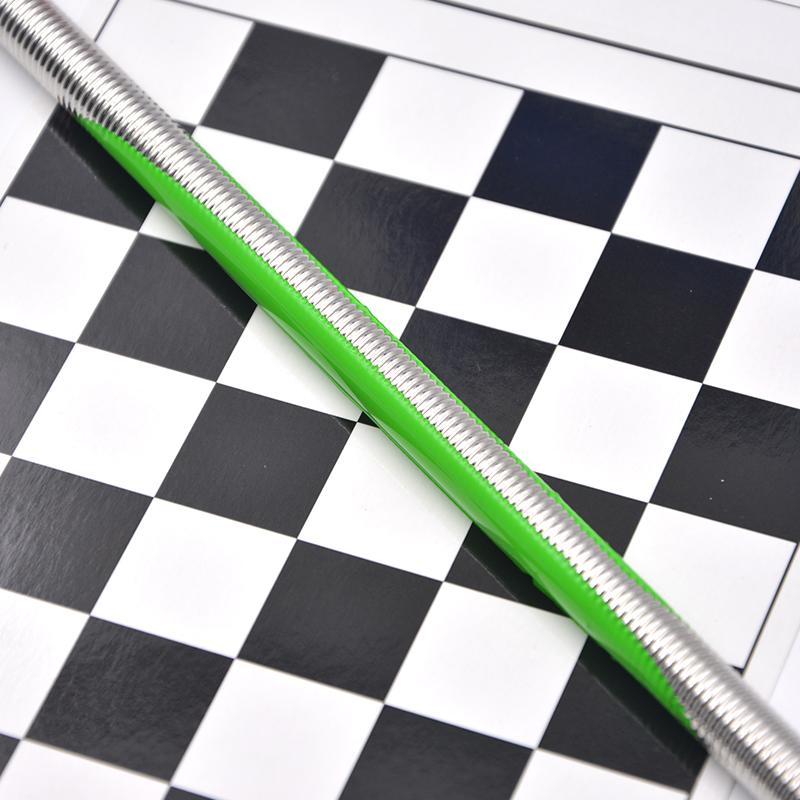

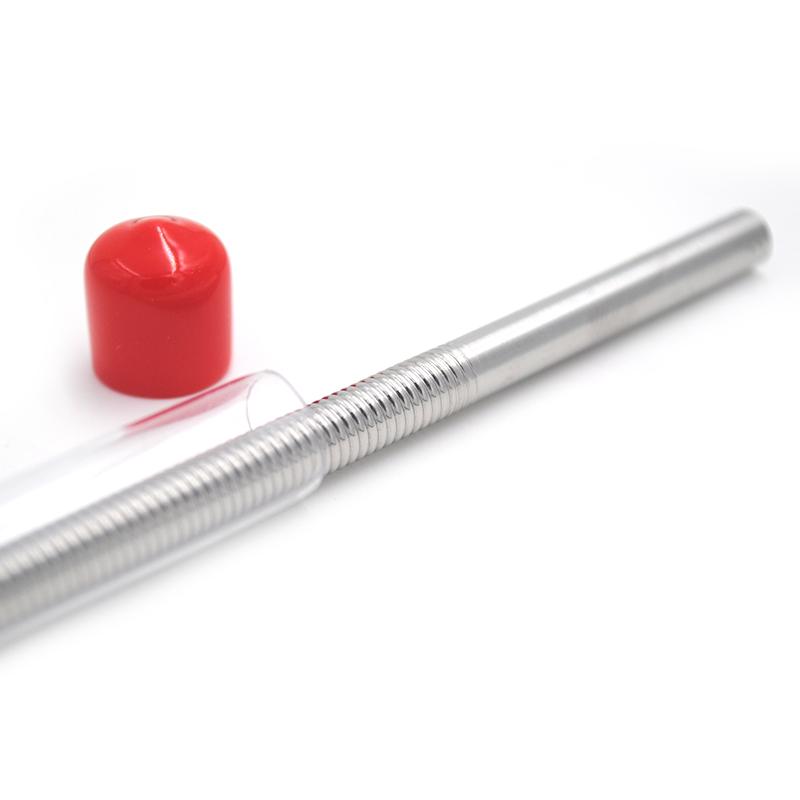

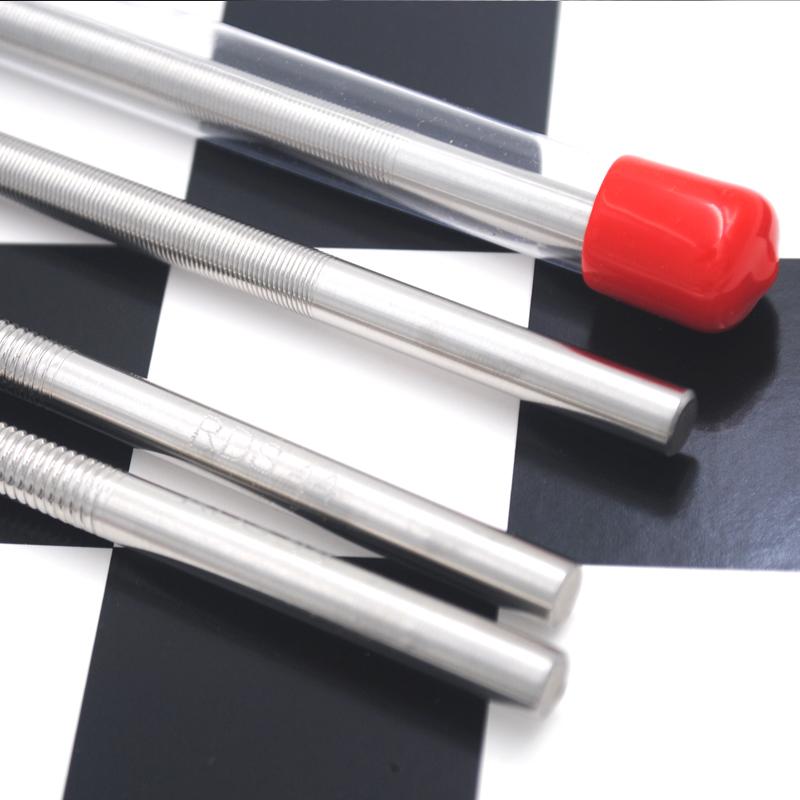

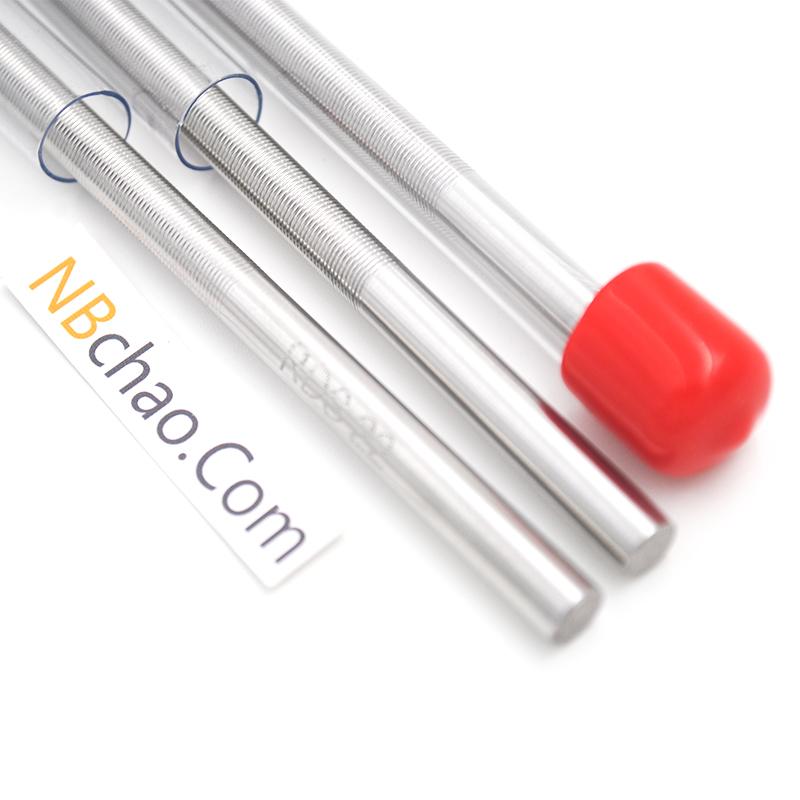

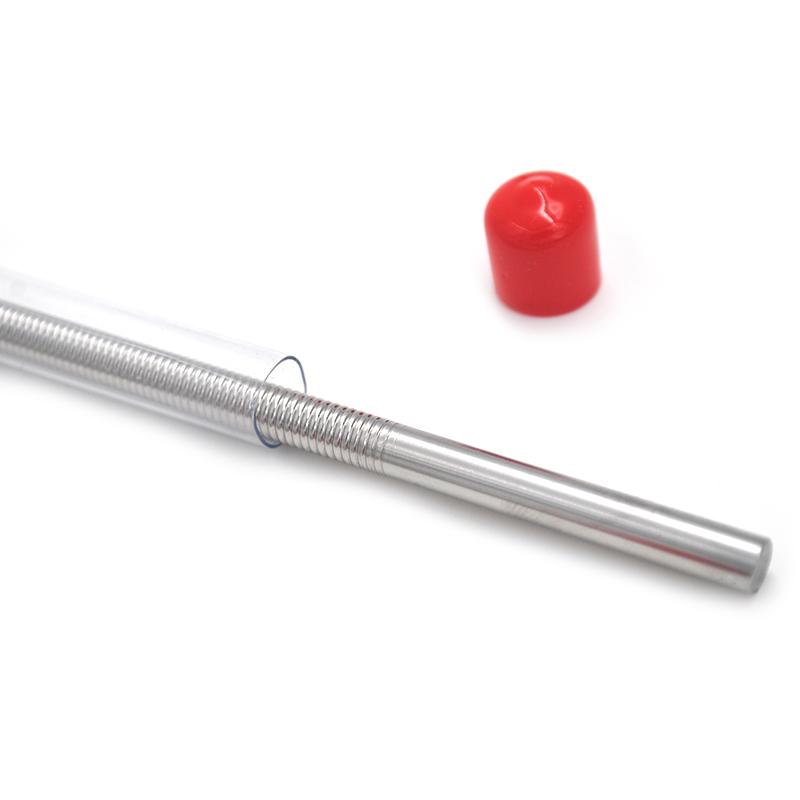

RDS coating Rods Figure 1



RDS coating Rods Figure 2



RDS coating Rods Figure 3



RDS coating Rods Figure 4



RDS coating Rods Figure 5



RDS coating Rods Figure 6



RDS coating Rods Figure 7



RDS coating Rods Figure 8



RDS coating Rods Figure 9



RDS coating Rods Figure 10



FAQ
QDo you have a 0.2mm scraper?
A Hello, the film Film thickness of RDS 90 #is 205μm.
QIs this a larger film thickness? Is there a bigger one?
A Yes, the maximum film thickness of this series model is 205.7μm. It is generally believed that film thicknesses over 200um can be prepared using Film Applicator or Micrometer Film Applicator.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QDoes this extruded wire rod comply with ASTMD823 standard?
A This extruded wire rod is suitable for ASTMD823. Please consult customer service for detailed application definition.
