China

Jinheyuan JHY-MF-500D Sealing Tester plastic bottle cap piercing fixture 0-400KPa

Using high transparent Organic Glass test barrel and special plastic bottle cap puncture fixture, pressure range 0-400KPa, one-button operation automatic test and record data, equipped with sample library and Linear dispersion chart function.
Model：
Certificate
Contact
Details SPEC CAT

JinHeYuan JHY-MF-500D Sealing TesterSPEC

JinHeYuan JHY-MF-500D Sealing TesterDetails

JinHeYuan JHY-MF-500D Sealing TesterPacking list

SKU
NB049046
operating Voltage
50Hz,AC220V
Pressure value range
0-400KPa
Total height of test barrel
390mm
Test barrel bottom size
250mm×250mm
Effective inner size of test barrel
Φ180mm×360mm
Measurement time
≤ 999S (time can be set freely)
Time control Accuracy
1s
Operating Environment
-20~500 C (-200 C~ 00 C need to start practice running 3min) Air source user-provided (air compressor air source)
total number of hosts
About 20KG
Main box size
300×240×115mm
JHY-MF-500D
Sealing Tester
Using high transparent Organic Glass test barrel and special plastic bottle cap puncture fixture, pressure range 0-400KPa, one-button operation automatic test and record data, equipped with sample library and Linear dispersion chart function.

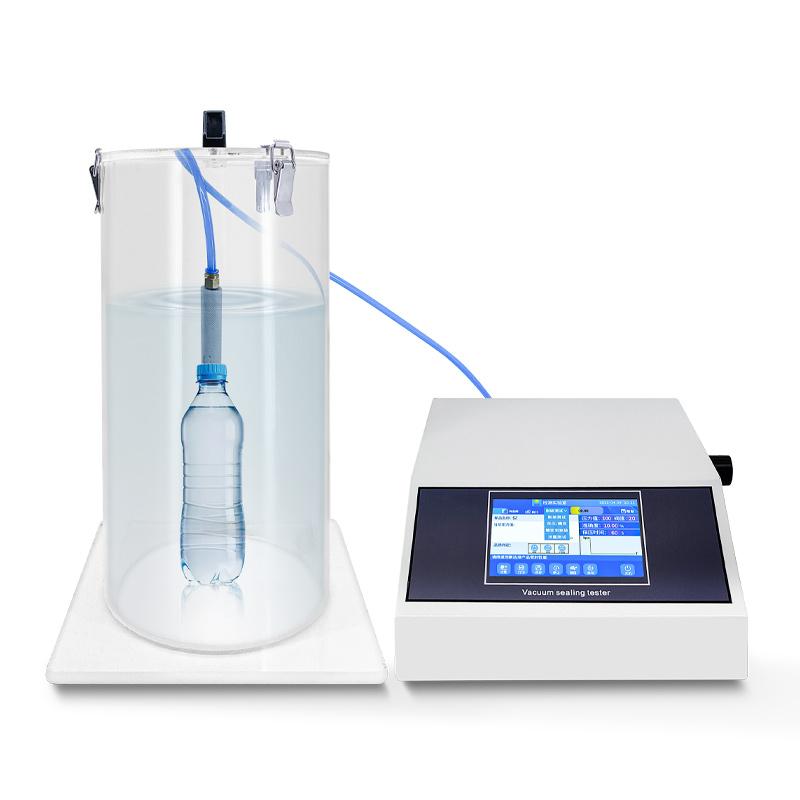

Jinheyuan JHY-MF-500D Sealing Tester plastic bottle cap piercing fixture 0-400KPa Picture

Product Introduction

It is suitable for plastic bottle caps under GB/T17876 and other standards, and pressurizes the bottle samples through the cap puncture fixture, so that the internal and external pressure difference of the sample immersed in water is generated, and the gas escape in the test sample is observed to determine the sealing performance of the sample.

Features:

  • Button control makes operation easier and data results more intuitive

  • The test barrel is made of highly transparent plexiglass, which is strong and durable

  • Special plastic bottle cap puncture clamp to ensure no air leakage

  • One-button operation, one-key automatic start test, automatic end test, automatic pressure relief

  • It has a sample library and can preset test parameters; It has the function of identifying product test results, which can retain historical test data; There are graphs, and the data is more intuitive
