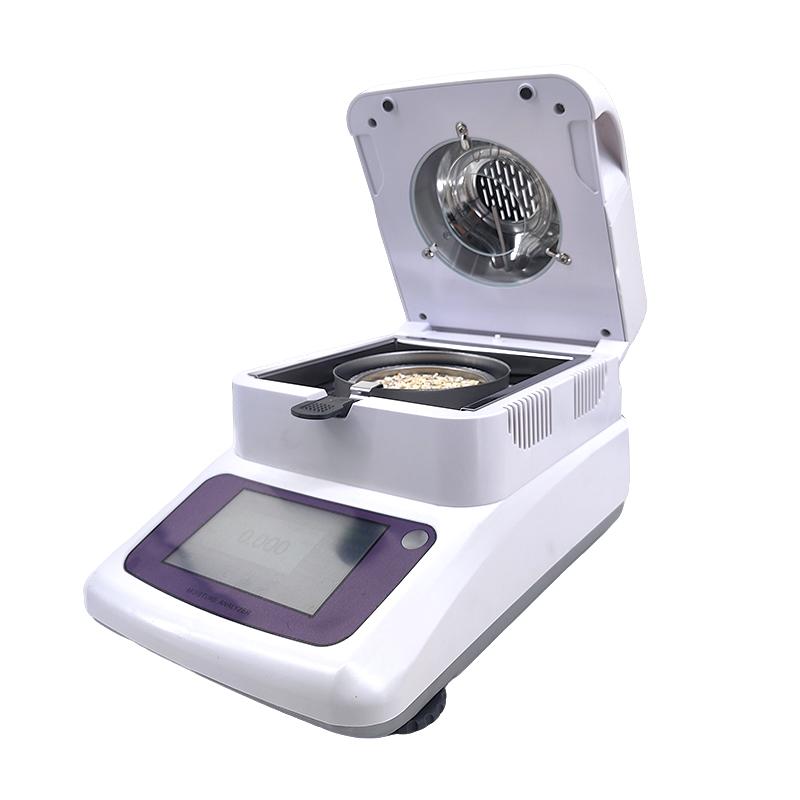

Halogen moisture analyzer JHY-300P Touchscreen Moisture Analyzer 300g/0.01% Built-in printer + storage

JHY-300P

Touch Screen Moisture Analyzer

Adopt thermogravimetry principle, 0.01% readability, maximum weighing 300g, Temperature range 50 ℃ -180 ℃, support automatic/timing/manual end point control. Equipped with 5-inch high definition touch screen, real-time dynamic Linear dispersion, 100 sets of custom sample libraries and 2000 audit track data, built-in printer

Introduction

A moisture analyzer is also known as a halogen moisture analyzer. It can be used to determine the moisture content of the sample, according to the principle of thermogravimetry, the weight of the sample is measured in real time, and after the test is started, the internal halogen lamp begins to heat the sample quickly and evaporate the dry water. During the drying process, the instrument continuously measures the sample weight and displays the results. After drying, moisture content, convertible, solids, weight, g, and moisture regain are displayed.

Features

• The intelligent voice assistant is equipped with Chinese and English broadcast prompts for the test process.

• 5-inch high-definition IPS screen, resolution 800*480, support Chinese input method.

• Real-time observation of experimental data and dynamic curves during the experiment

• 100 sets of self-configurable sample libraries, 10 sets of system preset sample libraries

• There is an RS232 interface to connect to the printer, you can modify the print title and additional information by yourself, and the built-in printer is optional

• It has an audit function, meets the audit trail requirements of 21CFRPart11 and 2020 Chinese Pharmacopoeia standards, and can save 2000 audit trail data

• USB port and USB flash drive are optional to export statistical data and audit content

• 100 sets of test data can be saved for statistical summary

• Hierarchical management of user account permissions.

Application

It is suitable for research institutes, universities, laboratories, metrology institutes, enterprises and institutions widely used in various industries such as plastics, grain, feed, powder, tobacco, papermaking, food (dehydrated vegetables, meat, noodles, flour, biscuits, pies, aquatic product processing), tea, beverages, grains, chemical raw materials, pharmaceuticals, textile raw materials, etc., to test the free moisture contained in the sample.

Packing list：Host X1, windproof disc X1, sample disc X1, forceps X1, weight X1, power cord X1, manual X1, sample disc tripod X1, touch screen pen X1, disc picker X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
