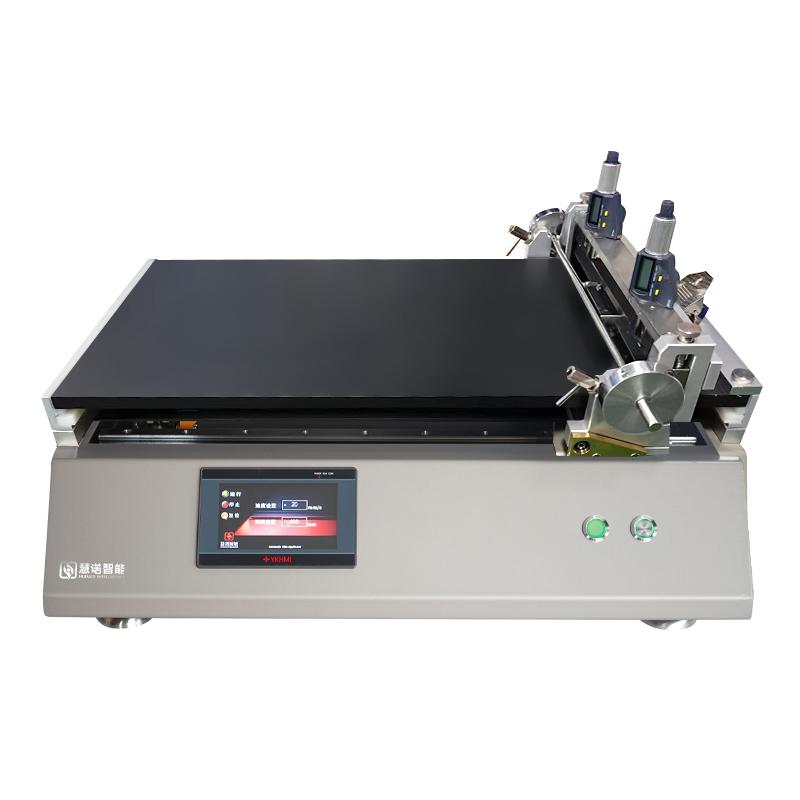

HuiNuo TM2000Pro/02 drawdown blade Film Applicator Coating size 400 * 300mm
SESpreader method, Coating speed 1~ 500mm/S, substrate fixing method fixture fixing, drawdown blade type 4-sided Applicator, drawdown blade effective width 150mm (customizable), film accuracy +/- 0.002mm, effective Spreader area 400 * 300mm
$2403.00/set
PromotionLoading...
Coupon
Model：
TM2000pro/02
HuiNuo TM2000pro/02 Automatic Film ApplicatorSPEC
HuiNuo TM2000pro/02 Automatic Film ApplicatorDetails
HuiNuo TM2000pro/02 Automatic Film ApplicatorPacking list
- SKU
- NB049099
- Coating method
- scraping
- Coating speed
- 1~500mm/S
- Substrate clamping method
- fixture fixing
- Coating table material
- Glass plate
- Film thickness
- 5/10/15/20μm (4-sided film applicator, thickness can be customized)
- Film Accuracy
- ±0.002mm
- Effective coating Area
- 400*300mm
- Effective application width
- 300Mm (width can be customized)
- Effective application length
- 400Mm (length can be customized)
- Drawdown blade type
- 4-sided Applicator
- Effective width of drawdown blade
- 150Mm (can be customized)
- Cutting head fixing method
- Fixture fixing (custom)
- Motor type
- Servo motor
- Power
- 400w
- Display
- Color LCD touch screen
- Operating language
- Chinese (can be customized in English)
- Host Power Supply
- 100V~220V/50~60HZ
- Dimension
- Subject to the actual product
TM2000pro/02
Automatic Film Applicator
Spreader method, Coating speed 1~ 500mm/S, substrate fixing method fixture fixing, drawdown blade type 4-sided Applicator, drawdown blade effective width 150mm (customizable), film accuracy +/- 0.002mm, effective Spreader area 400 * 300mm
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
