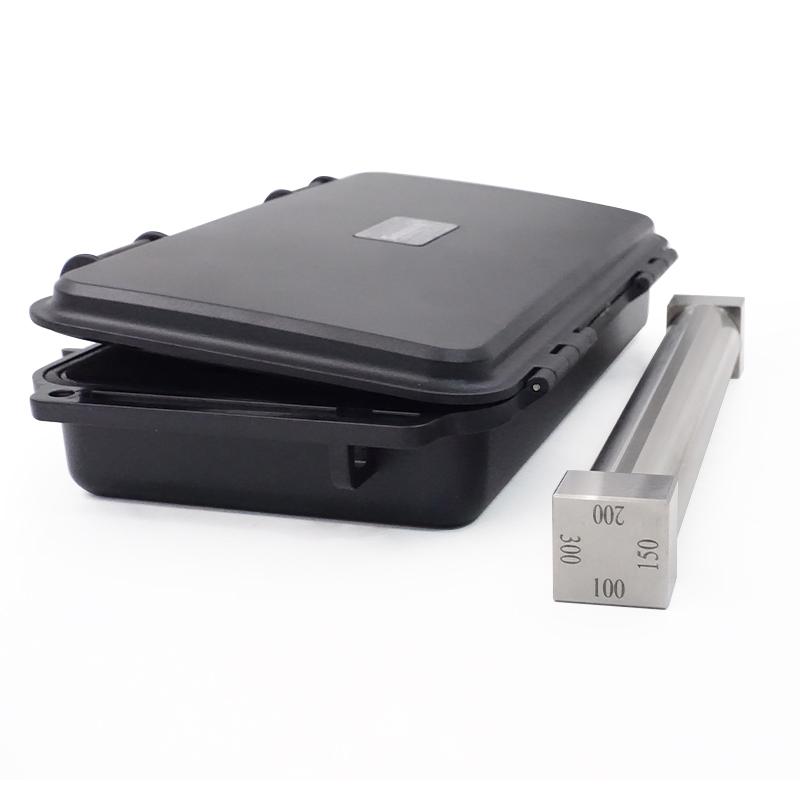

HuiNuo SZQ-80 30/60/90/120μm Stainless Steel 4-sided Applicator wet-film Spreader

Type 4-sided, wet film thickness 30/60/90/120μm, application width 80mm, accuracy +/- 2μm, material 9Cr18Mo stainless steel, Total length 100mm

$187.00/piece

PromotionLoading...

Coupon

Model：

SZQ-80 30/60/90/120μm

Certificate

HuiNuo

Chinese general agent

Contact

Details SPEC Con

HuiNuo SZQ-80 30/60/90/120μm 4-sided ApplicatorSPEC

HuiNuo SZQ-80 30/60/90/120μm 4-sided ApplicatorDetails

HuiNuo SZQ-80 30/60/90/120μm 4-sided ApplicatorPacking list

SKU: NB049101

type: 4-sided

WFT: 30/60/90/120μm

application width: 80mm

Accuracy: ±2μm

material: 9Cr18Mo stainless steel

Total length: 100mm

SZQ-80 30/60/90/120μm

4-sided Applicator

Type 4-sided, wet film thickness 30/60/90/120μm, application width 80mm, accuracy +/- 2μm, material 9Cr18Mo stainless steel, Total length 100mm

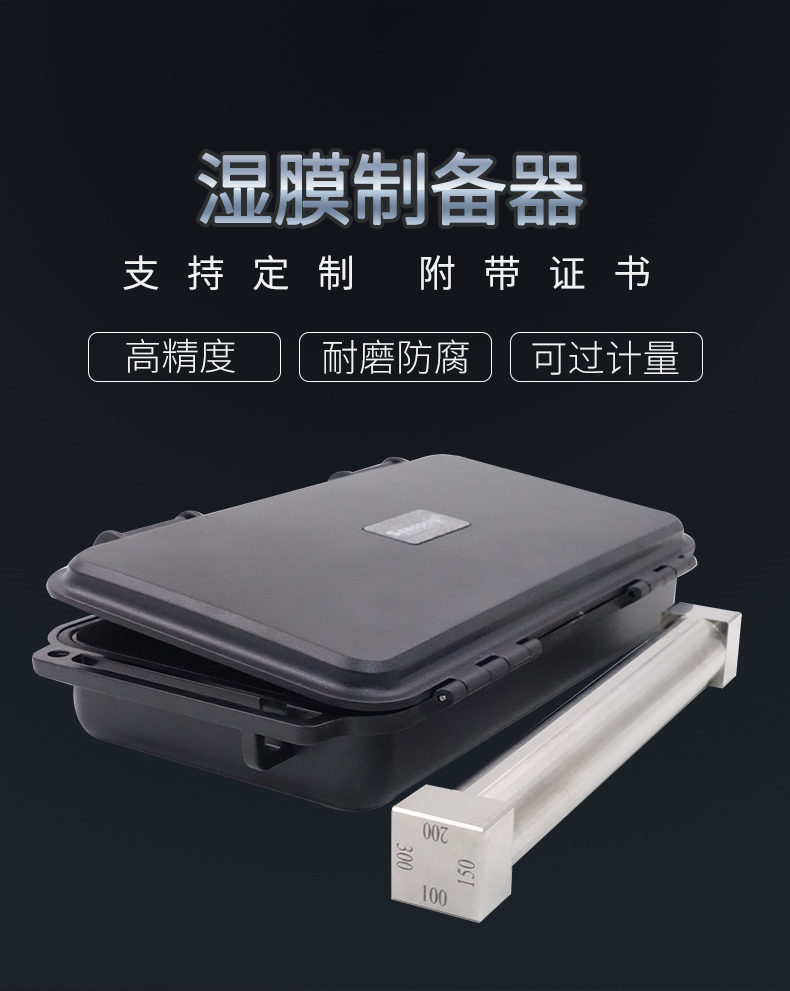

Fig. 1 of the detailed Figure 1 of the 30/60/90/120μm Four-sided Preparator of Huinuo SZQ-80

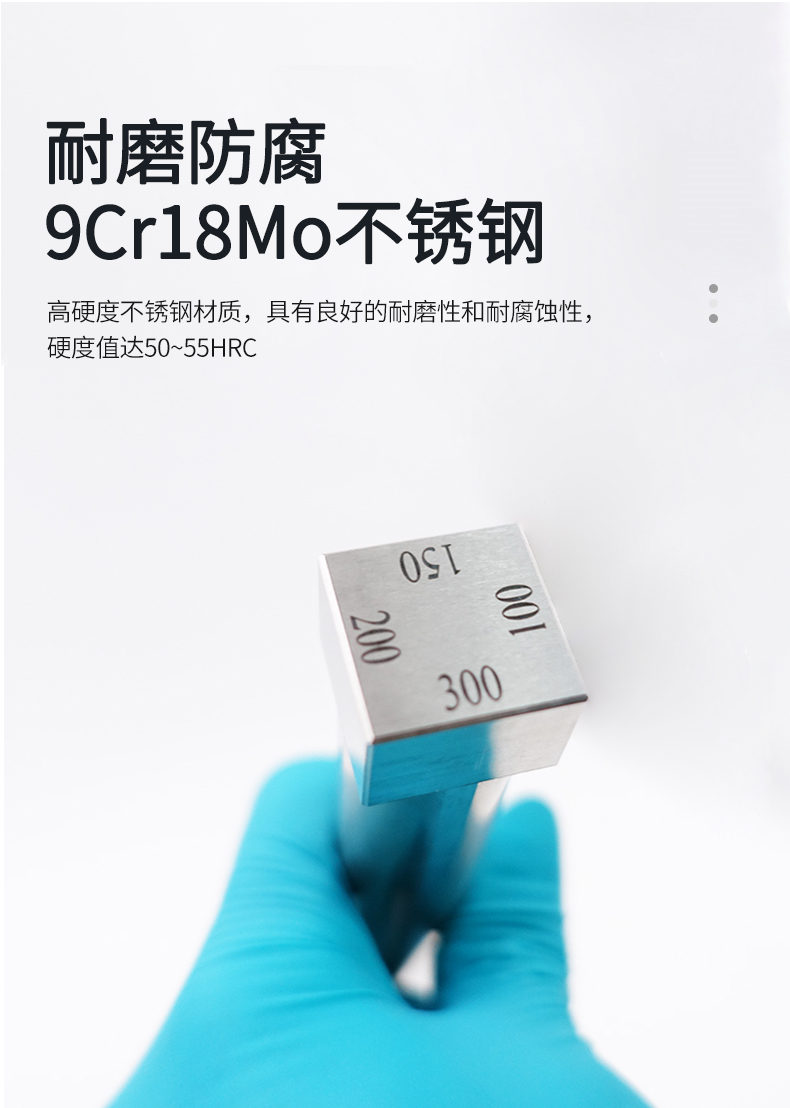

Detail Figure 2 of the 30/60/90/120μm Four-sided Preparator of Huinuo SZQ-80

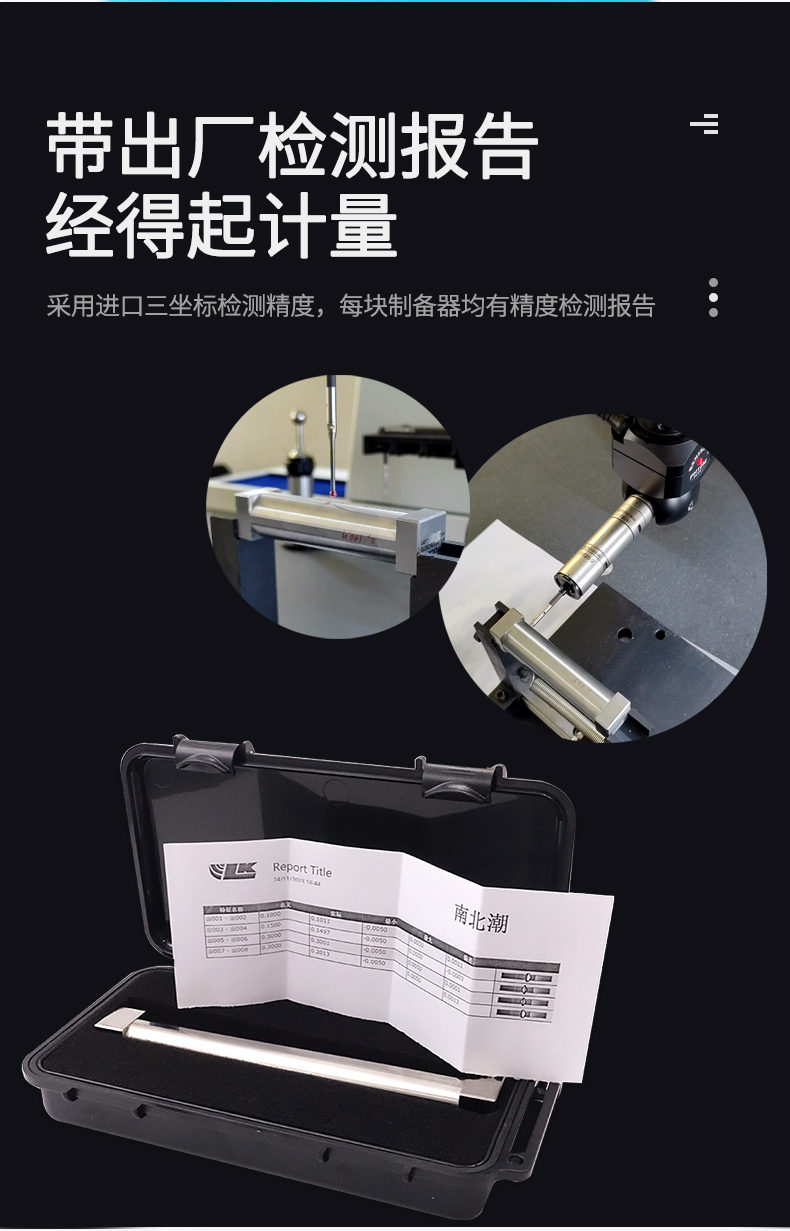

Fig. 3 of the 30/60/90/120μm Four-sided Preparator of Huinuo SZQ-80

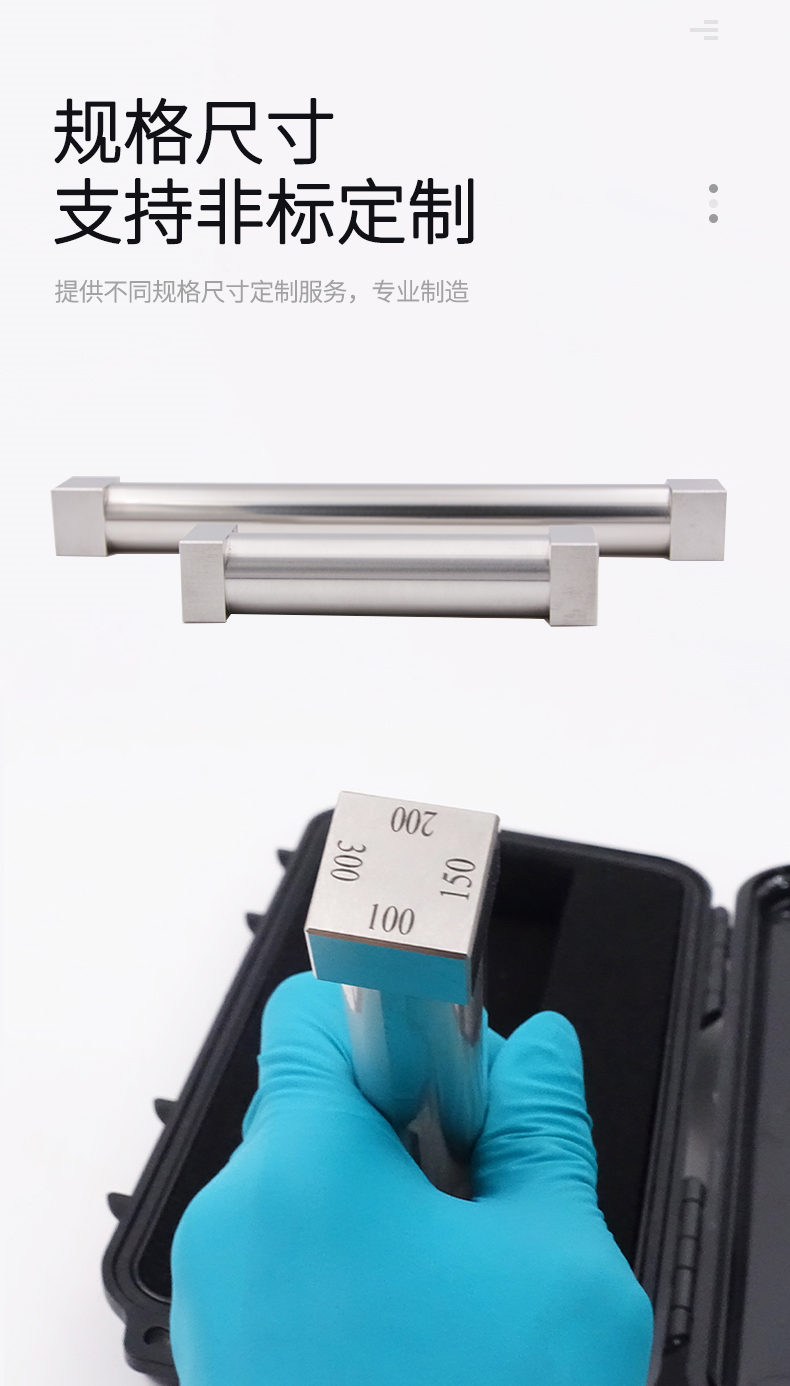

Fig. 4 of the Wisdom SZQ-80 30/60/90/120μm Four-Sided Preparer

Introduction

SZQ-80 50/100/150/200μm is a four-sided Film Applicator with a coating film thickness of 50/100/150/200μm, a coating width of 80mm, a Total length of 100mm, and a coating film accuracy of ±2μm.

The wet film preparer is a manual laboratory coater, with different coating width specifications to choose from, made of high-carbon chromium wear-resistant and anti-corrosion stainless steel, and the preparer uses imported three-coordinate detection to ensure the accuracy of the coating film before leaving the factory. SZQ series preparers are available in a variety of shapes such as I-shaped, frame-type, square, etc., and can be divided into single-sided, double-sided, four-sided, and eight-sided preparers according to the thickness of the coating film. The wet film preparer is suitable for making films such as paints, glues, coatings, inks, new chemical materials, etc., and can be equipped with a film coating machine for automatic film scraping. Nanbeichao provides preparator specification customization services.

Features

1. 9Cr18Mo high hardness stainless steel material, with good wear resistance and corrosion resistance, hardness value of 50~55HRC.

2. The coating film accuracy ± 2μm.

3. The surface is smooth and clean, the styles are diverse, the application range is wide, and customized specifications are supported

4. Adopt imported three-coordinate detection accuracy, with factory test report, which can stand up to measurement

Fig. 5 of the 30/60/90/120μm Four-Sided Preparator for Wisdom SZQ-80

Parameter table of the preparator series

name	Specification mm	Wet film thickness μm
Single-sided preparer	The Total length is 80, and the coating width is 50 and 75	50、75、100、125、150、175、200
Double-sided preparer	The Total length is 100, and the coating width is 80	25、50、75、100、150、175、200、300、400
Frame preparer	The Total length is 90, and the coating width is 80	30、50、60、90、120、150、200
Octaveral preparer	The Total length is 90, and the coating width is 68	50、75、100、125、150、175、200
Octaveral preparer	The Total length is 100, and the coating width is 80	50、75、100、125、150、175、200
Square preparer	25x25, coating width 16	37、50、75、100
Square preparer	50x50, coating width 41	50、100
Standard four-sided preparer	The Total length is 100, and the coating width is 80	All specifications and sizes, support non-standard customization
Extended four-sided preparer	The Total length is 190, and the coating width is 160
