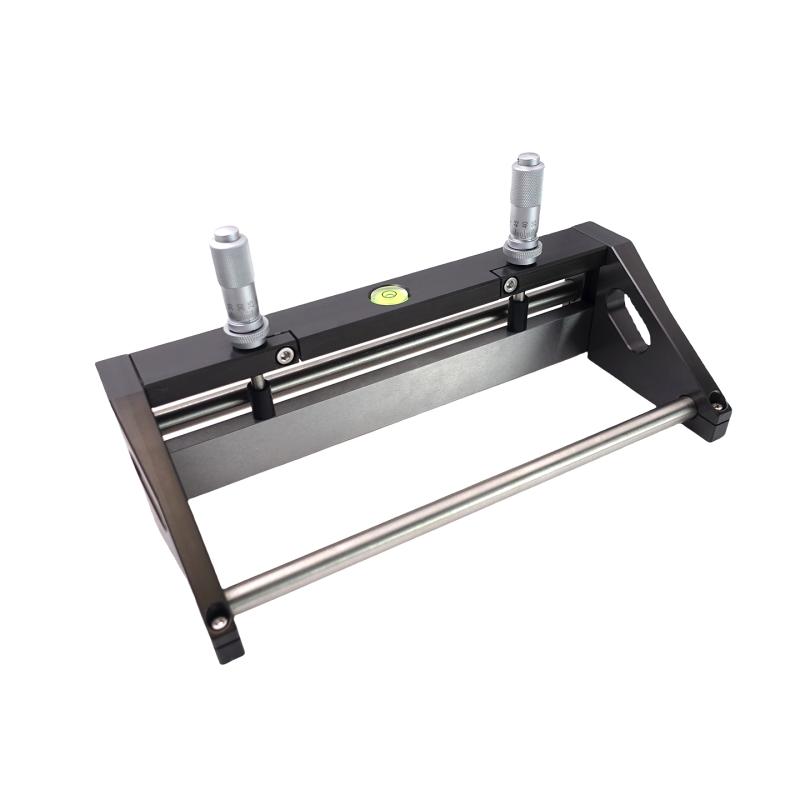

HuiNuo KTQ-II (55mm) Micrometer Film Applicator Customized

KTQ-II(55mm)

Micrometer Film Applicator

Wet film thickness 0~5000um, application width 55mm, accuracy +/- 5um, differential head scale differential head, differential head Graduation 10um, type adjustable.

Introduction

Huinuo adjustable preparator is a wet film preparer with adjustable coating film thickness, there are two differentiators above the adjustable preparator, which can adjust the lower scraper in the upper and lower directions to control the gap by adjusting the two differential heads of the preparator, and the size of the gap is the thickness of the final coating. KTQ series adjustable wet film preparer is a scale differential head, which is displayed by the scale, and the index value of the differential head is 10μm; KTQ-S series adjustable wet film preparer is a digital microscope head,The digital microdivision head adjusts the indexing value1μm。

The coating range of the adjustable preparer is adjustable from 0~5000 microns, and the coating film is appliedprecision±5μm；The frame material isThe aluminum is hard oxidized, and the scraper is made of die steel。 Different adjustable Film Applicators have different dimensions and different weights.

Features

1. Non-digital scale differential head, 10μm;

2. The mold steel scraper material has the advantages of high hardness, wear resistance and corrosion resistance;

3. Large range range, 0~5000 microns adjustable;

4. 50mm, 100mm, 150mm, 200mm, 250mm coating width can be selected;

5. The straightness of the blade blade ± 2 μm.




Packing list：Film applicator x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
