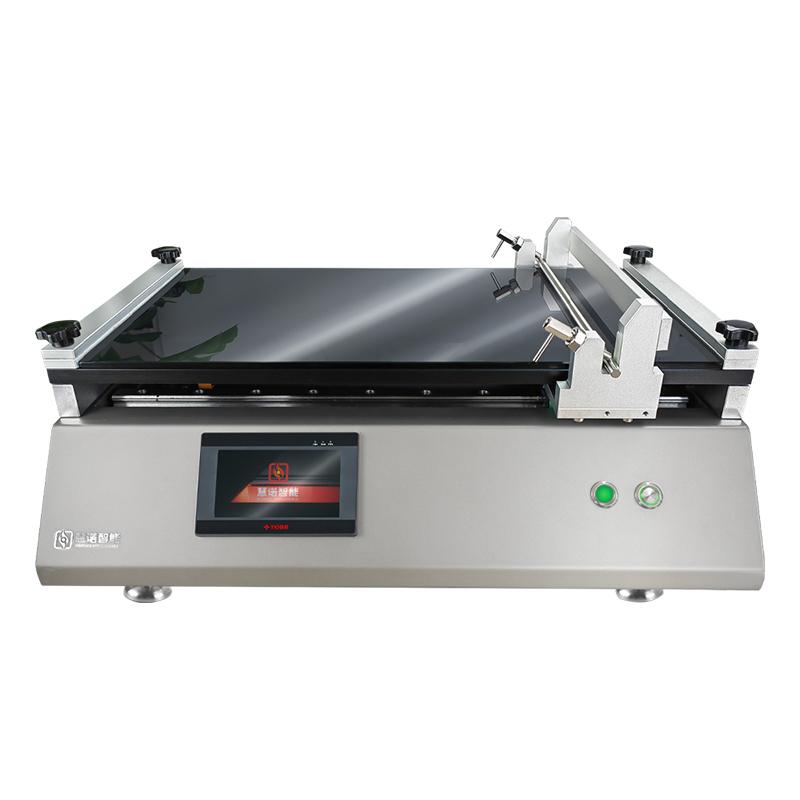

HuiNuo TM1000/08 Bar Coater thick substrate Film Applicator 60 * 30cm

TM1000/08

Automatic Film Applicator

Customized model, dedicated to thickness ≤ 5cm substrate line bar Spreader, Spreader speed 1~ 300mm/s stepless speed regulation, Spreader table size 600 * 300mm, effective Spreader area 400 * 300mm (can be customized), bar Spreader accuracy +/- 0.001mm.

Overview

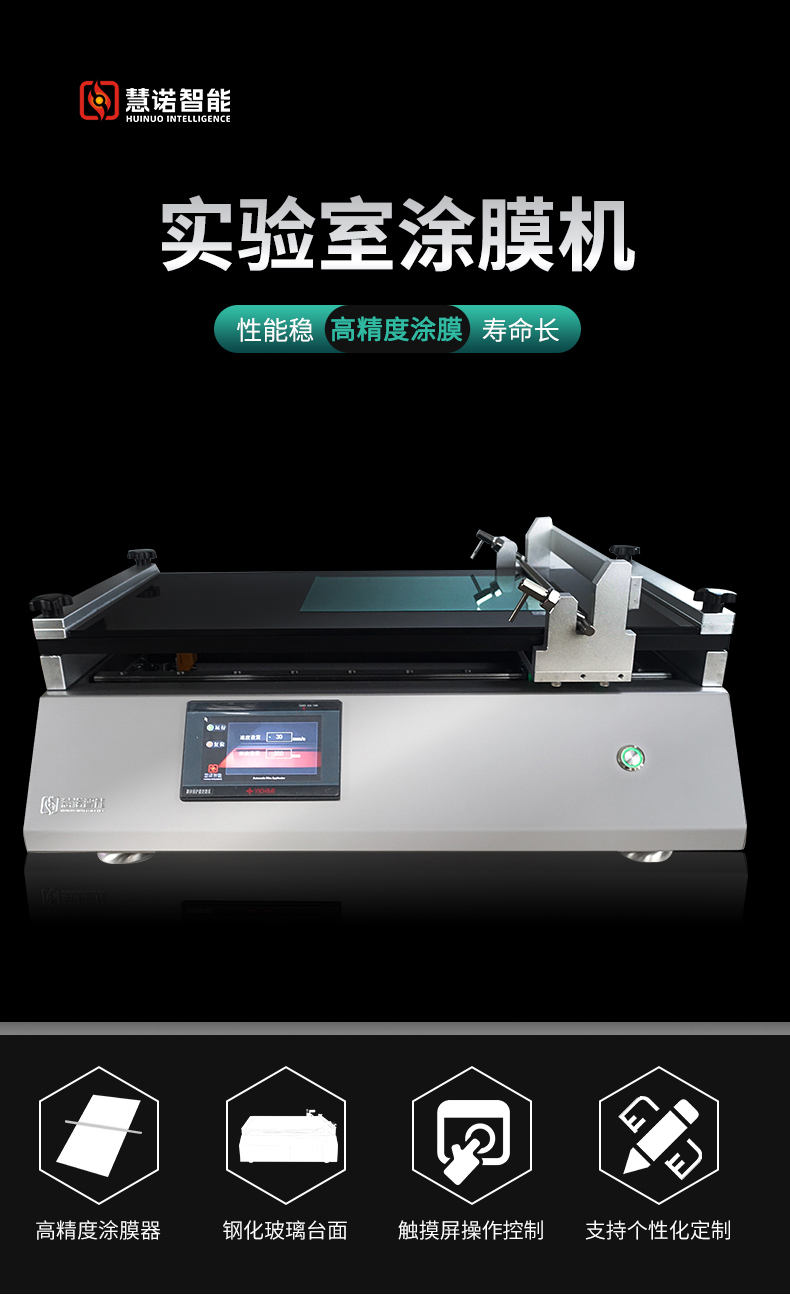

The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.

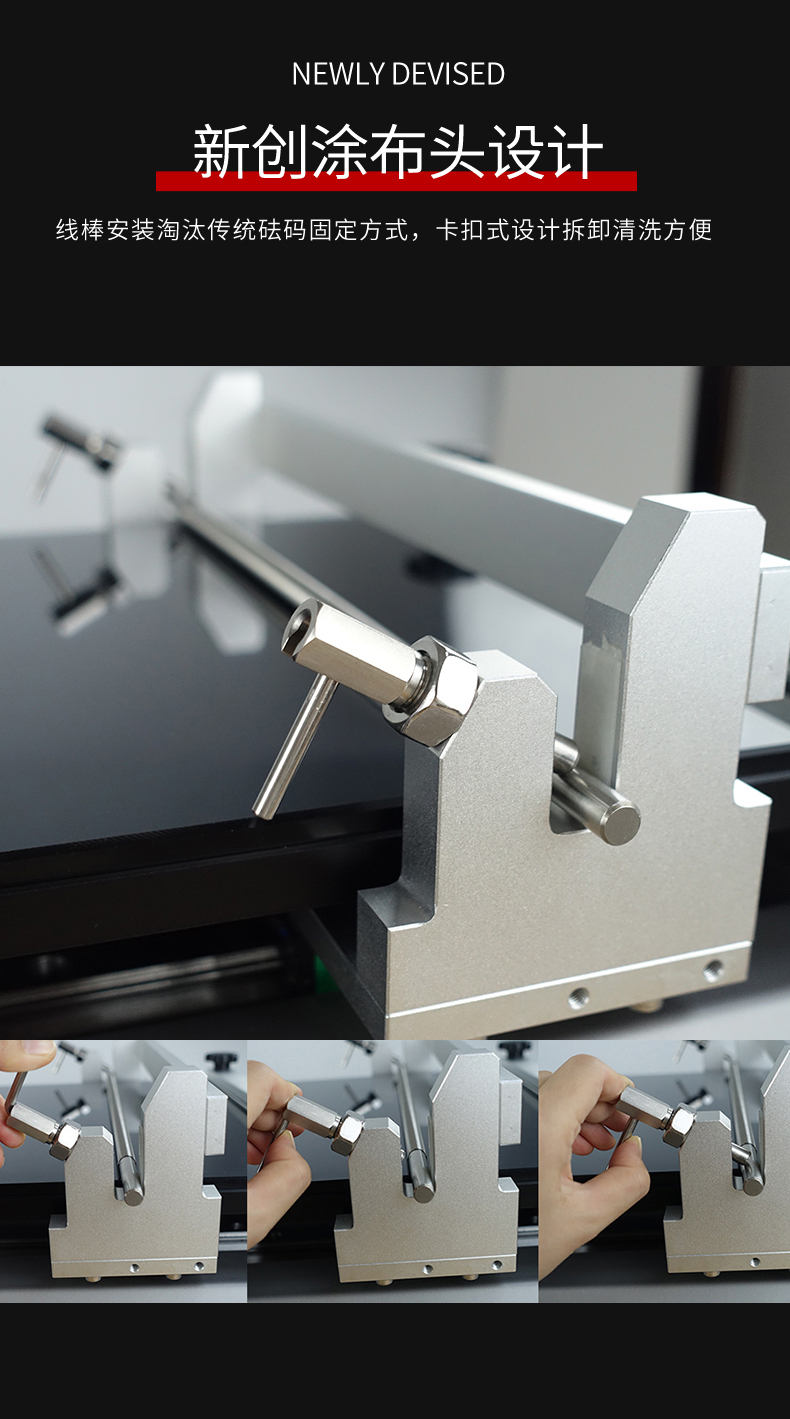

This film coating machine is a basic wire rod coating machine, which adopts a new type of wire rod installation method, with speed control and coating length adjustment functions, which is suitable for high-precision automatic coating in laboratories, and film making and proofing in laboratories such as university research institutes, new materials, and lithium batteries.

Product Use:

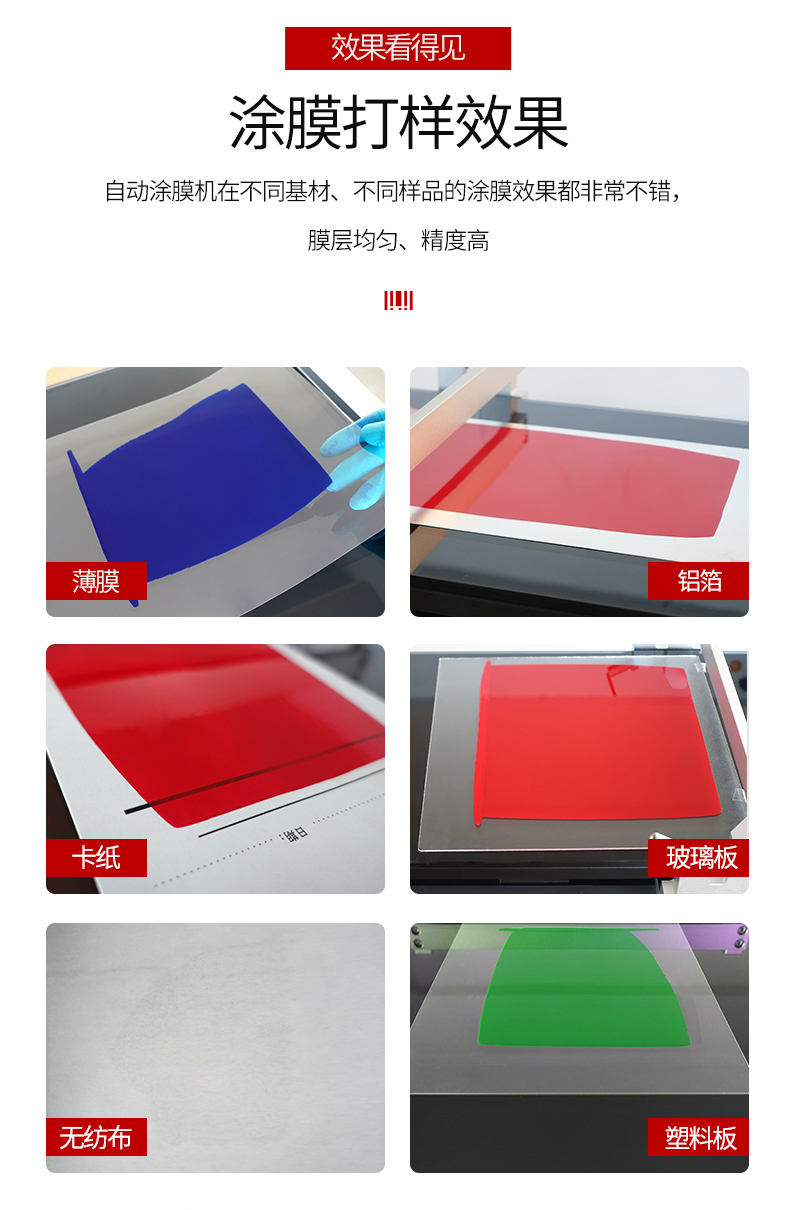

The film coating machine is suitable for coating and sample preparation of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, polymer materials, chemicals, etc., and can be scraped on glass, cardboard and cloth.

Features

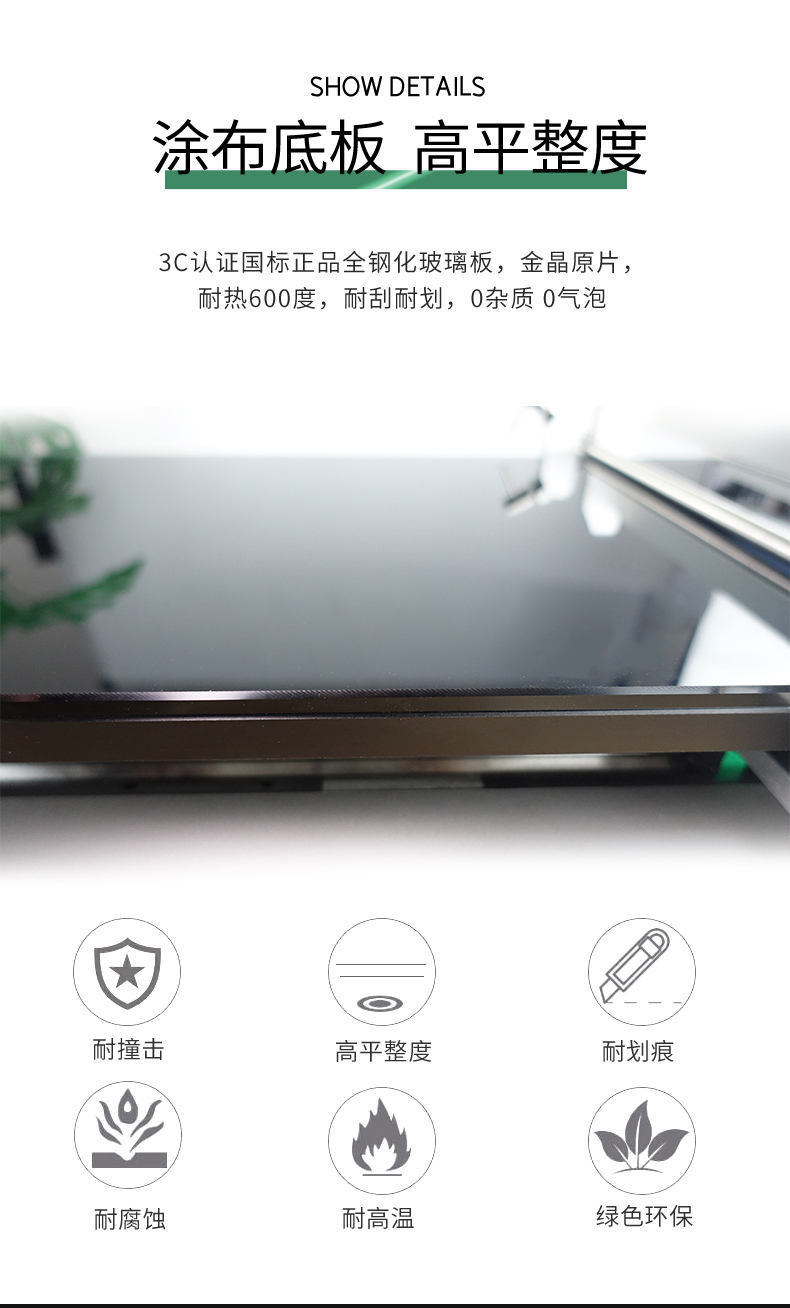

1) The glass table top is a 3C certified national standard genuine fully tempered glass plate, gold crystal original sheet, heat resistant 600°C, scratch and scratch resistant

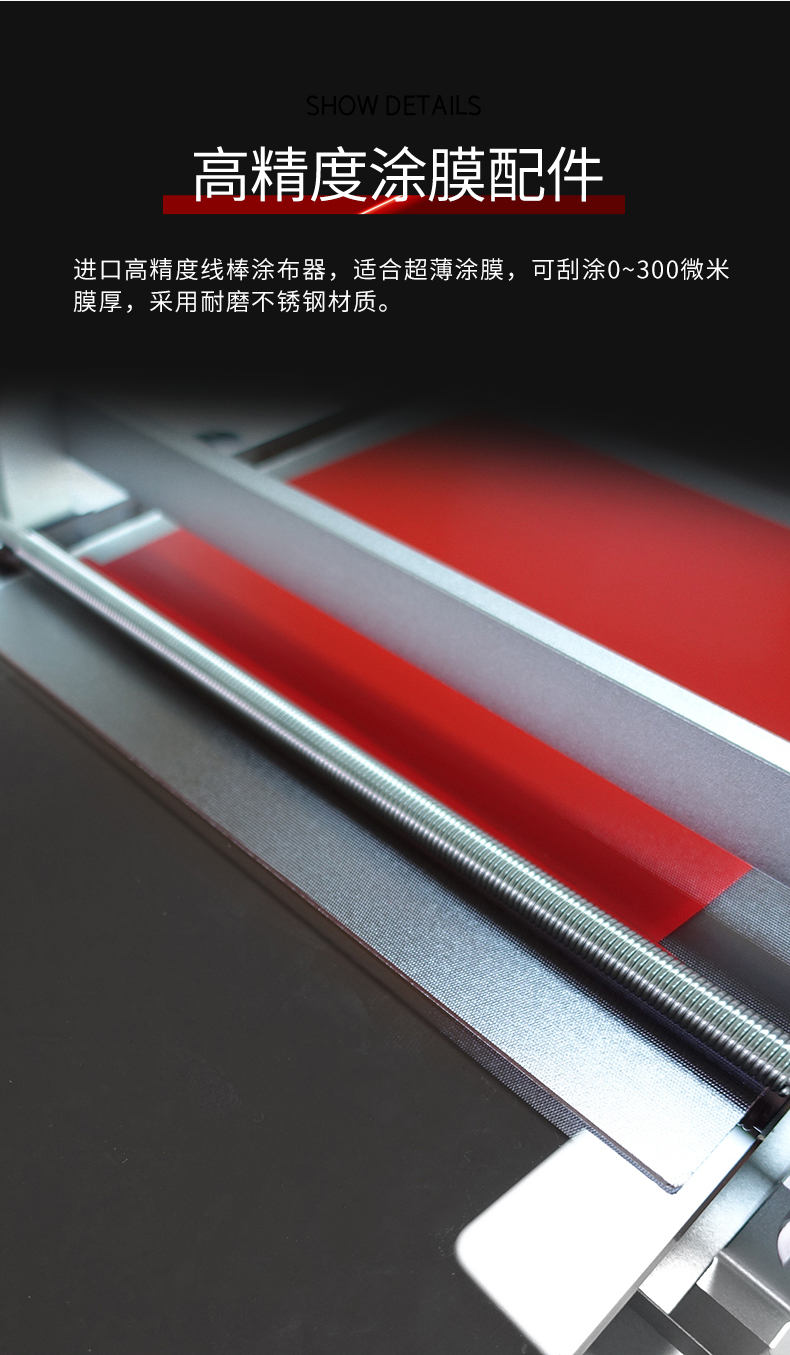

2) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision

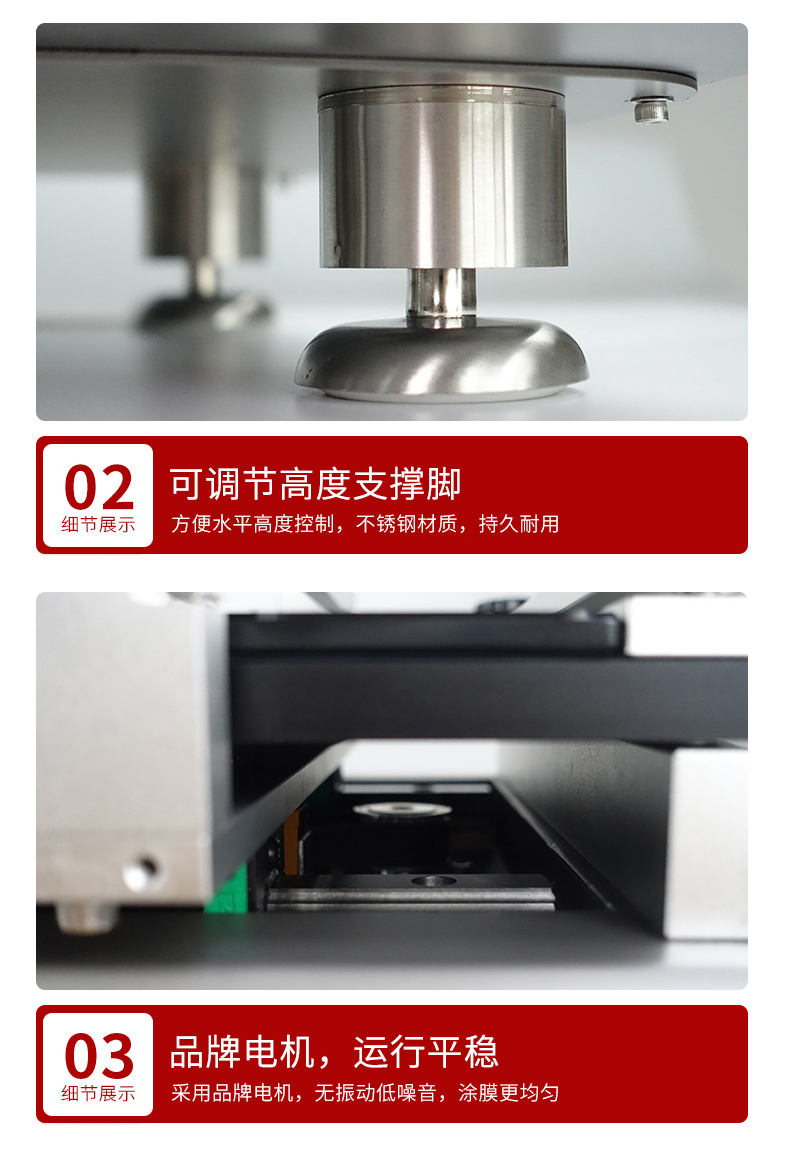

3) Aluminum alloy hard oxide surface treatment coated bottom plate, wear-resistant and smooth, with flatness accuracy calibration certificate

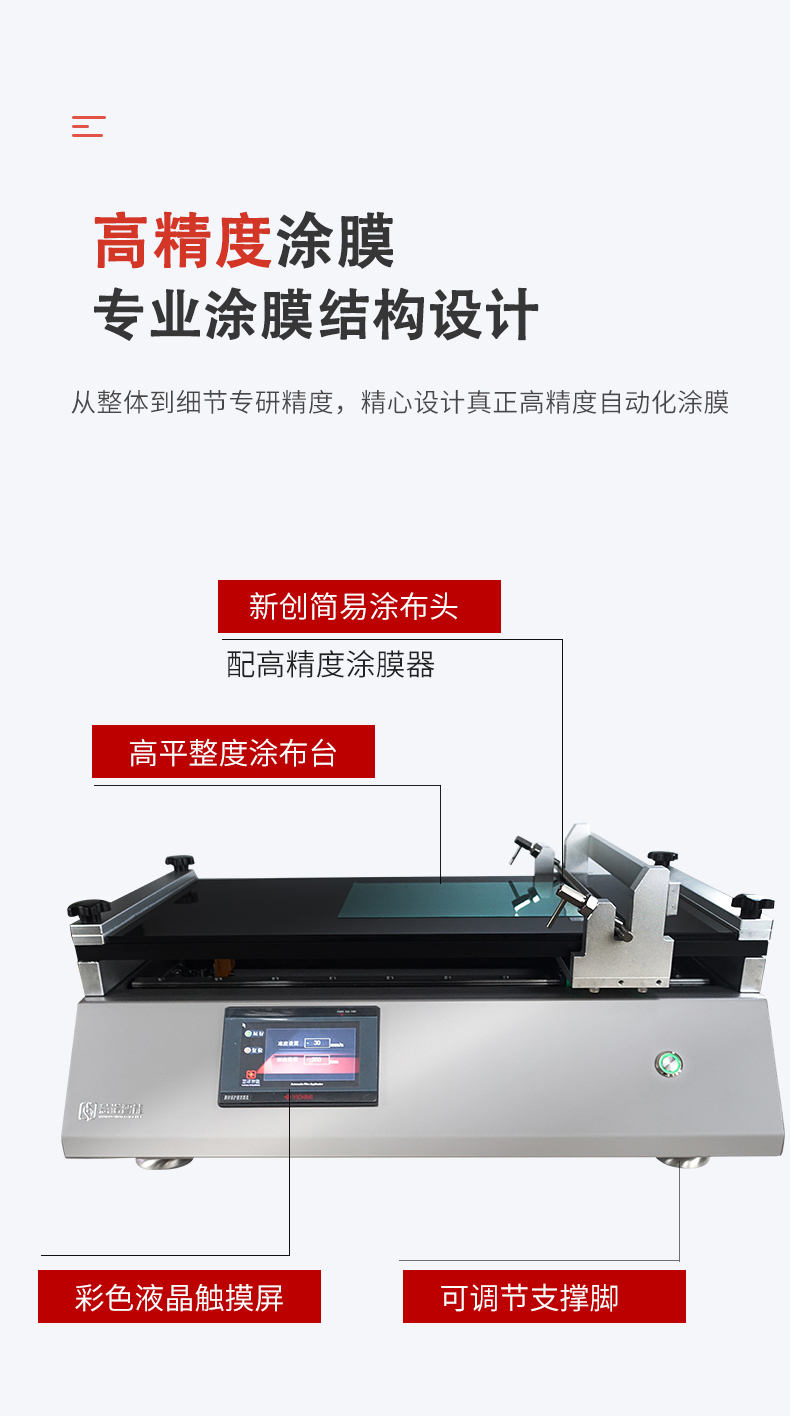

4) Touch screen control panel, easy to operate

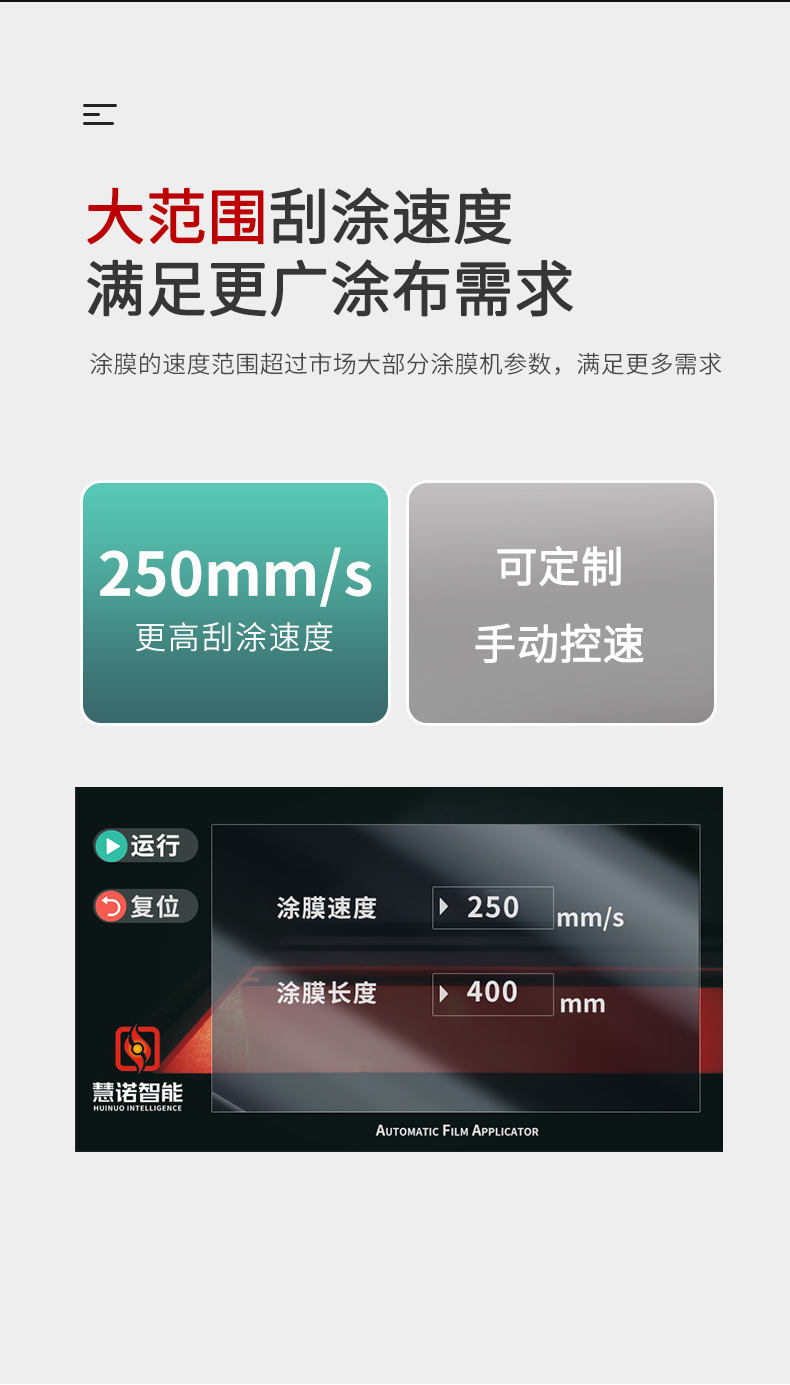

5) The coating length and coating speed can be adjusted freely

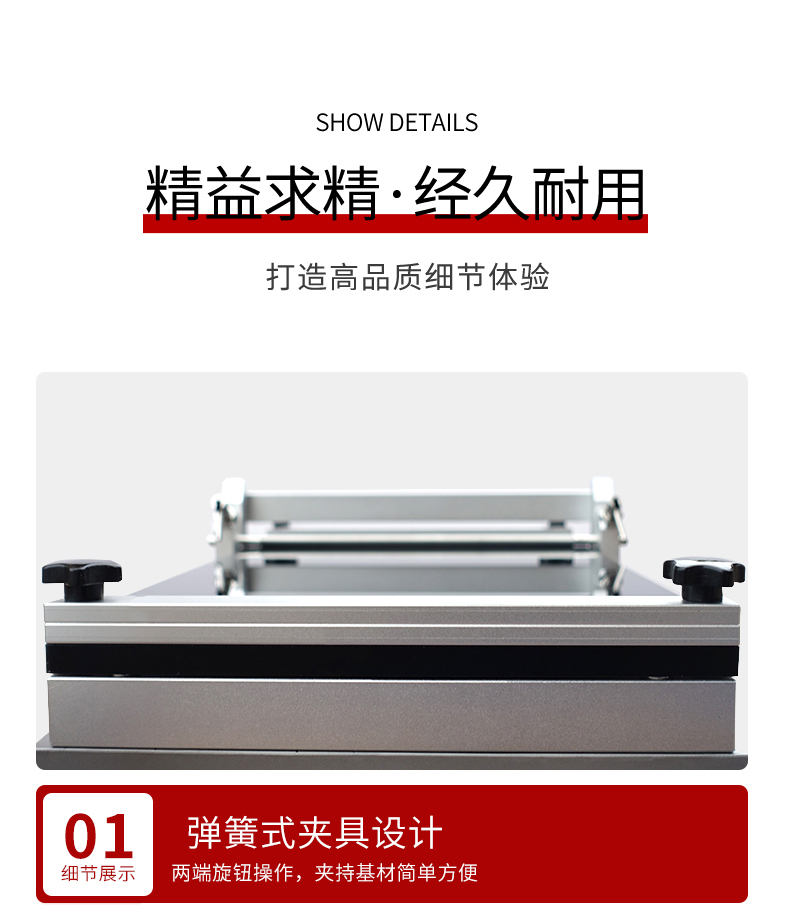

Packing list：Host X1, manual X1, fixture X1, imported bar X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
