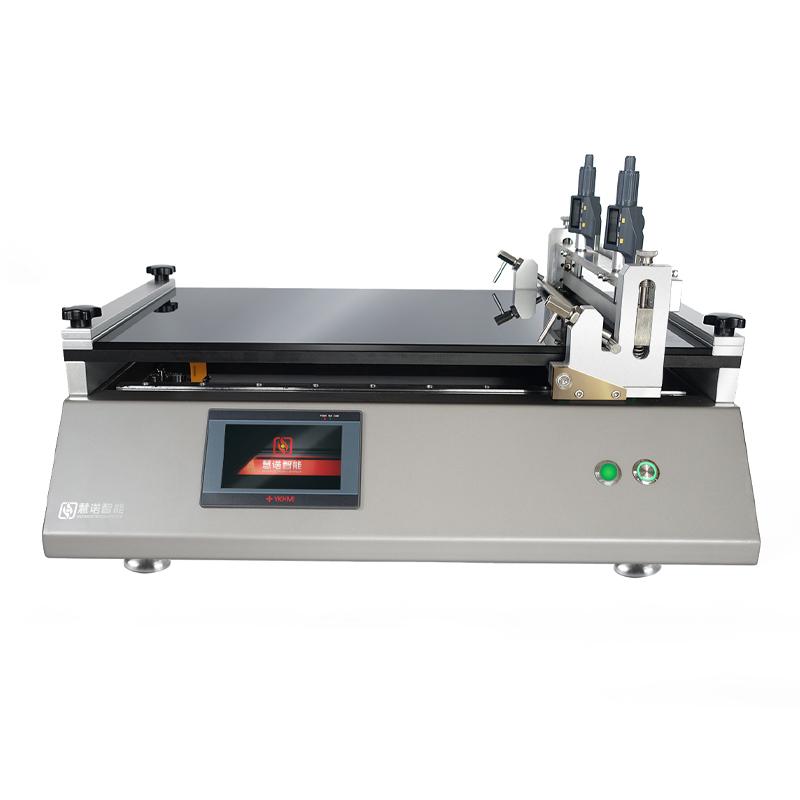

HuiNuo TM3000/11 drawdown Bar & blade coater Glass plate coated with glue, effective area 120 * 60cm
SE
TM3000/11
HuiNuo TM3000/11 Automatic Film ApplicatorSPEC
HuiNuo TM3000/11 Automatic Film ApplicatorDetails
HuiNuo TM3000/11 Automatic Film ApplicatorPacking list
- SKU
- NB049138
- Coating method
- Bar + Drawdown blade
- Coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)

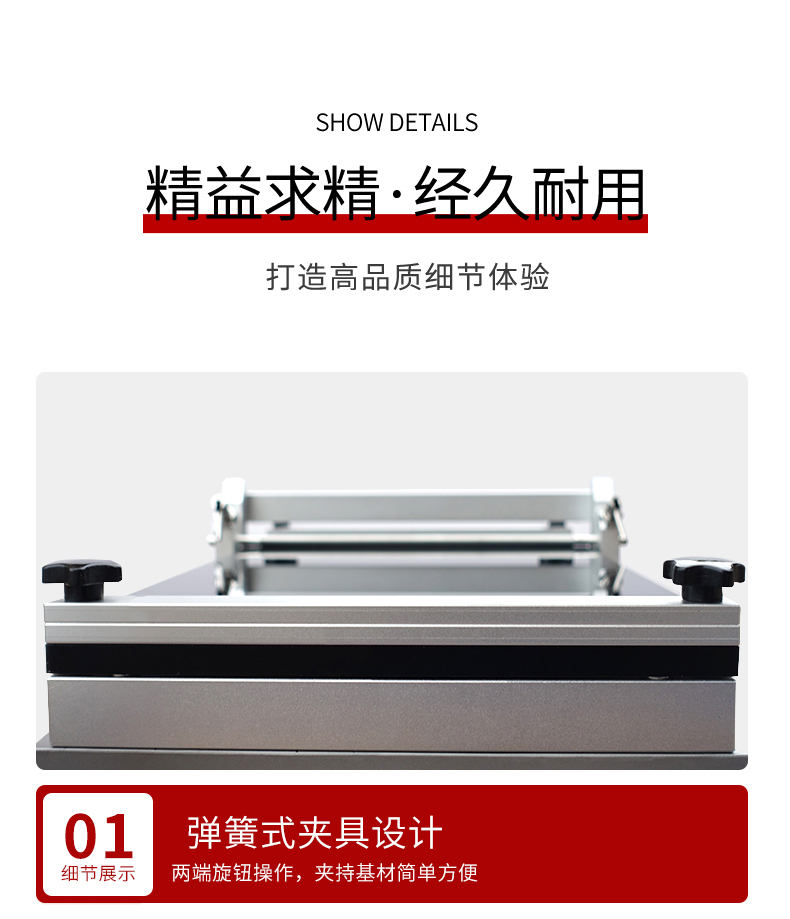

- Substrate clamping method
- fixture
- Coating table material
- Glass plate
- Coating table size
- 1440*630mm
- Effective coating Area
- 1200 * 600Mm (can be customized)
- Mayer Rod Thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Bar Accuracy
- ±0.001mm
- Drawdown blade thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 600mm
- Drawdown blade Accuracy
- ±0.003mm
- Power
- 400w
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 100V~220V/50~60HZ
- Dimension
- 1460 * 740 * 430Mm (subject to the actual product)
- optional feature
- Heating, vacuum adsorption

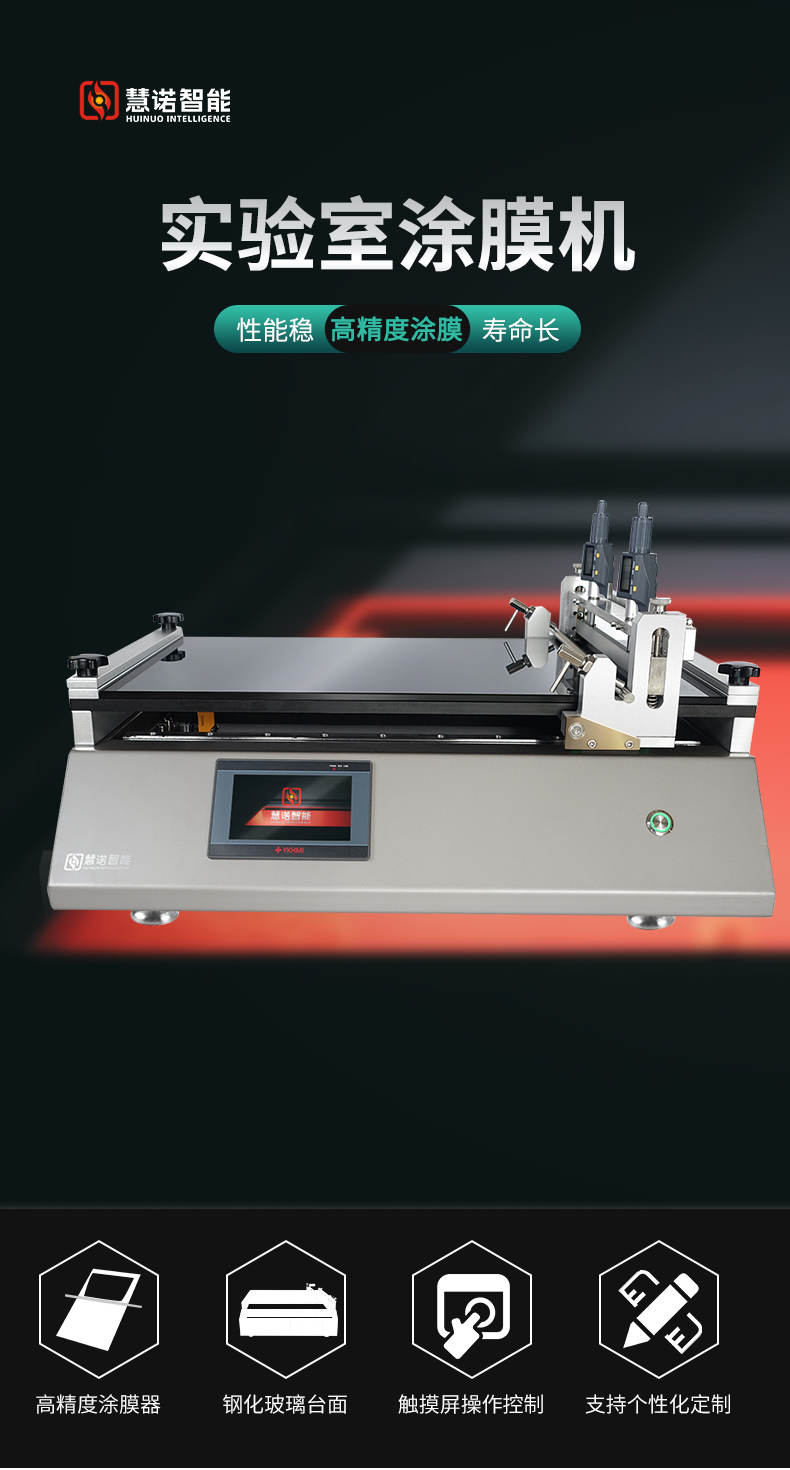

Overview
The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.
This coating machine is a wire rod doctor blade coating machine, with two functions of wire rod coating and doctor blade coating, the new type of wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for laboratory high-precision automatic coating, in the university research institute, new materials, lithium battery, glue, resin and other laboratories for film proofing.
Product Use:
The film coating machine is suitable for coating samples of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, chemicals, etc., and can be scraped on glass, cardboard and cloth.

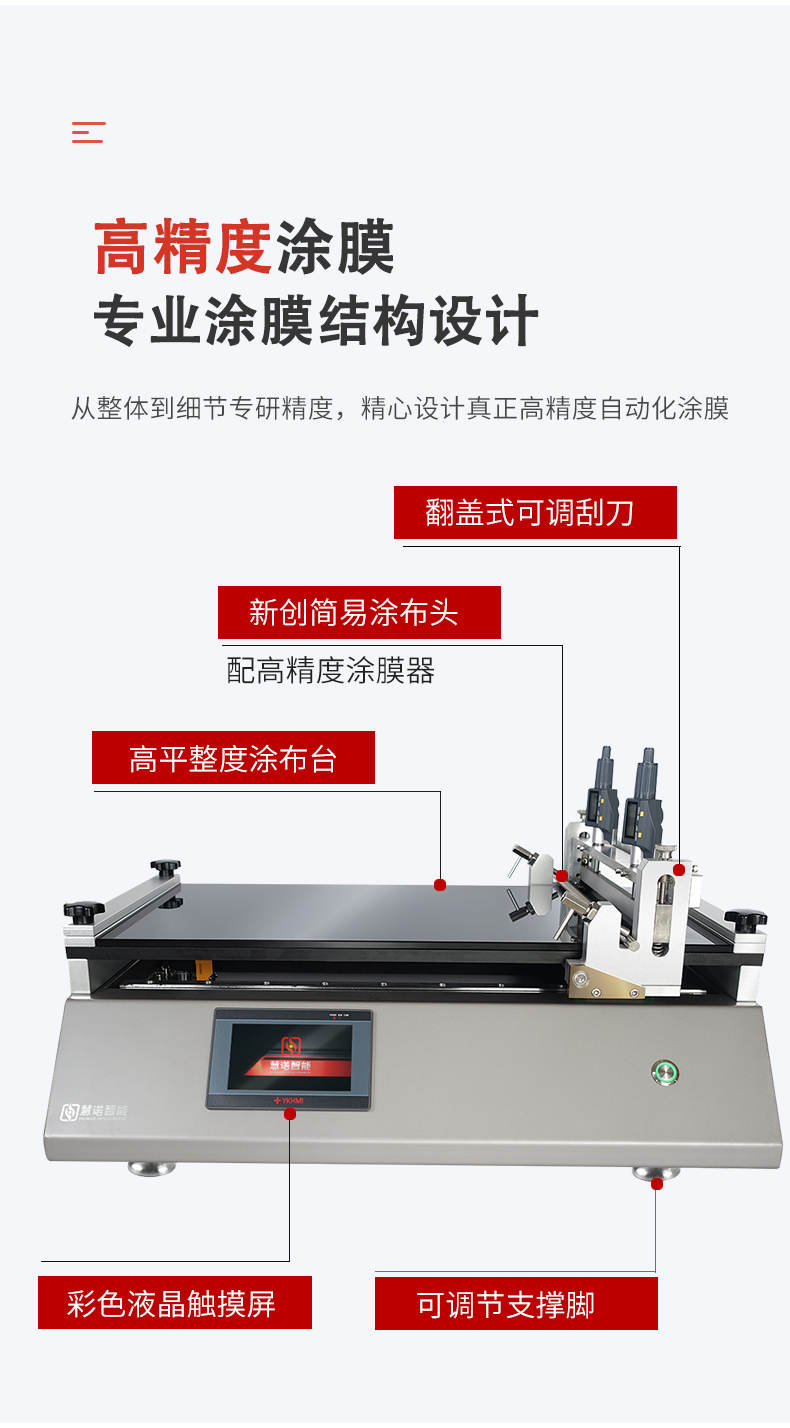

Features

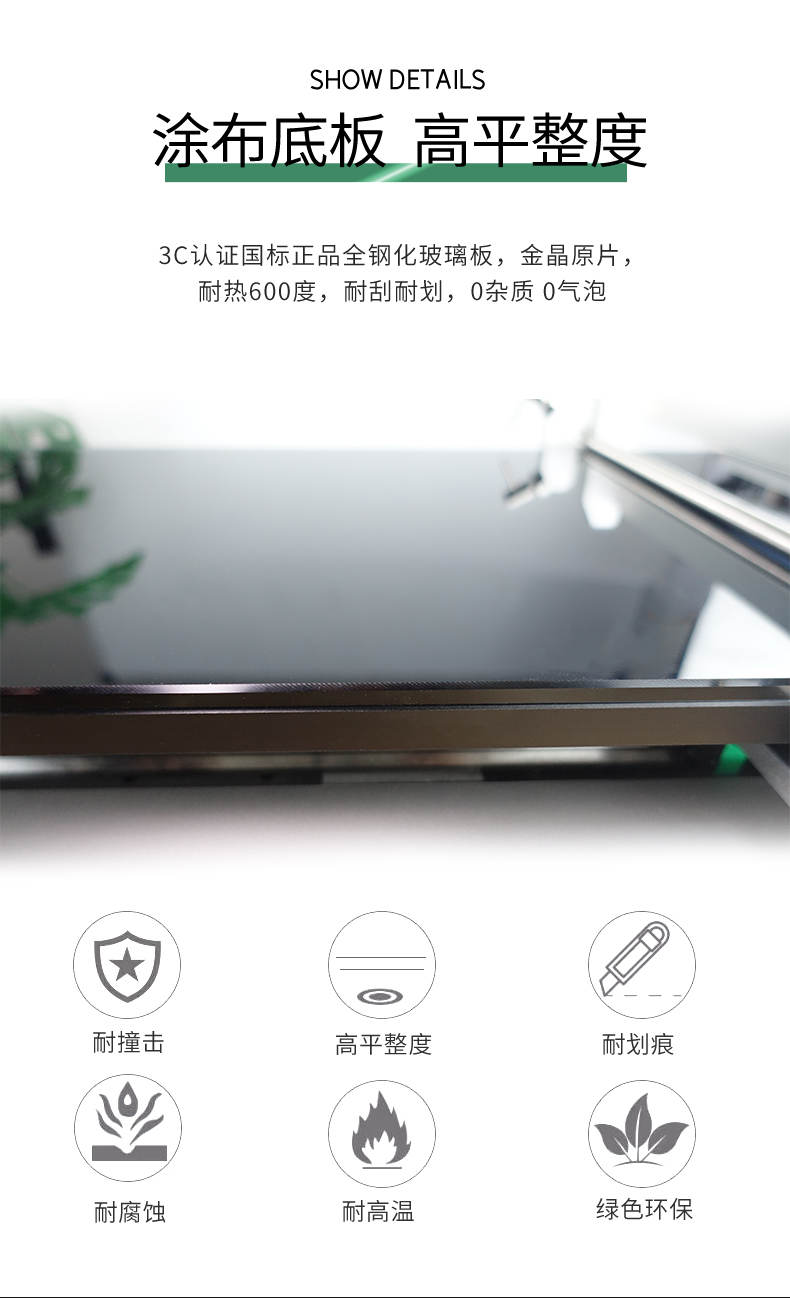

1) The glass table top is a 3C certified national standard genuine fully tempered glass plate, gold crystal original sheet, heat resistant 600°C, scratch and scratch resistant
2) Big brand differential regulator, high film thickness control accuracy

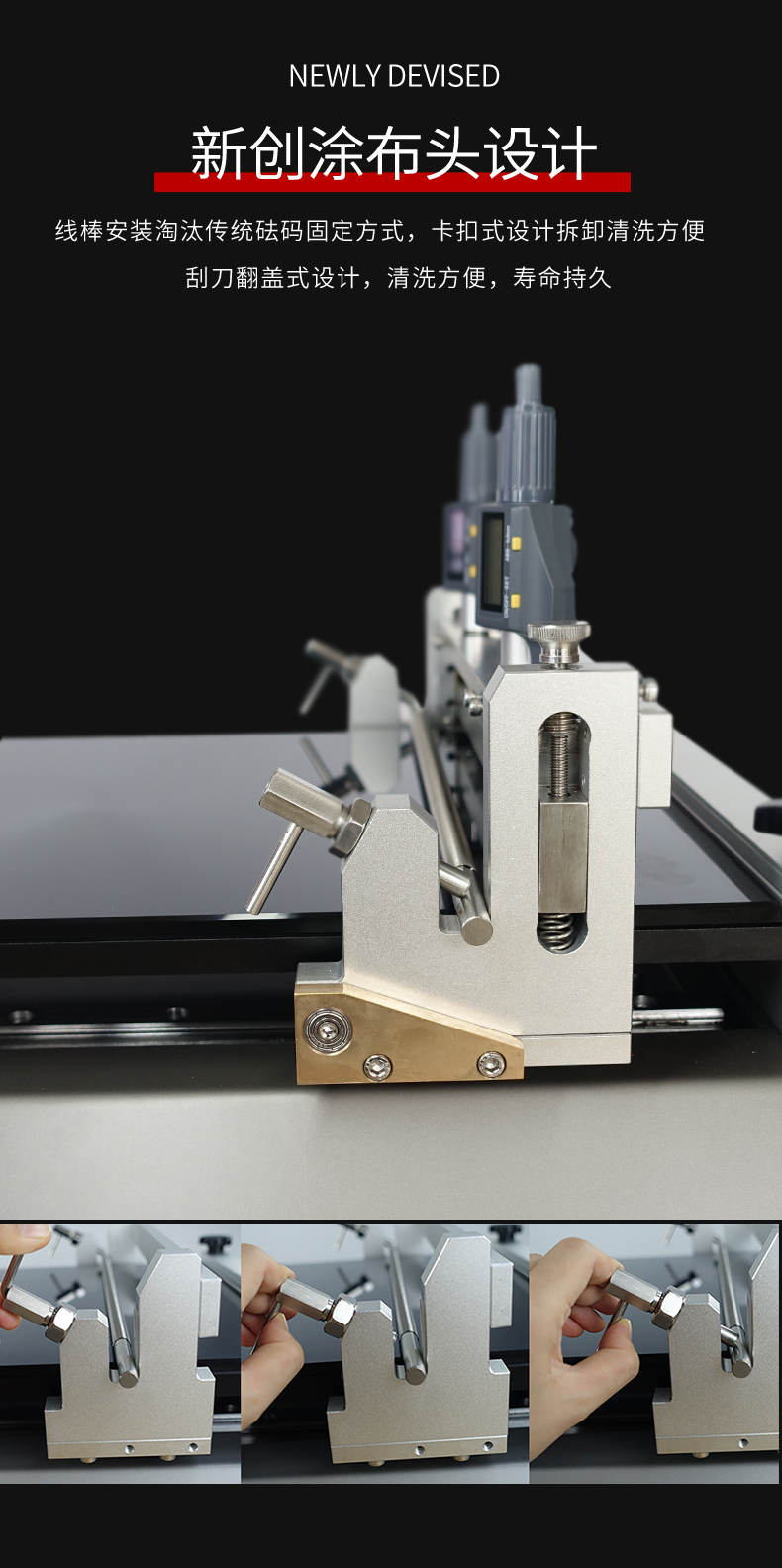

3) Clamshell doctor blade coating head, easy to clean
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
