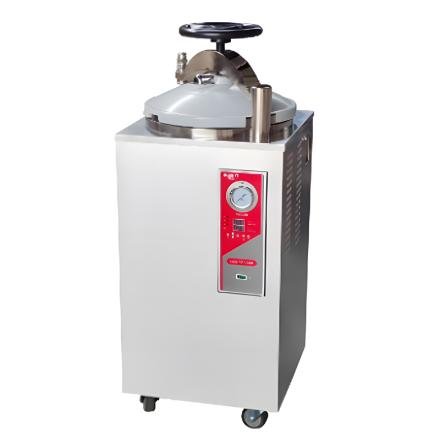

Specifications
| Volume | 50L |
| Power | 3.2kW |
| Temperature Resolution | 1℃ |
| Extreme operating/design temperature | 135℃/139℃ |
| Extreme working/design pressure | 0.22MPa/0.25MPa |
| Display range of pressure gauge | 0~ 0.4MPa (1.6 grades) |
| Time fixed range (minutes) | 4-120 |
| Dimensions (mm) | 485×485×1125 |
| Inner cavity size (mm) | Φ400×630 |
| Basket size (mm) | ↑ 360 × 230 × 2 pieces |
| Use height (mm) | 488 |
| Power Supply | 220V |
Packing list
whole machine X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
1. The manufacturer implements three guarantees for the products sold in accordance with the relevant provisions of the state, and the manufacturer provides warranty services during the warranty period, except for vulnerable and consumable parts, and provides maintenance and related services for life.
2. In the process of receiving the goods, please cooperate with the unpacking and inspection of the goods, and in case of physical damage due to transportation, please refuse to sign and contact Nanbeichao in time. If the goods are damaged due to transportation problems after signing and picking up the goods, Nanbeichao will not assume all responsibilities.
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/49139/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
