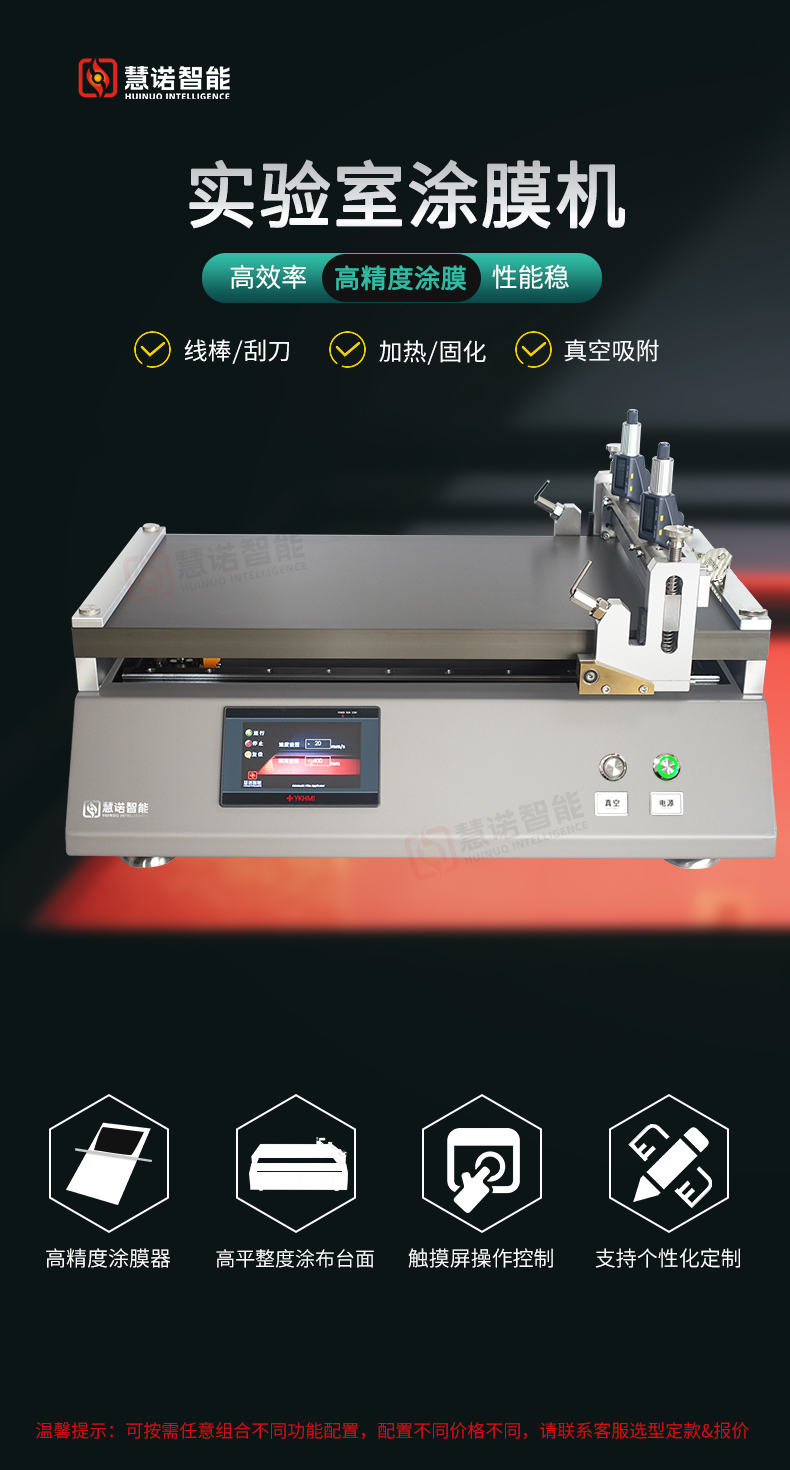

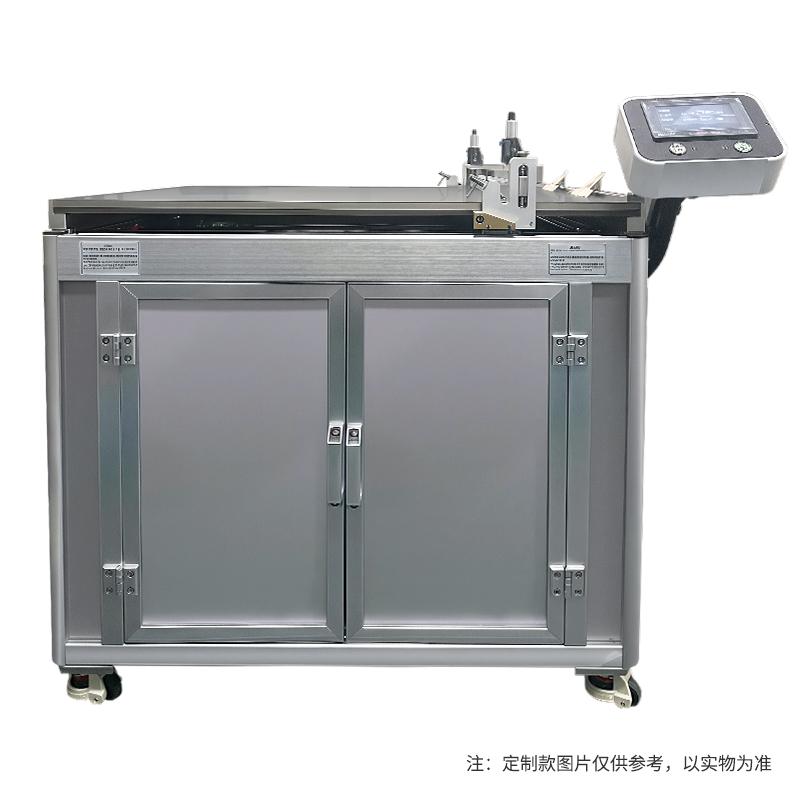

HuiNuo TM3000/11D drawdown Bar & blade coater (floor model) Effective area 120 * 60cm
SECoating method bar + Drawdown blade, Spreader speed 1~ 300mm/s stepless speed regulation (customizable), effective Spreader area 1200 * 600mm (customizable), bar accuracy +/- 0.001mm, Drawdown blade thickness range 0.1~ 10mm.
$6289.00/set
PromotionLoading...
Coupon
Model：
TM3000/11D
HuiNuo TM3000/11D Automatic Film ApplicatorSPEC

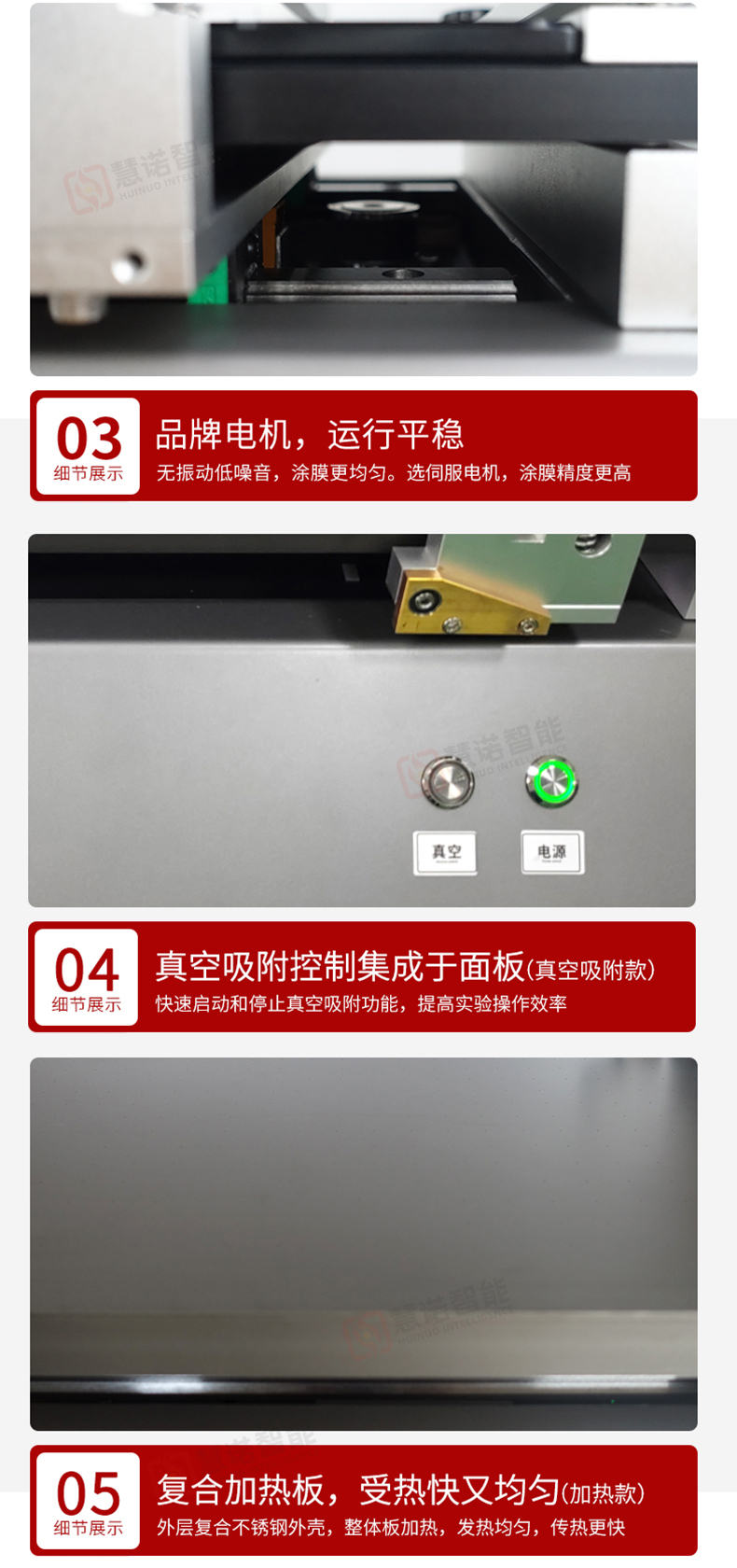

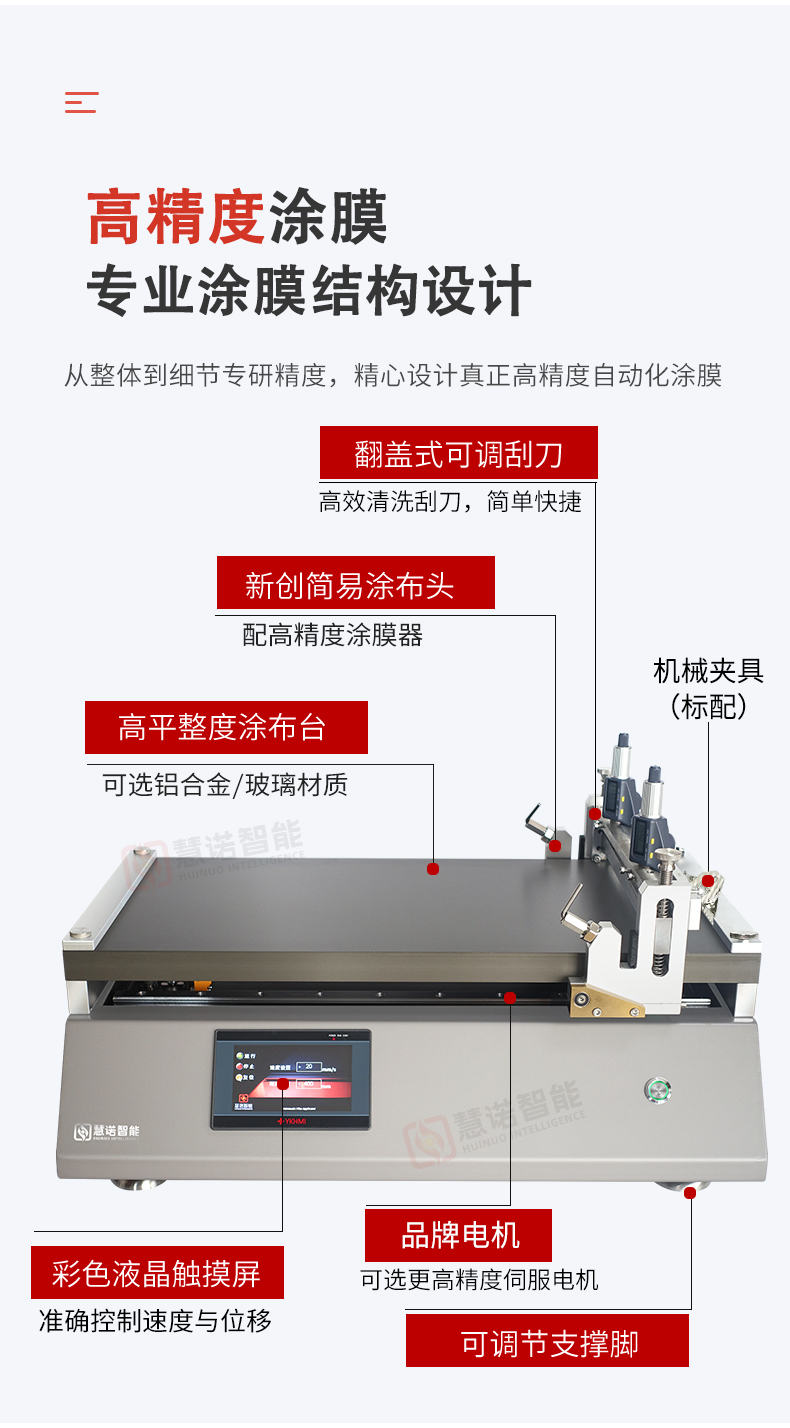

HuiNuo TM3000/11D Automatic Film ApplicatorDetails
HuiNuo TM3000/11D Automatic Film ApplicatorPacking list
- SKU
- NB049141
- Coating method
- Bar + Drawdown blade

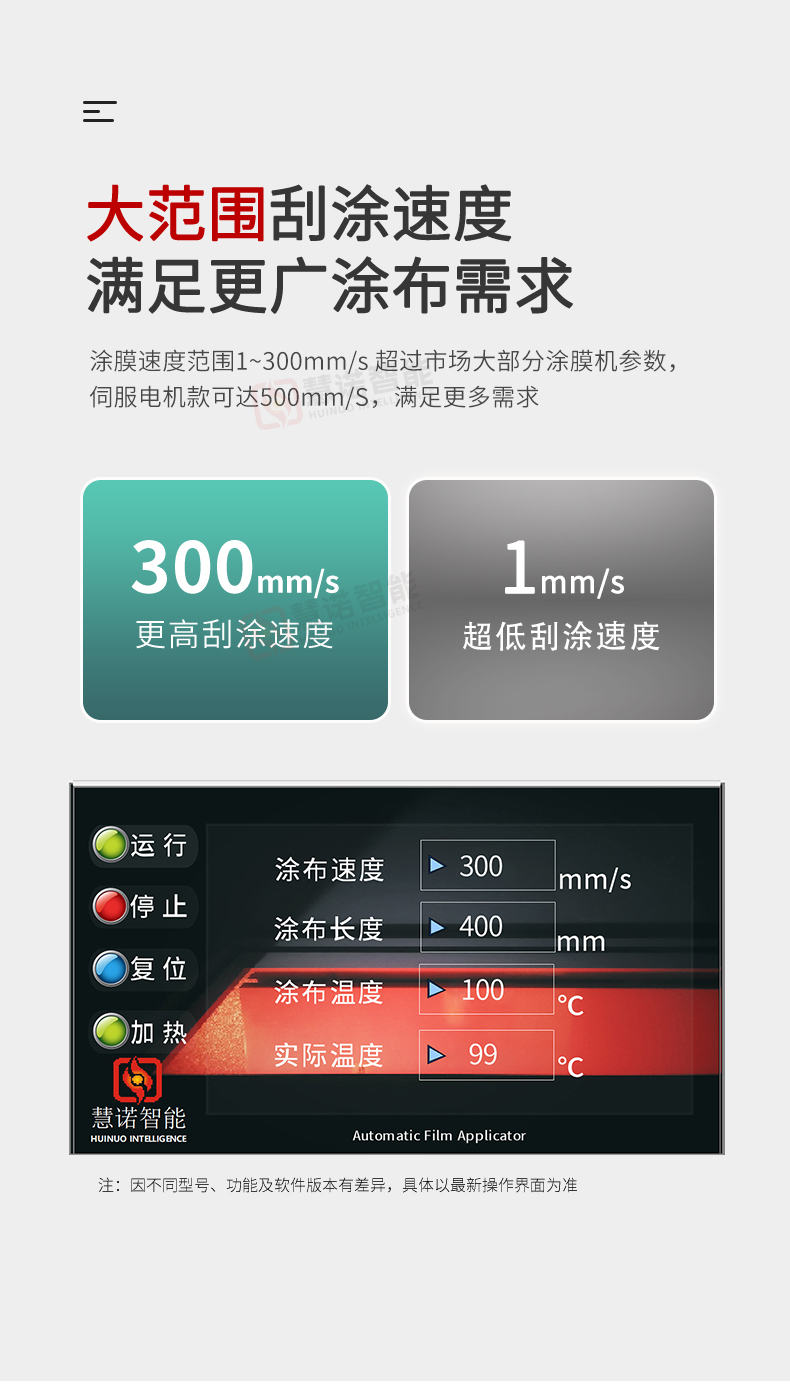

- Coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)

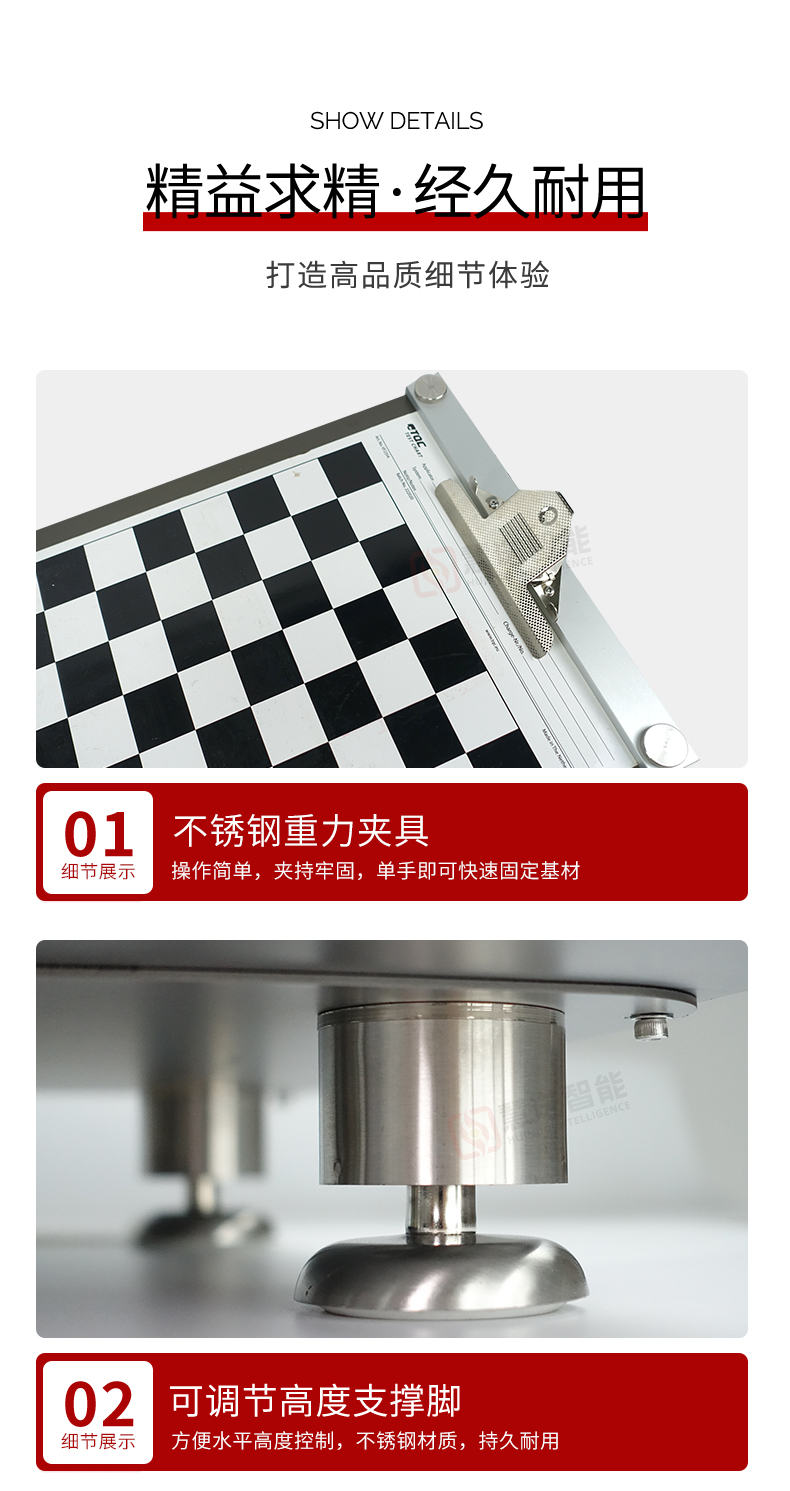

- Substrate clamping method
- fixture

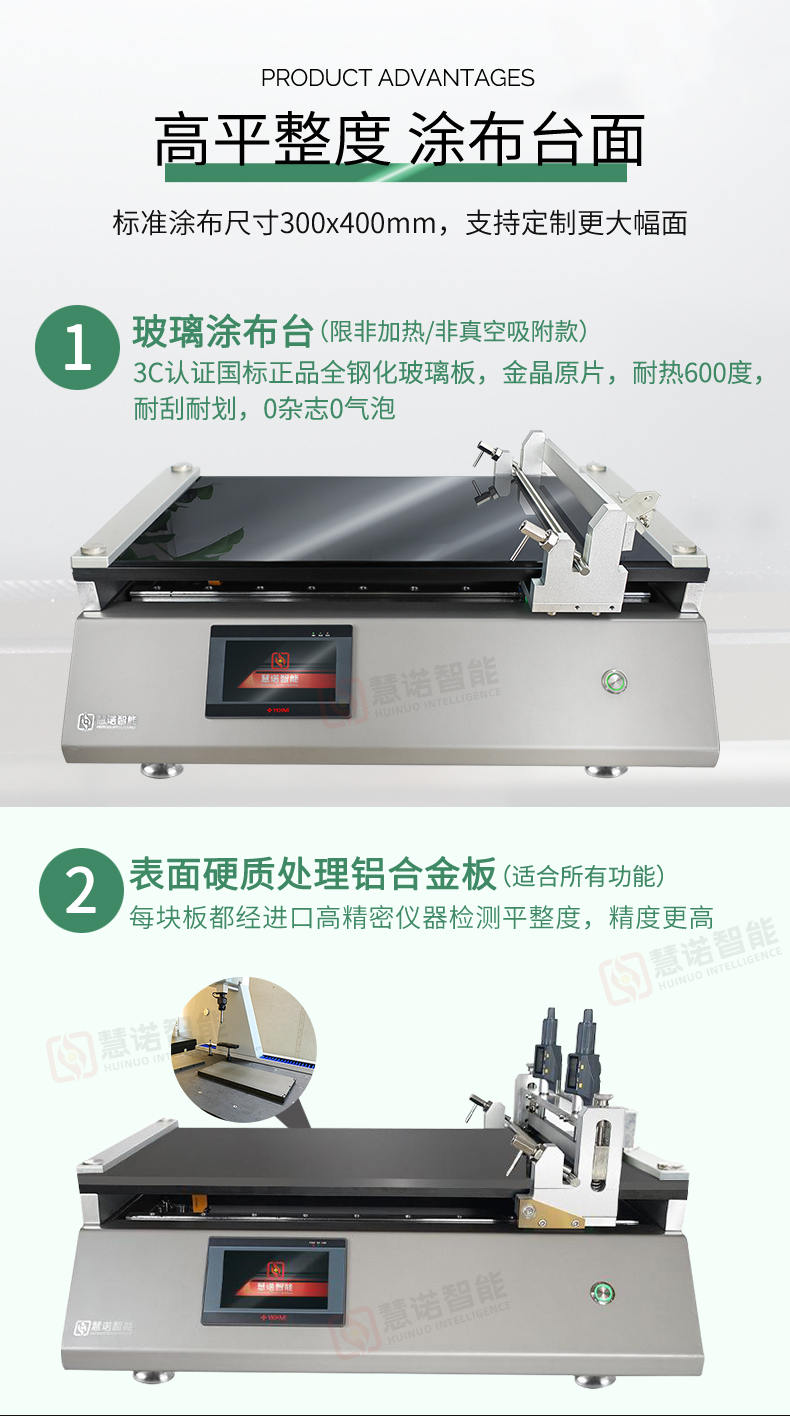

- Coating table material
- Glass plate
- Coating table size
- 1440*630mm
- Effective coating Area
- 1200 * 600Mm (can be customized)

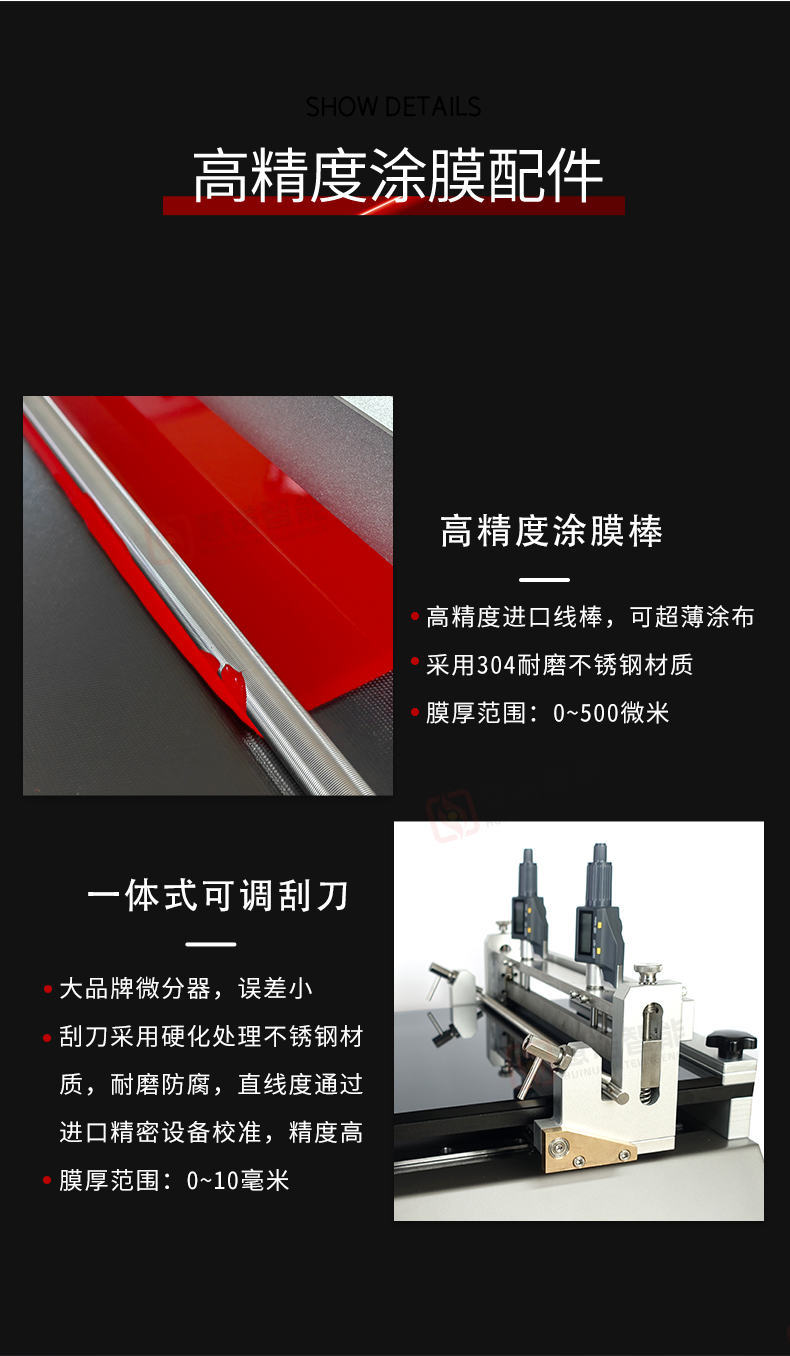

- Mayer Rod Thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Bar Accuracy
- ±0.001mm

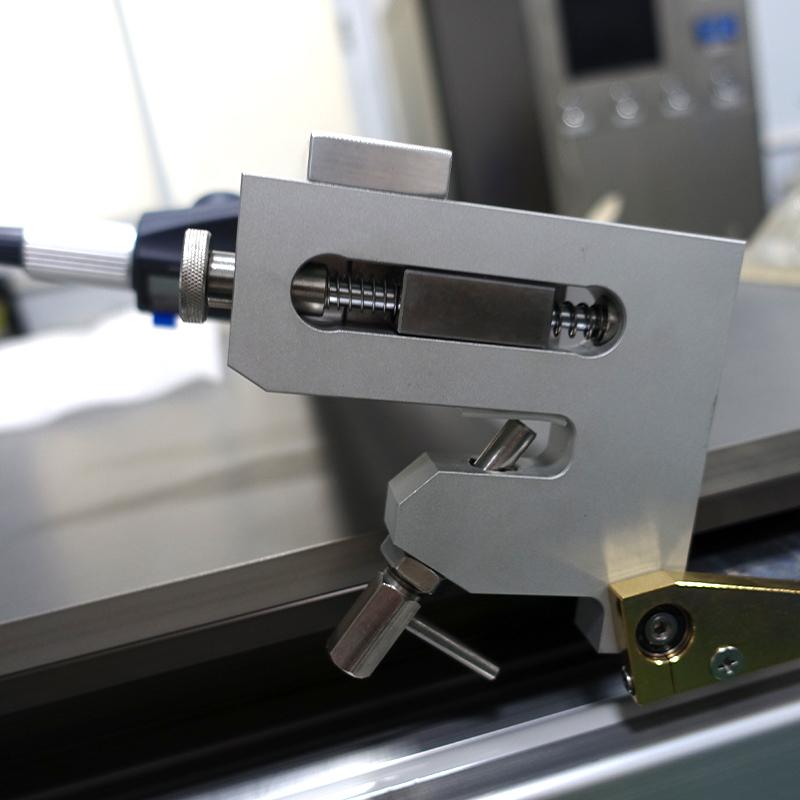

- Drawdown blade thickness range

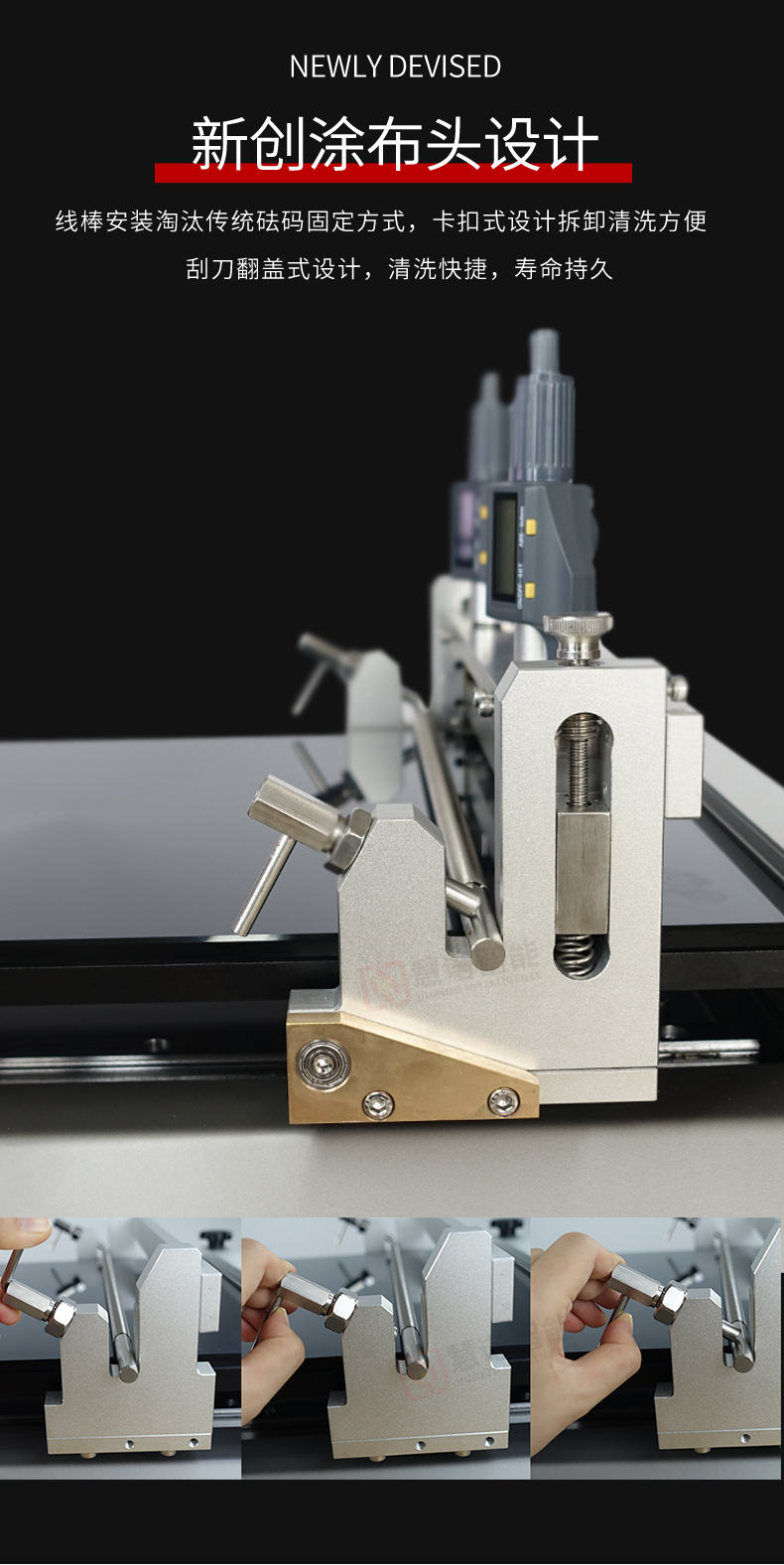

- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 600mm
- Drawdown blade Accuracy
- ±0.003mm
- Power
- 400w
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 100V~220V/50~60HZ
- Dimension
- 1460 * 740 * 430Mm (subject to the actual product)
- optional feature
- Heating, vacuum adsorption
TM3000/11D
Automatic Film Applicator
Coating method bar + Drawdown blade, Spreader speed 1~ 300mm/s stepless speed regulation (customizable), effective Spreader area 1200 * 600mm (customizable), bar accuracy +/- 0.001mm, Drawdown blade thickness range 0.1~ 10mm.
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
