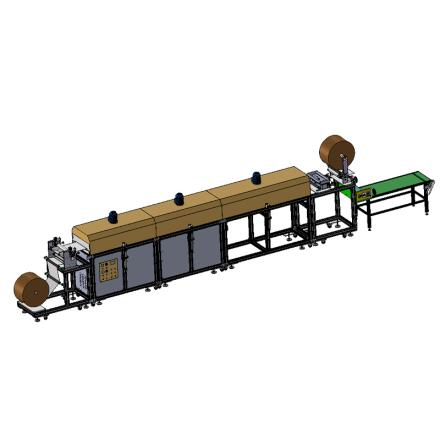

Factory Rxg-03/300cspro Special coating machine for pharmaceutical patches Specifications
Search
Brand：Factory
Model：Rxg-03/300cspro
Name：Special coating machine for pharmaceutical patches
Specifications
| Spreader process | Roll → scrape → dry → fit → cut |
| Effective application width | Max.Φ300mm |
| Coating method | scraping |
| Cutting head type | Drawdown blade adjustable |
| Display mode indication | digital display |
| WFT | 0.005-3mm |
| Regulator Graduation | 0.001mm |
| Spreader Accuracy | ±3% |
| Coating speed | 1-10M/min (adjustable) |
| unwinding method | Inflatable shaft unwinding |
| winding method | Inflatable shaft winding |
| Outer diameter of winding air expansion shaft | 3-Inch expansion shaft, load-bearing 50KG |
| maximum discharge | Max.Φ300mm |
| maximum charge | Max.Φ300mm |
| Drying Temperature range | RT+~200℃ |
| Temperature control Accuracy | ±3℃ |
| Heating mode | hot air circulation |
| Oven length | 1M/section * 3 sections |
| Total length of drying tunnel | 3m |
| Drying Power | 1KW/section |
| Motor type | step |
| Control mode | PLC + touch screen |
| Human Machine Interface | Color touch screen |
| tension control | automatic |
| Correction control | automatic |
| thickness control | manual |
| Fitting method | Roll fit |
| Fitting speed | 1~ 10M/min (adjustable) |
| Fit width | Max.Φ300mm |
| Roller material | Teflon non-stick roller |
| Slitting method | Hob slitting |
| split into sizes | According to customer customization requirements |
| Slitting speed | Synchronize with the production line |
| gas source | 0.5~ 0.8MPa compressed air |
| Applicable coil type | Plastic film, metal foil, paper, non-woven fabric, etc |
| Spreader type | Water-based paints, solar-based paints, UV coatings, etc |
| Environmental temperature | 10℃ ~ 40℃ |
| Environmental humidity | 30～90%RH |
| power requirements | 380V, 50Hz, three-phase five-wire system |
| Total power consumption | 3KW (subject to actual customization) |
| Dimension | About 6000mm * 500mm * 1600mm (subject to actual customization) |
| Weight | 1t (subject to actual customization) |
Packing list
host x1, scraper x1, slitting hob x1, manual x1, packaging list x1, certificate of conformity x1
After-sales instructions
Warranty days: 365 days
1.仪器设备非人为造成的产品质量问题，在质保期内厂家提供免费质保服务；
2.易损易耗配件不存在质保期，收到货发现产品质量问题，请在7天内申请退换货，逾期不候；
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/49146/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
