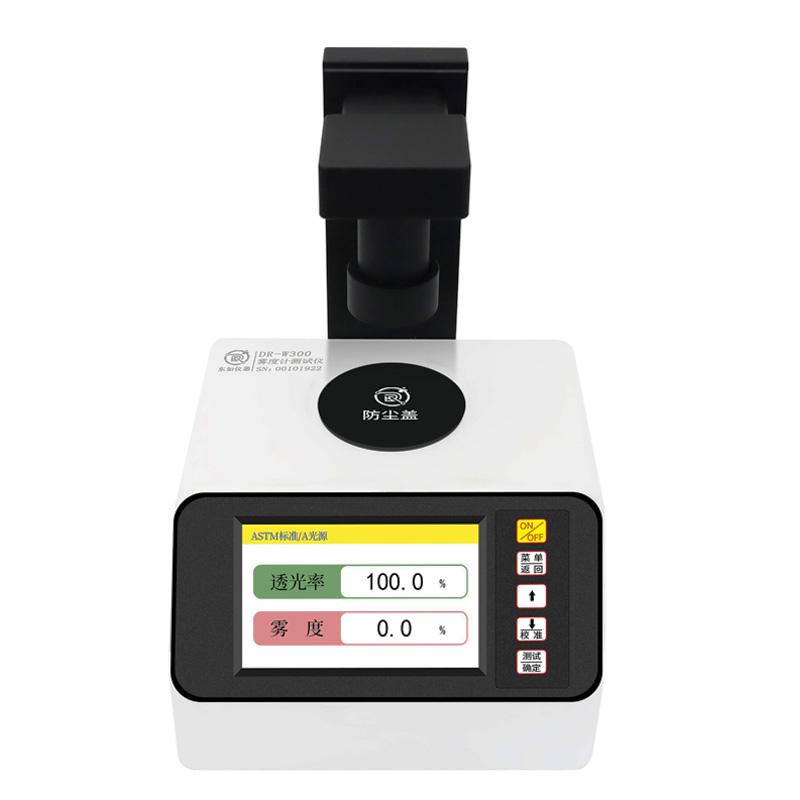

DONGRU DR-W300 Haze Tester

SE
Light path structure 0/d, Light source CIE-A, CIE-C, CIE-D65, range 0-100%, resolution 0.01, Repeatability 0.08, maximum measurement thickness 55mm, test aperture size 15mm/7mm.
$926.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

DongRu DR-W300 Haze TesterSPEC

DongRu DR-W300 Haze TesterDetails

DongRu DR-W300 Haze TesterPacking list

SKU
NB049152
optical path structure
0/d
light source
CIE-A,CIE-C,CIE-D65
Light spectrum Response
CIE Light spectrum function Y/V (A)
Measurement parameter
Haze (HAZE), Transmittance (T)
range
0-100%
resolution
0.01
Sexual repeability
0.08
Maximum measurement Film thickness
55mm
Test aperture size
15Mm/7mm (standard is 15mm, different aperture, different prices)
Instrument Dimensions
200mm*200mm*277mm
instrument Weight
2.97KG
operating temperature
0℃-50℃
Meet the standard
ASTM D1003/D1044,IS0 13468/IS014782,JIS K 7105,JIS K 7361,JIS K 7136，GB/T 2410-08
DR-W300
Haze Tester
Light path structure 0/d, Light source CIE-A, CIE-C, CIE-D65, range 0-100%, resolution 0.01, Repeatability 0.08, maximum measurement thickness 55mm, test aperture size 15mm/7mm.
DONGRU DR-W300 Haze Tester Picture

Introduction

Haze Tester is a desktop high-precision haze Tester, which is professionally used to test the haze and light transmittance of films, plastics, glass, LCD panels, and milky white matte materials. The flat desktop instrument is convenient for placing all kinds of test samples, which can be put and measured, and the test data is fast and accurate. This instrument adopts the principle of integrating sphere, which can realize the total luminous flux received and transmitted, and can better measure thicker materials and milky matte materials. Applications: Automotive manufacturing and testing, glass products, lamps and lanterns, aerospace and other industries, haze and transmittance measurement of protective film, solar film, PC, acrylic, diffusion plate, milky white frosted plastic products, widely used in laboratory, factory or on-site testing.

Features

  • The integrating sphere principle receives all optical flux, with high precision and good stability

  • This instrument satisfies the haze and total transmittance measurement under CIE-A, CIE-C, CIE-D65 three standard illumination sources

  • This instrument satisfies the compensation method test and can provide more accurate test results

  • The instrument has an open measuring area, which can accommodate the measurement of samples of any size

  • The instrument comes with a Type-C interface, which can be connected to a computer to realize the function of transferring data

  • Test method: single measurement method

  • Beep indication during operation (single measurement method)

  • Large-capacity storage for 10 sets of 200 pieces of data for a total of 2,000

  • 5-inch LCD color screen display, and Chinese and English bilingual versions are available

FAQ
QI want to measure the haze and light transmitance of the car film, which instrument is suitable?
A The DR-W300 haze tester adopts the principle of integrating sphere, which can accurately receive the full luminous flux. It is especially suitable for measuring thicker or colored materials such as solar film. The test data is accurate and meets the inspection standards of the automotive industry.
QThe haze instrument needs to be able to store data and connect to a computer. Is there any recommendation?
A DR-W300 comes with its own Type-C interface, which can transfer data to a computer, and can also store 2,000 sets of test records. There is a beep prompt during operation, and the color screen displays Chinese and English.
