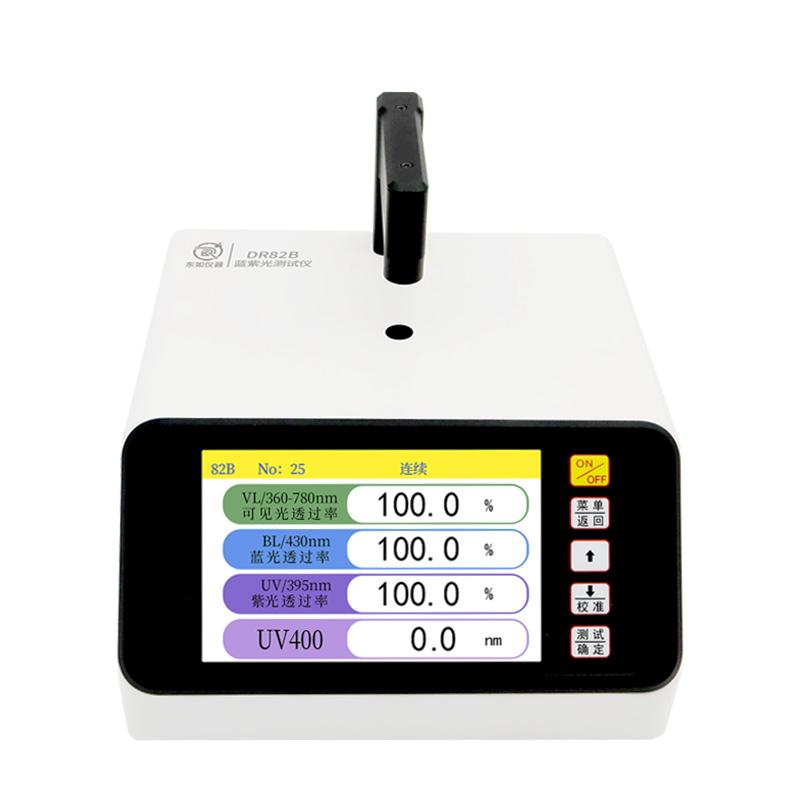

DONGRU DR82B blue-violet light transmittance Tester

DR82B

Blue-violet light transmittance Tester

Test hole diameter 1.3mm, test height 25mm, Transmittance Measurement range 0-100%, UV400 Measurement range 200-400nm, resolution 0.1%, instrument weight about 1900 grams.

Introduction

DR82B Blue-Violet Light Transmittance Tester is a small desktop optical transmittance Tester, which specializes in the optical transmittance detection of various myopia spectacle lenses, reading glasses lenses, display lenses and anti-blue light materials. This instrument adopts a three-in-one optical path design, which can measure four sets of data of visible light, blue light, violet light transmittance and UV400 at one time, and can also measure four sets of data of visible light transmittance, blue light blocking rate, violet light blocking rate + UV400 at one time.

This instrument mainly uses visible light source, 430nm blue light source and 395nm violet light source to irradiate the measured transparent substance, the sensor detects the incident light intensity of the three light sources and the light intensity after passing through the measured transparent substance, the ratio of the transmitted light intensity to the incident light intensity is the transmittance, expressed as a percentage, 1-transmittance = blocking rate. The instrument is exquisite, small and beautiful, ready to measure, accurate data, suitable for field testing or laboratory use.

Note: This instrument is not suitable for measuring the transmittance of printed, milky white and matte materials; The instrument should not be used in sunlight or bright light.

Features

• Test visible light, blue light, violet light transmittance or blocking rate + UV400

• The three-in-one optical path design can measure four sets of data at one time, which is convenient to operate and time-saving

• Collimated light design, stable and accurate measurement results for testing large thickness materials

• The test aperture is 1.3mm, which can test the transmittance of small materials

• It has the function of real-time automatic measurement, dynamic automatic calibration, and automatic calibration to 100% transmittance after power on

• The instrument comes with a Type-C interface, which can be connected to the PC terminal to realize the function of transmitting data

• There are two test methods: continuous (CONT INUE) and single (SINGLE) measurement methods

• Beep indication during operation (single measurement method)

• Large-capacity storage for 10 sets of 200 pieces of data for a total of 2,000

• 5-inch LCD color display

• Bilingual version in English and Chinese

• It is powered by 5V power supply, which is convenient to connect to the mobile power bank (power bank).

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
