JINGGONG CP168 Ink Proofer shade test

Using the same speed and pressure parameters as the printing press, the printing speed is 0~260m/min, and the Accuracy Delta value is less than 0.5. It supports fast color development and detection of various inks characteristics, and the operation is simple and efficient.
$9087.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO

DeJingGong CP168 Gravure Ink ProoferSPEC

DeJingGong CP168 Gravure Ink ProoferDetails

DeJingGong CP168 Gravure Ink ProoferPacking list

SKU
NB049155
Maximum printing width
110Mm (can be customized) * 365mm
printing speed
0~260m/min
Accuracy
The value is less than 0.5.
control Voltage
24V DC
input Voltage
AC 220V
Power
0.5KW
Machine size
630*550*550mm
Machine Weight
105Kg
CP168
Gravure Ink Proofer
Using the same speed and pressure parameters as the printing press, the printing speed is 0~260m/min, and the Accuracy Delta value is less than 0.5. It supports fast color development and detection of various inks characteristics, and the operation is simple and efficient.

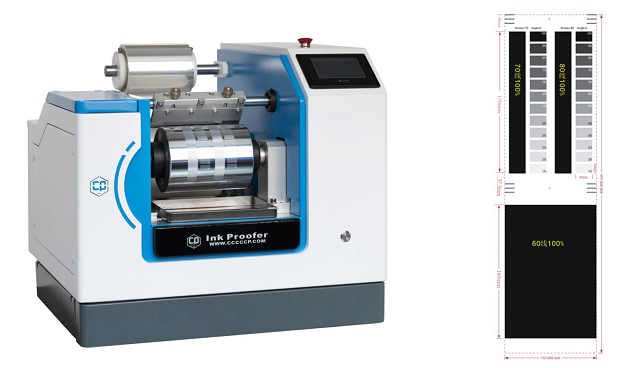

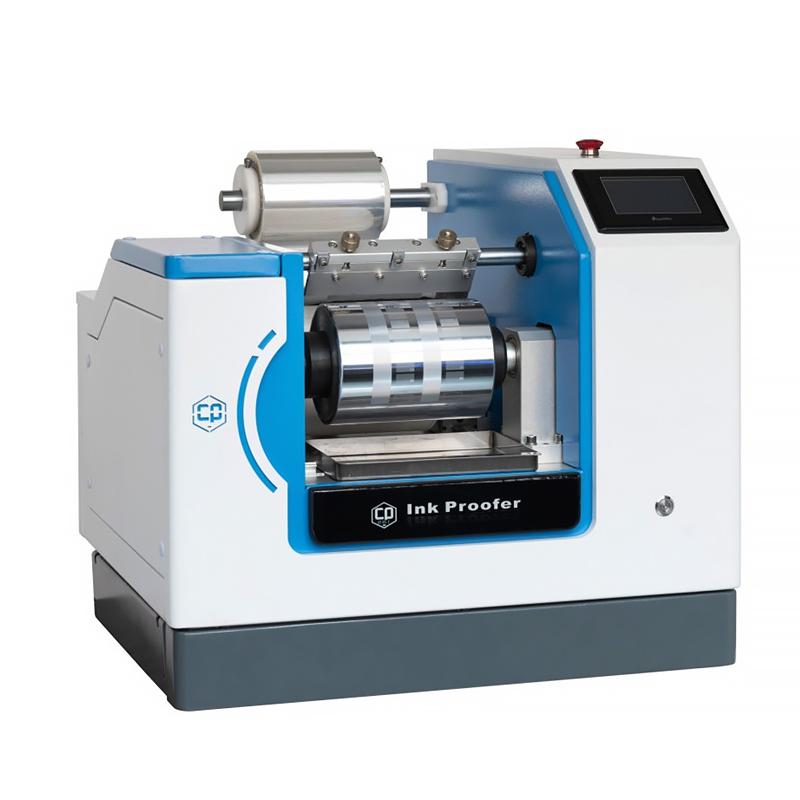

JINGGONG CP168 Ink Proofer shade test Picture

Fields of application

Applicable plate making companies

(1) Instead of manual ink scraping, under the same parameters as the speed and pressure of the printing machine, the spot color can be quickly and accurately debugged, which greatly reduces the number and time of proofing of the concave prototype.

2. The company's production process curve is simple and convenient, and the process personnel can quickly display the color separately without the cooperation of the concave sample workshop.

(3) The manuscript designer can also show the color to the on-site customer within 5 minutes, and the customer can see the final printed color on the finished product at the beginning of the design.

Applicable printing companies

(1) Instead of manual ink scraping, under the same parameters as the speed and pressure of the printing machine, the spot color can be quickly and accurately debugged, which greatly reduces the waste of ink mixing on the high-speed printing machine.

2) The color spreader can greatly reduce the residual ink inventory of the printing company with the cooperation of Colorimeter and color software.

Applicable to oil waste ink manufacturing companies

(1) Data management, with spectrometer for color inspection, measurement of color bar data report.

2) Cooperate with relevant instruments to test the wear resistance, color fading, transferability, light and heat resistance and other characteristics of the ink

FAQ
QInks manufacturing companies need to test inks performance, which instrument is suitable?
A CP168 can cooperate with the spectrometer to measure the color bar data, and can also detect the characteristics of wear resistance, fading, transfer and light resistance and heat resistance, and realize data management, which is suitable for inks company to do a comprehensive mass evaluation.
QOur printing company wants to reduce ink waste and residual ink inventory. What equipment should we choose?
A It is recommended to choose the JINGGONG CP168 color development instrument. It can quickly debug the spot color under the same parameters of the printing press, reduce the waste of ink adjustment in the high-speed printing machine; it can also effectively reduce the stock of residual ink when used with the color difference meter and color software.
QPlate-making companies want to quickly debug spot colors and reduce the proofing time of concave prototypes. What equipment is suitable?
A CP168 gravure Ink Proofer can simulate the speed and pressure parameters of the printing press, instead of hand scraping ink, it can show the finished product Color to customers within 5 minutes, greatly shortening the proofing cycle, especially suitable for plate making process personnel to operate independently.
QI want to buy a gravure Ink Proofer, mainly used for plate making company's spot color matching, what do you recommend?
A Recommended JINGGONG CP168 gravure Ink Proofer. It can replace manual ink scraping, quickly and accurately debug spot colors under the same parameters as speed and pressure and printing press, greatly reducing the number and time of gravure proofing, suitable for plate making companies.
Standard
