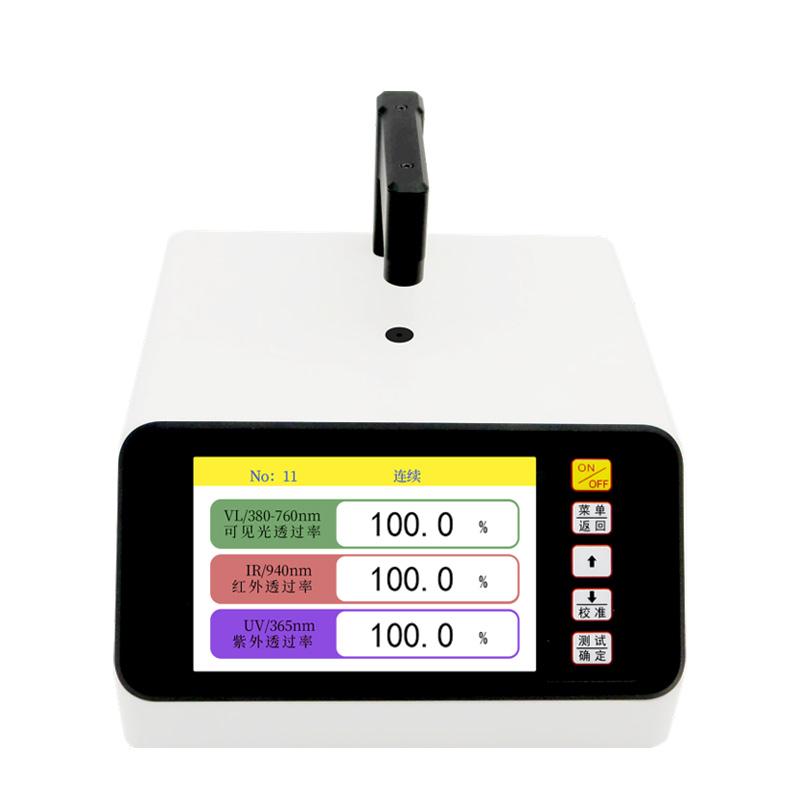

DONGRU DR82A Optical inspection transmittance Tester

DR82A

Optical inspection transmittance Tester

Measurement range 0-100%, Measurement accuracy 0-95% +/- 2%, resolution 0.1%, instrument weight about 1900 grams, Operating temperature 0 ℃ -50 ℃, Operating humidity 20% -90% RH.

Introduction

DR82A optical transmittance measuring instrument is a desktop optical transmittance meter, using a three-in-one parallel optical path design, which can measure three sets of data of visible light transmittance, infrared transmittance and ultraviolet transmittance at one time. The test aperture of the instrument is 1.3mm, which is suitable for transmittance measurement of small size materials and thick materials. Flat desktop instrument, convenient to place a variety of test samples, that is, put and measure, fast test data accurate, exquisite and compact instrument, suitable for field and laboratory use.

Scope of application

Measure the light transmittance of various transparent and translucent materials such as glass, plastic, acrylic, film, etc., measure infrared transmittance objects such as solar film, heat insulation film, sunglasses, infrared filters/filter strips, remote control windows, measure ultraviolet transmittance, etc.

Note: This instrument is not suitable for measuring the transmittance of printed, milky white and matte materials; The instrument should not be used in sunlight or bright light.

Features

• The three-in-one light source can obtain the transmittance of three channels in one measurement, which is convenient to operate and time-saving for measurement

• Collimated light design, stable and accurate measurement results for testing large thickness materials

• The test aperture is 1.3mm, which can test the transmittance of small materials

• It has the function of real-time automatic measurement, dynamic automatic calibration, and automatic calibration to 100% transmittance after power on

• The instrument comes with a Type-C interface, which can be connected to the PC terminal to realize the function of transmitting data

• There are two test methods: continuous (CONT INUE) and single (SINGLE) measurement methods

• Beep indication during operation (single measurement method)

• Large-capacity storage for 10 sets of 200 pieces of data for a total of 2,000

• 5-inch LCD color screen display

• Bilingual version in English and Chinese

• It is powered by 5V power supply, which is convenient to connect to the mobile power bank (power bank).

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
