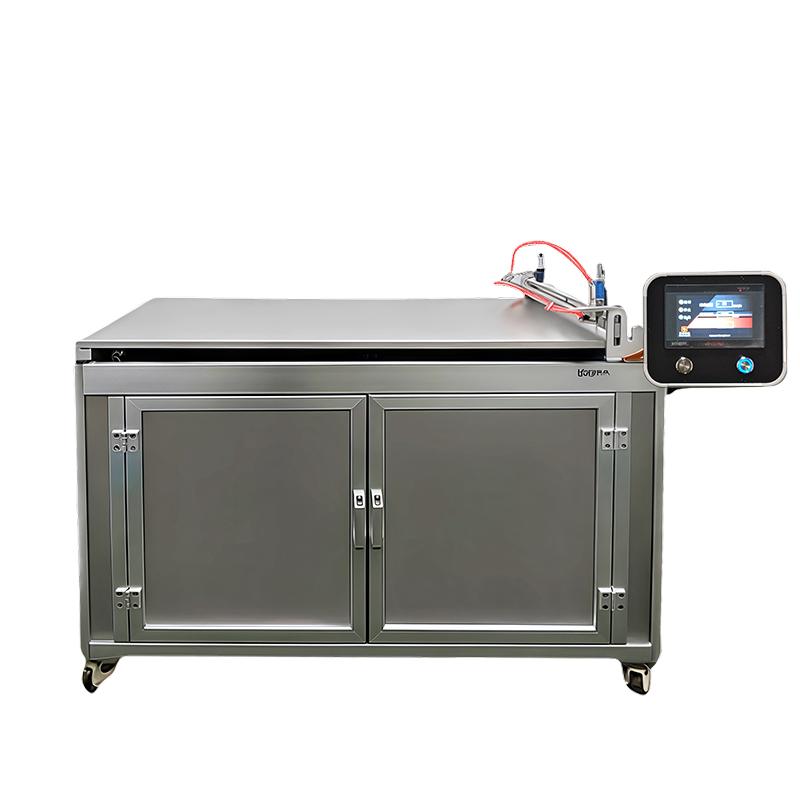

HuiNuo TM3000/12AFD bar drawdown blade coater (automatic feeding floor model)
SE
TM3000/12AFD
HuiNuo TM3000/12AFD Automatic Film ApplicatorSPEC
HuiNuo TM3000/12AFD Automatic Film ApplicatorDetails
HuiNuo TM3000/12AFD Automatic Film ApplicatorPacking list
- SKU
- NB049158
- Coating method
- Bar + drawdown blade
- Coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- fixture
- Coating table material
- Glass plate
- Coating table size
- 1440*730mm
- Effective coating Area
- 1200 * 700Mm (can be customized)
- Rod Film thickness range
- Different bar numbers Film thickness is different, with high Accuracy imported bar
- Bar Accuracy
- ±0.001mm
- Drawdown blade Film thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade width
- 700mm
- Drawdown blade Accuracy
- ±0.003mm
- Dimensions
- 1460 * 840 * 940Mm (subject to the actual product)
- standard feature
- Automatic feeding system
- Feeding principle
- Air source pressure flows out
- Feed Sport Mode
- Reciprocating linear motion
- Feeding back and forth traverse speed
- 2~150mm/s
- spit Volume
- Adjustable (by adjusting the air pressure and the running speed of the discharge port)
- Shaft transmission mode
- Timer belt
- Feeding system air source
- 0.6Mpa, which can be connected to the trachea of < unk > 8 (self-equipped).
- Feeding system power Voltage
- 220V,50Hz
- Tank pressure
- Maximum withstand 8Mpa
- Material of feeding barrel
- 304 stainless steel with a wall thickness of 4mm
- Feeding bucket configuration
- Safety valve, pressure regulating valve, pressure gauge, discharge valve
- Feeding drum Volume
- 1L
- power
- 400w
- Display
- Color LCD touch screen
- operating language
- Chinese (can be customized in English)
- Host Power Supply
- 100V~220V/50~60HZ
- optional feature
- Heating, vacuum adsorption
product description
The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The Principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.
This coating machine is a wire bar blade coating machine with two functions: wire bar coating and blade coating. The innovative wire bar installation method and flip-type scraper head greatly improve the coating efficiency, facilitate cleaning, and have speed control. And the coating length adjustment function is suitable for high-precision automatic coating in laboratories, and film production and proofing in university research institutes, new materials, lithium batteries, glue, resin and other laboratories.
Applications
The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc. It can be applied on glass, cardboard, and cloth.
Features
1) The glass tabletop is a 3C certified national standard authentic fully tempered glass plate, original gold crystal, heat-resistant to 600℃, scratch-resistant and scratch-resistant
2) Big brand differential regulator, high film thickness control accuracy
3) Flip-type doctor blade coating head, easy to clean
4) Equipped with a high-precision Film Applicator, the original imported wire rod can apply the film uniformly and with high precision
5) Touch screen control panel, easy to operate
6) Coating length and coating speed can be adjusted freely
