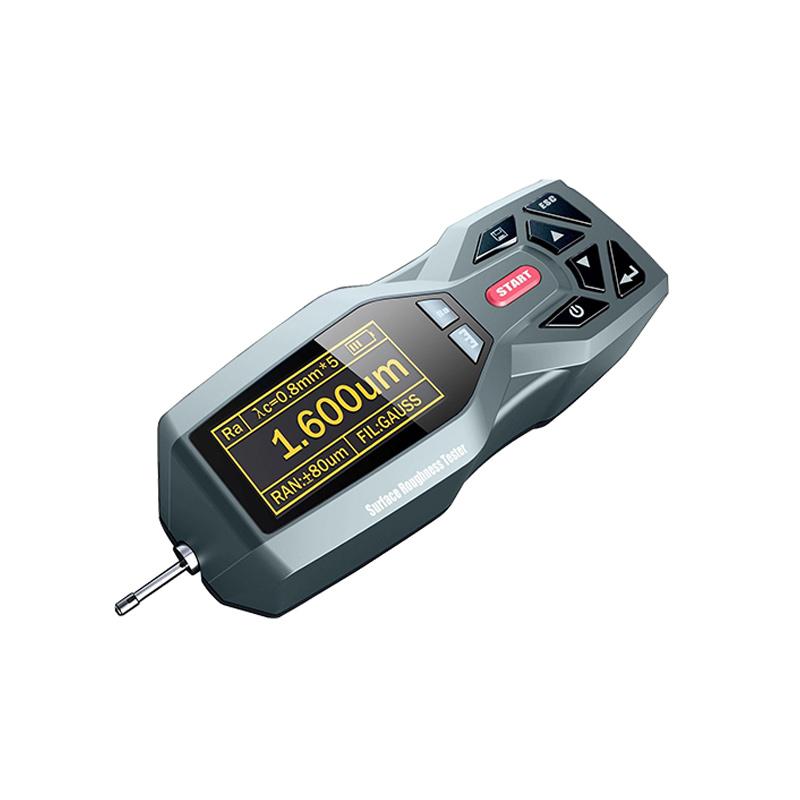

LEEB LBTQ423 surface roughness meter, contour asperity, original contour

LBTQ423

Surface roughness meter

Maximum driving stroke 17.5mm/0.7inch, error of indication is not more than +/- 10%, indication variability is not more than 6%, sampling length l0.25mm, 0.8mm, 2.5mm, measurement profile asperity, ripple, original contour.

Introduction

Portable roughness Tester is a portable stylus surface roughness shape measuring instrument, which is suitable for the detection of workshop verification stations, laboratories, measurement rooms and other environments. The measurement parameters are in line with international standards and compatible with the standards of some industrially developed countries such as the United States, Germany, Japan, and the United Kingdom. The measurement results can be displayed digitally and graphically on the LCD display or output to a printer.

Principle

When measuring the surface roughness of the workpiece, the instrument first puts the sensor on the surface to be measured on the workpiece, and then starts the instrument to measure, and the precision driving mechanism inside the instrument drives the sensor to slide along the measured surface at a constant velocity, and the sensor feels the roughness of the measured surface through the built-in sharp stylus, and the roughness of the measured surface of the workpiece will cause the displacement of the stylus, and the displacement changes the inductance of the sensor inductance coil. Thus an analog signal proportional to the measured surface roughness is generated at the output end of the phase-sensitive Detector, and the signal enters the data acquisition system after amplification and level conversion, and the DSP chip performs digital filtering and parameter calculation on the collected data, and the measurement results are given on the display, can also be output on the printer, and can also communicate with the PC.

Features

• Mechatronics design, small size, light weight, easy to use;

• DSP chip is used for control and data processing, with fast speed and low power consumption;

• Large range, multi-parameter Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr;

• 128×64 OLED dot matrix display, digital/graphic display; Highlight without Viewing Angle;

• The display is informative, intuitive, and can display parameters and graphics;

• Compatible with ISO, DIN, ANSI, JIS national standards;

• Built-in lithium-ion rechargeable battery and charging control circuit, high capacity, no memory effect;

• There is a remaining power indicator icon to prompt the user to charge in time;

• It can display the charging process indication, and the operator can understand the degree of charging;

• The continuous working time is more than 20 hours;

• Large-capacity data storage, which can store 100 sets of raw data and waveforms;

• Real-time clock setting and display, convenient data recording and storage;

• It has power-saving functions such as automatic sleep and automatic shutdown;

• Anti-motor dead circuit and software design;

• Display measurement information, menu prompt information, error information, power on and off and other prompt information;

• Rugged, compact, portable, and highly stable;

• Printer can be connected (optional).

 Applicable Materials

It is suitable for processing industry, manufacturing, testing, commodity inspection and other departments, mainly suitable for on-site inspection of large workpieces and production lines, as well as out-of-office verification of testing, measurement, commodity inspection and other departments.

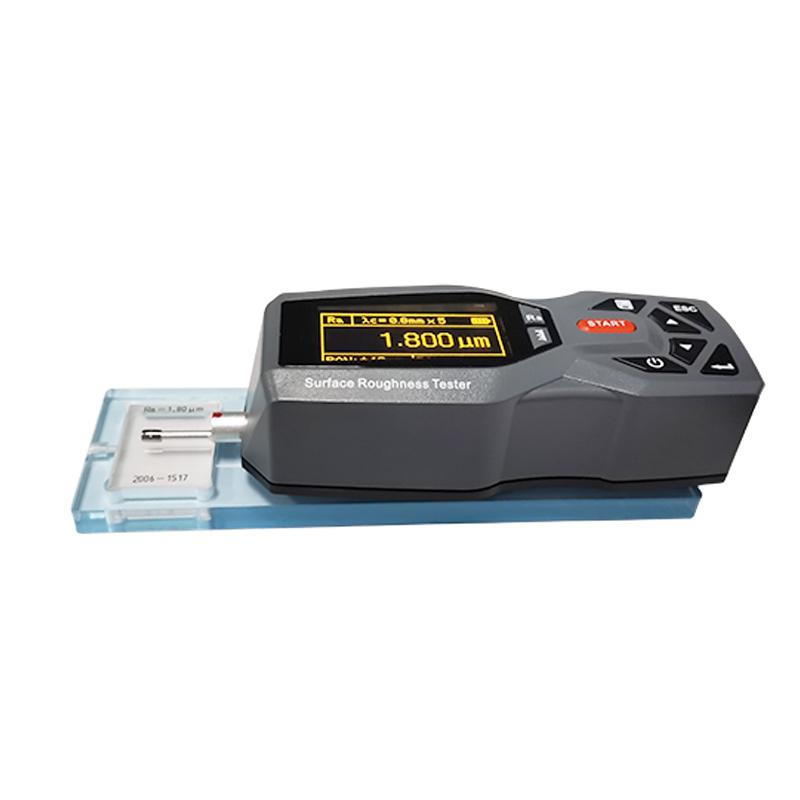

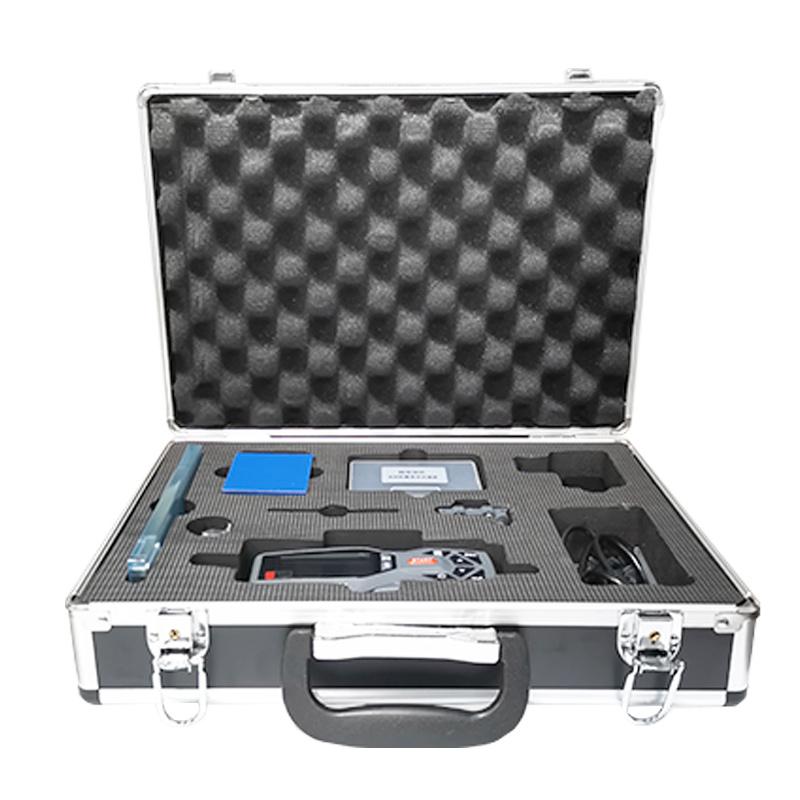

Packing list：Host X1, Standard Sensors X1, Multi-reticle Model X1, Model Bracket X1, Active Bracket X1, Power Adapter X1, USB Charging Cable X1, Instrument Case X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
