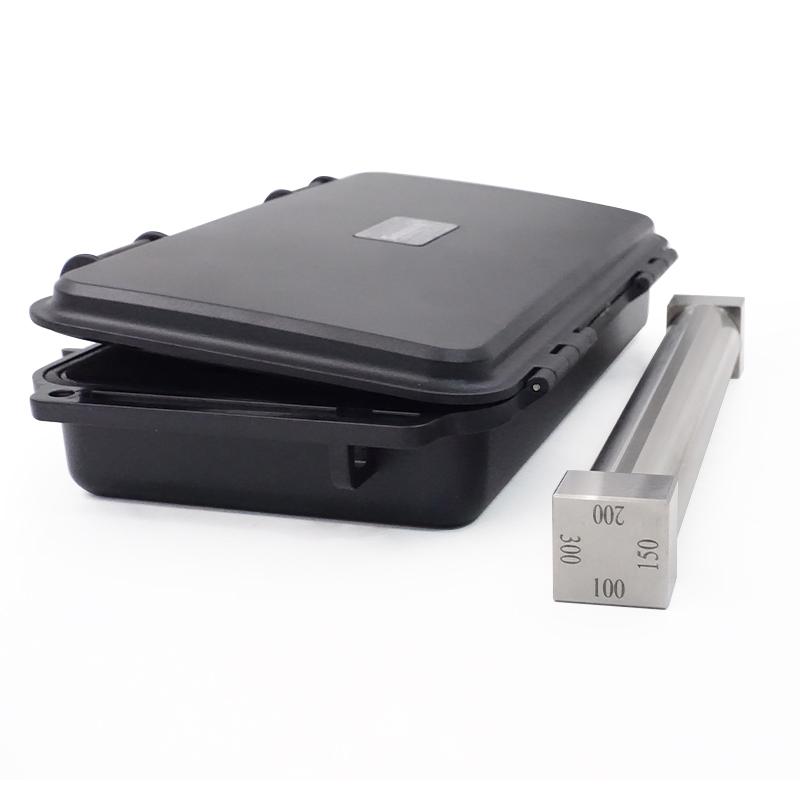

HuiNuo SZQ-160 250/300/500/550 4-sided Applicator

Type 4-sided, wet film thickness 250/300/500/550μm, application width 160mm, material stainless steel.

$265.00/piece

PromotionLoading...

Coupon

Model：

SZQ-160 250/300/500/550

Certificate

HuiNuo

Chinese general agent

Contact

Details SPEC Con

HuiNuo SZQ-160 250/300/500/550 4-sided ApplicatorSPEC

HuiNuo SZQ-160 250/300/500/550 4-sided ApplicatorDetails

HuiNuo SZQ-160 250/300/500/550 4-sided ApplicatorPacking list

SKU: NB049181

type: 4-sided

WFT: 250/300/500/550μm

application width: 160mm

material: Stainless steel material

SZQ-160 250/300/500/550

4-sided Applicator

Type 4-sided, wet film thickness 250/300/500/550μm, application width 160mm, material stainless steel.

The four-sided wet film preparer is a manual coating film proofing for coatings, inks, paints and other experiments, and can also be placed on an automatic coating machine to make films, with four coating film thicknesses,SZQ-160 250/300/500/550It is made of high-quality wear-resistant and corrosion-resistant alloy steel, and the thickness of the coating film is250、300、500、550μm, coating width 160mm.

The Film Applicator provides precise control of the thickness of the wet or dry film. In routine quality control and R&D tests, the hiding power, opacity, scrub resistance, sag resistance and other quality tests of the coating require a coating with good consistency and repeatability.

Features

1. 9Cr18Mo high hardness stainless steel material, with good wear resistance and corrosion resistance, hardness value of 50~55HRC.

2. The accuracy is up to ±2μm to ensure the accuracy of the experiment

3. The surface is smooth and clean, the styles are diverse, the application range is wide, and customized specifications are supported

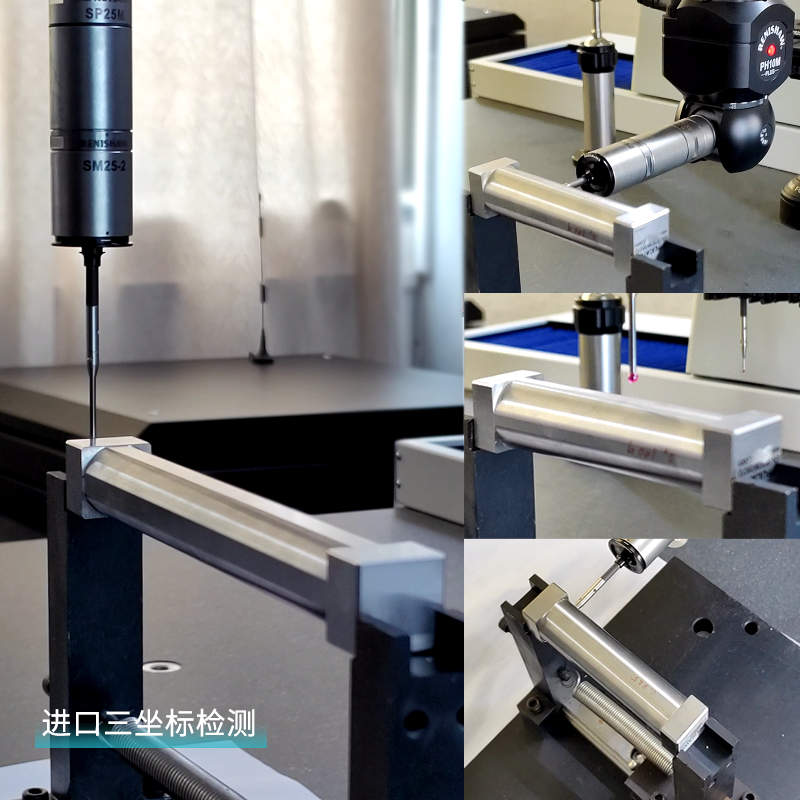

4. Adopt imported three-coordinate detection accuracy, with factory test report, which can stand up to measurement

Detail 1 of Huinuo SZQ-160 250/300/500/550 Four-sided Preparer

Parameter table of the preparator series

name	Specification mm	Wet film thickness μm
Single-sided preparer	The Total length is 80, and the coating width is 50 and 75	50、75、100、125、150、175、200
Double-sided preparer	The Total length is 100, and the coating width is 80	25、50、75、100、150、175、200、300、400
Frame preparer	The Total length is 90, and the coating width is 80	30、50、60、90、120、150、200
Octaveral preparer	The Total length is 90, and the coating width is 68	50、75、100、125、150、175、200
Octaveral preparer	The Total length is 100, and the coating width is 80	50、75、100、125、150、175、200
Square preparer	25x25, coating width 16	37、50、75、100
Square preparer	50x50, coating width 41	50、100
Standard four-sided preparer	The Total length is 100, and the coating width is 80	All specifications and sizes, support non-standard customization
Extended four-sided preparer	The Total length is 190, and the coating width is 160
