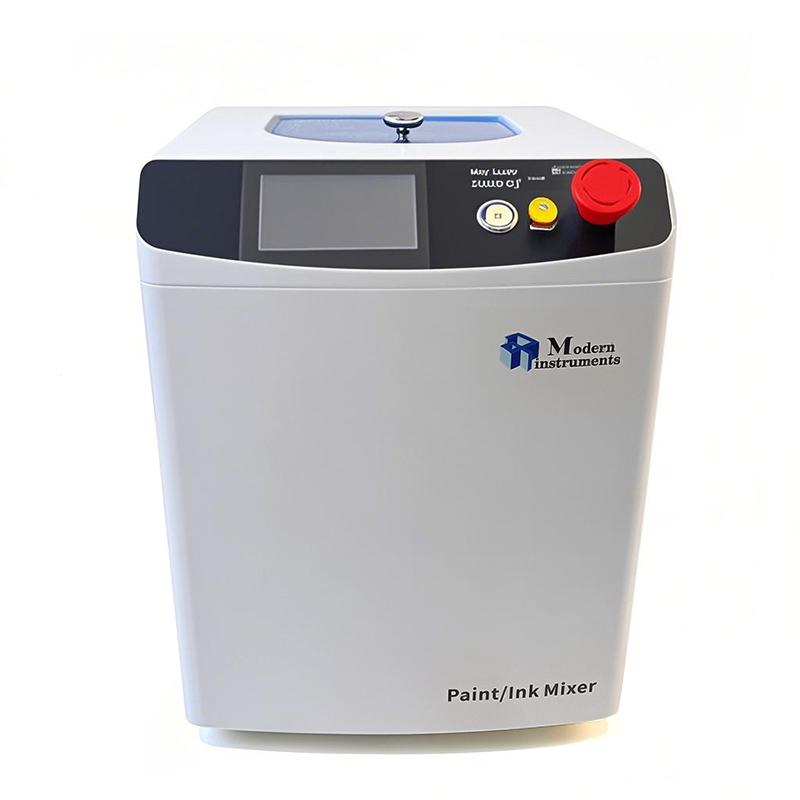

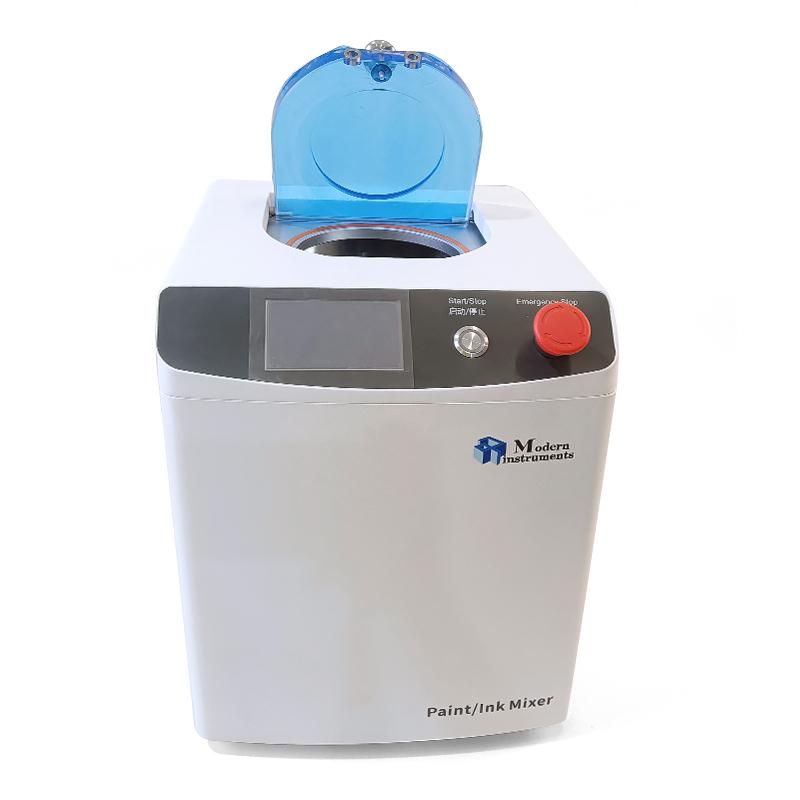

MODERNER JZ-200 Non-Interventional Material Homogenizer 350ml × 1

JZ-200

Homogenizer

The container capacity is 350ml × 1, and the maximum processing capacity is 175ml × 1/250g × 1. It supports single-parameter (stirring mode) and multi-parameter (multi-segment mode) operations, and can store 8 sets of formulas. The revolution and rotation synthesis force can achieve homogeneous mixing and efficient defoaming.

Introduction

JZ-200 Homogenizer is a high-efficiency equipment specializing in mixing, homogenizing and deaeration of high-viscosity materials, with a non-intrusive design, through the combined movement of revolution (200-2000 RPM) and rotation to generate strong centrifugal force, ensure that the material is fully mixed and quickly degassed, while reducing the temperature rise and protecting the material properties. The equipment is equipped with a touch screen operation interface, supports 8 groups of recipe storage, provides two operation modes of single parameter (stirring mode) and multi-stage parameter (multi-stage mode), and has multiple protection functions such as emergency stop, vibration detection, door cover safety lock, etc., and is suitable for precision processing in the fields of adhesives, pastes, electronic packaging materials, etc.

Operating Principle

Driven by a single motor, the carrier is able to perform both high-speed revolution (rotation around the central axis) and rotation movement. The strong centrifugal force generated by the revolution causes the material to move in the vector direction and extrude downward, while the rotation creates a vortex stirring effect, and the combined force of the two movements makes the material fully homogeneous. In this process, centrifugal force rapidly presses the bubbles inside the material to the surface and bursts, achieving efficient degassing. The design optimizes the handling of high-viscosity materials, ensuring the mixing effect while effectively controlling the temperature rise and avoiding damage to the material properties.

Features

• Single and double cups

• Vacuum optional

• The rotational speed ratio is constant

• Multi-segment parameter settings

• There is a wide variety of adapters

• It has a wide range of applications, can be developed and mass-produced

Series selection

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
