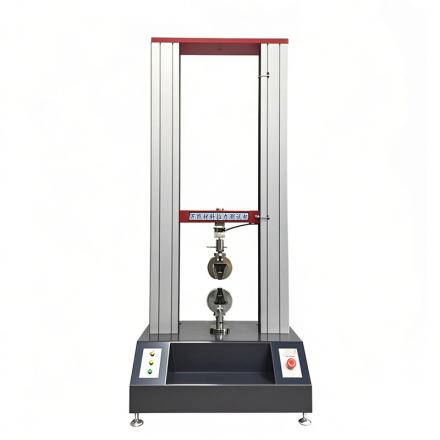

Specifications
| maximum test force | 10KN |
| Accuracy class | Level 0.5 |
| Measurement range | 1%~100%FS |
| Force error of indication | ≤±0.5% |
| Force resolution | The maximum test force of +/- 1/300000 is not divided into gears, and the full resolution remains unchanged |
| Measurement range | 0.2%～100%FS |
| An indication of deformation error | +/- 0.5% of the indication |
| Displacement resolution | 0.01mm |
| Displacement rate adjustment range | 0.01～500mm/min |
| effective stretch stroke | 750Mm (can be customized according to user request) |
| effective compression stroke | 950Mm (can be customized according to user request) |
| effective test width | 400mm |
| Dimension | 750 * 540 * 1750Mm (can be customized size) |
| Dimension | 750 * 540 * 2150Mm (plus work cabinet) |
| Host Weight | About 200Kg |
| Power Supply | 220 +/- 10% VAC, Frequency 50Hz, 1.5kW |
Packing list
Host X1, Power Cord X1, Manual X1, Fixture X1, Hand Control Box X1, Software Installation Card X1, Force Value Sensors X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/49227/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
