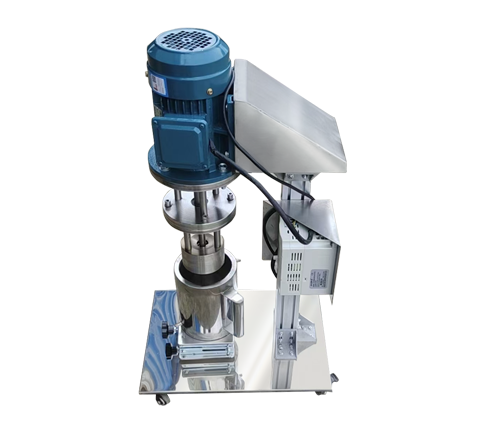

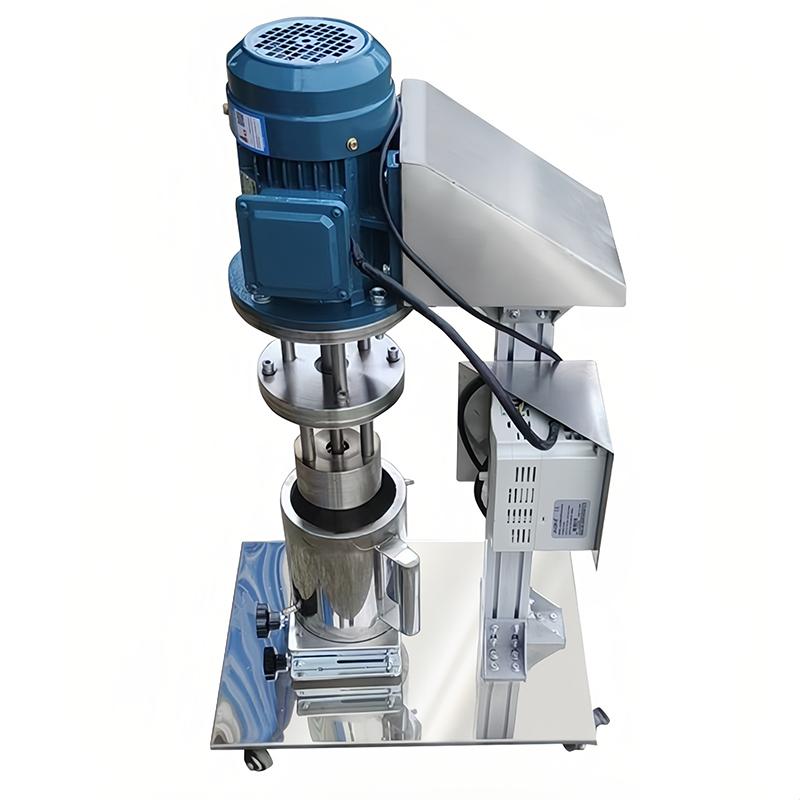

MUXUAN MXY-A750-1.5/01 Lab Basket Grinder

MXY-A750-1.5/01

Lab Basket Grinder

Motor Power 0.75Kw, speed range 0~3500rpm, lifting stroke 200mm, sand grinding basket effective volume 1.5L, barrel volume 1.5L, lifting mode manual, grinding medium zirconia beads.

Introduction

Laboratory manual lifting basket sand mill is an economical wet dispersion grinding equipment developed for scientific research institutions and enterprises and institutions. The equipment can run for a long time, the speed is stable and the noise is low, and the two production processes of dispersion and grinding are completed at the same time, so as to effectively reduce the fineness of medium and low viscosity materials in a short time.

Scope of application

【Material viscosity】:≤5000 cps(mPas)

[Applicable materials]: materials with high requirements for fineness, such as interior wall latex paint, industrial paint, wood paint, various color pastes, water-based oil-based inks, pesticide suspensions, etc.

Operating Principle

When the manual lifting basket mill motor in the laboratory is running, it drives the lever and the dispersion disc to rotate at high speed, so that negative pressure is generated in the grinding body, so as to promote the material to be forcibly sucked into the grinding cavity, and the high-density zirconia beads in the grinding cavity continue to collide and rub, and the particle size of the material becomes smaller and the fineness is reduced.

Product Advantages:

The grinding efficiency is high and the product fineness is good

The maximum speed of the equipment can reach 3500rpm, the powerful arc impeller kinetic energy drive, and the zirconia lever make the grinding medium in the cavity move irregularly, collide and friction with each other at high speed, so that the particle size of the powder becomes smaller rapidly; The grinding fineness can generally reach less than 10um, and the liquid-liquid dispersion grinding can reach the sub-micron or even nanometer level. The separating plate is CNC machined by the whole material, which is non-clogging and has a long life and reduces maintenance costs.

Easy to operate and easy to clean

The equipment comes with a high-efficiency energy-saving inverter, which can directly control the start and speed regulation of the equipment; Equipped with manual or electric lifting device, manual lifting is economical and energy-saving, and electric lifting high-end atmosphere is labor-saving; The cylinder and the lid can be relatively closed, and the solvent volatilization is less during the grinding process; The unique design of the grinding chamber, direct solvent circulation cleaning, the whole set of stainless steel design is beautiful and generous, and the cleaning is convenient; The grinding time can be set according to the process, and it is very convenient to stop the machine at a regular time.

The temperature rise is small, and the product is stable

The ingredient barrel is equipped with a double-layer cooling jacket, and the barrel is mirror-polished, which is beautiful and easy to clean; When the equipment is running, it is cooled by water, which has a good cooling effect, and the conventional temperature rise is less than 10º; It can be customized with the same model to match multiple barrels, which is convenient for color difference and use.

Strong non-standard

The lifting form of the equipment can be customized to manual lifting and electric lifting; Non-standard customized explosion-proof type; The material contact parts can be made of SS304 SS316L material; If there are high temperature, high pressure, flammable, explosive, corrosive and other Operating Conditions, it is necessary to provide detailed data and tailor-made.

Equipment selection

Packing list：Host X1, double-decked bucket X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
