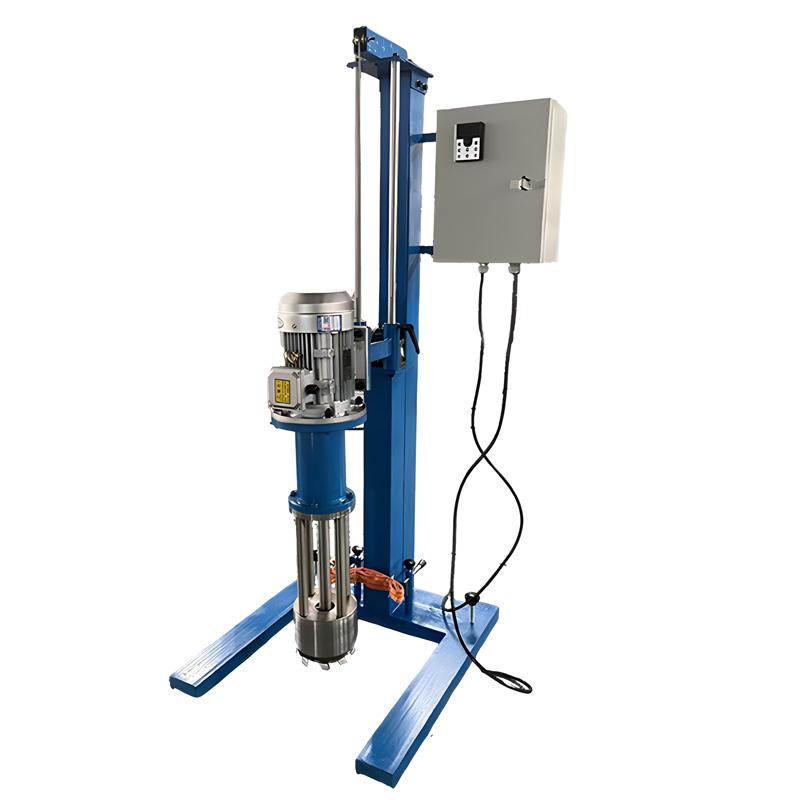

MUXUAN MXY-DS2.2 Basket Grinder Disperse Grinding Equipment

MXY-DS2.2

Basket Grinder

Power 2.2KW, Rotation speed 0-3000 rpm, using digital frequency conversion speed regulation, material 304 stainless steel, lifting mode electric lifting, grinding medium 95 zirconia beads 2 kg, grinding beads specification 1.6-1. 8mm.

Introduction to the device

The electric lifting basket mill is an economical wet dispersed grinding equipment developed for scientific research institutions and enterprises and institutions. The equipment can run for a long time, the speed is stable and the noise is low, and the two production processes of dispersion and grinding are completed at the same time, so as to effectively reduce the fineness of medium and low viscosity materials in a short time.

Operating Principle

When the motor of the laboratory electric lifting basket sand mill is running, it drives the lever and the dispersion disc to rotate at high speed, so that negative pressure is generated in the grinding body, so as to promote the material to be forcibly sucked into the grinding cavity, and the high-density zirconia beads in the grinding cavity continue to collide and rub, and the particle size of the material becomes smaller and the fineness is reduced.

Product Advantages:

The grinding efficiency is high and the product fineness is good

Driven by the kinetic energy of the powerful arc impeller, the zirconia lever makes the grinding medium in the cavity move irregularly, collide and rub against each other at high speed, and the particle size of the powder becomes smaller rapidly; The grinding fineness can generally reach less than 10um, and the liquid-liquid dispersion grinding can reach the sub-micron or even nanometer level. The separating plate is CNC machined by the whole material, which is non-clogging and has a long life and reduces maintenance costs.

Easy to operate and easy to clean

The equipment comes with a high-efficiency and energy-saving inverter, which can directly control the start and speed regulation of the equipment; Equipped with manual or electric lifting device, manual lifting is economical and energy-saving, and electric lifting high-end atmosphere is labor-saving; The cylinder and the lid can be relatively closed, and the solvent volatilization is less during the grinding process; The unique design of the grinding chamber, direct solvent circulation cleaning, the whole set of stainless steel design is beautiful and generous, and the cleaning is convenient; The grinding time can be set according to the process, and the timing is convenient for stopping.

The temperature rise is small, and the product is stable

The ingredient barrel is equipped with a double-layer cooling jacket, and the barrel is mirror-polished, which is beautiful and easy to clean; When the equipment is running, it is cooled by water, which has a good cooling effect, and can be matched with multiple barrels according to the same model of customization, which is convenient for color difference and use.

Strong non-standard

The lifting form of the equipment is electric lifting; Non-standard customized explosion-proof type; The material contact parts can be made of SS304 SS316L material; If there are high temperature, high pressure, flammable, explosive, corrosive and other Operating Conditions, detailed data must be provided and customized.

Packing list：machine x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
