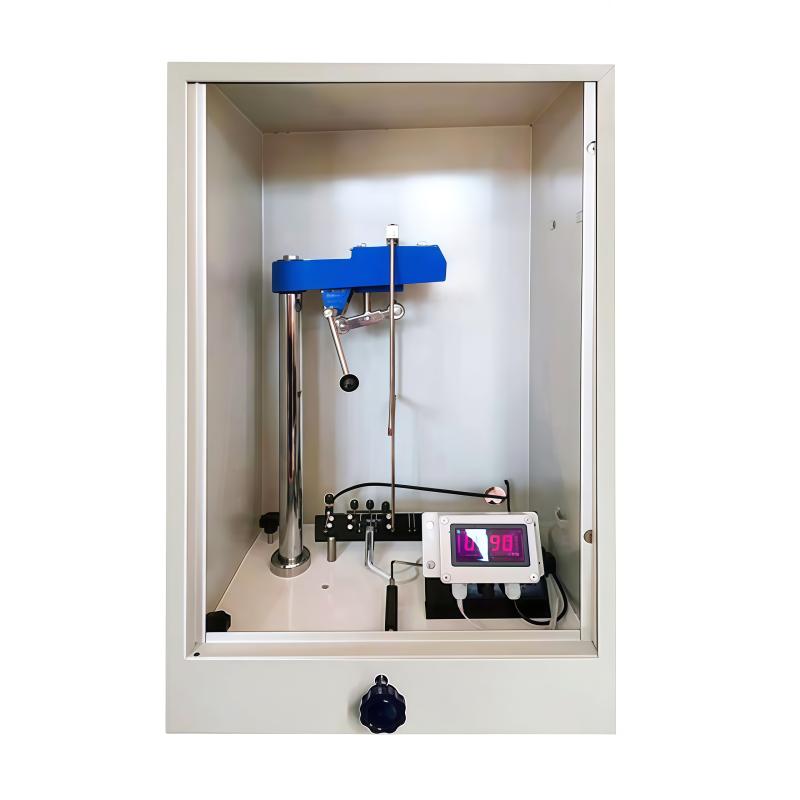

JINGKELIAN QHD/KP Double Pendulum Hardness Tester Konig pendulum + Persoz pendulum

QHD/KP

Pendulum Hardness Tester

Swing bar type K pendulum + P pendulum, Konig swing bar mass 200 +/- 0.2g, Konig swing period 1.4 +/- 0.02s, Persoz swing bar period 1 +/- 0.001S, Persoz start and end swing angle 12 °/4 °

Overview

QHD pendulum damping Tester is designed by Jingke according to the standard ISO1522 and ZBN72020-86 for determining the hardness of the paint film of pigment paint, varnish and other related products, and is equipped with two different total mass pendulums of Koenig pendulum and platinum sarz pendulum, which are 200+0.2g and 500+0.1g respectively.The main structure of QHD pendulum damping Tester includes instrument base, pendulum, technical device and instrument cover.

Principle

The hardness of the paint film is based on the pendulum rod that touches the surface of the paint film when it swings at a certain periodThe damping time (s representation) of the swing attenuation on the paint film, if the softer the surface, the faster the swing decay, and vice versa. Note that there is no conversion relationship between the results of tests performed with Konig and Persoz pendulums with different structures, masses, dimensions and periods, because the interaction between the pendulum and the coating also depends on the complex elasticity and viscosity of the coating. Therefore, in the product standard, only one kind of pendulum is specified in the determination of the damping time of a certain paint film.

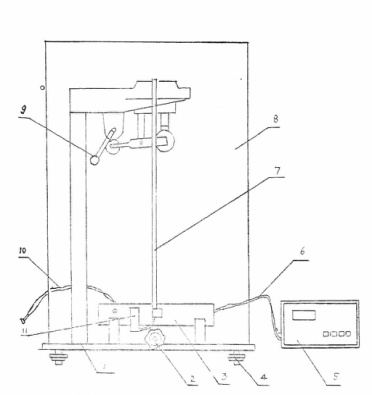

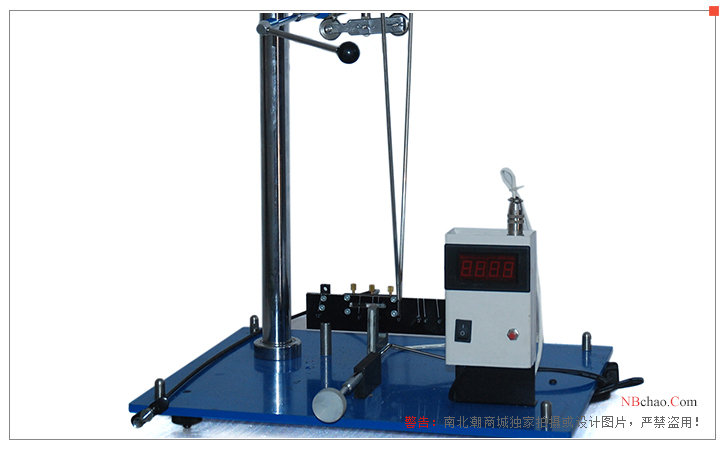

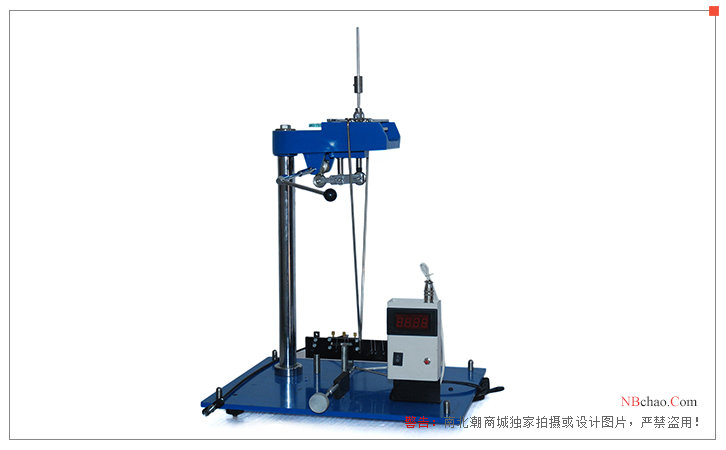

Structural diagram

1. Host

2. Starting the handle

3. a ruler

4. Adjust the foot horizontally

5. Timer

6. Photoelectric signal line

7. Pendulum

8. an instrument cover

9. a supporting plate control handle

10. a shutter release line

11. a photocell rack

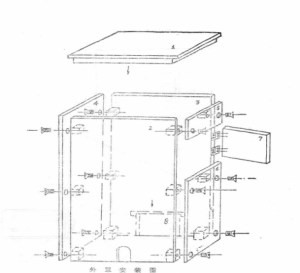

Installation diagram of the plexiglass cover

1. Upper cover

2. a front plate

3. a rear plate

4. a left panel

5. The upper plate on the right side

6. a lower plate on the right side

7. a side door

8. a back door

Packing list：host x1, starting handle x1, ruler x1, horizontal adjustment foot x1, Timer x1, photoelectric signal line x1, K pendulum x1, P pendulum x1, instrument cover x1, pallet control handle x1, shutter line x1, photoelectric tube rack x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
