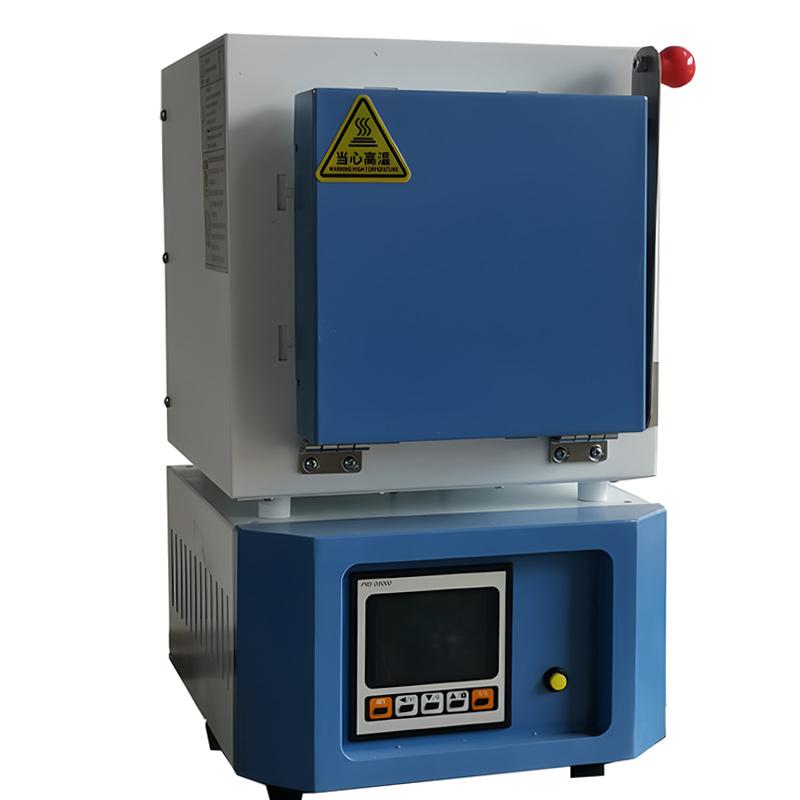

BOZHEN BZ - 1.5-10 TP integrated ceramic fiber muffle furnace Resistance Furnace
SE
BZ-1.5-10TP
BoZhen BZ-1.5-10TP Integrated ceramic fiber muffle furnaceSPEC
BoZhen BZ-1.5-10TP Integrated ceramic fiber muffle furnaceDetails
BoZhen BZ-1.5-10TP Integrated ceramic fiber muffle furnacePacking list
- SKU
- NB049260
- Fluctuation
- ±2℃
- Display Accuracy
- 1℃
- Furnace size
- 100*100*100MM
- Heating Wire Power
- 1.5kw
- Power Supply
- 220V, 50Hz
- Furnace shell material
- The outer shell is made of high-quality cold plate treated with phosphoric acid film salt and then sprayed at high temperature. Color is computer gray
- Heat insulation method
- Insulation brick and insulation cotton
- Temperature measurement port
- Thermocouple enters from above the back of the furnace
- terminal
- The heating furnace wire terminal is located below the back of the furnace body
- Controller
- Located under the furnace body, built-in Control system, compensation wire connecting furnace body
- heating element
- High temperature resistance wire
- Standard Encasement
- wooden box
- Temperature measurement
- Double R Thermocouple
- Complete sets of electrical appliances
- Brand contactor, cooling fan, solid state relay
- time system
- Working time can be set, thermostatic time arrives, automatic shutdown
- Over temperature protection
- Built-in secondary over-temperature protection device, double safety. over-temperature alarm, over-temperature interruption
Introduction
The series of integrated ceramic fiber muffle furnace adopts ceramic fiber furnace, and its heating element adopts multi-surface heating, which has good uniformity of temperature distribution in the cranial cavity, has fast heating speed, significant energy saving, high work efficiency, and can greatly improve the experimental environment of the staff. The energy-saving rate is up to 40%, and it has reached the standard of C-class furnace after testing.
Features
It adopts LCD program control instrument, high brightness, wide window digital display, clear and intuitive value. It has 30 degree program programming setting, suitable for complex experimental processes, microcomputer intelligent control, solves the disadvantages such as temperature overshoot, and has good temperature control effect. After setting the temperature, the instrument controls the heating by itself, and the temperature control is accurate and stable. Safety protection measures: fault sound and light alarm, over-temperature sound and light alarm, and automatically cut off the heating output. Timing range: 1-9999min.
