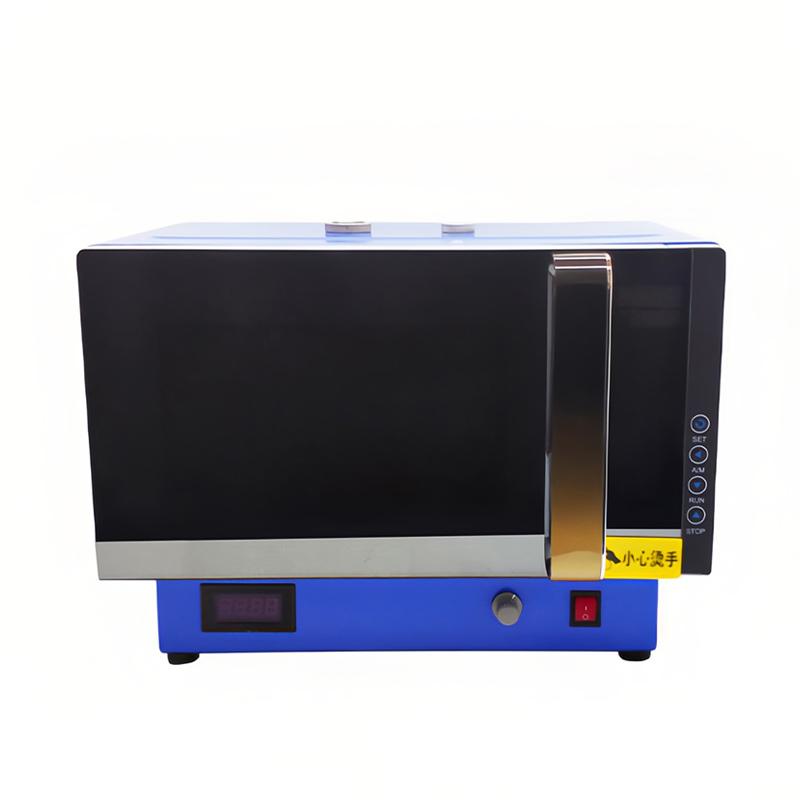

Hengmei HM-WH1 Microwave Chemical Reactor
HM-WH1
HM-WH1 Microwave chemical reactorSPEC
HM-WH1 Microwave chemical reactorDetails
HM-WH1 Microwave chemical reactorPacking list
- SKU
- NB049263
- Power Supply
- AC 220V±10% 50Hz
- input power
- 1350W
- Microwave power
- ≤ 900W (0-900 continuous automatic frequency conversion adjustment)
- microwave frequency
- 2450MHz±50Hz
- temperature control
- Room temperature~ 250 ℃, digital display temperature
- resolution
- 0.1℃
- Temperature control Accuracy
- +/- 1 ° C (up to +/- 0.5 ° C in thermostatic conditions)
- stirring speed
- 0~2000Rpm, digital display speed
- working size
- 352 * 325 * 202 (L * W * H) mm
- Dimensions
- 500 * 420 * 400 (L * W * H) mm
- interface
- reaction system
- Communication interface
- without
- Liner material
- Cold rolled steel plate, black nano silver anticorrosive coating
- Security protection
- Overcurrent, magnetron overheating protection, safety interlocking switch to open the door and power off and other functions
- Remarks
- High temperature (optional) ultrasound (optional) can be customized on demand.
Introduction
The new variable frequency microwave chemical reactor adopts microcomputer technology and variable frequency microwave adjustment technology to realize the microwave power variable frequency adjustment, and the whole series of products have the function of precise temperature control and magnetic stirring, digital display of temperature and magnetic stirring speed, simple operation and good repeatability. For experiments that need to explore the conditions of microwave catalytic reactions, especially for chemical experiments that require small microwave power and want to maintain continuous microwave radiation, its scientific and practical effects are exerted.
Main technical features and descriptions
Microwave power automatic frequency conversion control
The new frequency conversion technology is used to convert the 50Hz power frequency to 10000~30000Hz variable frequency through the frequency converter, which replaces the high-Voltage transformer used in the traditional microwave reactor, and solves the technical defect of frequent damage to the transformer caused by the impact of the high-Voltage transformer by the spike pulse when the traditional microwave reactor accurately controls the temperature. According to the real-time temperature change data detected by the Pt100 sensor, the polarity of the reaction substance, the change of heat capacity, the reaction time and other changes in the mathematical model, the MCU adaptively adjusts the PID and automatically controls the microwave output power with frequency conversion, so as to accurately control the temperature.
Magnetic stirring of digital display speed
The bottom of the microwave reaction chamber is equipped with magnetic stirring, using high-temperature samarium cobalt magnet, the maximum working temperature can reach 350 °C, long-term use without loss of magnetism, stepless speed regulation, speed digital display.
Open reaction system
According to the reaction conditions, the user can arbitrarily install a standard reaction vessel (volume of 100-500ml) and condensation reflux, dropping, rehydration and water separation devices, and at the same time equipped with protective gas inlet.
