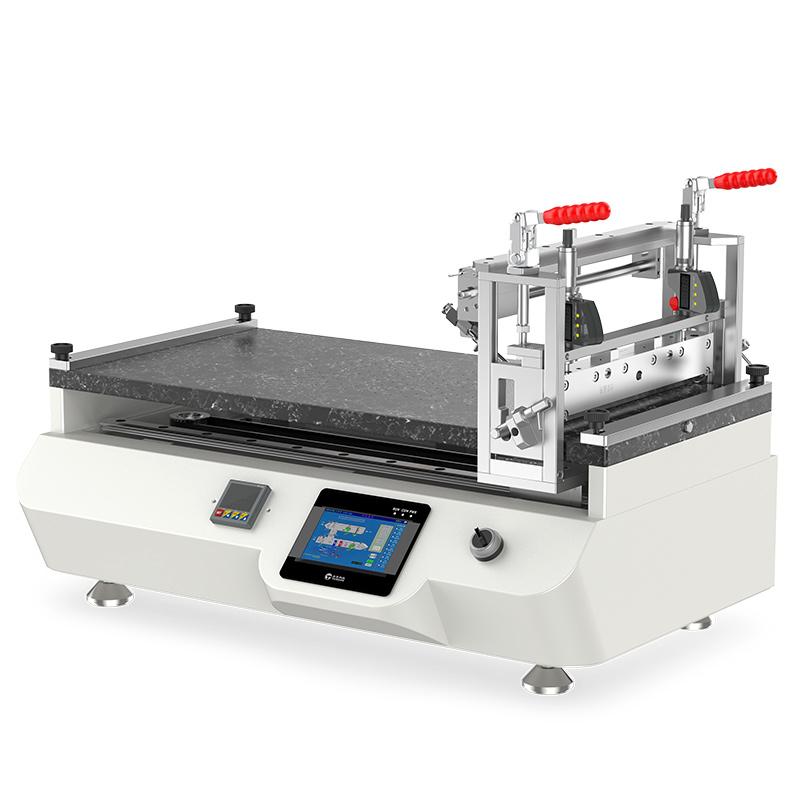

Taigang TG-TB200 extrusion slot-die flat coating machine
SE
TG-TB200
TaiGang TG-TB200 Extrusion slot-die flat coating machineSPEC
TaiGang TG-TB200 Extrusion slot-die flat coating machineDetails
TaiGang TG-TB200 Extrusion slot-die flat coating machinePacking list
- SKU
- NB049277
- Coating table size
- Max.L200mm*W300mm
- substrate size
- L430mm*W320mm
- Mechanical speed
- Traverse speed 1-200mm/s
- substrate thickness
- Max：5mm
- Feeding Capacity
- Stainless steel syringe (Max: 60ml)
- Feeding speed
- 0.05-5 mm/s (barrel piston speed) optional
- Installation size
- L740mm*W444mm*H425mm
- heating plate thickness
- 40mm
- Heating range
- Room temperature -200 ℃
- Weight
- About 90Kg
- Accuracy
- ±2um
- viscosity
- 100-7000mPas
- bottom
- Heating range 0-200 ℃, temperature control Accuracy +/- 1 ℃
- gap
- 10Um-10mm adjustable, adjustment Accuracy 1um
- Coating method
- extrusion coating
- Lip height
- 0~5Mm, adjustable
- Adjustment Accuracy
- A. Digital dial: 1um
- Coating Accuracy
- +/- 2μm (reference value depends on slurry characteristics)
- Die head model
- TG-C200
- Die head material
- SUS630
- Die Accuracy
- Lip straightness ≤ 3μm
- cavity Volume
- 8ml
- gasket width
- Opening width Max. 200mm
- Gasket thickness
- 30/50/70/100/200um (choose thickness according to solution viscosity)
- Power Supply
- Single Phase AC110 - 220V +/- 10%, Frequency 50/60Hz, Power 300W
Introduction
TG-TB Extrusion Slit Plate Coating Machine is a kind of equipment applied to the surface coating of sheet substrates, which can be applied to doctor blade coating, wire rod coating, slit coating, four-sided film maker coating, and other coating processes. It is mainly used in laboratory research and development and can work in a glove box. This equipment is mainly used for the surface coating of sheet substrates in the fields of various types of glues, lithium battery substrates, OLED, solar photoelectric films and polymer conductive films.
Features
A variety of coating processes are adopted, with high coating accuracy and good consistency.
The coating window is wide, and the viscosity is wide.
The coated substrate can be coated with a vacuum suction plate with a built-in Vacuum Pump, and the substrate can be evenly adsorbed on the surface of the coated board.
The device can be used in an argon atmosphere inside a glove box.
Touch screen operation, equipment parameter adjustment, storage, control is convenient and fast.
A wide range of applicators are available.
Process Introduction
Brief description of the equipment principle: different applicators are installed on the coating moving frame, and the frame drives the applicator to evenly coat the slurry on the substrate.
Extrusion coating
Process Description: After the paint enters the coating die, it flows out at the discharge port through pressure distribution and is coated on the surface of the substrate to form the target coating. The coating thickness and size are affected by the feeding speed and coating speed, and the coating accuracy is affected by many factors such as die accuracy, die adjustment accuracy, coating plate flatness, moving speed accuracy, feeding accuracy and coating characteristics
