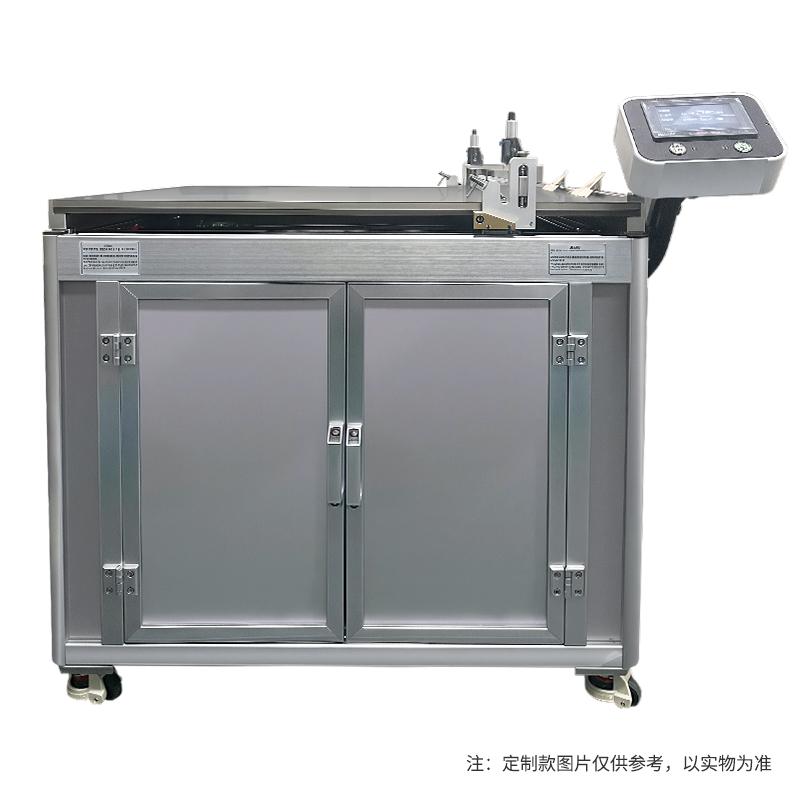

HuiNuo TM3000/15D bar drawdown blade coater (floor model) effective area 100 * 60cm stepper motor

SE
Coating method bar + drawdown blade, effective Spreader area 1000 * 600mm (can be customized), bar accuracy +/- 0.001mm, stepper motor, drawdown blade width 600mm, drawdown blade accuracy +/- 0.003mm, Spreader table material Glass plate.
Model：
Certificate
Contact
Details SPEC Con CAT OI

HuiNuo TM3000/15D Automatic Film ApplicatorSPEC

HuiNuo TM3000/15D Automatic Film ApplicatorDetails

HuiNuo TM3000/15D Automatic Film ApplicatorPacking list

SKU
NB049298
Coating method
Bar + drawdown blade
Coating speed
1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method
fixture
Coating table material
Glass plate
Coating table size
1240*630mm
Effective coating Area
1000 * 600Mm (can be customized)
Rod Film thickness range
Different bar numbers Film thickness is different, with high Accuracy imported bar
Bar Accuracy
±0.001mm
Drawdown blade Film thickness range
0.1~ 10Mm (clamshell design is easy to clean)
Drawdown blade material
Die steel
Drawdown blade width
600mm
Drawdown blade Accuracy
±0.003mm
Motor type
Stepper motor
power
400w
operating language
Chinese (can be customized in English)
Display
Color LCD touch screen
Host Power Supply
100V~220V/50~60HZ
Dimensions
1260 * 740 * 940Mm (subject to the actual product)
optional feature
Heating, vacuum adsorption
TM3000/15D
Automatic Film Applicator
Coating method bar + drawdown blade, effective Spreader area 1000 * 600mm (can be customized), bar accuracy +/- 0.001mm, stepper motor, drawdown blade width 600mm, drawdown blade accuracy +/- 0.003mm, Spreader table material Glass plate.
HuiNuo TM3000/15D bar drawdown blade coater (floor model) effective area 100 * 60cm stepper motor Picture

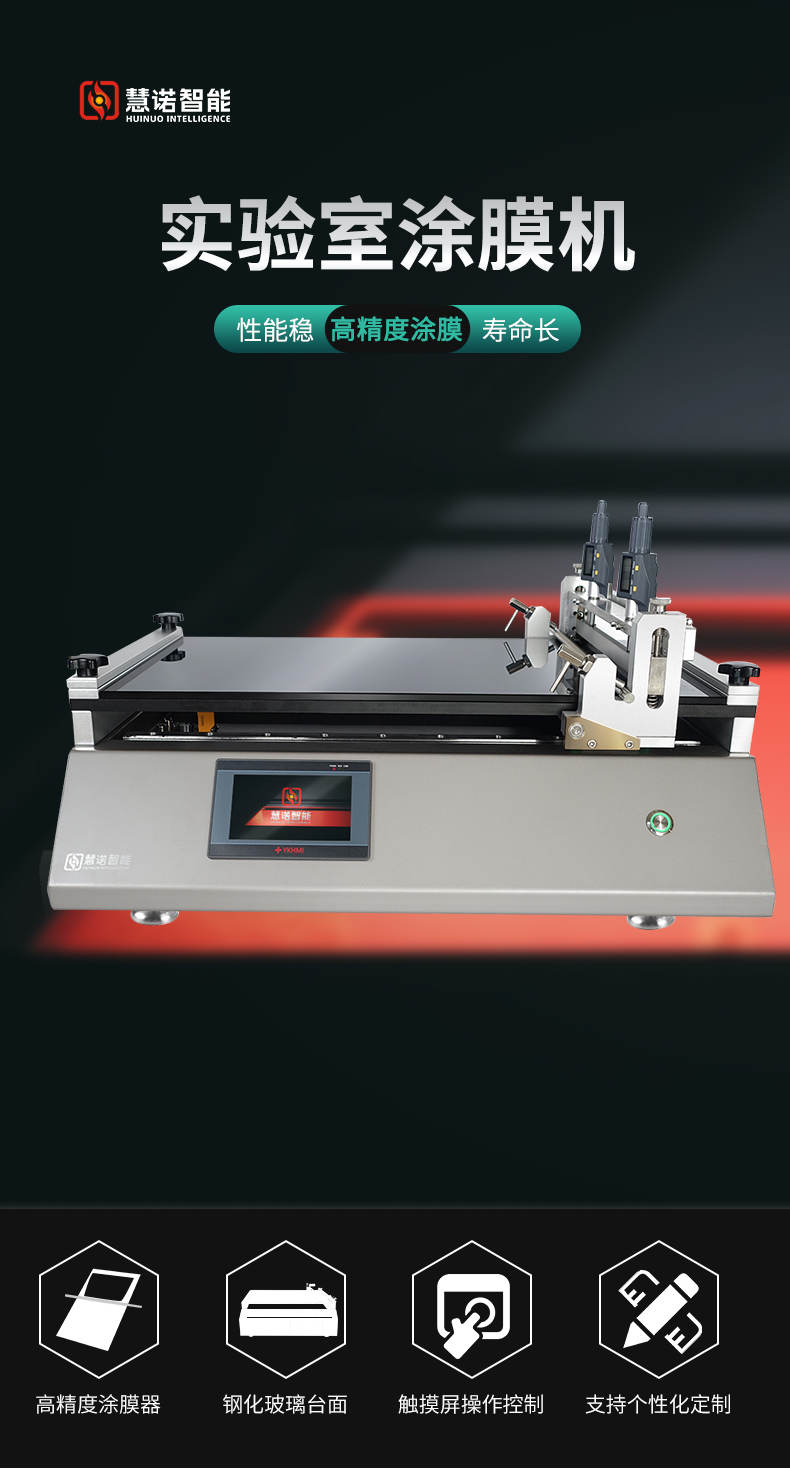

Huinuo TM3000/15D Wire Bar Scraper Coating Machine (Floor Version) Details Figure 1



Huinuo TM3000/15D Wire Bar Scraper Coating Machine (Floor Version) Details Figure 2

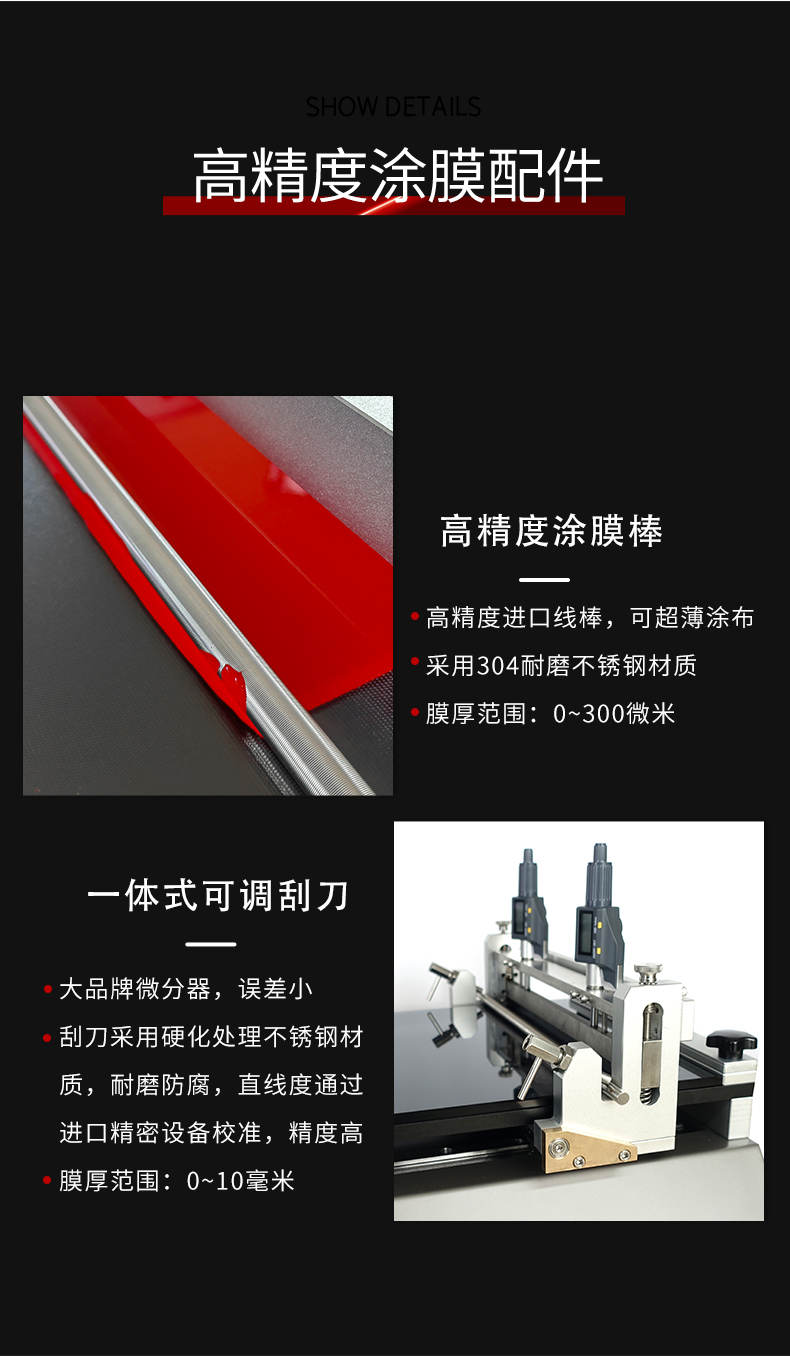

Huinuo TM3000/15D Wire Bar Scraper Coating Machine (Landing Model) Details Figure 3

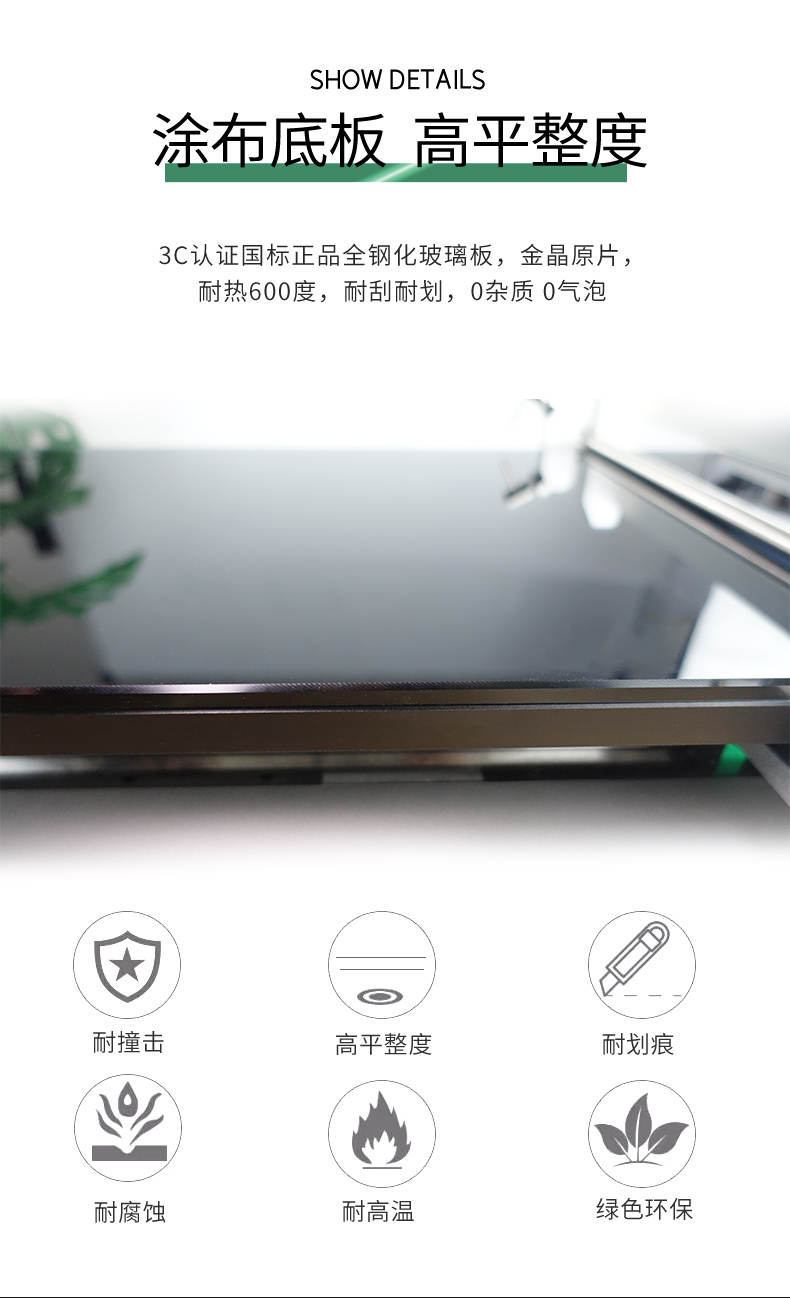

Huinuo TM3000/15D Wire Rod Scraper Coating Machine (Landing Model) Details Figure 4

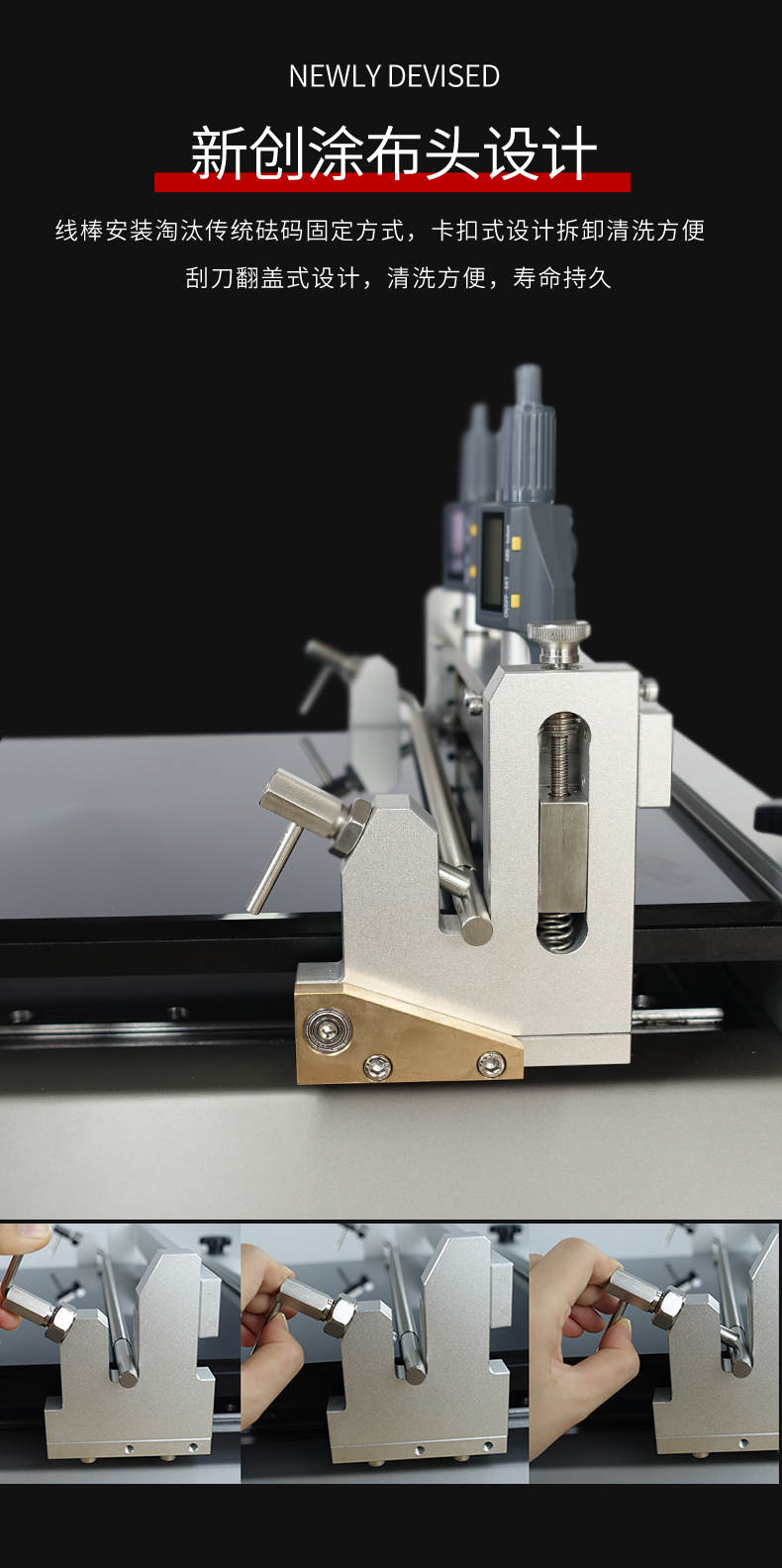

Huinuo TM3000/15D Wire Bar Scraper Coating Machine (Landing Model) Details Figure 5

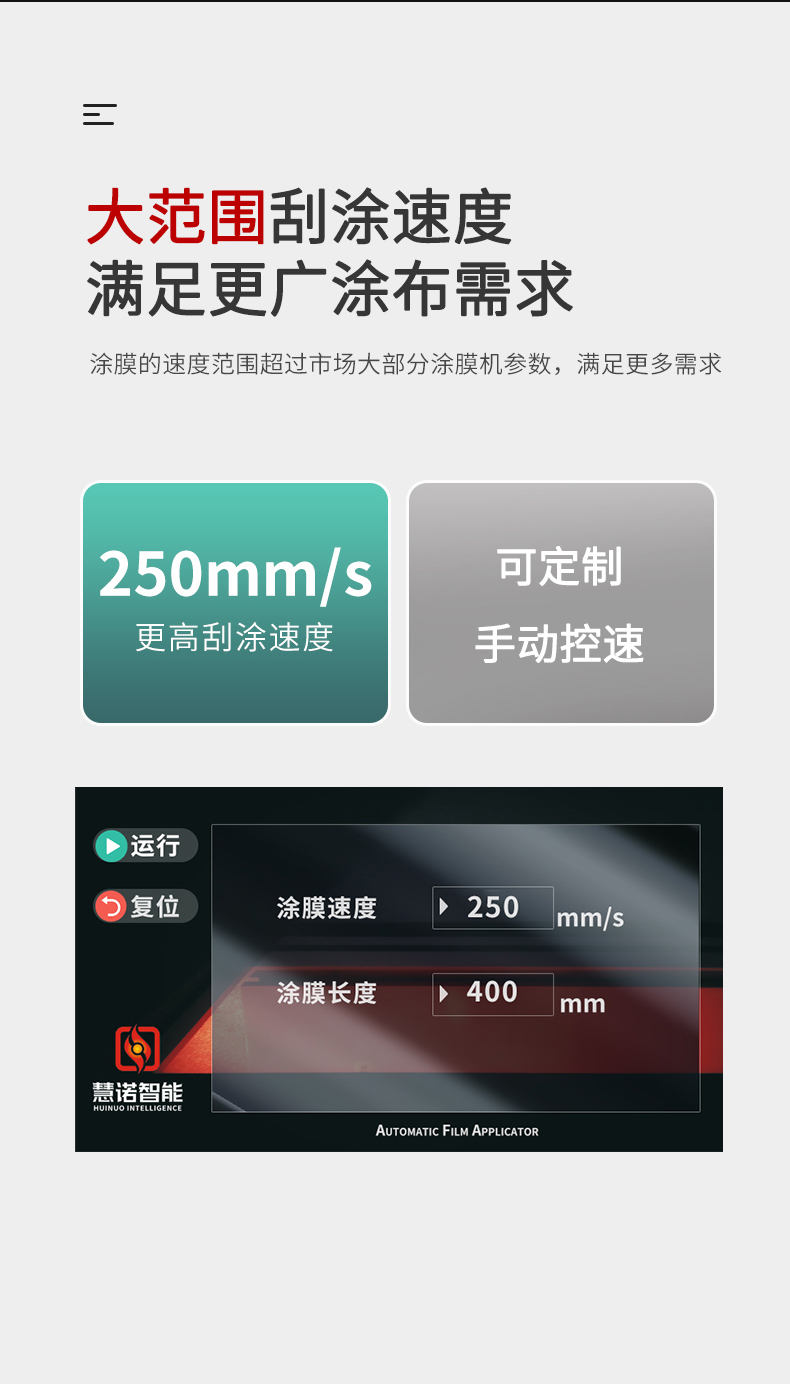

Huinuo TM3000/15D Wire Bar Scraper Coating Machine (Landing Version) Details Figure 6

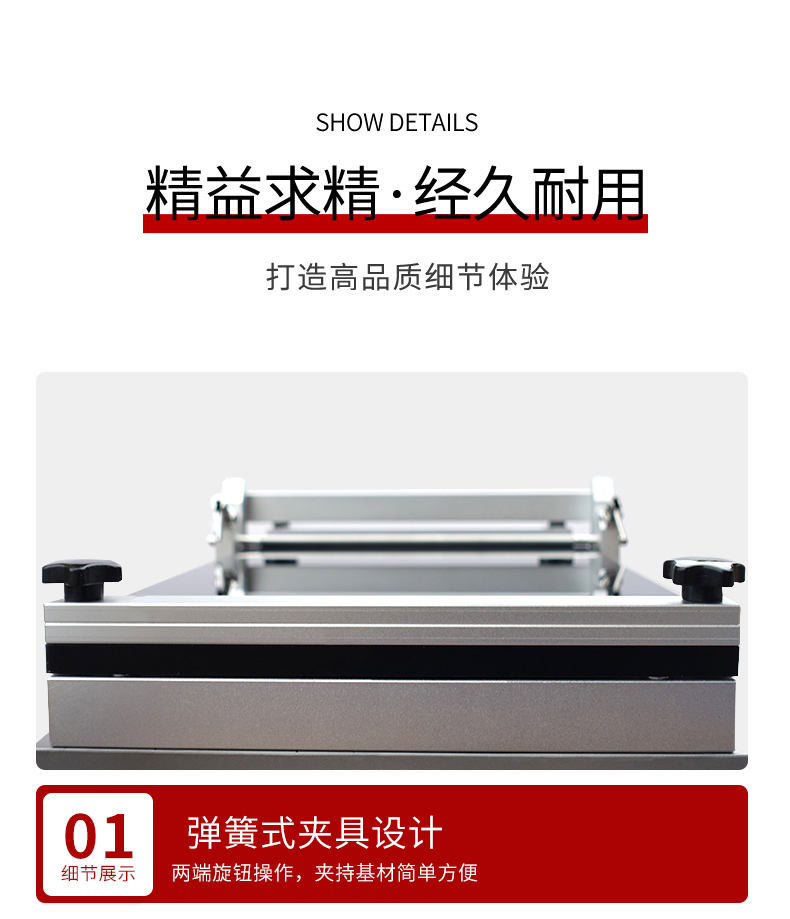

Huinuo TM3000/15D Wire Rod Scraper Coating Machine (Landing Model) Details Figure 7

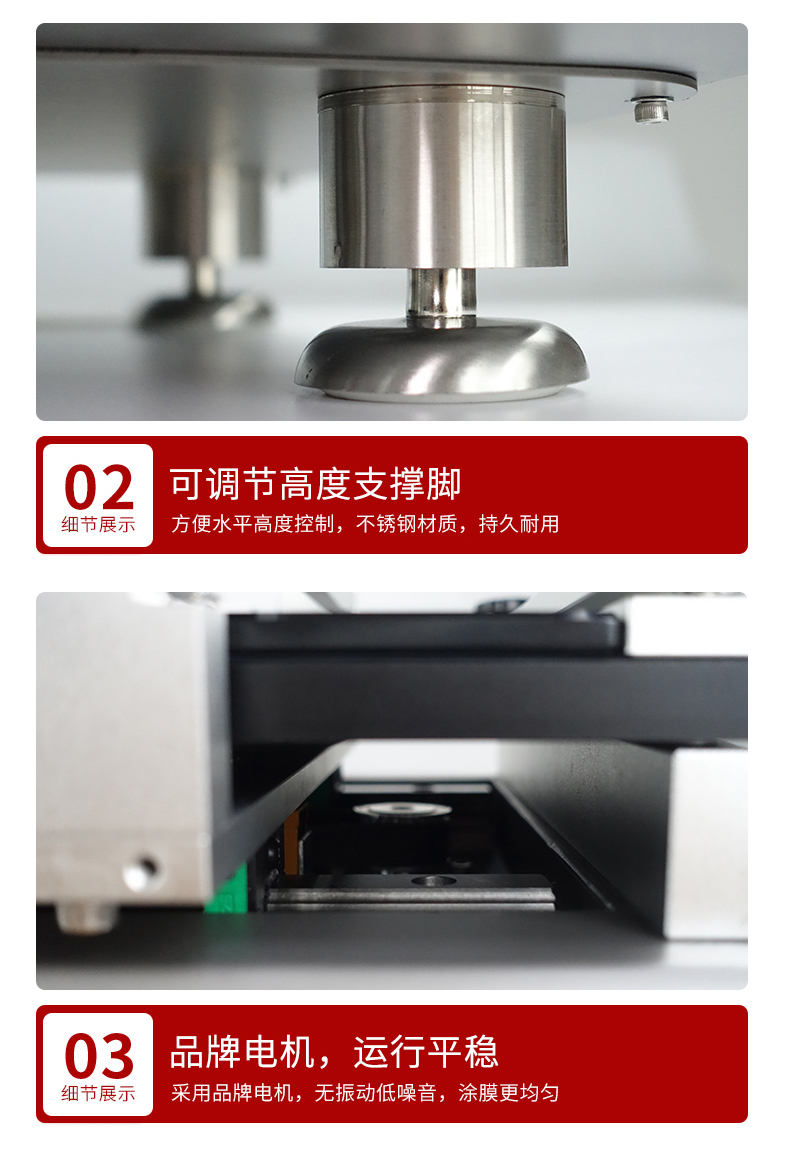

Huinuo TM3000/15D Wire Rod Scraper Coating Machine (Landing Model) Details Figure 8



Huinuo TM3000/15D Wire Bar Scraper Coating Machine (Landing Model) Details Figure 9

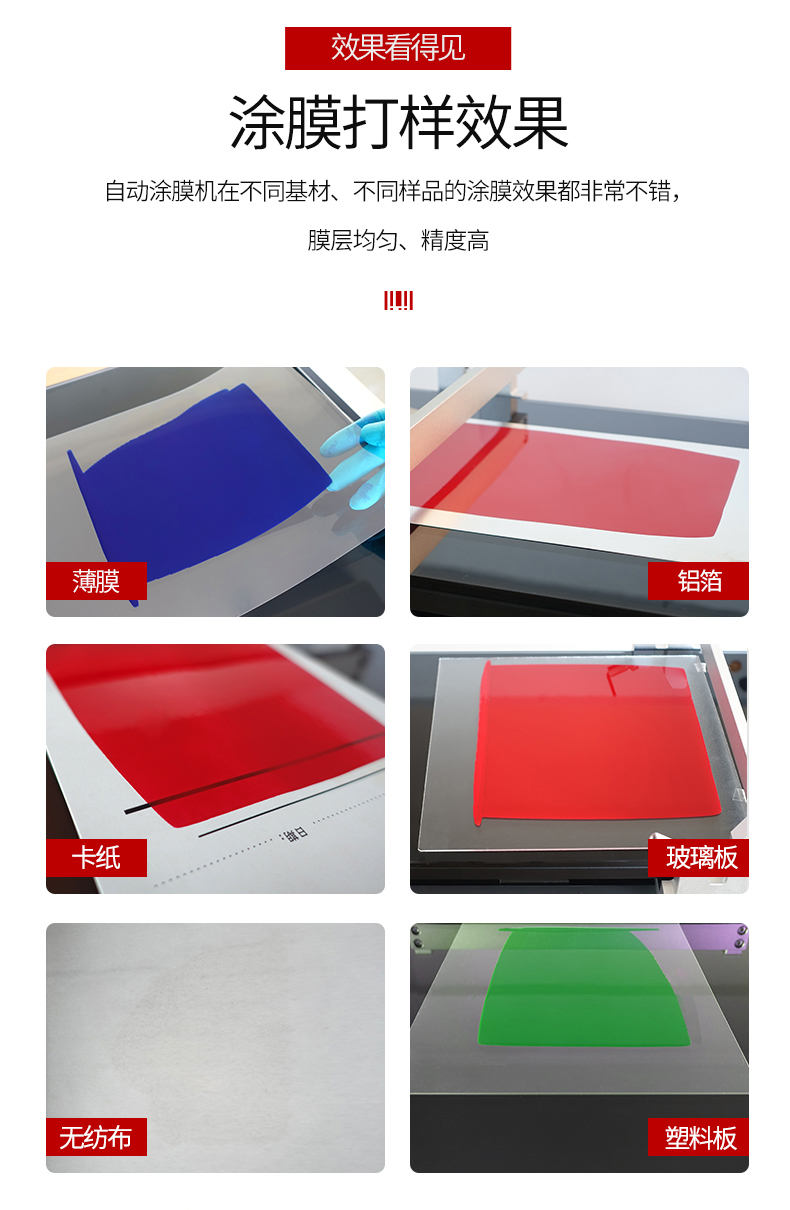

Huinuo TM3000/15D Wire Bar Scraper Coating Machine (Landing Model) Details Figure 10



Huinuo TM3000/15D Wire Bar Scraper Coating Machine (Landing Model) Details Figure 11


Overview

The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.

This coating machine is a wire rod doctor blade coating machine, with two functions of wire rod coating and doctor blade coating, the new type of wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for laboratory high-precision automatic coating, in the university research institute, new materials, lithium battery, glue, resin and other laboratories for film proofing.

Product Use:

The film coating machine is suitable for coating samples of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, chemicals, etc., and can be scraped on glass, cardboard and cloth.

Features

1) The glass table top is a 3C certified national standard genuine fully tempered glass plate, gold crystal original sheet, heat resistant 600°C, scratch and scratch resistant

2) Big brand differential regulator, high film thickness control accuracy

3) Clamshell doctor blade coating head, easy to clean

4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision

5) Touch screen control panel, easy to operate

6) The coating length and coating speed can be adjusted freely
