HuiNuo TM3000/15 bar drawdown blade coater effective area 100 * 60cm stepper motor

TM3000/15

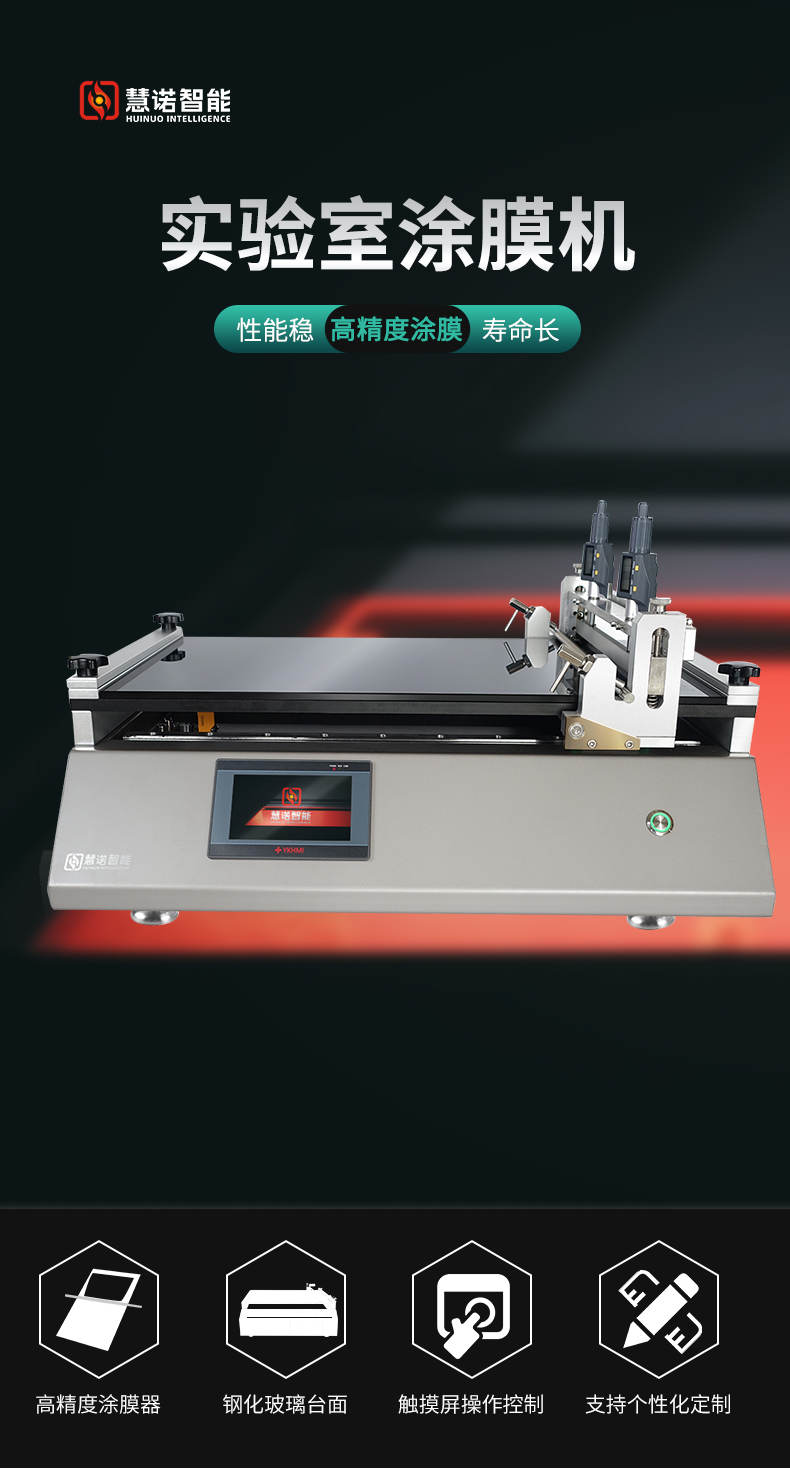

Automatic Film Applicator

Coating method bar + drawdown blade, effective Spreader area 1000 * 600mm (can be customized), bar accuracy +/- 0.001mm, drawdown blade width 600mm, motor type stepper motor, bar accuracy +/- 0.001mm.

Overview

The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.

This coating machine is a wire rod doctor blade coating machine, with two functions of wire rod coating and doctor blade coating, the new type of wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for laboratory high-precision automatic coating, in the university research institute, new materials, lithium battery, glue, resin and other laboratories for film proofing.

Product Use:

The film coating machine is suitable for coating samples of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, chemicals, etc., and can be scraped on glass, cardboard and cloth.

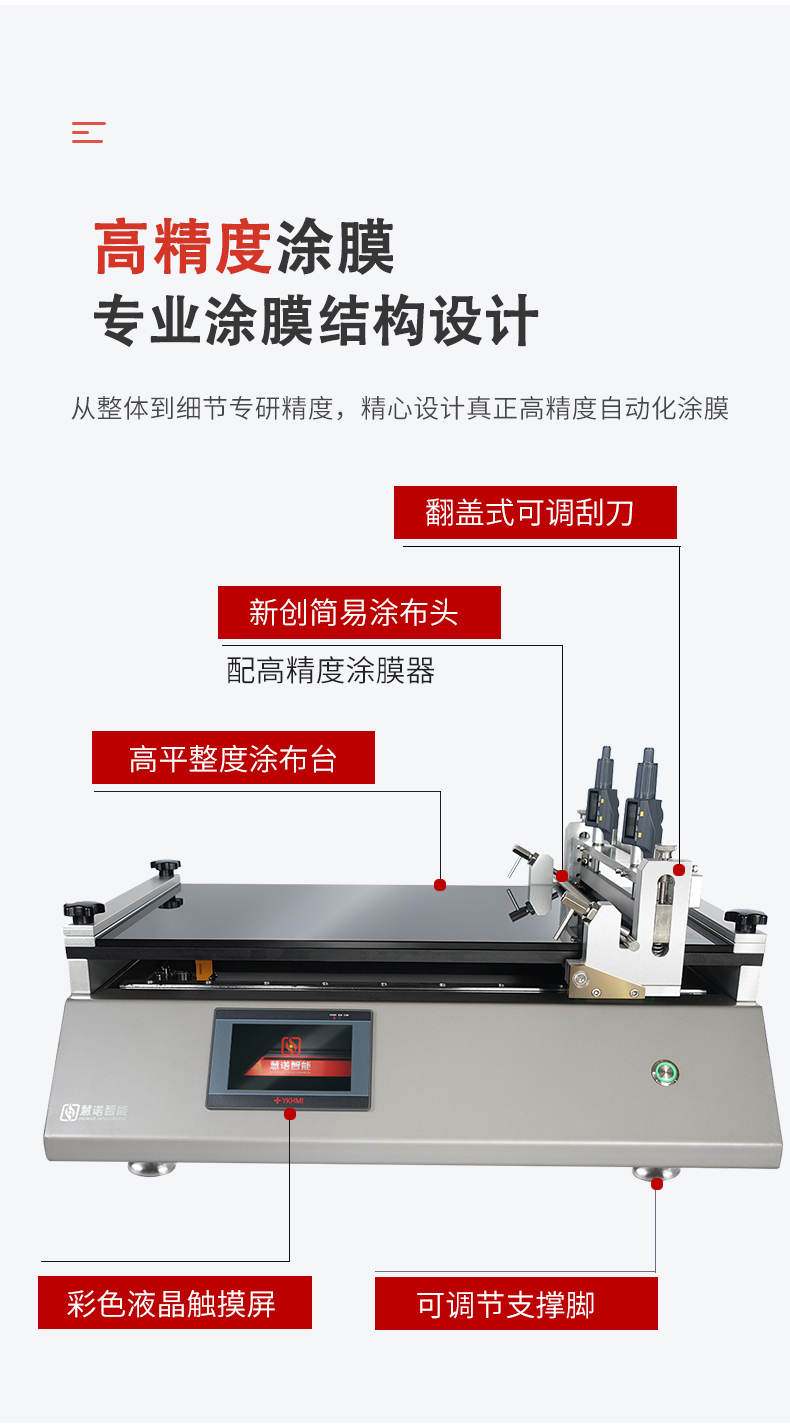

Features

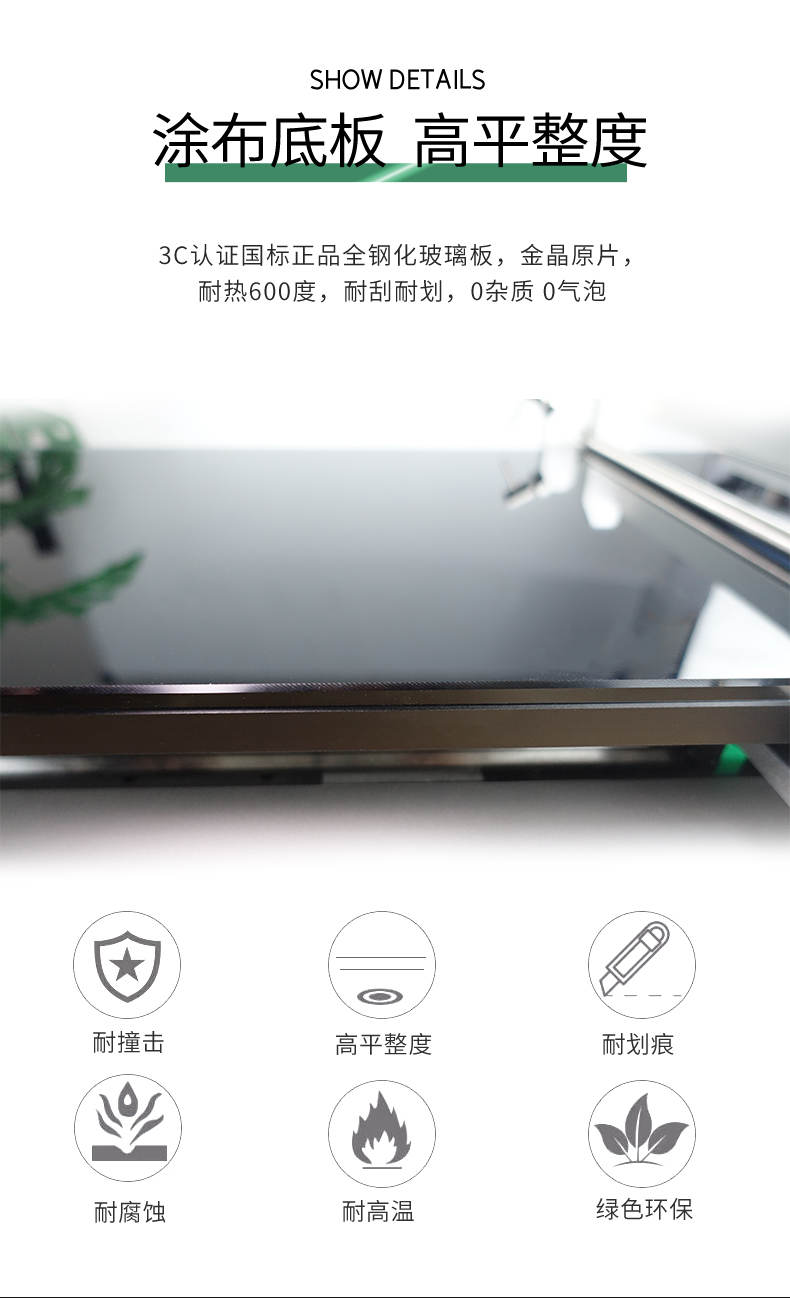

1) The glass table top is a 3C certified national standard genuine fully tempered glass plate, gold crystal original sheet, heat resistant 600°C, scratch and scratch resistant

2) Big brand differential regulator, high film thickness control accuracy

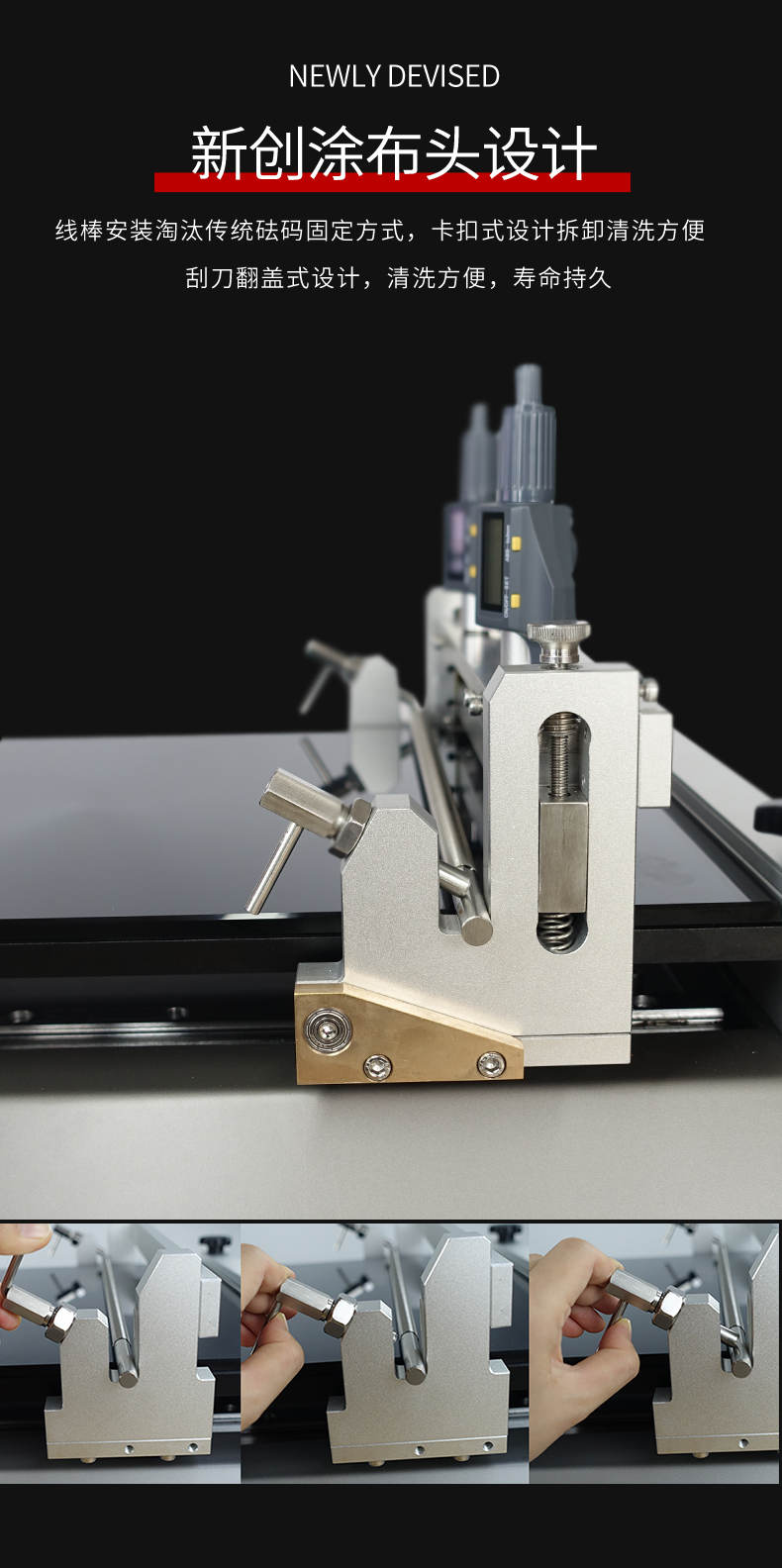

3) Clamshell doctor blade coating head, easy to clean

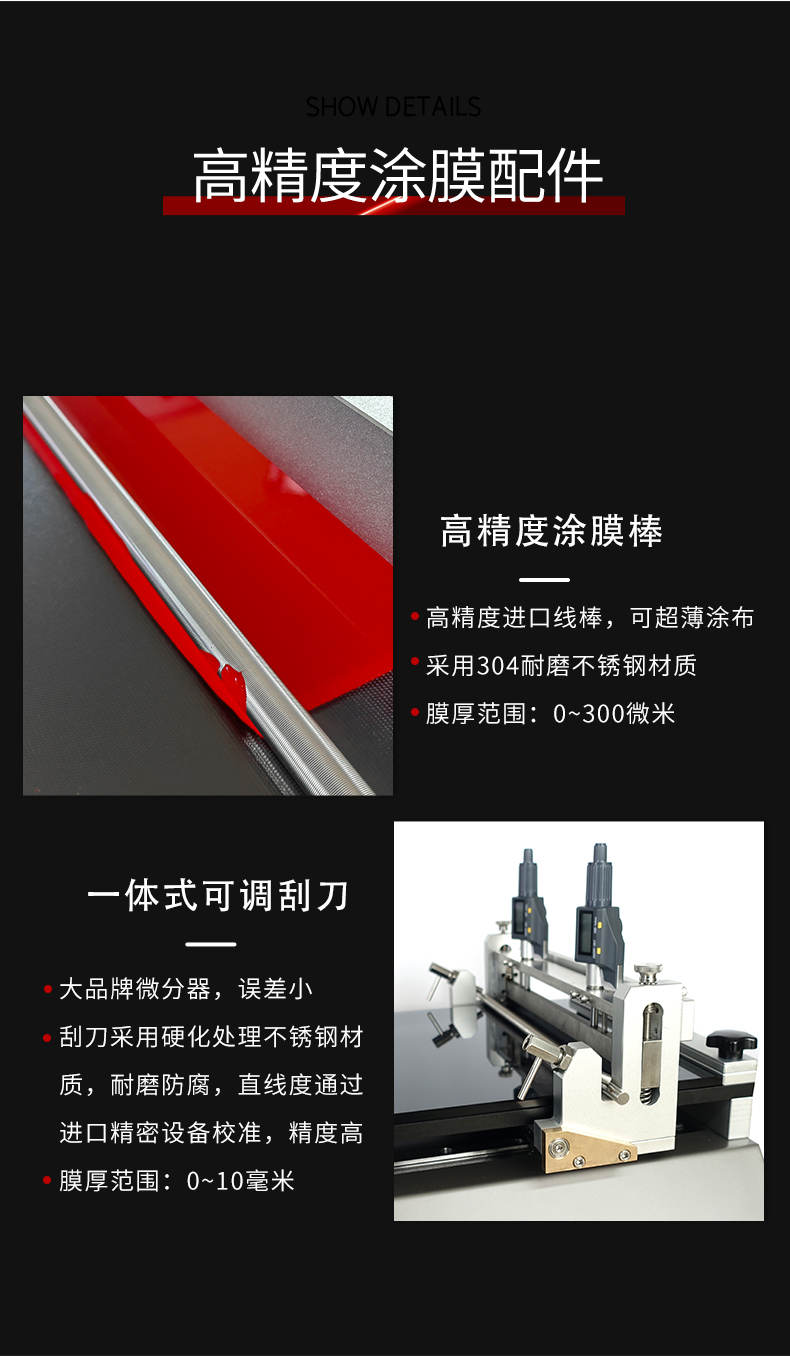

4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision

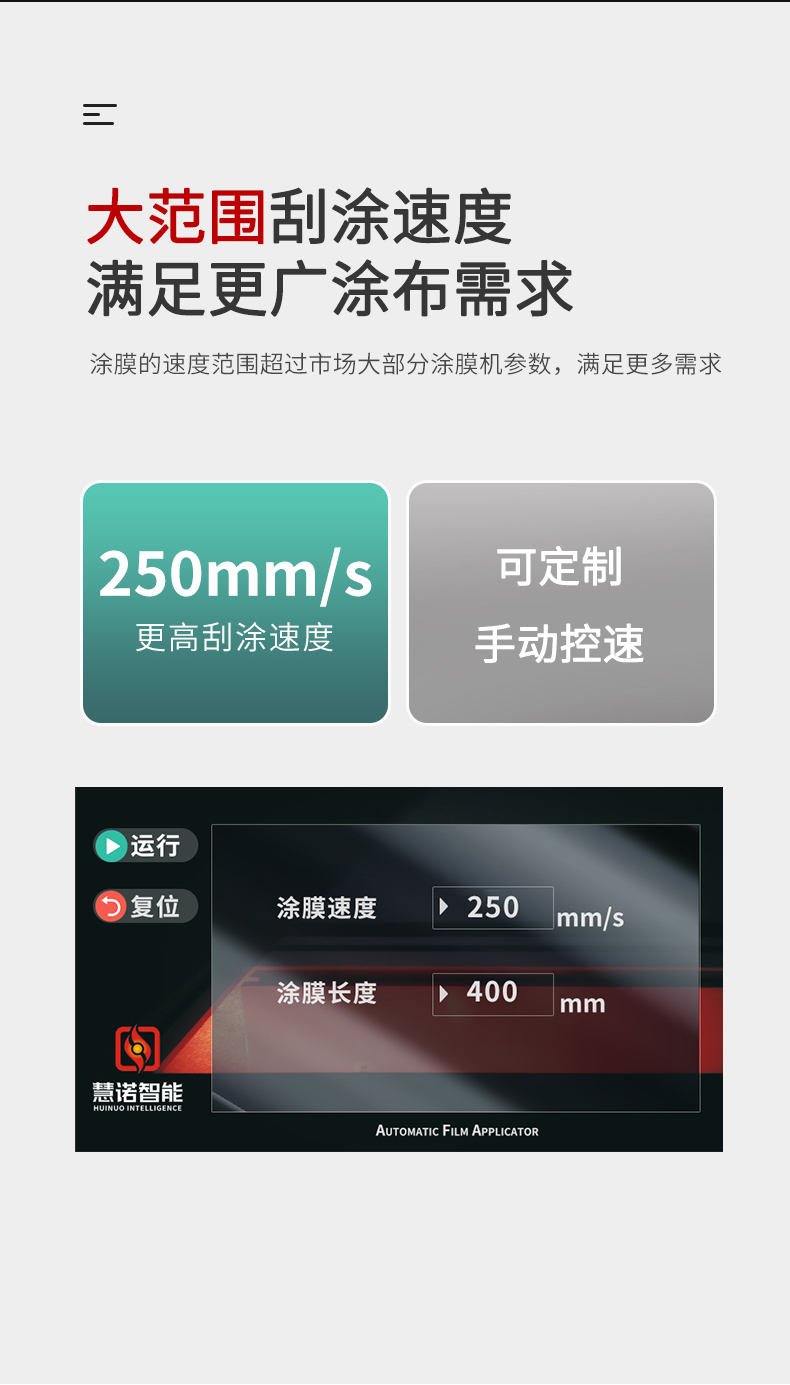

5) Touch screen control panel, easy to operate

6) The coating length and coating speed can be adjusted freely

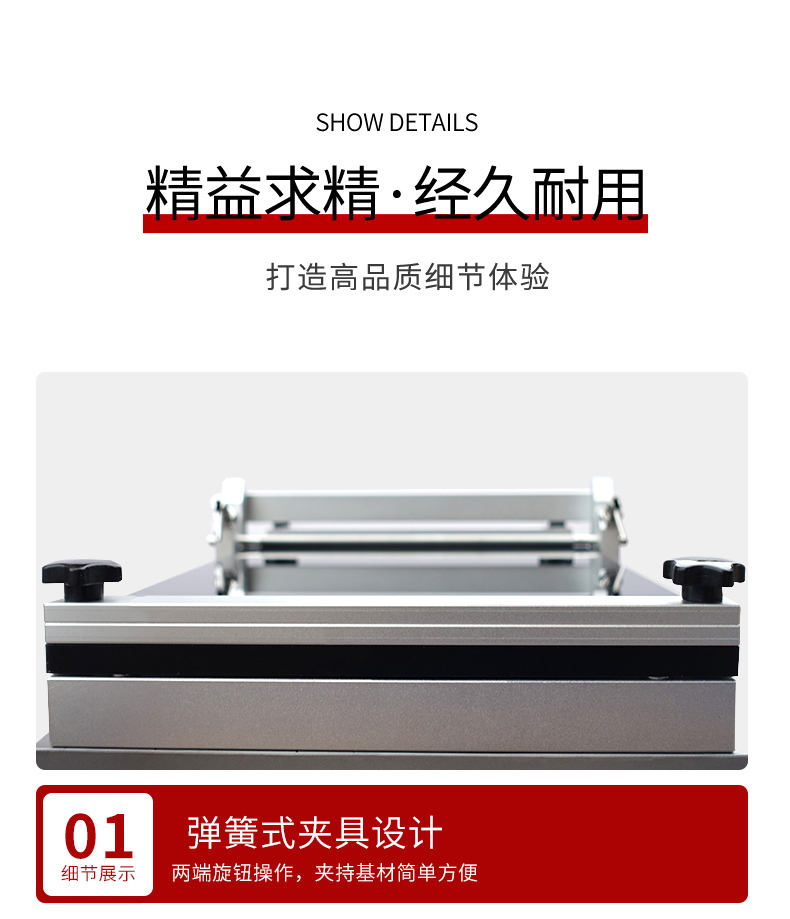

Packing list：Host X1, manual X1, fixture X1, drawdown blade x1, import bar X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
