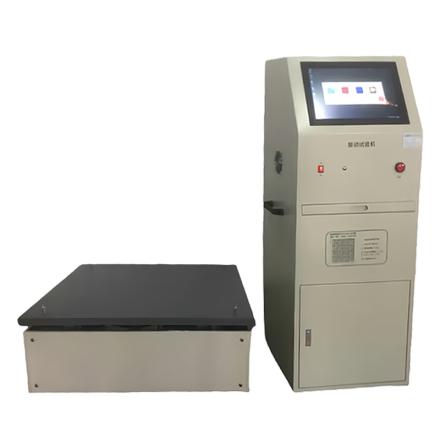

Specifications
| Frequency modulation range (Hz) | 5~60 |
| Sweep range (Hz) | 5~60 |
| Maximum Acceleration (m/s2) | 130 |
| Maximum test load (kg) | 400 |
| Maximum no-load displacement (mmp-p) | 0~ 2 (adjustable) |
| vibration waveform | sine wave |
| vibration axis | vertical |
| Excitation mode | mechanical vibration |
| Control mode of vibration | open loop control |
| Data acquisition method | Vibration data collection + Acceleration Sensors |
| Acceleration Sensors | 1 (External Shaker Table), Sensor type: Piezoelectric Acceleration Sensors |
| operating mode | Frequency mode (constant amplitude mode and constant acceleration mode), frequency sweep mode (constant amplitude scan and constant acceleration scan), multi-segment mode (constant amplitude mode and constant acceleration mode) |
| Platform shock absorber | 1 set (suitable for high floors and laboratories) |
| Sweep mode | linear |
| Operation mode | Computer control (Chinese and English system) |
| Cooling mode | air-cooled |
| Operating temperature requirement (℃) | 0~+40 |
| Operating humidity requirement (% RH) | 0-90, no condensation |
| power requirements | Three-phase AC 380V/50Hz +/- 10% |
| System Power Consumption (KVA) | 3.7 |
| Display parameters | 19 inch, capacitive touch screen all-in-one machine |
| Computer host parameters | CPU: i5, Memory: 8G, Hard Disk: 512G Solid State, Pre-installed System: Windows 10 |
| Work surface material | aluminum alloy |
| Countertop screw size (standard) | M8 (can be customized) |
| Number of Countertop screws | 8 (can be customized) |
| Total Weight of the platform (kg) | 230 |
| Work surface size W.D.H (mm) | 1000×1000×43 |
| Table size W.D.H (mm) | 1000×1000×500 |
| Control cabinet size W.D.H (mm) | 600×580×1600 |
| Explosion-proof Certificate | Motor Explosion-proof, Piezoelectric Acceleration Sensing Explosion-proof |
Packing list
Host X1, manual X1, certificate X1, warranty card X1, simple fixture X1, power cord X1, control cable X1, U disk X1, computer (computer host + monitor + keyboard and mouse set) X1
After-sales instructions
Warranty days: 365 days
1.仪器设备非人为造成的产品质量问题，在质保期内厂家提供免费质保服务；
2.易损易耗配件不存在质保期，收到货发现产品质量问题，请在7天内申请退换货，逾期不候；
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/49302/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
