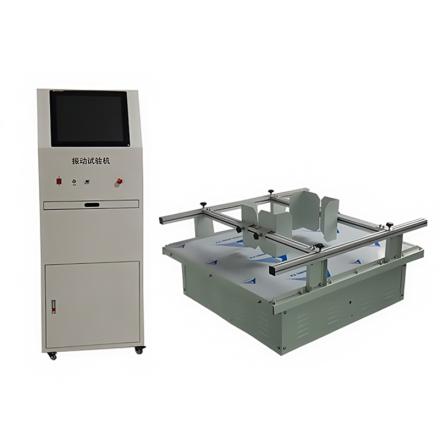

Specifications
| Frequency modulation range (Hz) | 1.2~5 |
| Speed range (rpm) | 100~300 |
| Maximum Acceleration (m/s2) | 13 |
| Maximum test load (kg) | 100 |
| Displacement amplitude (mmp-p) | 25.4mm |
| vibration waveform | sine wave |
| vibration axis | Rotational vibration |
| Excitation mode | Motor excitation |
| Cooling mode | air-cooled |
| Control mode of vibration | closed loop control |
| Data acquisition method | Vibration data collection + Speed Sensors |
| Speed Sensors | 1 (Shaker Table) |
| operating mode | Fixed frequency mode, sweep mode, multi-segment mode |
| Sweep mode | linear |
| Operation mode | Computer control (including computer set) + Chinese and English Operating system |
| Operating temperature requirement (℃) | 0~+40 |
| Operating humidity requirement (% RH) | 0-90, no condensation |
| power requirements | Single phase AC 220V/50Hz +/- 10% |
| System Power Consumption (KVA) | 2.5 |
| Work surface material | stainless steel |
| Total Weight of the platform (kg) | 150 |
| Work surface size W.D.H (mm) | 1200×1000×32 |
| Table size W.D.H (mm) | 1200×1000×450 |
Packing list
Host X1, manual X1, certificate X1, warranty card X1, simple fixture X1, power cord X1, control cable X1, U disk X1, computer (computer host + monitor + keyboard and mouse set) X1
After-sales instructions
Warranty days: 365 days
1.仪器设备非人为造成的产品质量问题，在质保期内厂家提供免费质保服务；
2.易损易耗配件不存在质保期，收到货发现产品质量问题，请在7天内申请退换货，逾期不候；
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/49303/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
