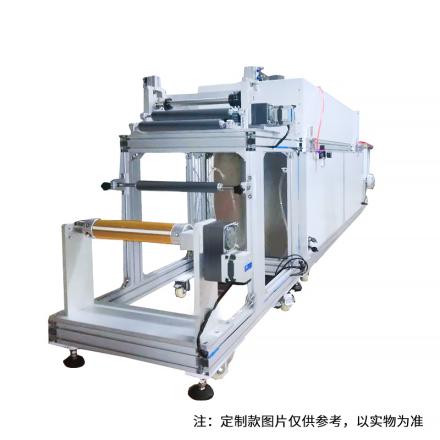

Specifications
| Spreader process | Rolling → scraping → drying → film laminating → winding |
| Effective Spreader Width | Max.Φ1000mm |
| Coating method | scraping |
| Cutting head type | Drawdown blade |
| Indication display | digital display |
| Spreader Film thickness range | 0.005-3mm |
| Regulator Graduation | 0.001mm |
| Spreader Accuracy | ±5% |
| Coating speed | 0.1~ 0.5m/min (adjustable) |
| unwinding method | Inflatable shaft unwinding |
| winding method | Inflatable shaft winding |
| winding diameter | 3-Inch expansion shaft, load-bearing 50KG |
| maximum discharge | Max.Φ1000mm |
| Maximum charge | Max.Φ1000mm |
| Drying temperature range | RT+~200℃ |
| Temperature control Accuracy | ±3℃ |
| Heating method | hot air circulation |
| Oven length | 1M/section |
| Total length of drying tunnel | 10m |
| Drying power | 1KW/section |
| Tension control range | 5-50 N (adjustable) |
| Tension control Accuracy | ±0.5 N |
| Motor type | Servo motor |
| control mode | PLC + touch screen |
| Human Machine Interface | Color touch screen |
| Tension control mode | automatic |
| Deviation Correction control mode | automatic |
| Film thickness control | manual |
| Fitting method | Roll fit |
| Fitting speed | 0.1~ 10M/min (adjustable) |
| Fit width | Max.Φ1000mm |
| gas source | 0.5~ 0.8MPa compressed air |
| Applicable coil type | Plastic film, metal foil, paper, non-woven fabric, etc |
| Spreader type | Water-based paints, solar-based paints, UV coatings, etc |
| Operating environment temperature | 10℃ ~ 40℃ |
| Operating Environment humidity | 30～90%RH |
| Power Supply | 380V, 50Hz, three-phase five-wire system |
| Total power consumption | 40kw |
| Dimensions | 14000mm*1450mm*1650mm (subject to actual customization) |
| safety protection | emergency stop button |
Packing list
Host x1, Manual x1, Encasement List x1, Certificate of Conformity x1
After-sales instructions
Warranty days: 365 days
