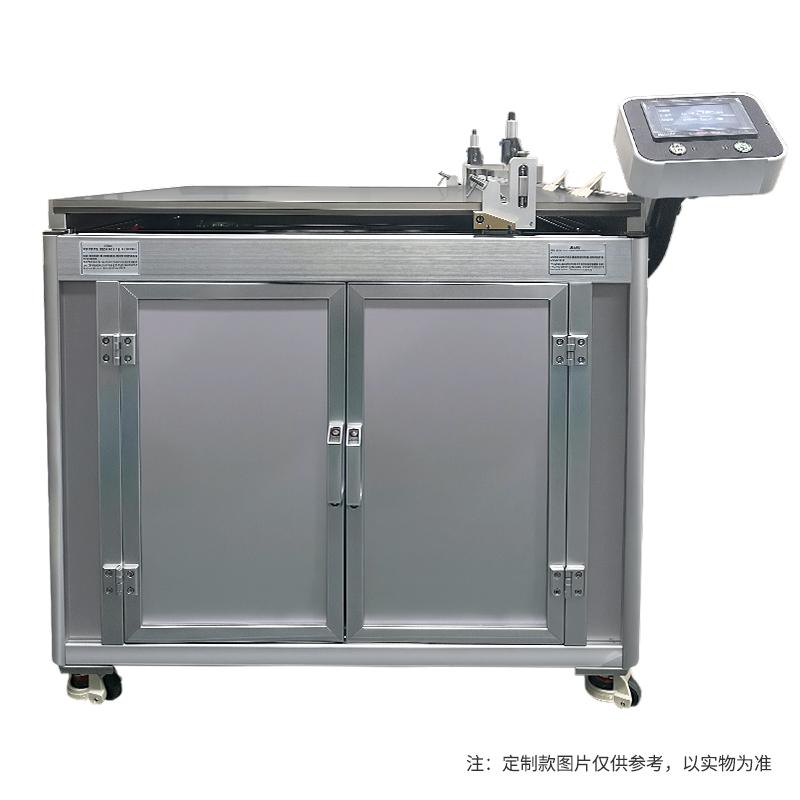

HuiNuo TM3300Pro/22D drawdown Bar & blade heating vacuum adsorption coater (floor type) Effective area 120 * 50cm

TM3300pro/22D

Automatic Film Applicator

Coating method bar + drawdown blade, effective Spreader area 1200 * 500mm (can be customized), bar Spreader accuracy +/- 0.001mm, drawdown blade application width 500mm, motor servo motor, Heating mode Mica heating, vacuum aperture φ 0.8mm.

Overview

The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.

This coating machine is a wire rod doctor blade coating machine, with two functions of wire rod coating and doctor blade coating, the new type of wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for laboratory high-precision automatic coating, in the university research institute, new materials, lithium battery, glue, resin and other laboratories for film proofing.

Product Use:

The film coating machine is suitable for coating samples of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, chemicals, etc., and can be scraped on glass, cardboard and cloth.

Features

1) The surface is hard treated aluminum alloy table, with high hardness and wear-resistant, and the flatness of the table is tested by imported high-precision instruments.

2) Big brand differential regulator, high film thickness control accuracy

3) Clamshell doctor blade coating head, easy to clean

4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision

5) Touch screen control panel, easy to operate

6) The coating length and coating speed can be adjusted freely

7) With heating and vacuum adsorption function.

8) Servo motor is adopted, the operation is more stable, and the coating accuracy is higher.

Packing list：Host X1, manual X1, drawdown blade x1, import bar X1, certificate X1, vacuum pump X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
