HuiNuo TM3200Pro/03D drawdown Bar & blade vacuum adsorption coater (floor type) Effective area 100cm * 30cm

SE
Coating method bar + drawdown blade, effective Spreader area 1000 * 300mm (can be customized), bar Spreader accuracy +/- 0.003mm, drawdown blade application width 300mm, vacuum aperture φ 0.8mm, effective Spreader area 1000 * 300mm (can be customized), drive motor servo motor, Power 600w.
Certificate
Contact
Details SPEC Con CAT OI

HuiNuo TM3200pro/03D Automatic Film ApplicatorSPEC

HuiNuo TM3200pro/03D Automatic Film ApplicatorDetails

HuiNuo TM3200pro/03D Automatic Film ApplicatorPacking list

SKU
NB049323
Coating method
Bar + drawdown blade
Coating speed

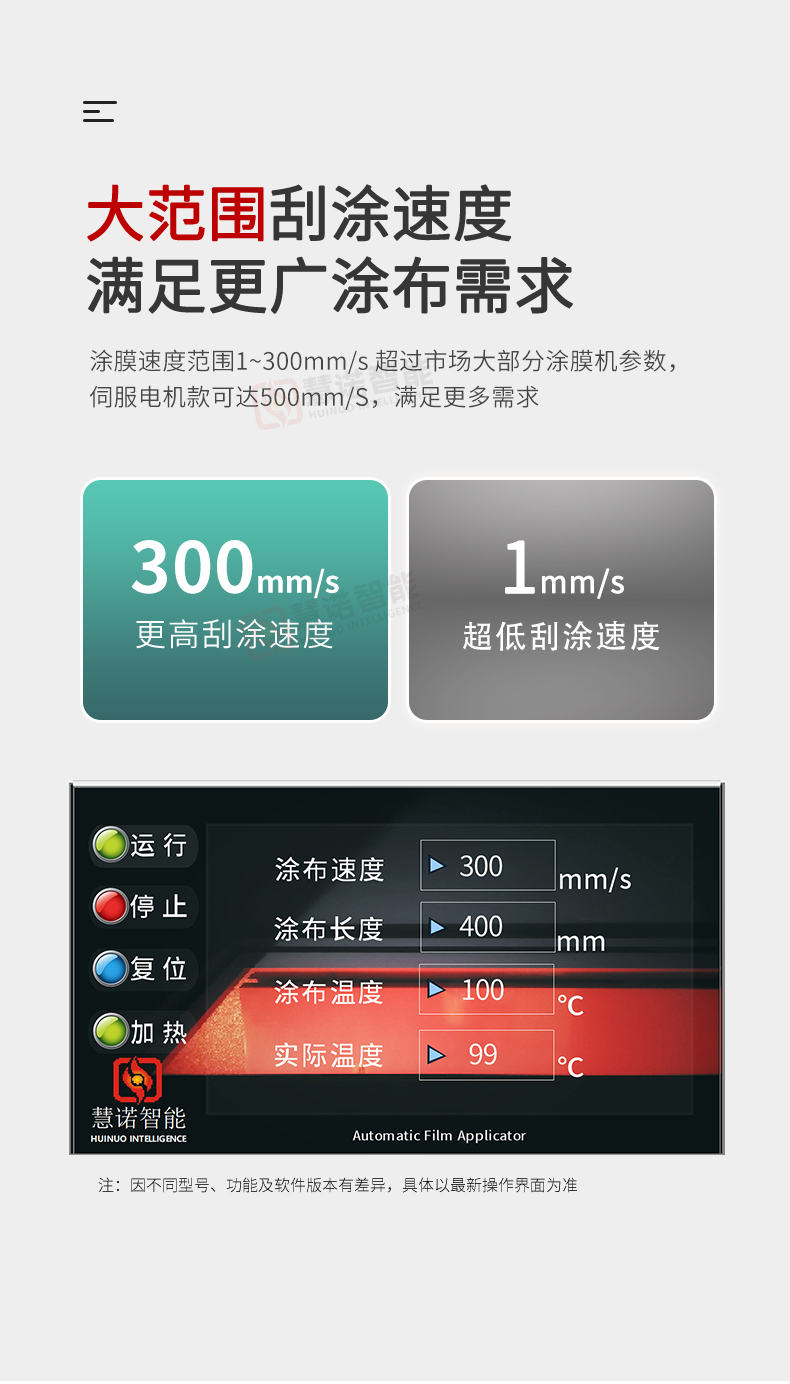

1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method

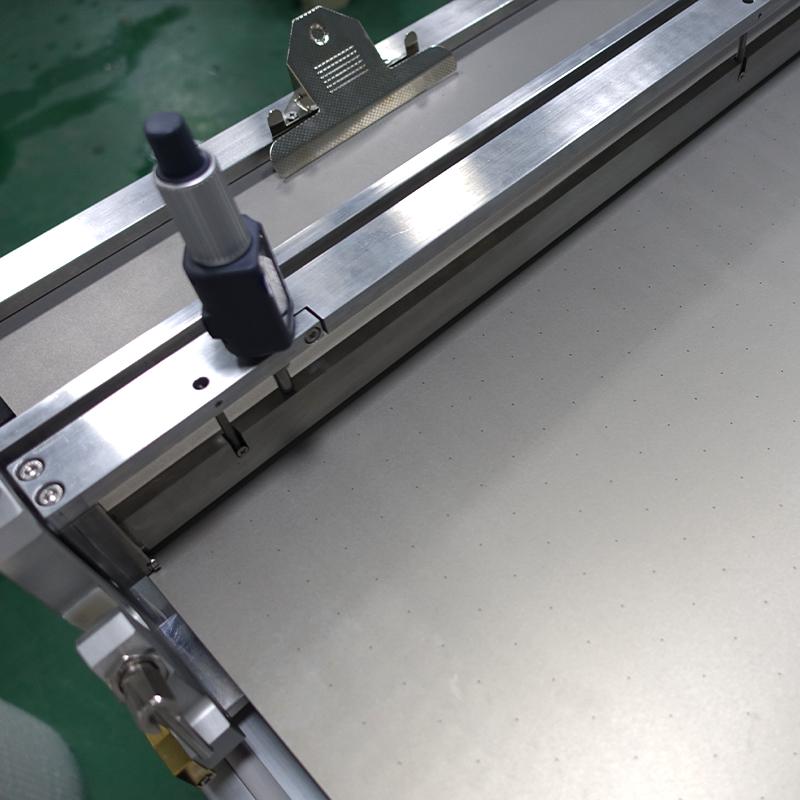

Vacuum adsorption + fixture
Coating table material
Surface hard treatment aluminum alloy
Coating table size
1240*330mm
Effective coating Area
1000 * 300Mm (can be customized)
Mayer Rod Thickness Range
Different bar numbers have different thicknesses, with high-precision imported bars
Mayer Rod Accuracy
±0.003mm
Drawdown blade thickness range
0.1~ 10Mm (clamshell design is easy to clean)
Drawdown blade material
Die steel
Drawdown blade application width
300mm
Drawdown blade Accuracy
±0.003mm
Vacuum Area
1080 * 260Mm (can be customized)
vacuum aperture
Φ0.8mm
Vacuum hole spacing
20*20mm
Pumping Speed
5.4m3/h
Ultimate Vacuum
50KPa
Vacuum Pump Power
180W
Vacuum pump Weight
7.1kg
Drive motor
Servo motor
Power
600w
Operating language
Chinese (can be customized in English)
Display
Color LCD touch screen
Host Power Supply
220V/50HZ (110V/60HZ can be customized)
Dimension
1260*440*940mm
TM3200pro/03D
Automatic Film Applicator
Coating method bar + drawdown blade, effective Spreader area 1000 * 300mm (can be customized), bar Spreader accuracy +/- 0.003mm, drawdown blade application width 300mm, vacuum aperture φ 0.8mm, effective Spreader area 1000 * 300mm (can be customized), drive motor servo motor, Power 600w.

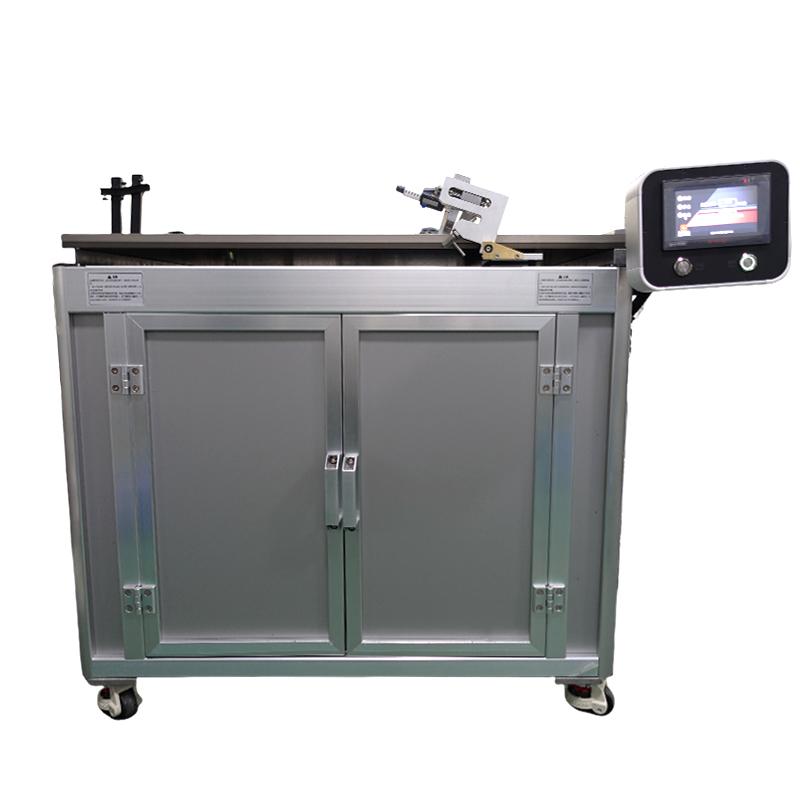

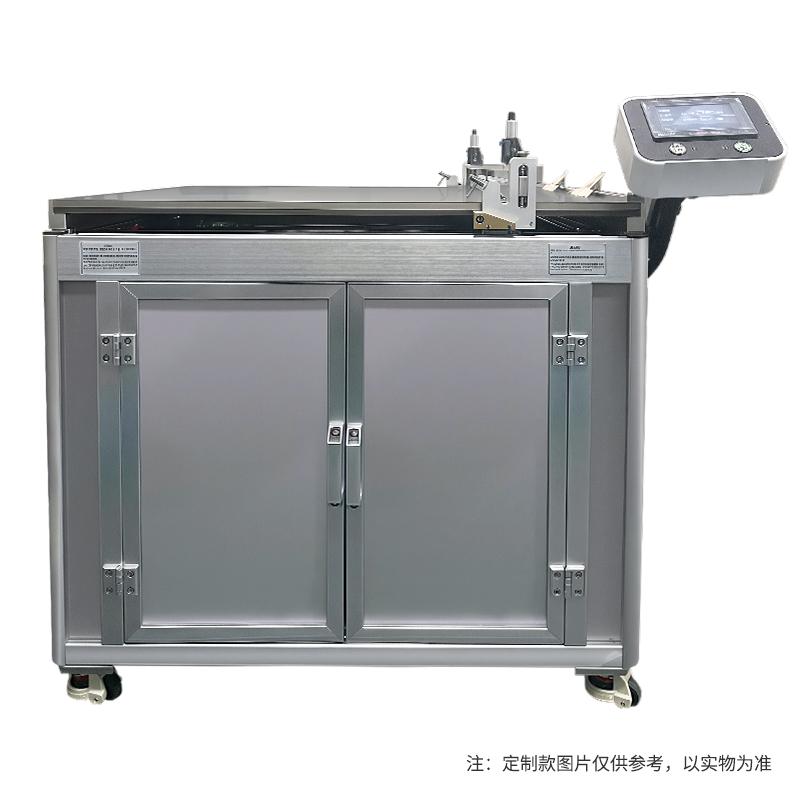

HuiNuo TM3200Pro/03D drawdown Bar & blade vacuum adsorption coater (floor type) Effective area 100cm * 30cm Picture

Overview

The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.

This coating machine is a wire rod doctor blade coating machine, using two coating methods of wire rod and scraper, with vacuum adsorption function, the new type of wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, support speed control and coating length adjustment, suitable for high-precision automatic coating film in the laboratory, in the university research institute, new materials, lithium battery, glue, hot melt adhesive and other laboratories for film proofing.

Product Use:

The film coating machine is suitable for coating samples of coatings, inks, paints, pastes, hot melt adhesives, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, etc., and can be scraped on films, cardboards, aluminum foils and copper foils.

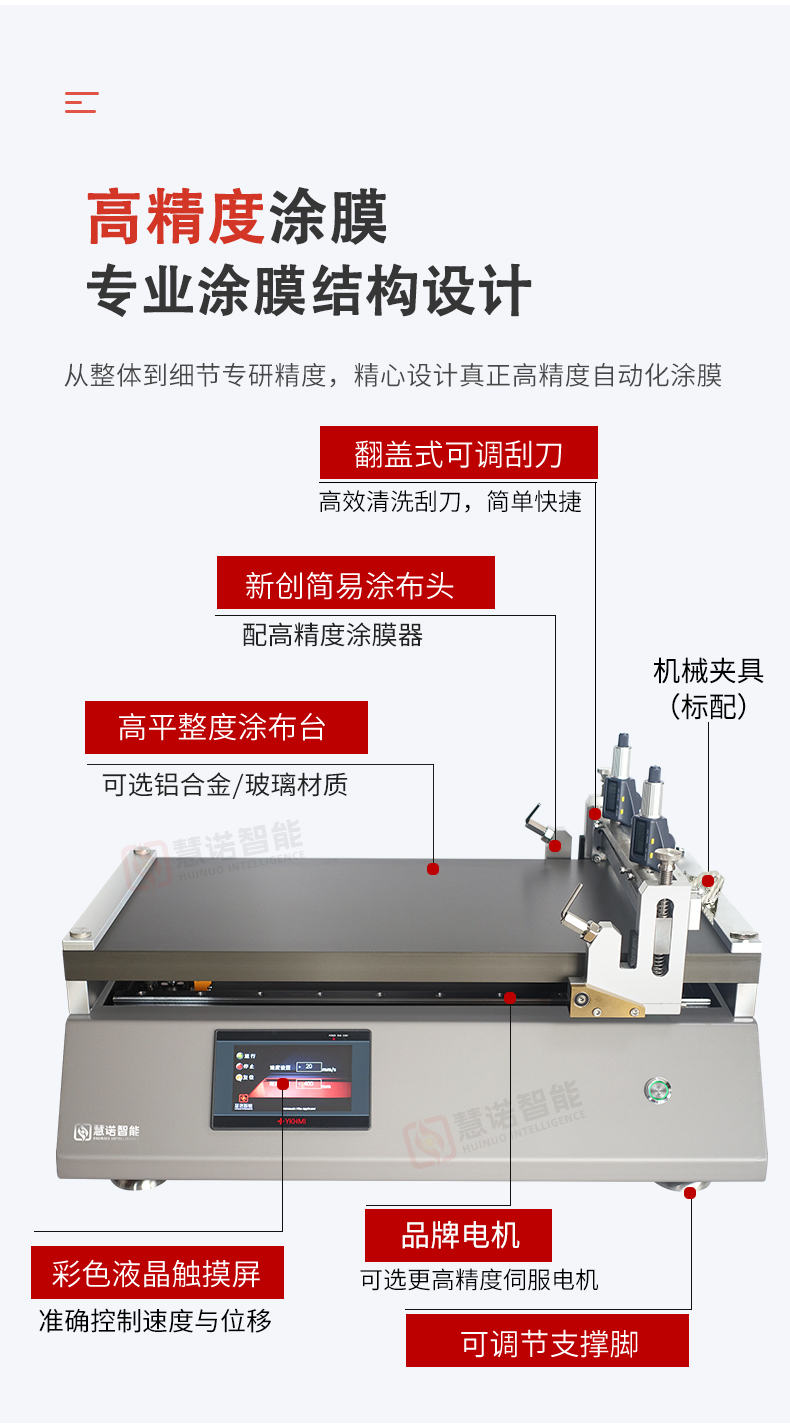

Features

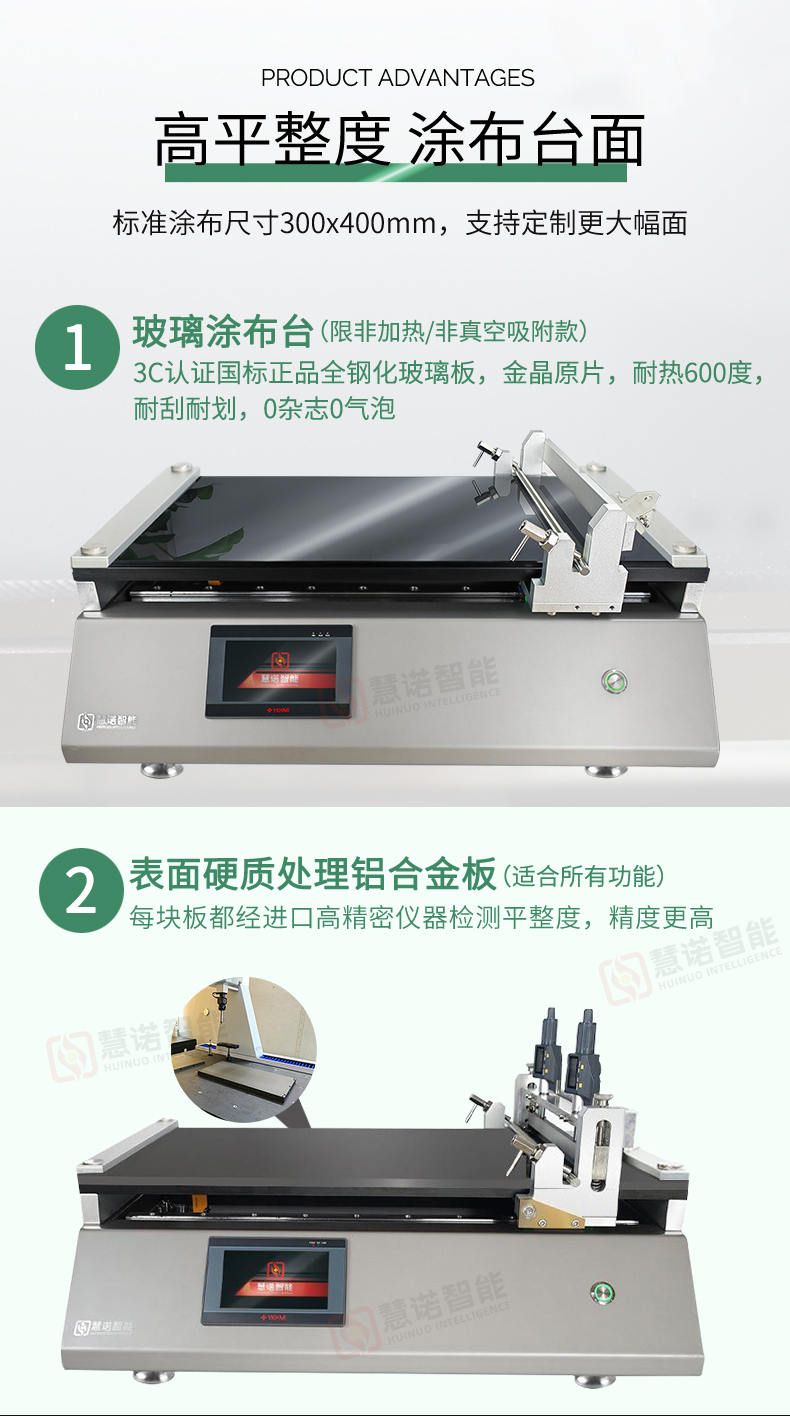

1) The surface is hard treated aluminum alloy table, with high hardness and wear-resistant, and the flatness of the table is tested by imported high-precision instruments

2) Big brand differential regulator, high film thickness control accuracy

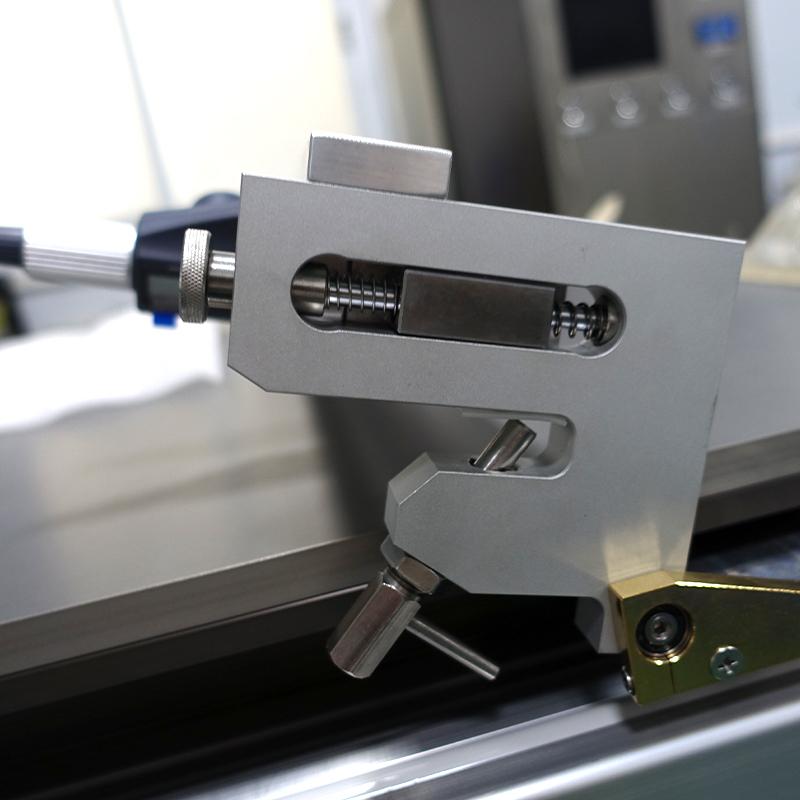

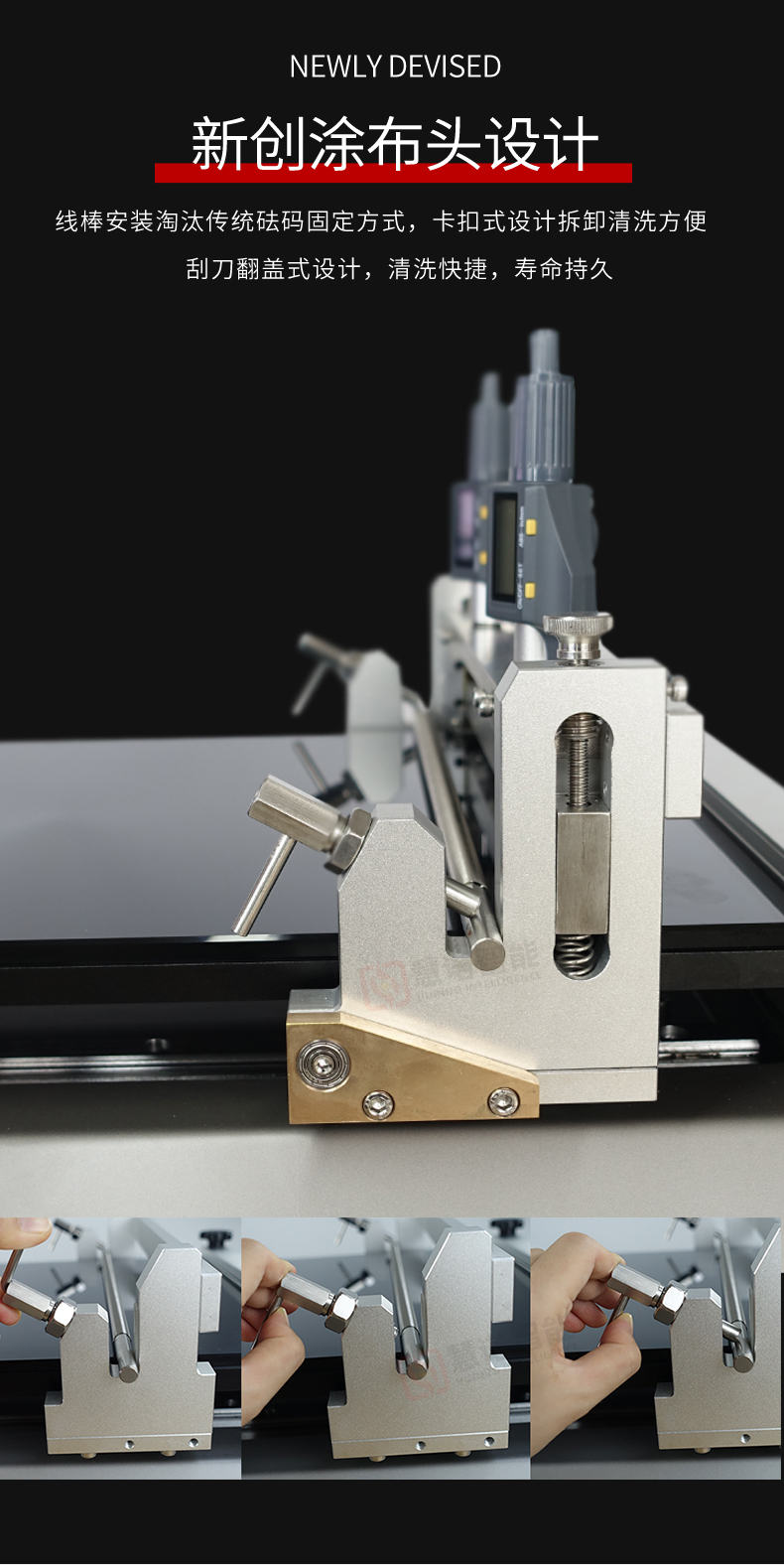

3) Clamshell doctor blade coating head, easy to clean

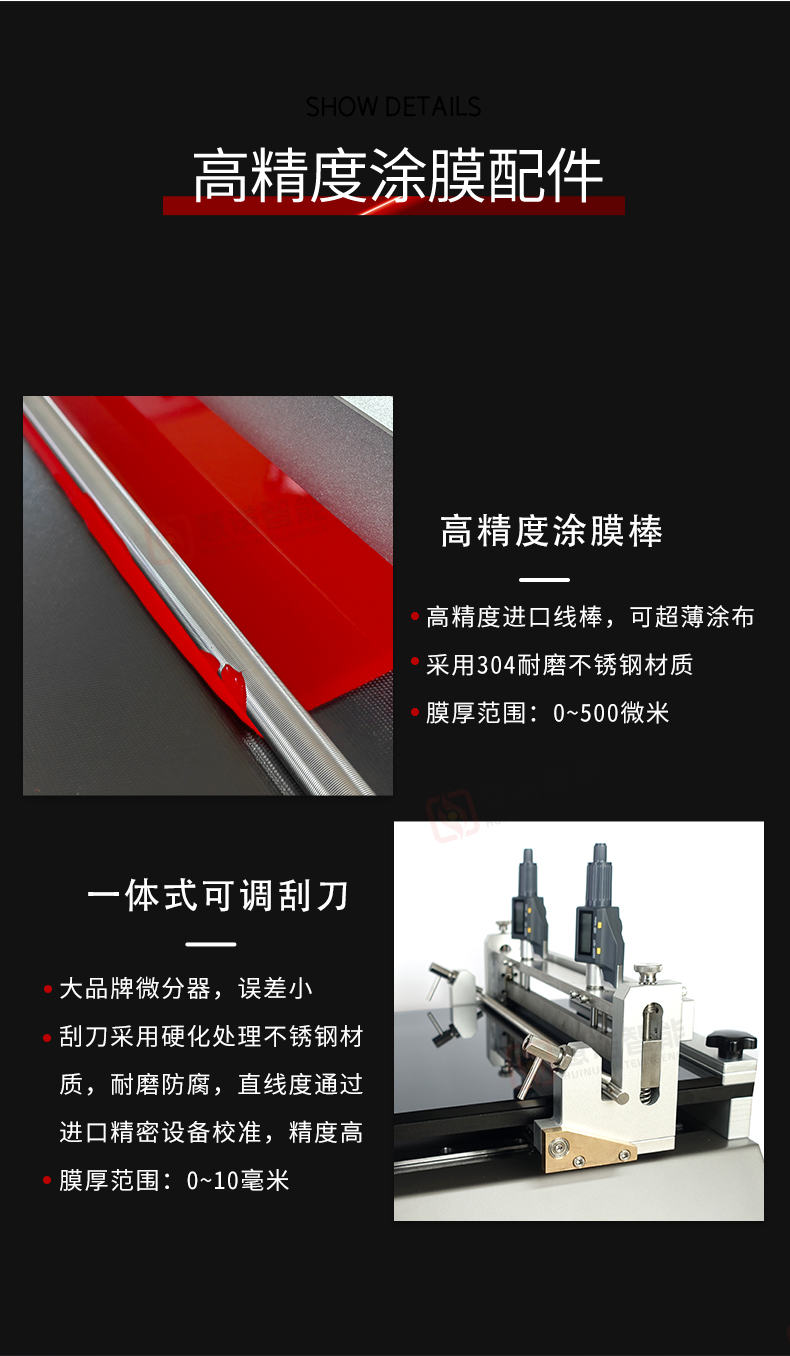

4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision

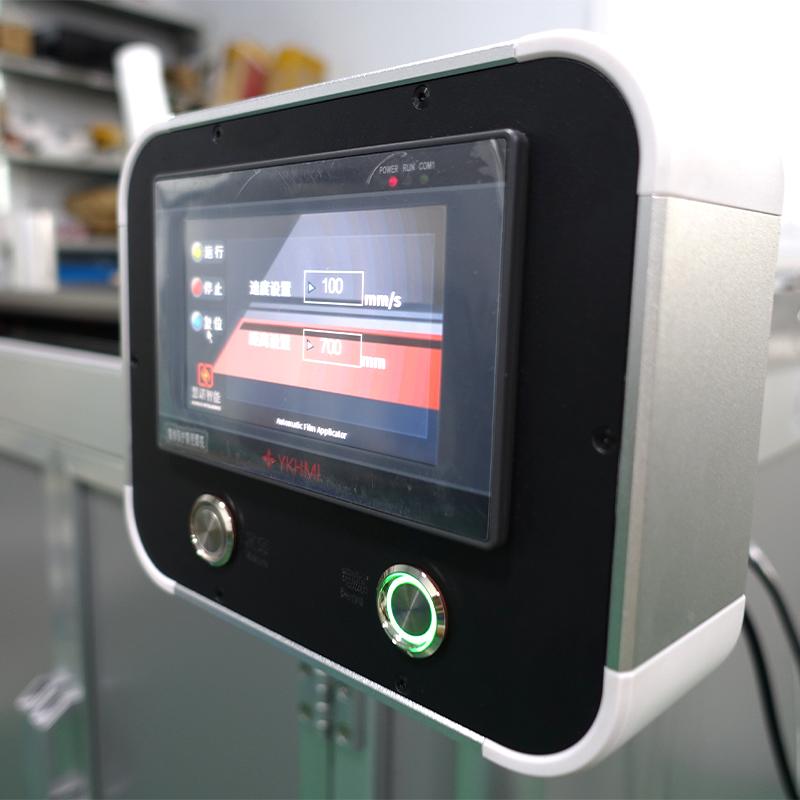

5) Touch screen control panel, easy to operate

6) The coating length and coating speed can be adjusted freely

7) With vacuum adsorption function, it is suitable for coating soft substrates such as films


FAQ
QLaboratory Lithium Battery Diaphragm Spreader, Which Film Applicator is Suitable?
A HuiNuo TM3200Pro/03D Automatic Film Applicator with Vacuum chuck function can firmly fix the film substrate, servo motor control Spreader speed accuracy is high, especially suitable for lithium battery laboratory soft film Spreader needs.
QHot-melt adhesive samples need uniform film test performance, what equipment to choose?
A This film machine translation lid type drawdown blade is particularly convenient to clean, hot-melt adhesive residue is washed, bar and drawdown blade dual mode can flexibly cope with different viscosity samples to ensure film thickness uniformity.

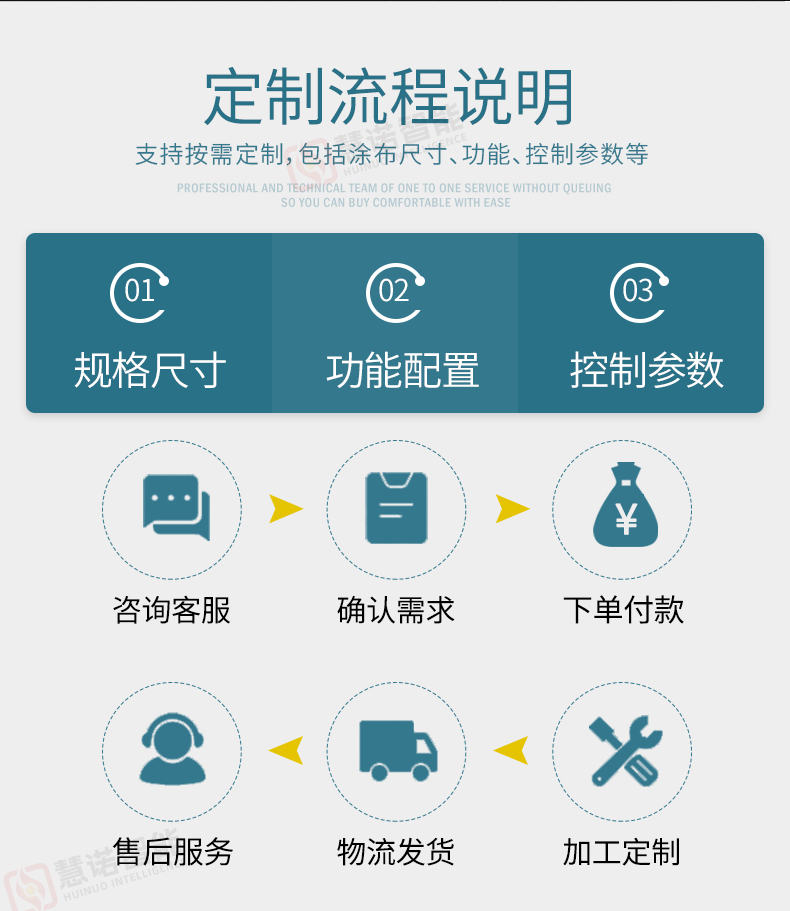

QCan our scraping machine be customized as required?
A Sure.
QCan we customize the scraping machine as required? Film substrate, length 60, width 30, thick in the middle of the film, thin on both sides.
A Can be customized.
