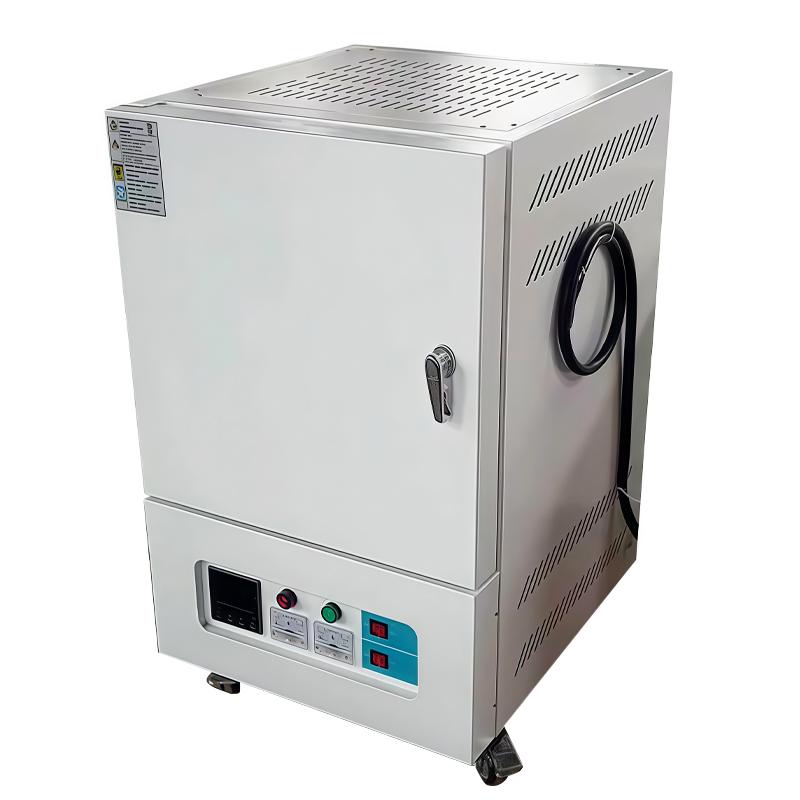

BOZHEN BZ-8-16TP high temperature muffle furnace Resistance Furnace

BZ-8-16TP

High temperature muffle furnace

Limit temperature 1600 ℃, commonly used temperature < 1550 ℃, heating element high quality silicon molybdenum rod, heating rate recommendation: 15-20 ℃/Min, furnace material using 1800 high purity aluminum oxide microcrystalline fiber, furnace size 300 * 150 * 120mm, Thermocouple B type Thermocouple.

Introduction

The BZ-8-16TP high-temperature muffle furnace is a high-temperature equipment with excellent performance. It adopts PID controlled heating and single anti-parallel thyristor control output mode, with digital display instrument, real-time data display is clear and accurate; It has a 30-stage programmable control function, which can flexibly set the temperature rise and fall program, and the temperature control accuracy is up to ±1°C, and the temperature measuring element is a type B thermocouple. The heating element is made of high-quality silicon-molybdenum rods, with uniform temperature field and low energy consumption, and the recommended heating rate is 15 - 20°C/min; The furnace chamber is made of 1800 high-purity alumina microcrystalline fiber, which does not lose powder, has a balanced temperature field and has good heat retention. The double-layer furnace body is designed and equipped with an air cooling system, and the furnace shell is close to room temperature (except for heat dissipation at the top of the furnace) during operation, which is energy-saving and safe; It has multiple protection functions such as over-temperature, couple breaking, and leakage to ensure the safe operation of the equipment; Its energy consumption is only 60% - 80% of that of traditional electric furnaces, it is highly efficient and energy-saving, and the furnace size is 300150120mm, which is suitable for a variety of high-temperature experimental scenarios.

Temperature control instrument

Control mode: PID control temperature rise, single anti-parallel thyristor control output.

Data display: digital display instrument, clear and accurate reflection of timely data.

Temperature curve: 30 stages of programmable control, 30 stages of temperature rise and fall program can be set, and the temperature control accuracy is ± 1 °C.

Temperature Measuring Element: Type B Thermocouple.

Heating elements

Furnace material: 1800 high-purity alumina microcrystalline fiber, no powder, balanced temperature field, good thermal insulation performance.

Heating element: high-quality silicon-molybdenum rod, uniform temperature field, low energy consumption. Recommended heating rate: 15-20°C/min

Functional structure

Shell structure: double-layer furnace body, equipped with air cooling system, to ensure that when the equipment is running, the furnace shell is close to normal temperature (except for heat dissipation at the top of the furnace), which is highly efficient and energy-saving, and avoids accidents.

Temperature control safety: It has the functions of over-temperature protection, couple breaking protection and leakage protection, and the equipment operation is safe and reliable.

High efficiency and energy saving: using advanced design concept, the energy consumption is 60%-80% of the general old electric furnace.

Packing list：machine x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
