Jingyi JY-30C2 Automatic Clamping Oscillating Mixer, Laboratory Sample Stirrer

JY-30C2

Automatic clamping oscillating oil mixer

Oscillation time selection 0-2 hours, suitable for mixing range of 0.5 liters -20 liters barrel paint, applied container pressure 3500N, main motor Power 750W, motor Rotation speed 1400 rpm, Oscillation Frequency 680-710 times/min, suitable for paints tank size h = 80mm-390mm.

Introduction

JY-30C2 Automatic Clamping and Oscillating Oil Mixer is a high-performance sample mixer specially designed for laboratories. It is suitable for all kinds of can/barrel paint mixing of 0.5-20 liters, driven by DC motor, the clamping plate is lifted quickly, and with PLC microcomputer intelligent control, the oscillation time can be set freely for 0-2 hours, which is accurate and durable. The equipment has an automatic clamping function, which can automatically adjust the pressure according to different specifications of the paint barrel to ensure the safety and non-damage of the mixing process; The unique up-down, front-back, front-to-back multi-jitter operation mode achieves high-speed and thorough mixing with an oscillation frequency of 680-710 times/min. The 750W main motor with a speed of 1400 rpm is powerful and supports 110V or 220V Voltage, providing users with an efficient, intelligent, safe and reliable mixing experience whether it is daily sample preparation or scientific research experiments.

Features

• With DC motor, the up and down speed of the clamping plate is accelerated.

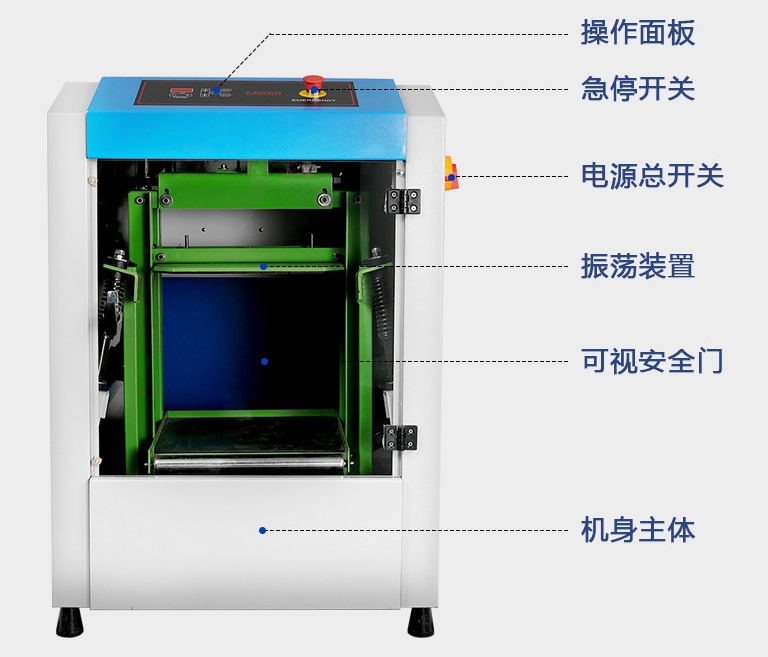

• It is designed and composed of main oscillator, container gland and PLC microcomputer and integrated circuit design, which is suitable for various tanks/barrels of 0.5-20 liters, with a maximum load weight of 35KG.

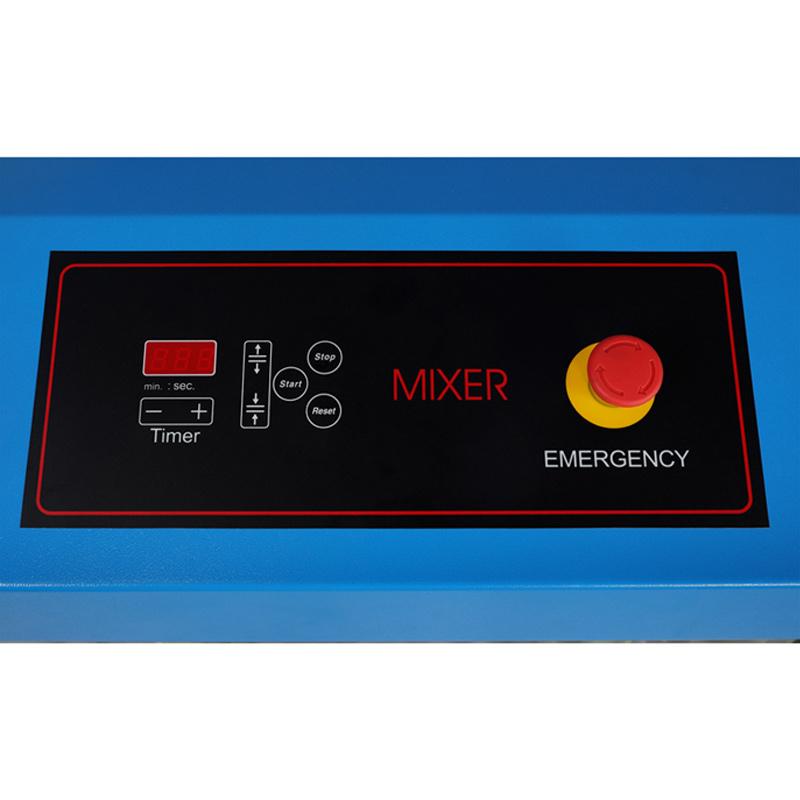

• Using PLC microcomputer control, the mixing time can be arbitrarily selected and adjusted, and the service life is long.

• Automatic clamping. Different pressures can be automatically applied according to different specifications of paint barrels, and there will be no crushing and deflating of paint barrels during operation.

• The high-speed and thorough mixing --- adopts continuous multi-shake operation up and down, front and back.

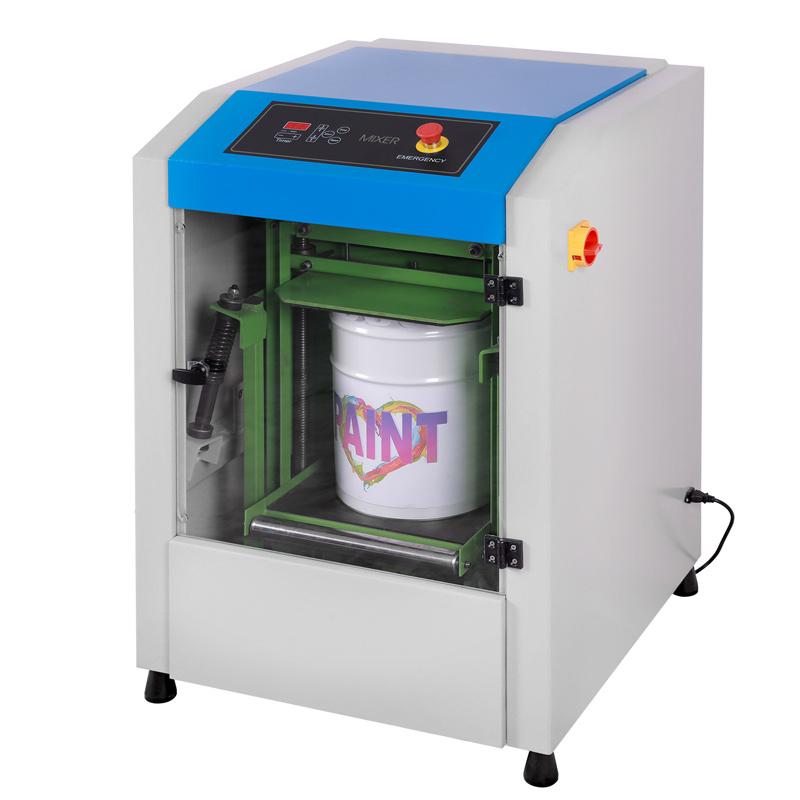

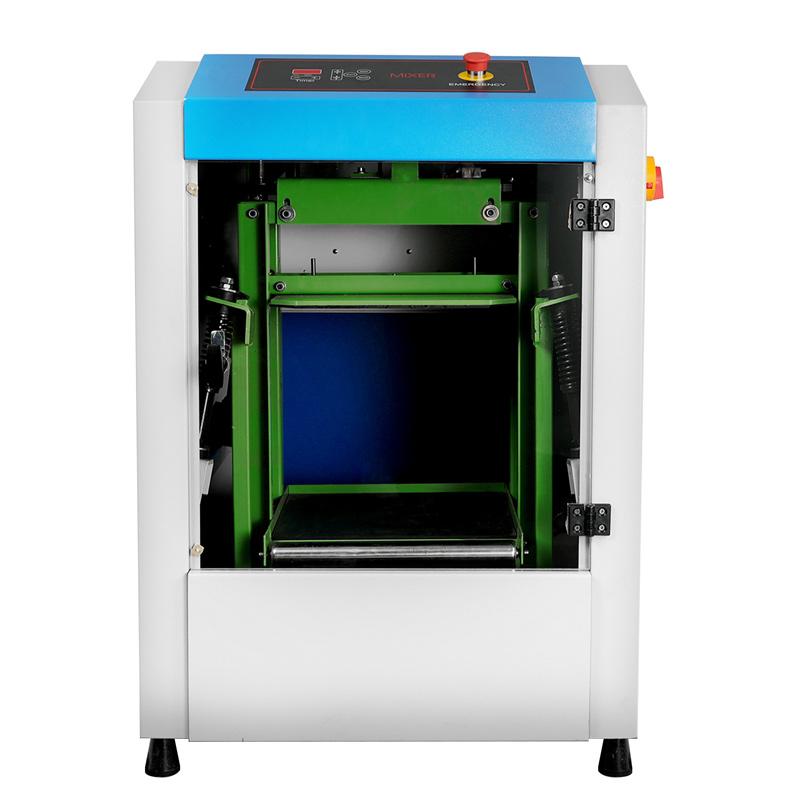

Product images

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
