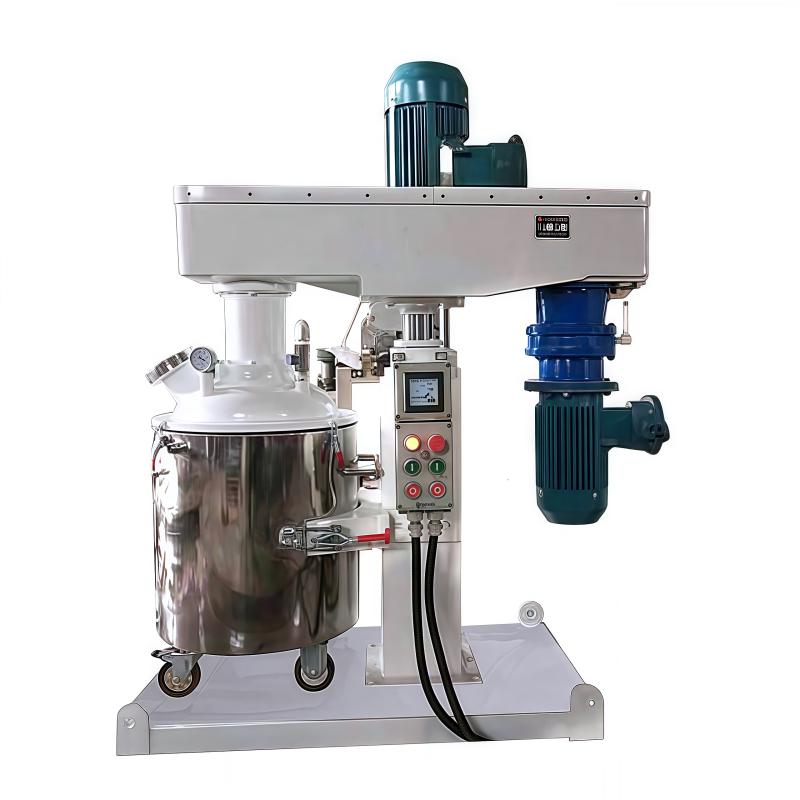

MUXUAN MXF -60L Triaxial Vacuum Electric Heating Stirrer High and Low Speed Vacuum Stirring Mixer, High Viscosity

MXF -60L

Triaxial Vacuum Electric Heating Stirrer

Feeding volume (L) 36, motor Power (KW) low-speed stirring: 2.2, high-speed dispersion: 2.2 * 2, low-speed Rotation speed (rpm) 33, high-speed Rotation speed (rpm) 0~1000, three Stirrer cooperative operation, support vacuum, electric heating and other functions, the material cylinder jacket can be switched between hot and cold.

Introduction

High viscosity three-shaft vacuum electric heating mixer High-low speed vacuum mixer There are three different forms of agitators in the kettle, one of which is rotating around the axis of the kettle, and the remaining two high-speed stirring devices rotate around their own axis at different speeds, so that the material makes complex movements in the kettle, and is subjected to strong shearing and mixing. The Yamagata wall scraper in the equipment rotates around the axis of the kettle body, scraping out the raw materials stuck to the wall and bottom to participate in the mixing, making the effect more reliable. The equipment has good sealing, can be electrically heated (water cooled) and vacuumed, and has a good exhaust defoaming effect. The cylinder head of the powerful dispersing machine can be hydraulically lifted, and the cylinder block can be moved freely, which is very convenient to operate. The form of agitator of the powerful disperser can be multi-layer paddle type, frame type, butterfly type, impeller type, etc. according to the material requirements.

1. The mixer is a kind of high-efficiency, multi-functional, compulsory mixer, which usually adopts the mode of lifting the frame, cylinder head and mixing paddle while the material cylinder moves.

2. The mixer is composed of three motors, the motor in the middle drives the "mountain" shaped scraping and scraping mechanism through the reducer, and the two high-speed motors on the side are directly connected to the high-speed dispersion plate, and the high-speed motor is usually equipped with a frequency converter to regulate the speed to meet the process requirements of various products.

3. The mixer usually adopts thickened steel plate and special sealing structure to adapt to the occasion of Vacuum Pumping and pressurization.

4. The mixer can usually be configured with multiple movable tanks, which are usually designed with a jacket structure to achieve heating or cooling

5. The mixer is usually equipped with a series of hydraulic extruders to realize the extrusion of materials. (trapezoidal) soft seal between the mechanical seal and the kettle body, so that the material can be operated under vacuum; The equipment kettle cover can be hydraulically lifted, the cylinder can be moved freely, the operation is very convenient, in the face of high viscosity material production, will be customized for you to match the hydraulic extruder, only need to move the cylinder to the extruder, extrusion discharge, easy operation, high efficiency.

Features

• The kettle body adopts a unique seal, so that the material can be mixed and stirred under vacuum, and the air bubbles are completely eliminated

• The kettle body can be electrically heated, steam heated and heated by oil-water circulation. The jacketed inner coil allows for cooling. The middle frame agitator has a scraping shaft, which can scrape the wall at the same time. Make the material achieve better mixing effect

• The inner wall of the kettle is finished by a large vertical lathe to ensure that the movable scraper completely scrapes off the material on the inner wall and bottom of the kettle when rotating

• The dispersers of two sets of high-speed dispersion shafts in the kettle make all kinds of materials be sheared and dispersed and mixed by strong columns, and the effect is several times that of ordinary mixers

• The high-speed disperser in the kettle adopts frequency conversion speed regulation, and different speeds can be selected according to different processes and different viscosities

Scope of application

Production capacity: 1-5000L

Application field: multi-component solid-solid-liquid, solid-liquid, liquid-liquid phase material mixing, reaction, dispersion, dissolution, quenching and tempering process, such as adhesive, sealant, mold glue, silicone sealant, silicone gel, polyurethane sealant, anaerobic adhesive, sealant, occlusion, ointment, electronic electrode paste, lithium-ion battery slurry, adhesive, pigment, ink, ointment paste material, grease, paint, paste cosmetics, additives and other high viscosity preparation, laboratory mixer is only used for experimental small batch trial production.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
